Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0235.800MXPFUSE GLASS 800MA 250VAC 5X20MM |
1,538 |
|
Datasheet |
235 | Bulk | Active | Requires Holder | Cartridge, Glass | 800 mA | 250 V | - | Fast Blow | 35A | 0.253 | CE, CSA, KC, UL | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0287005.LFUSE AUTO 5A 32VDC BLADE ATO/ATC |
1,429 |
|
Datasheet |
ATOF® | Box | Active | Requires Holder | Automotive | 5 A | - | 32 V | - | 1kA | 26.0 | UL | -40°C ~ 105°C | Tan | 0.752" L x 0.201" W x 0.484" H (19.10mm x 5.10mm x 12.30mm) | |
|

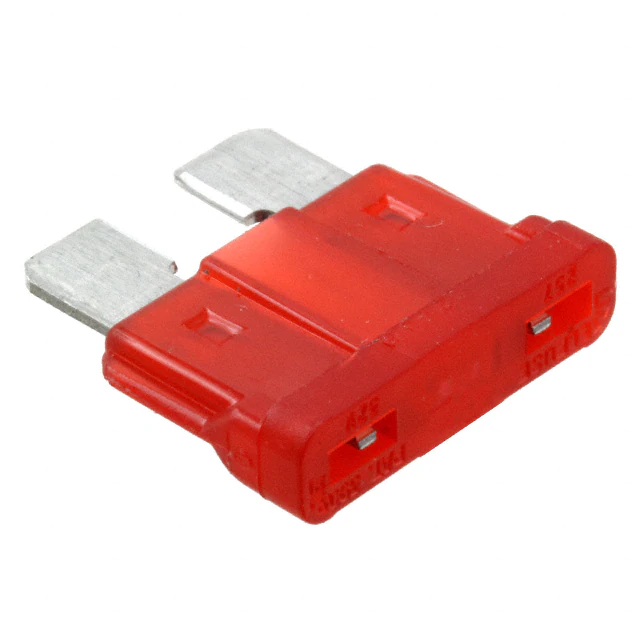

0287010.LFUSE AUTO 10A 32VDC BLADE ATO |
1,399 |
|
Datasheet |
ATOF® | Box | Active | Requires Holder | Automotive | 10 A | - | 32 V | - | - | 115.0 | UL | -40°C ~ 105°C | Red | 0.752" L x 0.201" W x 0.484" H (19.10mm x 5.10mm x 12.30mm) | |
|
TR/0603FA3-RFUSE BRD MNT 3A 32VAC 32VDC 0603 |
47,778 |
|
Datasheet |
CHIP™ 0603FA | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 3 A | 32 V | 32 V | Fast Blow | 35A | 0.0699 | CSA, UL | -55°C ~ 125°C | - | 0.063" L x 0.032" W x 0.019" H (1.60mm x 0.81mm x 0.48mm) | |
|
5HT 5-RFUSE CERAMIC 5A 250VAC 5X20MM |
43,520 |
|
Datasheet |
5HT | Bulk | Active | Requires Holder | Cartridge, Ceramic | 5 A | 250 V | - | Slow Blow | 1.5kA | 101.0 | CCC, CE, CSA, cURus, IMQ, PSE, SEMKO, VDE | -55°C ~ 125°C | - | 0.201" Dia x 0.787" L (5.10mm x 20.00mm) | |
.jpg)
|
MFU0805FF02000P100FUSE BOARD MOUNT 2A 32VDC 0805 |
38,990 |
|
Datasheet |
MFU | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 2 A | - | 32 V | Fast Blow | 50A | 0.0101 | UL | -55°C ~ 125°C | - | 0.079" L x 0.049" W x 0.018" H (2.00mm x 1.25mm x 0.45mm) | |
|
|
5HT 2-RFUSE CERAMIC 2A 250VAC 5X20MM |
30,924 |
|
Datasheet |
5HT | Bulk | Active | Requires Holder | Cartridge, Ceramic | 2 A | 250 V | - | Slow Blow | 1.5kA | 9.7 | CCC, CE, CSA, cURus, IMQ, PSE, SEMKO, VDE | -55°C ~ 125°C | - | 0.201" Dia x 0.787" L (5.10mm x 20.00mm) | |
|
|
MFU0805FF03000P100FUSE BOARD MOUNT 3A 32VDC 0805 |
21,246 |
|
Datasheet |
MFU | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 3 A | - | 32 V | Fast Blow | 50A | 0.0227 | UL | -55°C ~ 125°C | - | 0.079" L x 0.049" W x 0.018" H (2.00mm x 1.25mm x 0.45mm) | |
|
SF-0603FP500F-2FUSE BRD MNT 5A 24VAC/35VDC 0603 |
7,674 |
|
Datasheet |
SinglFuse™ SF-0603FPxxxF | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 5 A | 24 V | 35 V | Fast Blow | 50A AC, 35A DC | 1.1 | UL | -55°C ~ 90°C | - | 0.063" L x 0.032" W x 0.012" H (1.60mm x 0.81mm x 0.30mm) | |
|
|
5HT 4-RFUSE CERAMIC 4A 250VAC 5X20MM |
5,368 |
|
Datasheet |
5HT | Bulk | Active | Requires Holder | Cartridge, Ceramic | 4 A | 250 V | - | Slow Blow | 1.5kA | 56.0 | CCC, CE, CSA, cURus, IMQ, PSE, SEMKO, VDE | -55°C ~ 125°C | - | 0.201" Dia x 0.787" L (5.10mm x 20.00mm) | |
|
|
SF-0603FP0375F-2FUSE BRDMT 375MA 65VAC/65DC 0603 |
4,421 |
|
Datasheet |
SinglFuse™ SF-0603FPxxxF | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 375 mA | 65 V | 65 V | Fast Blow | 13A AC, 50A DC | 0.004 | UL | -55°C ~ 90°C | - | 0.063" L x 0.032" W x 0.012" H (1.60mm x 0.81mm x 0.30mm) | |
|
SF-1206S080-2FUSE BOARD MNT 800MA 63VDC 1206 |
2,847 |
|
Datasheet |
SinglFuse™ SF-1206S | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 800 mA | - | 63 V | Slow Blow | 50A | 0.068 | UL | -20°C ~ 105°C | - | 0.122" L x 0.061" W x 0.024" H (3.10mm x 1.55mm x 0.60mm) | |
|
|
5HT 2.5-RFUSE CERAMIC 2.5A 250VAC 5X20MM |
2,279 |
|
Datasheet |
5HT | Bulk | Active | Requires Holder | Cartridge, Ceramic | 2.5 A | 250 V | - | Slow Blow | 1.5kA | 17.0 | CCC, CE, CSA, cURus, IMQ, PSE, SEMKO, VDE | -55°C ~ 125°C | - | 0.201" Dia x 0.787" L (5.10mm x 20.00mm) | |
|
|
5HT 1.25-RFUSE CERAMIC 1.25A 250VAC 5X20MM |
2,126 |
|
Datasheet |
5HT | Bulk | Active | Requires Holder | Cartridge, Ceramic | 1.25 A | 250 V | - | Slow Blow | 1.5kA | 3.0 | CCC, CE, CSA, cURus, IMQ, PSE, SEMKO, VDE | -55°C ~ 125°C | - | 0.201" Dia x 0.787" L (5.10mm x 20.00mm) | |
|
3412.0121.22FUSE BRD MNT 3A 32VAC 63VDC 0603 |
73,869 |
|
Datasheet |
USF 0603 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 3 A | 32 V | 63 V | Fast Blow | 50A | 0.58 | cURus | -55°C ~ 90°C | - | 0.063" L x 0.031" W x 0.024" H (1.60mm x 0.80mm x 0.60mm) | |
|
0001.2513FUSE CERM 8A 250VAC 150VDC 5X20 |
51,992 |
|
Datasheet |
SPT 5x20 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 8 A | 250 V | 150 V | Slow Blow | 1kA AC, 1.5kA DC | 268.0 | cURus, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
3405.0166.24FUSE BRD MT 1A 250VAC 125VDC SMD |
28,813 |
|
Datasheet |
UMF 250 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1 A | 250 V | 125 V | Fast Blow | 200A | 0.4 | cURus, VDE | -55°C ~ 125°C | - | 0.398" L x 0.118" W x 0.118" H (10.10mm x 3.00mm x 3.00mm) | |
|
|
0001.2510FUSE CERM 4A 250VAC 150VDC 5X20 |
13,290 |
|
Datasheet |
SPT 5x20 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 4 A | 250 V | 150 V | Slow Blow | 1.5kA | 62.4 | CCC, cURus, KC, PSE/JET, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0001.2505FUSE CERM 1.25A 250VAC 300VDC |
10,413 |
|
Datasheet |
SPT 5x20 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 1.25 A | 250 V | 300 V | Slow Blow | 1.5kA | 1.86 | CCC, cURus, KC, PSE/JET, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0001.2515FUSE CERM 12.5A 250VAC 125VDC |
10,048 |
|
Datasheet |
SPT 5x20 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 12.5 A | 250 V | 125 V | Slow Blow | 500A AC, 1.5kA DC | 563.0 | cURus, PSE/JET, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) |
