Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
016001.5MRFUSE BOARD MNT 1.5A 250VAC 2SMD |
1,512 |
|
Datasheet |
NANO²® 160 | Tape & Reel (TR) | Active | Requires Holder, Surface Mount | Board Mount (Cartridge Style Excluded) | 1.5 A | 250 V | - | Slow Blow | 50A | 15.21 | cULus | -55°C ~ 125°C | - | 0.429" L x 0.189" W x 0.189" H (10.90mm x 4.80mm x 4.80mm) | |
 Series.jpg)
|
BK/PCB-2-RFUSE BRD MT 2A 250VAC 450VDC RAD |
431 |
|
Datasheet |
PC-Tron® | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 2 A | 250 V | 450 V | Fast Blow | 50A AC, 5.9kA DC | 0.2 | CSA, UL | - | - | 0.350" L x 0.184" W x 0.345" H (8.89mm x 4.67mm x 8.76mm) | |
|
015401.5DRTFUSE BRD MNT 1.5A 125VAC/VDC SMD |
6,300 |
|
Datasheet |
OMNI-BLOK® 154T | Tape & Reel (TR) | Active | Requires Holder, Surface Mount | Board Mount (Cartridge Style Excluded) | 1.5 A | 125 V | 125 V | Slow Blow | 50A | 3.65 | PSE, UL | -55°C ~ 125°C | - | 0.383" L x 0.198" W x 0.150" H (9.73mm x 5.03mm x 3.81mm) | |
|
|
0160001.MRFUSE BOARD MOUNT 1A 250VAC 2SMD |
1,948 |
|
Datasheet |
NANO²® 160 | Tape & Reel (TR) | Active | Requires Holder, Surface Mount | Board Mount (Cartridge Style Excluded) | 1 A | 250 V | - | Slow Blow | 50A | 9.0 | cULus | -55°C ~ 125°C | - | 0.429" L x 0.189" W x 0.189" H (10.90mm x 4.80mm x 4.80mm) | |
|
|
0160002.MRFUSE BOARD MOUNT 2A 250VAC 2SMD |
1,413 |
|
Datasheet |
NANO²® 160 | Tape & Reel (TR) | Active | Requires Holder, Surface Mount | Board Mount (Cartridge Style Excluded) | 2 A | 250 V | - | Slow Blow | 50A | 18.5 | cULus | -55°C ~ 125°C | - | 0.429" L x 0.189" W x 0.189" H (10.90mm x 4.80mm x 4.80mm) | |
|
0157.500DRTFUSE BRD MT 500MA 125VAC/VDC SMD |
1,860 |
|
Datasheet |
NANO²® 157T | Tape & Reel (TR) | Active | Requires Holder, Surface Mount | Board Mount (Cartridge Style Excluded) | 500 mA | 125 V | 125 V | Slow Blow | 50A | 0.24 | cULus | -55°C ~ 125°C | - | 0.256" L x 0.146" W x 0.154" H (6.50mm x 3.70mm x 3.90mm) | |
|
BK/MDA-V-30-RFUSE CERM 30A 250VAC 125VDC 3AB |
775 |
|
Datasheet |
MDA | Bulk | Active | Through Hole | Cartridge, Ceramic | 30 A | 250 V | 125 V | Slow Blow | 1.5kA AC, 10kA DC | 1096.7 | CE, CSA, UL | - | Black | 0.266" Dia x 1.292" L (6.76mm x 32.82mm) | |
|
|
0154.500DRTFUSE BRD MT 500MA 125VAC/VDC SMD |
9,889 |
|
Datasheet |
OMNI-BLOK® 154T | Tape & Reel (TR) | Active | Requires Holder, Surface Mount | Board Mount (Cartridge Style Excluded) | 500 mA | 125 V | 125 V | Slow Blow | 50A | 0.24 | UL | -55°C ~ 125°C | - | 0.383" L x 0.198" W x 0.150" H (9.73mm x 5.03mm x 3.81mm) | |
|
0999040.ZXNFUSE AUTO 40A 58VDC BLADE MAX |
984 |
|
Datasheet |
MAXI® | Bulk | Active | Requires Holder | Automotive | 40 A | - | 58 V | Slow Blow | 1kA | 8450.0 | - | -40°C ~ 125°C | Orange | 1.150" L x 0.348" W x 0.850" H (29.21mm x 8.85mm x 21.59mm) | |
|
|
0154.375DRTFUSE BRD MT 375MA 125VAC/VDC SMD |
1,407 |
|
Datasheet |
OMNI-BLOK® 154T | Tape & Reel (TR) | Active | Requires Holder, Surface Mount | Board Mount (Cartridge Style Excluded) | 375 mA | 125 V | 125 V | Slow Blow | 50A | 0.101 | UL | -55°C ~ 125°C | - | 0.383" L x 0.198" W x 0.150" H (9.73mm x 5.03mm x 3.81mm) | |
|
|
0160005.MRFUSE BOARD MOUNT 5A 250VAC 2SMD |
2,816 |
|
Datasheet |
NANO²® 160 | Tape & Reel (TR) | Active | Requires Holder, Surface Mount | Board Mount (Cartridge Style Excluded) | 5 A | 250 V | - | Slow Blow | 50A | 122.39 | cULus | -55°C ~ 125°C | - | 0.429" L x 0.189" W x 0.189" H (10.90mm x 4.80mm x 4.80mm) | |
|
0505010.MXPFUSE CERM 10A 450VAC 250VDC 3AB |
702 |
|
Datasheet |
505 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 10 A | 450 V | 250 V | Fast Blow | 20kA AC, 1kA DC | 91.0 | CE, cULus, SEMKO | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
0ADAC0500-BEFUSE CERM 500MA 600VAC/VDC 3AB |
10,828 |
|
Datasheet |
0ADAC | Bulk | Active | Requires Holder | Cartridge, Ceramic | 500 mA | 600 V | 600 V | Fast Blow | 10kA | 0.041 | cURus | -55°C ~ 125°C | - | 0.250" Dia x 1.252" L (6.35mm x 31.80mm) | |
|
153.5631.5401FUSE AUTO 40A 32VDC AUTO LINK |
973 |
|
Datasheet |
BF1 | Bulk | Active | Bolt Mount | Automotive | 40 A | - | 32 V | Slow Blow | 2kA | 6800.0 | ISO, UL | - | Green | 0.630" L x 0.472" W x 0.323" H (16.00mm x 12.00mm x 8.20mm) | |
|
142.5631.5502FUSE AUTO 50A 58VDC AUTO LINK |
1,182 |
|
Datasheet |
BF1 | Bulk | Active | Bolt Mount | Automotive | 50 A | - | 58 V | Slow Blow | 1kA | 6900.0 | cUL | - | Red | 0.630" L x 0.472" W x 0.323" H (16.00mm x 12.00mm x 8.20mm) | |
|
0885002.DRFUSE BOARD MOUNT 2A 500VDC 2SMD |
4,767 |
|
Datasheet |
NANO²® 885 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 2 A | - | 500 V | - | 100A | 4.7 | cURus, TUV | -40°C ~ 85°C | - | 0.428" L x 0.188" W x 0.188" H (10.86mm x 4.78mm x 4.78mm) | |
|
1025HC40-RTRFUSE BRD MT 40A 250VAC 72VDC SMD |
4,443 |
|
Datasheet |
1025HC | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 40 A | 250 V | 72 V | Fast Blow | 300A AC, 500A DC | 400.0 | cURus | -55°C ~ 125°C | - | 0.177" Dia x 0.488" L (4.50mm x 12.40mm) | |
|
0451.062MRLFUSE BRD MNT 62MA 125VAC/VDC SMD |
956 |
|
- |
NANO²® 451 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 62 mA | 125 V | 125 V | Fast Blow | 50A | 1.9E-4 | CSA, UL | -55°C ~ 125°C | - | 0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm) | |
|

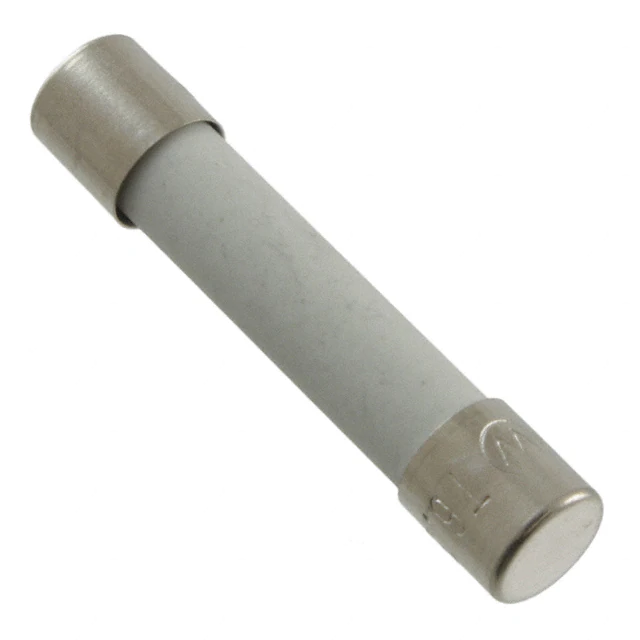

35821000029FUSE CERAMIC 10A 500VAC 3AB 3AG |
340 |
|
Datasheet |
358 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 10 A | 500 V | - | Slow Blow | 1.5kA | 500.0 | cULus | -25°C ~ 85°C | - | 0.248" Dia x 1.260" L (6.30mm x 32.00mm) | |
|
|
0885005.DRFUSE BOARD MOUNT 5A 450VDC 2SMD |
3,683 |
|
Datasheet |
NANO²® 885 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 5 A | - | 450 V | - | 100A | 35.0 | cURus, TUV | -40°C ~ 85°C | - | 0.428" L x 0.188" W x 0.188" H (10.86mm x 4.78mm x 4.78mm) |
