Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BK/MDA-20-RFUSE CERM 20A 250VAC 125VDC 3AB |
1,024 |
|
Datasheet |
MDA | Bulk | Active | Requires Holder | Cartridge, Ceramic | 20 A | 250 V | 125 V | Slow Blow | 1.5kA AC, 10kA DC | 483.45 | CE, CSA, UL | - | Black | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
0451.100MRLFUSE BRD MT 100MA 125VAC/VDC SMD |
4,046 |
|
- |
NANO²® 451 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 100 mA | 125 V | 125 V | Fast Blow | 50A | 0.00138 | CSA, UL | -55°C ~ 125°C | - | 0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm) | |
|
0154010.DRFUSE BRD MNT 10A 125VAC/VDC 2SMD |
10,801 |
|
Datasheet |
OMNI-BLOK® 154 | Tape & Reel (TR) | Active | Requires Holder, Surface Mount | Board Mount (Cartridge Style Excluded) | 10 A | 125 V | 125 V | Fast Blow | 35A AC, 50A DC | 26.46 | PSE, UL | -55°C ~ 125°C | - | 0.383" L x 0.198" W x 0.150" H (9.73mm x 5.03mm x 3.81mm) | |
|
0157010.DRFUSE BRD MNT 10A 125VAC/VDC 2SMD |
5,465 |
|
Datasheet |
NANO²® 157 | Tape & Reel (TR) | Active | Requires Holder, Surface Mount | Board Mount (Cartridge Style Excluded) | 10 A | 125 V | 125 V | Fast Blow | 35A AC, 50A DC | 26.46 | cULus, PSE | -55°C ~ 125°C | - | 0.256" L x 0.146" W x 0.154" H (6.50mm x 3.70mm x 3.90mm) | |
|
0460001.URFUSE BRD MNT 1A 125VAC/VDC 2SMD |
3,229 |
|
Datasheet |
PICO® 460 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1 A | 125 V | 125 V | Slow Blow | 50A | 2.01 | CSA, PSE, UL | -55°C ~ 125°C | - | 0.285" L x 0.170" W x 0.120" H (7.24mm x 4.32mm x 3.05mm) | |
|
|
0460004.URFUSE BRD MNT 4A 125VAC/VDC 2SMD |
1,753 |
|
Datasheet |
PICO® 460 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 4 A | 125 V | 125 V | Slow Blow | 50A | 35.0 | CSA, PSE, UL | -55°C ~ 125°C | - | 0.285" L x 0.170" W x 0.120" H (7.24mm x 4.32mm x 3.05mm) | |
|
|
0451.160MRLFUSE BRD MT 160MA 125VAC/VDC SMD |
2,920 |
|
- |
NANO²® 451 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 160 mA | 125 V | 125 V | Fast Blow | 50A | 0.0048 | CSA, UL | -55°C ~ 125°C | - | 0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm) | |
|

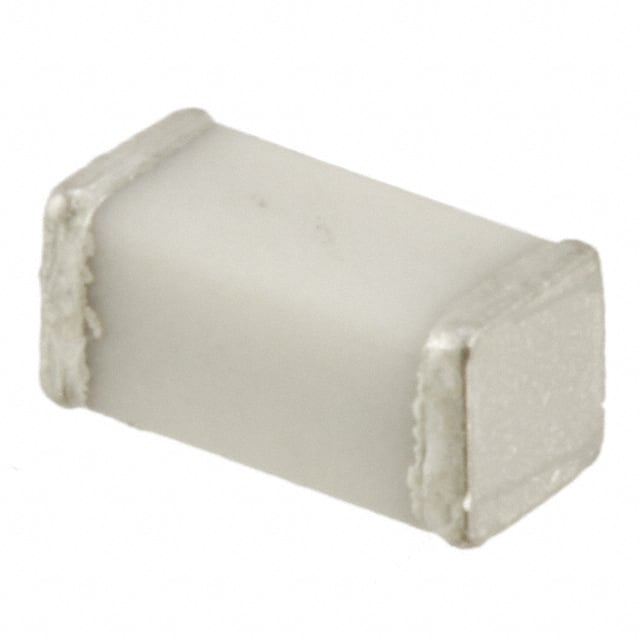

3410.0240.01FUSE BRD MNT 4A 63VAC 125VDC SMD |
429 |
|
Datasheet |
MGA | Bulk | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 4 A | 63 V | 125 V | Fast Blow | 50A | 0.23 | cURus | -55°C ~ 150°C | - | 0.126" L x 0.061" W x 0.061" H (3.20mm x 1.55mm x 1.55mm) | |
|
0216.050MXEPFUSE CERAMIC 50MA 250VAC 5X20MM |
3,285 |
|
Datasheet |
216 | Bulk | Active | Through Hole | Cartridge, Ceramic | 50 mA | 250 V | - | Fast Blow | 1.5kA | 1.9E-4 | CCC, CE, CSA, SEMKO, UR, VDE | -55°C ~ 125°C | - | 0.236" Dia x 0.886" L (6.00mm x 22.50mm) | |
|
|
0460002.URFUSE BRD MNT 2A 125VAC/VDC 2SMD |
2,348 |
|
Datasheet |
PICO® 460 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 2 A | 125 V | 125 V | Slow Blow | 50A | 7.6 | CSA, PSE, UL | -55°C ~ 125°C | - | 0.285" L x 0.170" W x 0.120" H (7.24mm x 4.32mm x 3.05mm) | |
|
|
0460005.URFUSE BRD MNT 5A 125VAC/VDC 2SMD |
1,909 |
|
Datasheet |
PICO® 460 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 5 A | 125 V | 125 V | Slow Blow | 50A | 54.8 | CSA, PSE, UL | -55°C ~ 125°C | - | 0.285" L x 0.170" W x 0.120" H (7.24mm x 4.32mm x 3.05mm) | |
|
|
0157002.DRFUSE BRD MNT 2A 125VAC/VDC 2SMD |
5,465 |
|
Datasheet |
NANO²® 157 | Tape & Reel (TR) | Active | Requires Holder, Surface Mount | Board Mount (Cartridge Style Excluded) | 2 A | 125 V | 125 V | Fast Blow | 50A | 0.53 | cULus, PSE | -55°C ~ 125°C | - | 0.256" L x 0.146" W x 0.154" H (6.50mm x 3.70mm x 3.90mm) | |
 Series.jpg)
|
0477010.MXEPFUSE CERM 10A 500VAC 400VDC 5X20 |
1,116 |
|
Datasheet |
477 | Bulk | Active | Through Hole | Cartridge, Ceramic | 10 A | 500 V | 400 V | Slow Blow | 100A AC, 500A DC | 509.0 | cULus, PSE | -55°C ~ 125°C | - | 0.228" Dia x 0.886" L (5.80mm x 22.50mm) | |
|
|
0451.125MRLFUSE BRD MT 125MA 125VAC/VDC SMD |
639 |
|
- |
NANO²® 451 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 125 mA | 125 V | 125 V | Fast Blow | 50A | 0.00286 | CSA, UL | -55°C ~ 125°C | - | 0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm) | |
|
46212000000FUSE BRD MT 2A 350VAC 350VDC SMD |
4,866 |
|
Datasheet |
NANO²® 462 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 2 A | 350 V | 350 V | Slow Blow | 100A | 5.44 | UL, UMF, VDE | -40°C ~ 85°C | - | 0.413" L x 0.177" W x 0.177" H (10.50mm x 4.50mm x 4.50mm) | |
|
0453.062MRFUSE BRD MNT 62MA 125VAC/VDC SMD |
580 |
|
- |
NANO²® 453 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 62 mA | 125 V | 125 V | Fast Blow | 50A | 1.9E-4 | CSA, UL | -55°C ~ 125°C | - | 0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm) | |
|
|
0154.250DRFUSE BRD MT 250MA 125VAC/VDC SMD |
5,487 |
|
Datasheet |
OMNI-BLOK® 154 | Tape & Reel (TR) | Active | Requires Holder, Surface Mount | Board Mount (Cartridge Style Excluded) | 250 mA | 125 V | 125 V | Fast Blow | 50A | 0.0158 | UL | -55°C ~ 125°C | - | 0.383" L x 0.198" W x 0.150" H (9.73mm x 5.03mm x 3.81mm) | |
|
|
0154.500DRFUSE BRD MT 500MA 125VAC/VDC SMD |
3,873 |
|
Datasheet |
OMNI-BLOK® 154 | Tape & Reel (TR) | Active | Requires Holder, Surface Mount | Board Mount (Cartridge Style Excluded) | 500 mA | 125 V | 125 V | Fast Blow | 50A | 0.0795 | UL | -55°C ~ 125°C | - | 0.383" L x 0.198" W x 0.150" H (9.73mm x 5.03mm x 3.81mm) | |
|
0448.062MRFUSE BRD MNT 62MA 125VAC/VDC SMD |
144 |
|
Datasheet |
NANO²® 448 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 62 mA | 125 V | 125 V | Fast Blow | 50A | 2.3E-4 | CSA, UL | -55°C ~ 125°C | - | 0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm) | |
|
0154.250DRLFUSE BRD MT 250MA 125VAC/VDC SMD |
855 |
|
Datasheet |
OMNI-BLOK® 154L | Tape & Reel (TR) | Active | Requires Holder, Surface Mount | Board Mount (Cartridge Style Excluded) | 250 mA | 125 V | 125 V | Fast Blow | 50A | 0.0158 | UL | -55°C ~ 125°C | - | 0.383" L x 0.198" W x 0.150" H (9.73mm x 5.03mm x 3.81mm) |
