Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0451010.MRLFUSE BRD MNT 10A 125VAC/VDC 2SMD |
4,291 |
|
- |
NANO²® 451 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 10 A | 125 V | 125 V | Fast Blow | 35A AC, 50A DC | 26.46 | CSA, PSE, UL | -55°C ~ 125°C | - | 0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm) | |
|
|
0451020.MRLFUSE BRD MNT 20A 65VAC 65VDC SMD |
2,225 |
|
- |
NANO²® 451 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 20 A | 65 V | 65 V | Fast Blow | 100A AC, 150A DC | 154.0 | cURus | -55°C ~ 125°C | - | 0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm) | |
|
|
0451015.MRLFUSE BRD MNT 15A 65VAC 65VDC SMD |
1,989 |
|
- |
NANO²® 451 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 15 A | 65 V | 65 V | Fast Blow | 50A | 97.82 | CSA, UL | -55°C ~ 125°C | - | 0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm) | |
|
0215020.MXPFUSE CERAMIC 20A 250VAC 5X20MM |
2,342 |
|
Datasheet |
215 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 20 A | 250 V | - | Slow Blow | 400A | 2600.0 | PSE, SEMKO, UL | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0326015.HXPFUSE CERM 15A 250VAC 125VDC 3AB |
3,600 |
|
Datasheet |
326 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 15 A | 250 V | 125 V | Slow Blow | 400A AC, 500A DC | 245.0 | CE, CSA, K-MARK, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
0326010.HXPFUSE CERAMIC 10A 250VAC 3AB 3AG |
1,267 |
|
Datasheet |
326 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 10 A | 250 V | - | Slow Blow | 400A | 137.0 | CE, CSA, K-MARK, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
0451012.MRLFUSE BRD MNT 12A 65VAC 65VDC SMD |
1,108 |
|
- |
NANO²® 451 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 12 A | 65 V | 65 V | Fast Blow | 50A | 47.97 | CSA, UL | -55°C ~ 125°C | - | 0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm) | |
|
0453015.MRFUSE BRD MNT 15A 65VAC 65VDC SMD |
946 |
|
- |
NANO²® 453 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 15 A | 65 V | 65 V | Fast Blow | 50A | 97.82 | CSA, UL | -55°C ~ 125°C | - | 0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm) | |
|
0ADKC0500-BEFUSE CERM 500MA 600VAC 500VDC |
2,870 |
|
Datasheet |
0ADKC | Bulk | Active | Requires Holder | Cartridge, Ceramic | 500 mA | 600 V | 500 V | Slow Blow | 200A AC, 300A DC | 0.287 | cURus | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0215010.MXEPFUSE CERAMIC 10A 250VAC 5X20MM |
24,021 |
|
Datasheet |
215 | Bulk | Active | Through Hole | Cartridge, Ceramic | 10 A | 250 V | - | Slow Blow | 1.5kA | 333.565 | CE, CSA, KC, PSE, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.228" Dia x 0.886" L (5.80mm x 22.50mm) | |
|
0448010.MRFUSE BRD MNT 10A 125VAC/VDC 2SMD |
2,004 |
|
Datasheet |
NANO²® 448 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 10 A | 125 V | 125 V | Fast Blow | 35A AC, 50A DC | 28.0 | CSA, UL, PSE | -55°C ~ 125°C | - | 0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm) | |
|
|
0453010.MRFUSE BRD MNT 10A 125VAC/VDC 2SMD |
2,924 |
|
- |
NANO²® 453 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 10 A | 125 V | 125 V | Fast Blow | 35A AC, 50A DC | 26.46 | CSA, PSE, UL | -55°C ~ 125°C | - | 0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm) | |
|

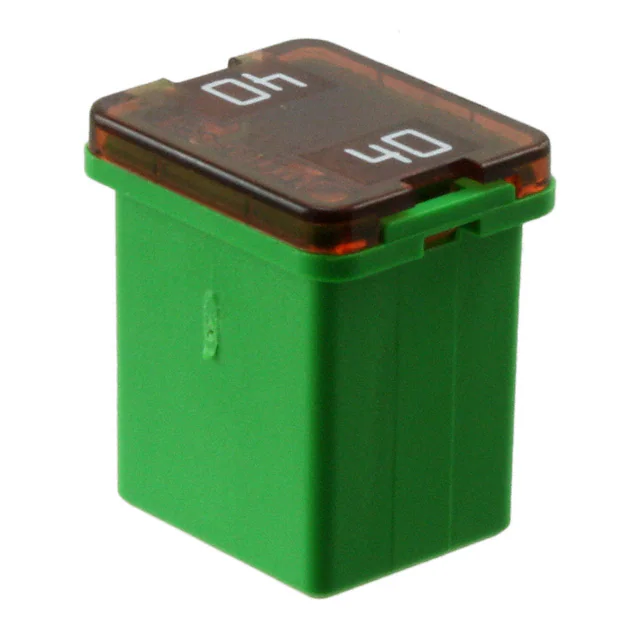

0895040.ZFUSE AUTO 40A 58VDC AUTO LINK |
2,061 |
|
Datasheet |
JCASE® | Bulk | Active | Requires Holder | Automotive | 40 A | - | 58 V | - | 1kA | 5470.0 | UL | -40°C ~ 125°C | Green | 0.571" L x 0.472" W x 0.630" H (14.50mm x 12.00mm x 16.00mm) | |
|
0458010.DRFUSE BOARD MOUNT 10A 32VAC 63VDC |
9,879 |
|
Datasheet |
NANO²® 458 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 10 A | 32 V | 63 V | Fast Blow | 50A | 15.0 | cULus | -55°C ~ 125°C | - | 0.125" L x 0.062" W x 0.062" H (3.18mm x 1.58mm x 1.58mm) | |
|
|
0452012.MRLFUSE BRD MNT 12A 72VAC 60VDC SMD |
2,845 |
|
Datasheet |
NANO²® 452 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 12 A | 72 V | 60 V | Slow Blow | 50A | 260.46 | CSA, UR | -55°C ~ 125°C | - | 0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm) | |
|
|
0452007.MRLFUSE BRD MNT 7A 72VAC 60VDC 2SMD |
308 |
|
Datasheet |
NANO²® 452 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 7 A | 72 V | 60 V | Slow Blow | 50A | 123.83 | CSA, UR | -55°C ~ 125°C | - | 0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm) | |
 Series.jpg)
|
0477004.MXEPFUSE CERM 4A 500VAC 400VDC 5X20 |
12,865 |
|
Datasheet |
477 | Bulk | Active | Through Hole | Cartridge, Ceramic | 4 A | 500 V | 400 V | Slow Blow | 100A AC, 500A DC | 52.48 | cULus, PSE, SEMKO | -55°C ~ 125°C | - | 0.228" Dia x 0.886" L (5.80mm x 22.50mm) | |
|
0683G2000-01FUSE CERM 2A 350VAC 125VDC 2SMD |
3,557 |
|
Datasheet |
0683G | Tape & Reel (TR) | Active | Surface Mount | Cartridge, Ceramic | 2 A | 350 V | 125 V | Slow Blow | 100A AC, 2kA DC | 5.6 | CE, cURus | -55°C ~ 125°C | - | 0.183" Dia x 0.476" L (4.65mm x 12.10mm) | |
|
|
04773.15MXEPFUSE CERM 3.15A 500VAC 400VDC |
1,985 |
|
Datasheet |
477 | Bulk | Active | Through Hole | Cartridge, Ceramic | 3.15 A | 500 V | 400 V | Slow Blow | 100A AC, 1.5kA DC | 50.109 | cULus, PSE, SEMKO, VDE | -55°C ~ 125°C | - | 0.228" Dia x 0.886" L (5.80mm x 22.50mm) | |
|
0157005.DRTFUSE BRD MNT 5A 125VAC/VDC 2SMD |
2,758 |
|
Datasheet |
NANO²® 157T | Tape & Reel (TR) | Active | Requires Holder, Surface Mount | Board Mount (Cartridge Style Excluded) | 5 A | 125 V | 125 V | Slow Blow | 50A | 53.72 | cULus, PSE | -55°C ~ 125°C | - | 0.256" L x 0.146" W x 0.154" H (6.50mm x 3.70mm x 3.90mm) |
