Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0ADBC0200-BEFUSE CERM 200MA 1KVAC 1KVDC 3AB |
799 |
|
Datasheet |
0ADBC | Bulk | Active | Requires Holder | Cartridge, Ceramic | 200 mA | 1 kV | 1 kV | Fast Blow | 10kA | 0.0031 | cURus | -55°C ~ 125°C | - | 0.250" Dia x 1.252" L (6.35mm x 31.80mm) | |
|
|
0ADBC3000-BEFUSE CERM 3A 1KVAC 1KVDC 3AB 3AG |
233 |
|
Datasheet |
0ADBC | Bulk | Active | Requires Holder | Cartridge, Ceramic | 3 A | 1 kV | 1 kV | Fast Blow | 10kA | 7.54 | cURus | -55°C ~ 125°C | - | 0.250" Dia x 1.252" L (6.35mm x 31.80mm) | |
|
0463030.ERFUSE BRDMT 30A 250VAC/100VDC SMD |
5,273 |
|
Datasheet |
463 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 30 A | 250 V | 100 V | Fast Blow | 100A AC, 50A DC | 916.0 | cURus | -55°C ~ 125°C | - | 0.398" L x 0.123" W x 0.123" H (10.10mm x 3.12mm x 3.12mm) | |
 Series.jpg)
|
0505025.MXEPFUSE CERM 25A 500VAC 500VDC 3AB |
1,058 |
|
Datasheet |
505 | Bulk | Active | Through Hole | Cartridge, Ceramic | 25 A | 500 V | 500 V | Fast Blow | 30kA AC, 20kA DC | 145.0 | CE, cULus | -55°C ~ 125°C | - | 0.275" Dia x 1.288" L (6.99mm x 32.72mm) | |
|
0456050.DRSDFUSE BRD MT 50A 125VAC 75VDC SMD |
2,515 |
|
Datasheet |
NANO²® 456SD | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 50 A | 125 V | 75 V | Fast Blow | 100A AC, 600A DC | 2700.0 | cURus, PSE | -55°C ~ 125°C | - | 0.480" L x 0.177" W x 0.177" H (12.20mm x 4.50mm x 4.50mm) | |
|
0324040.MXPFUSE CERM 40A 250VAC 150VDC 3AB |
187 |
|
Datasheet |
324 | Bulk | Active | Through Hole | Cartridge, Ceramic | 40 A | 250 V | 150 V | Fast Blow | 1kA AC, 400A DC | 22925.0 | CE, UL | -55°C ~ 125°C | - | 0.275" Dia x 1.288" L (6.99mm x 32.72mm) | |
|
0456060.DRSDEFUSE BRD MT 60A 250VAC 80VDC SMD |
1,232 |
|
Datasheet |
NANO²® 456SDE | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 60 A | 250 V | 80 V | Fast Blow | 150A AC, 600A DC | 4260.0 | cURus | -55°C ~ 125°C | - | 0.480" L x 0.177" W x 0.177" H (12.20mm x 4.50mm x 4.50mm) | |
|

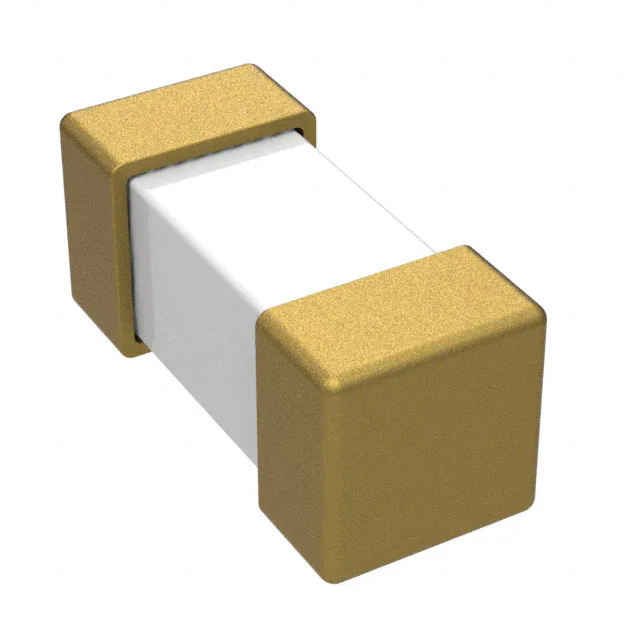

SF-2410FP0062T-2FUSE BRDMT 62MA 125VAC/125DC SMD |
1,003 |
|
Datasheet |
SinglFuse™ SF-2410FP-T | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 62 mA | 125 V | 125 V | Fast Blow | 50A | 0.0012 | cUL, UL | -55°C ~ 125°C | - | 0.240" L x 0.102" W x 0.102" H (6.10mm x 2.59mm x 2.59mm) | |
|
0275030.MXLFUSE BRD MNT 30A 32VAC 32VDC AXL |
353 |
|
Datasheet |
PICO® 275 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 30 A | 32 V | 32 V | Fast Blow | 100A AC, 300A DC | 288.0 | UL | -55°C ~ 125°C | - | 0.133" Dia x 0.310" L (3.38mm x 7.87mm) | |
|
0ADBP1000-REFUSE CERM 1A 1KVAC 1KVDC 3AB 3AG |
417 |
|
Datasheet |
0ADBP | Bulk | Active | Through Hole | Cartridge, Ceramic | 1 A | 1 kV | 1 kV | Fast Blow | 10kA | 0.21 | cURus | -55°C ~ 125°C | - | 0.266" Dia x 1.292" H (6.76mm x 32.82mm) | |
|
0298150.ZXEHFUSE AUTO 150A 32VDC AUTO LINK |
1,704 |
|
Datasheet |
MEGA® | Bulk | Active | Bolt Mount | Automotive | 150 A | - | 32 V | Slow Blow | 2kA | 100000.0 | UL | -40°C ~ 125°C | Orange | 1.149" L x 0.750" W x 0.390" H (29.20mm x 19.05mm x 9.90mm) | |
|
|
0298200.ZXEHFUSE AUTO 200A 32VDC AUTO LINK |
399 |
|
Datasheet |
MEGA® | Bulk | Active | Bolt Mount | Automotive | 200 A | - | 32 V | Slow Blow | 2kA | 204000.0 | UL | -40°C ~ 125°C | Blue | 1.149" L x 0.750" W x 0.390" H (29.20mm x 19.05mm x 9.90mm) | |
|
|
0505030.MXEPFUSE CERM 30A 500VAC 500VDC 3AB |
4,352 |
|
Datasheet |
505 | Bulk | Active | Through Hole | Cartridge, Ceramic | 30 A | 500 V | 500 V | Fast Blow | 30kA AC, 20kA DC | 280.0 | CE, cULus | -55°C ~ 125°C | - | 0.275" Dia x 1.288" L (6.99mm x 32.72mm) | |
|
0ACH-9800-TEFUSE BRD MT 80A 125VAC 72VDC SMD |
1,068 |
|
Datasheet |
0ACH | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 80 A | 125 V | 72 V | Fast Blow | 500A AC, 1kA DC | 1700.0 | AEC-Q200, cURus | -40°C ~ 125°C | - | 0.484" L x 0.177" W x 0.177" H (12.30mm x 4.50mm x 4.50mm) | |
|

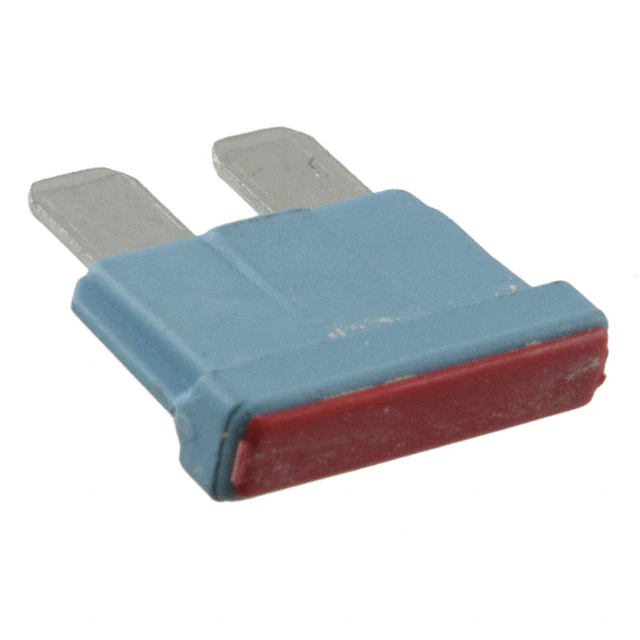

166.7000.5152FUSE AUTO 15A 80VDC BLADE ATO |
944 |
|
Datasheet |
FKS ATO® | Bulk | Active | Requires Holder | Automotive | 15 A | - | 80 V | Slow Blow | 1kA | 162.0 | cULus | - | Blue | 0.748" L x 0.197" W x 0.520" H (19.00mm x 5.00mm x 13.20mm) | |
|

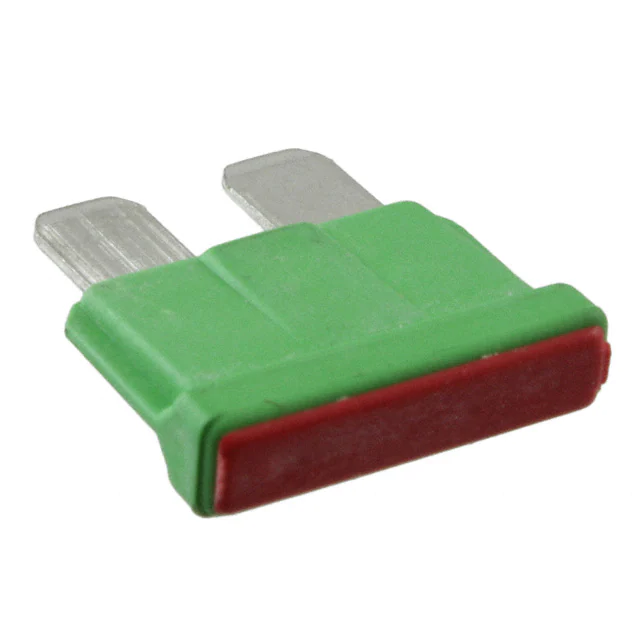

166.7000.5302FUSE AUTO 30A 80VDC BLADE ATO |
508 |
|
Datasheet |
FKS ATO® | Bulk | Active | Requires Holder | Automotive | 30 A | - | 80 V | Slow Blow | 1kA | 1500.0 | cULus | - | Green | 0.748" L x 0.197" W x 0.520" H (19.00mm x 5.00mm x 13.20mm) | |
|

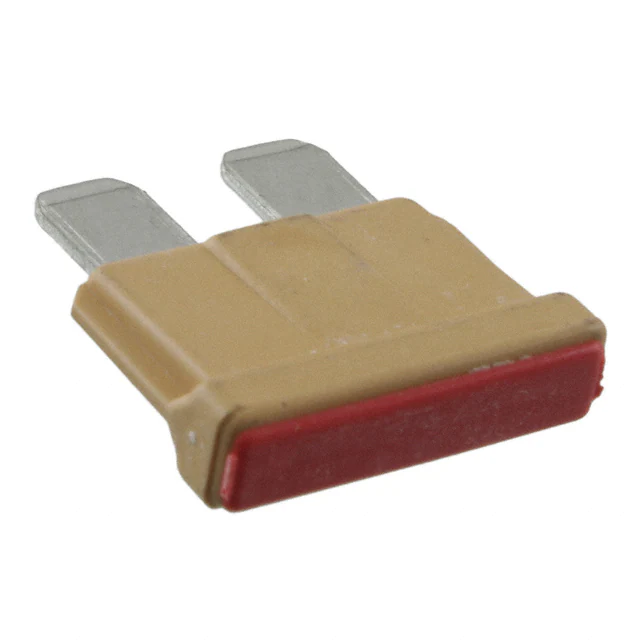

166.7000.4502FUSE AUTO 5A 80VDC BLADE ATO/ATC |
502 |
|
Datasheet |
FKS ATO® | Bulk | Active | Requires Holder | Automotive | 5 A | - | 80 V | Slow Blow | 1kA | 24.3 | cULus | - | Tan | 0.748" L x 0.197" W x 0.520" H (19.00mm x 5.00mm x 13.20mm) | |
|
0273004.HFUSE BRD MNT 4A 125VAC/VDC RAD |
674 |
|
Datasheet |
MICRO™ 273 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 4 A | 125 V | 125 V | Fast Blow | 10kA | 1.38 | CSA, QPL, UL | -55°C ~ 85°C | - | 0.250" Dia x 0.350" H (6.35mm x 8.89mm) | |
|
|
0273005.HFUSE BRD MNT 5A 125VAC/VDC RAD |
598 |
|
Datasheet |
MICRO™ 273 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 5 A | 125 V | 125 V | Fast Blow | 10kA | 2.21 | CSA, QPL, UL | -55°C ~ 85°C | - | 0.250" Dia x 0.350" H (6.35mm x 8.89mm) | |
|
|
0273002.HFUSE BRD MNT 2A 125VAC/VDC RAD |
480 |
|
Datasheet |
MICRO™ 273 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 2 A | 125 V | 125 V | Fast Blow | 10kA | 0.3 | CSA, QPL, UL | -55°C ~ 85°C | - | 0.250" Dia x 0.350" H (6.35mm x 8.89mm) |
