Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0505020.MXPFUSE CERM 20A 500VAC 500VDC 3AB |
478 |
|
Datasheet |
505 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 20 A | 500 V | 500 V | Fast Blow | 30kA AC, 20kA DC | 101.0 | CE, cULus | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
0459.062URFUSE BRD MNT 62MA 125VAC/VDC SMD |
6,943 |
|
Datasheet |
PICO® 459 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 62 mA | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 7.5E-5 | CSA, UL | -55°C ~ 125°C | - | 0.285" L x 0.170" W x 0.120" H (7.24mm x 4.32mm x 3.05mm) | |
|
0885001.DRFUSE BOARD MOUNT 1A 500VDC 2SMD |
321 |
|
Datasheet |
NANO²® 885 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1 A | - | 500 V | - | 100A | 0.8 | cURus, TUV | -40°C ~ 85°C | - | 0.428" L x 0.188" W x 0.188" H (10.86mm x 4.78mm x 4.78mm) | |
|
0456030.ERFUSE BRD MT 30A 125VAC 72VDC SMD |
8,461 |
|
Datasheet |
NANO²® 456 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 30 A | 125 V | 72 V | Fast Blow | 100A AC, 500A DC | 81.0 | cULus, PSE | -55°C ~ 125°C | - | 0.398" L x 0.123" W x 0.123" H (10.10mm x 3.12mm x 3.12mm) | |
|
0251.062NRT1LFUSE BRD MNT 62MA 125VAC/VDC AXL |
10,780 |
|
Datasheet |
PICO® II 251 | Tape & Reel (TR) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 62 mA | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 1.13E-4 | CSA, cURus | -55°C ~ 125°C | - | 0.110" Dia x 0.280" L (2.80mm x 7.11mm) | |
|
|
0251.062MRT1LFUSE BRD MNT 62MA 125VAC/VDC AXL |
7,500 |
|
Datasheet |
PICO® II 251 | Tape & Reel (TR) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 62 mA | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 1.13E-4 | CSA, cURus | -55°C ~ 125°C | - | 0.110" Dia x 0.280" L (2.80mm x 7.11mm) | |
|
|
0505015.MXPFUSE CERM 15A 500VAC 500VDC 3AB |
320 |
|
Datasheet |
505 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 15 A | 500 V | 500 V | Fast Blow | - | - | - | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
0251.062MXLFUSE BRD MNT 62MA 125VAC/VDC AXL |
2,565 |
|
Datasheet |
PICO® II 251 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 62 mA | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 1.13E-4 | CSA, cURus | -55°C ~ 125°C | - | 0.110" Dia x 0.280" L (2.80mm x 7.11mm) | |
|
|
0251.062MAT1LFUSE BRD MNT 62MA 125VAC/VDC AXL |
1,000 |
|
Datasheet |
PICO® II 251 | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 62 mA | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 1.13E-4 | CSA, cURus | -55°C ~ 125°C | - | 0.110" Dia x 0.280" L (2.80mm x 7.11mm) | |
|
0ADEP9300-REFUSE CERM 30A 500VAC 500VDC 3AB |
1,841 |
|
Datasheet |
0ADEP | Bulk | Active | Through Hole | Cartridge, Ceramic | 30 A | 500 V | 500 V | Fast Blow | 30kA AC, 20kA DC | 270.0 | cURus | -50°C ~ 105°C | - | 0.268" Dia x 1.291" L (6.81mm x 32.79mm) | |
|

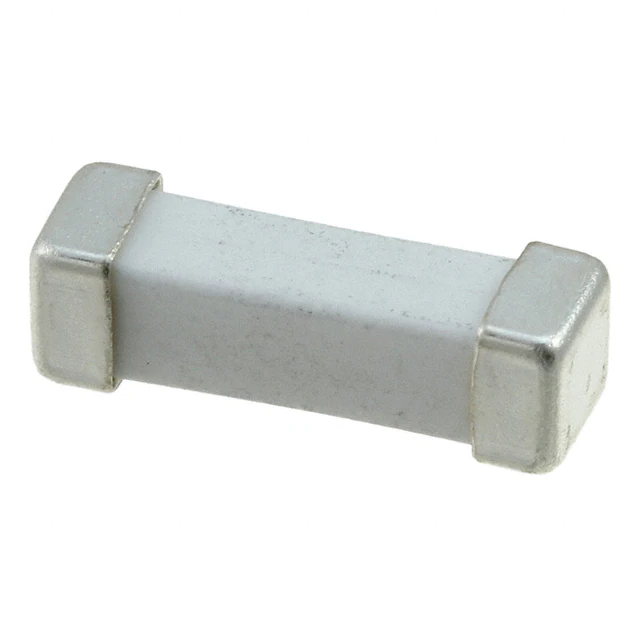

0463015.ERFUSE BRD MT 15A 250VAC 100VDC |
2,640 |
|
Datasheet |
463 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 15 A | 250 V | 100 V | Fast Blow | 100A AC, 50A DC | 142.0 | cURus | -55°C ~ 125°C | - | 0.398" L x 0.123" W x 0.123" H (10.10mm x 3.12mm x 3.12mm) | |
|
|
0456020.ERFUSE BRD MT 20A 125VAC 100VDC |
2,360 |
|
Datasheet |
NANO²® 456 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 20 A | 125 V | 100 V | Fast Blow | 100A AC, 300A DC | 18.0 | cULus, PSE | -55°C ~ 125°C | - | 0.398" L x 0.123" W x 0.123" H (10.10mm x 3.12mm x 3.12mm) | |
|
|
0505030.MXPFUSE CERM 30A 500VAC 500VDC 3AB |
695 |
|
Datasheet |
505 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 30 A | 500 V | 500 V | Fast Blow | 30kA AC, 20kA DC | 203.0 | CE, cULus | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
0487016.MXPFUSE CERAMIC 16A 420VAC 420VDC |
309 |
|
Datasheet |
487 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 16 A | 420 V | 420 V | Fast Blow | 200A AC, 300A DC | 260.0 | TUV, UR | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
 Series.jpg)
|
0505020.MXEPFUSE CERM 20A 500VAC 500VDC 3AB |
1,588 |
|
Datasheet |
505 | Bulk | Active | Through Hole | Cartridge, Ceramic | 20 A | 500 V | 500 V | Fast Blow | 30kA AC, 20kA DC | 101.0 | CE, cULus | -55°C ~ 125°C | - | 0.275" Dia x 1.288" L (6.99mm x 32.72mm) | |
|
0456040.DRSDFUSE BRD MT 40A 125VAC 75VDC SMD |
2,930 |
|
Datasheet |
NANO²® 456SD | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 40 A | 125 V | 75 V | Fast Blow | 100A AC, 600A DC | 1700.0 | cURus, PSE | -55°C ~ 125°C | - | 0.480" L x 0.177" W x 0.177" H (12.20mm x 4.50mm x 4.50mm) | |
|
0456050.DRSDEFUSE BRD MT 50A 250VAC 80VDC SMD |
1,028 |
|
Datasheet |
NANO²® 456SDE | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 50 A | 250 V | 80 V | Fast Blow | 150A AC, 600A DC | 2700.0 | cURus | -55°C ~ 125°C | - | 0.480" L x 0.177" W x 0.177" H (12.20mm x 4.50mm x 4.50mm) | |
|
0154.062DRFUSE BRD MNT 62MA 125VAC/VDC SMD |
4,841 |
|
Datasheet |
OMNI-BLOK® 154 | Tape & Reel (TR) | Active | Requires Holder, Surface Mount | Board Mount (Cartridge Style Excluded) | 62 mA | 125 V | 125 V | Fast Blow | 50A | 1.9E-4 | UL | -55°C ~ 125°C | - | 0.383" L x 0.198" W x 0.150" H (9.73mm x 5.03mm x 3.81mm) | |
|
|
0456025.ERFUSE BRD MT 25A 125VAC 72VDC SMD |
440 |
|
Datasheet |
NANO²® 456 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 25 A | 125 V | 72 V | Fast Blow | 100A AC, 500A DC | 45.0 | cULus, PSE | -55°C ~ 125°C | - | 0.398" L x 0.123" W x 0.123" H (10.10mm x 3.12mm x 3.12mm) | |
|
0275025.MXLFUSE BRD MNT 25A 32VAC 32VDC AXL |
1,293 |
|
Datasheet |
PICO® 275 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 25 A | 32 V | 32 V | Fast Blow | 100A AC, 300A DC | 192.0 | UL | -55°C ~ 125°C | - | 0.133" Dia x 0.310" L (3.38mm x 7.87mm) |
