Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECW-F4684JBCAP FILM 0.68UF 5% 400VDC RADIAL |
331 |
|
Datasheet |
Radial | 0.68 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Through Hole | 0.906" L x 0.571" W (23.00mm x 14.50mm) | 0.906" (23.00mm) | PC Pins | 0.787" (20.00mm) | High Frequency, Switching | - | - |
|
890334026034CAP FILM 2.2UF 10% 310VAC RADIAL |
140 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.591" W (26.00mm x 15.00mm) | 1.004" (25.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
ECH-U1104JC9CAP FILM 0.1UF 5% 100VDC 2820 |
2,142 |
|
Datasheet |
2820 (7150 Metric) | 0.1 µF | ±5% | 40V | 100V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.280" L x 0.197" W (7.10mm x 5.00mm) | 0.130" (3.30mm) | Solder Pads | - | General Purpose | - | - |
|
F861DU225K310ZLH0JCAP FILM 2.2UF 10% 310VAC RADIAL |
273 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.512" W (26.00mm x 13.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
BFC238330104CAP FILM 0.1UF 5% 1KVDC RADIAL |
5,011 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
B32924D3475K000CAP FILM 4.7UF 10% 630VDC RADIAL |
3,428 |
|
Datasheet |
Radial | 4.7 µF | ±10% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.827" W (31.50mm x 21.00mm) | 1.220" (31.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
B32523R0156K000CAP FILM 15UF 10% 63VDC RADIAL |
861 |
|
Datasheet |
Radial | 15 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.043" L x 0.413" W (26.50mm x 10.50mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | - | - |
|

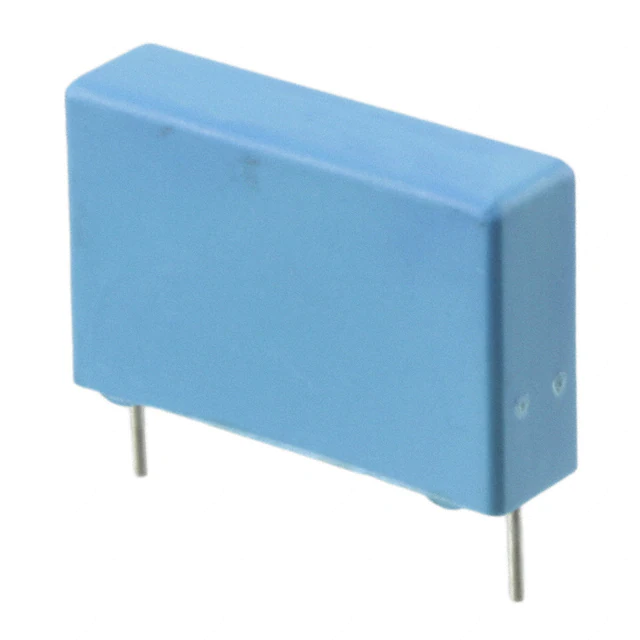

PHE450SD5330JR06L2CAP FILM 0.033UF 5% 2KVDC RADIAL |
125 |
|
Datasheet |
Radial | 0.033 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
|
F161ST105K050VCAP FILM 1UF 10% 50VDC 2824 |
5,684 |
|
Datasheet |
2824 (7260 Metric) | 1 µF | ±10% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.287" L x 0.236" W (7.30mm x 6.00mm) | 0.185" (4.70mm) | Solder Pads | - | Automotive | AEC-Q200 | - |
|
SMDTC04220TB00KQ00CAP FILM 2.2UF 10% 40VAC 2824 |
1,738 |
|
Datasheet |
2824 (7260 Metric) | 2.2 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.283" L x 0.240" W (7.20mm x 6.10mm) | 0.209" (5.30mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|

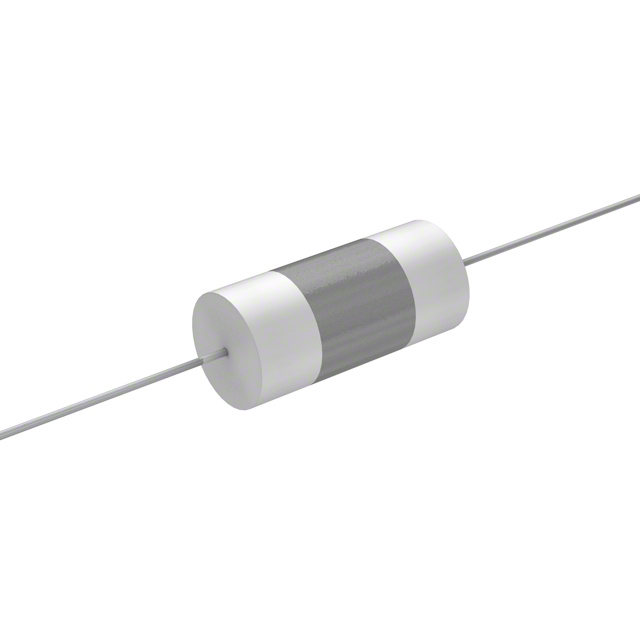

150683K630GCCAP FILM 0.068UF 630VDC AXIAL |
1,360 |
|
Datasheet |
Axial | 0.068 µF | ±10% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.354" Dia x 0.807" L (9.00mm x 20.50mm) | - | PC Pins | - | General Purpose | - | - |
|

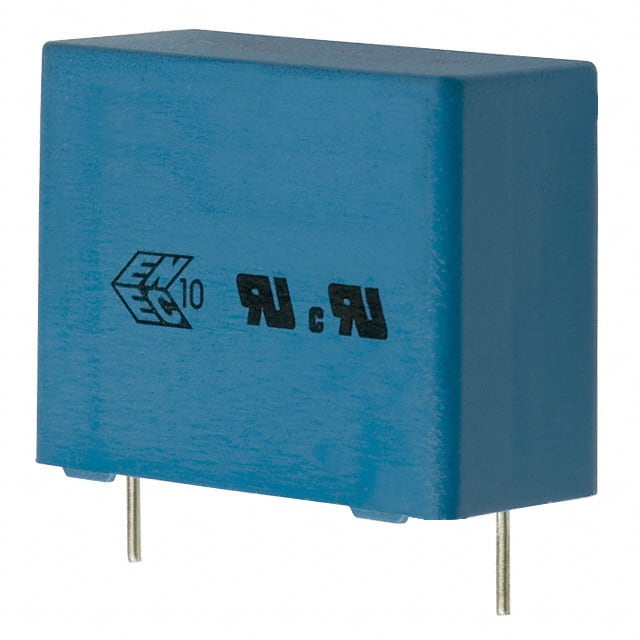

B32914A3105M000CAP FILM 1UF 20% 760VDC RADIAL |
8,369 |
|
Datasheet |
Radial | 1 µF | ±20% | 330V | 760V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.531" W (31.50mm x 13.50mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
MKS4D044705G00KSSDCAP FILM 4.7UF 10% 100VDC RADIAL |
2,179 |
|
Datasheet |
Radial | 4.7 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.043" L x 0.413" W (26.50mm x 10.50mm) | 0.748" (19.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
MKP1U031006D00JSSDCAP FILM 0.1UF 5% 2KVDC RAD |
3,117 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.512" W (31.50mm x 13.00mm) | 0.945" (24.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
6PSS50CAP FILM 0.05UF 10% 600VDC RAD |
571 |
|
Datasheet |
Radial | 0.05 µF | ±10% | 200V | 600V | Polypropylene (PP) | - | -40°C ~ 85°C | Through Hole | 0.551" Dia x 1.201" L (14.00mm x 30.50mm) | 0.787" (20.00mm) | PC Pins | 0.969" (24.60mm) | Audio | - | - |
|

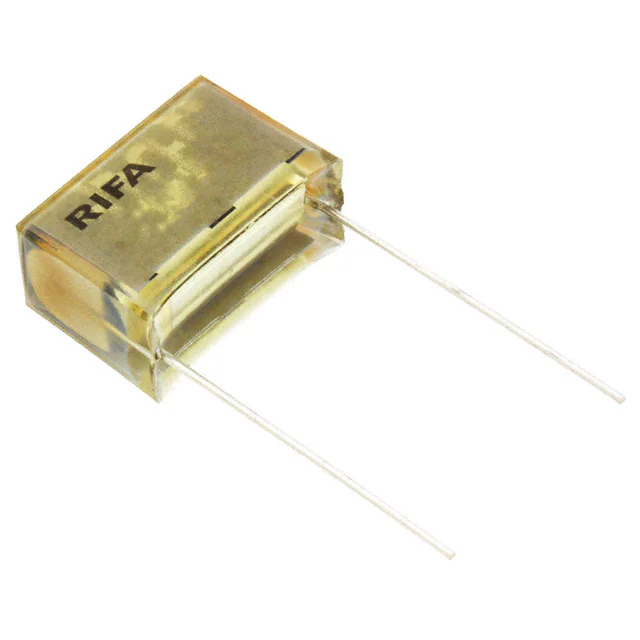

PME271M622KR30CAP FILM 0.22UF 10% 630VDC RAD |
342 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 275V | 630V | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 0.945" L x 0.445" W (24.00mm x 11.30mm) | 0.650" (16.50mm) | PC Pins | 0.799" (20.30mm) | EMI, RFI Suppression | X2 | - |
|
C4AQCBU4560A1XJCAP FILM 5.6UF 5% 650VDC RADIAL |
776 |
|
Datasheet |
Radial | 5.6 µF | ±5% | - | 650V | Polypropylene (PP), Metallized | 10.7 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.512" W (31.50mm x 13.00mm) | 0.992" (25.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
PHE426DJ5330FR17T0CAP FILM 0.033UF 1% 100VDC RAD |
5,045 |
|
Datasheet |
Radial | 0.033 µF | ±1% | 63V | 100V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.315" (8.00mm) | PC Pins | 0.197" (5.00mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|

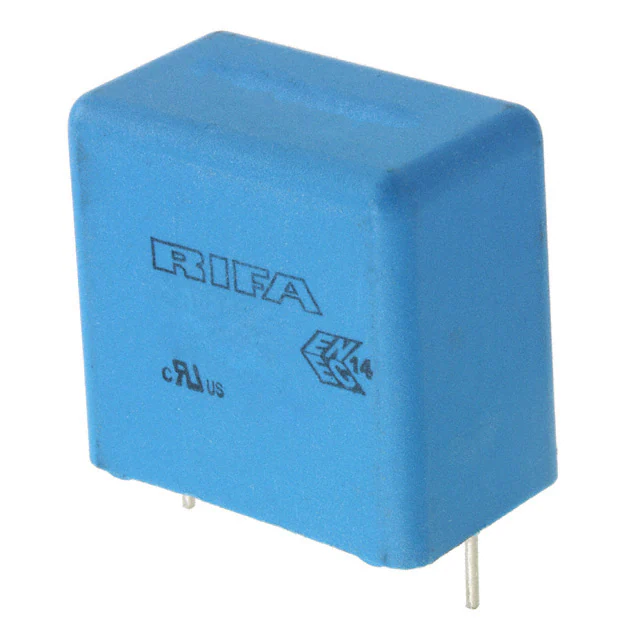

PHE844RD6470MR30L2CAP FILM 0.47UF 20% 1KVDC RADIAL |
1,986 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.610" W (26.00mm x 15.50mm) | 0.965" (24.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
|
MKP1T031506D00KSSDCAP FILM 0.15UF 10% 1.6KVDC RAD |
1,785 |
|
Datasheet |
Radial | 0.15 µF | ±10% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.512" W (31.50mm x 13.00mm) | 0.945" (24.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
