Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKP1848620094P4CAP FILM 20UF 5% 900VDC RADIAL |
1 |
|
Datasheet |
Radial - 4 Leads | 20 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 5 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESR |
|
EZP-E80506MTACAP FILM 50UF 10% 800VDC RADIAL |
2,498 |
|
Datasheet |
Radial - 4 Leads | 50 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 6.3 mOhms | -40°C ~ 85°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 2.244" (57.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Low ESR |
|
B32526T0566K000CAP FILM 56UF 10% 63VDC RADIAL |
8,167 |
|
Datasheet |
Radial | 56 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET) | - | -55°C ~ 125°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 0.591" (15.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | - | - |
|

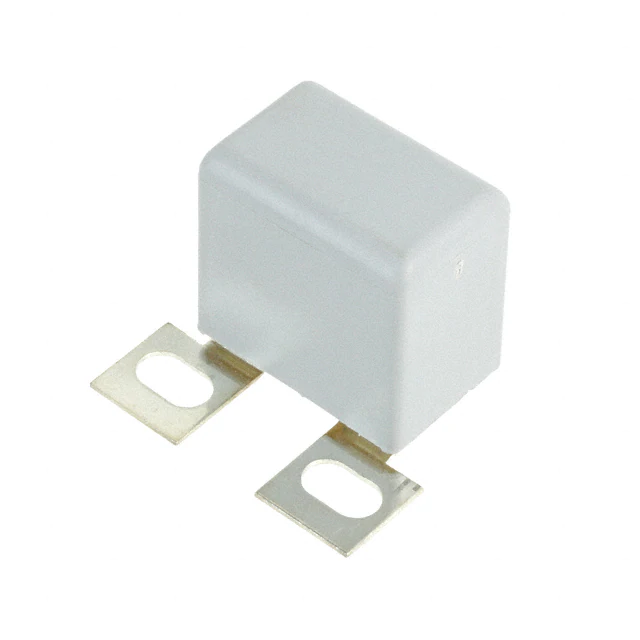

MKP386M410200JT5CAP FILM 0.1UF 5% 2KVDC SCREW |
7,340 |
|
Datasheet |
Rectangular Box | 0.1 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 11 mOhms | -55°C ~ 105°C | Chassis Mount | 1.319" L x 0.866" W (33.50mm x 22.00mm) | 1.319" (33.50mm) | Screw Terminals | 0.886" (22.50mm) | Snubber | - | Low ESR |
|
C4BSPBX4300ZANJCAP FILM 3UF 5% 1.2KVDC SCREW |
2,198 |
|
Datasheet |
Rectangular Box | 3 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 2.5 mOhms | -40°C ~ 85°C | Chassis Mount | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | Screw Terminals | 1.614" (41.00mm) | DC Link, DC Filtering; Snubber | - | - |
|
|
EZP-E50856MTACAP FILM 85UF 10% 500VDC RADIAL |
2,971 |
|
Datasheet |
Radial - 4 Leads | 85 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 5.4 mOhms | -40°C ~ 85°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 2.224" (56.50mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Low ESR |
|
EZP-V80656MTSCAP FILM 65UF 10% 800V RADIAL |
6,263 |
|
Datasheet |
Radial - 4 Leads | 65 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 6.2 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 2.579" (65.50mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
MKP1G052209JD4KSSDCAP FILM 22UF 10% 400VDC RAD |
4,402 |
|
Datasheet |
Radial - 4 Leads | 22 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 2.244" L x 1.772" W (57.00mm x 45.00mm) | 2.559" (65.00mm) | PC Pins | 2.067" (52.50mm) | High Pulse, DV/DT | - | - |
|
C4AF1EW5550T3AKFILM, POWER, METALLIZED POLYPROP |
4 |
|
Datasheet |
Radial - 4 Leads | 55 µF | ±10% | 250V | 500V | Polypropylene (PP), Metallized | 2.4 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.217" (56.30mm) | PC Pins | 2.067" (52.50mm) | Automotive | AEC-Q200 | - |
|
ALH106K451C084CAP FILM 10UF 450VAC RAD 4 LEAD |
9,220 |
|
Datasheet |
Radial - 4 Leads | 10 µF | ±10% | 450V | - | Polypropylene (PP) | 6.6 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 2.008" (51.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
B32526T0826K000CAP FILM 82UF 10% 63VDC RADIAL |
6,895 |
|
Datasheet |
Radial | 82 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET) | - | -55°C ~ 125°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 0.748" (19.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | - | - |
|
|
C4AFBEW5120T3BKFILM, RADIAL, POWER BOX, AC FILT |
4,815 |
|
Datasheet |
Radial - 4 Leads | 12 µF | ±10% | 600V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 2.6 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.571" (65.30mm) | PC Pins | 2.067" (52.50mm) | Automotive | AEC-Q200 | - |
|
JSNDK5560KB6L0CAP FILM 56UF 10% 63VDC SMD |
9,391 |
|
Datasheet |
SMD, J-Lead | 56 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.681" L x 0.846" W (17.30mm x 21.50mm) | 0.701" (17.80mm) | - | - | DC Link, DC Filtering | - | Low ESR, Low ESL |
|
FFB54E0686K--CAP FILM 68UF 10% 100VDC RADIAL |
6,513 |
|
Datasheet |
Radial | 68 µF | ±10% | 60V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.457" (37.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | - |
|
B32361A3706J030CAP FILM 70UF 5% 330VAC RADIAL |
2,389 |
|
Datasheet |
Radial, Can | 70 µF | ±5% | 330V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 2.500" Dia (63.50mm) | 4.213" (107.00mm) | Threaded, Male | 1.378" (35.00mm) | General Purpose | - | - |
|
FFV36C0106K--CAP FILM 10UF 10% 900VDC RADIAL |
6,410 |
|
Datasheet |
Radial - 4 Leads | 10 µF | ±10% | 150V | 900V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.575" L x 1.417" W (40.00mm x 36.00mm) | 1.575" (40.00mm) | PC Pins | 0.984" (25.00mm) | General Purpose | - | - |
|
MKP386M522125JT1CAP FILM 2.2UF 5% 1.25KVDC SCREW |
6,880 |
|
Datasheet |
Rectangular Box | 2.2 µF | ±5% | 550V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 4.5 mOhms | -55°C ~ 105°C | Chassis Mount | 1.732" L x 1.181" W (44.00mm x 30.00mm) | 1.811" (46.00mm) | Screw Terminals | - | Snubber | - | Low ESR |
|
|
C44APFP4150ZA0JCAP FILM 1.5UF 5% 1.2KVDC RADIAL |
5,172 |
|
Datasheet |
Radial, Can | 1.5 µF | ±5% | 500V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 2.5 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 3.228" (82.00mm) | Threaded, Male | 0.878" (22.30mm) | General Purpose | - | - |
|
B32928A4206K000CAP FILM 20UF 10% 650VDC RADIAL |
3,219 |
|
Datasheet |
Radial - 4 Leads | 20 µF | ±10% | 350V | 650V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.244" (57.00mm) | PC Pins | 2.067" (52.50mm) | EMI, RFI Suppression | X2 | 85C/85% Humidity |
|
MKP1847610444Y5CAP FILM 10UF 5% 440VAC RADIAL |
6,579 |
|
Datasheet |
Radial - 4 Leads | 10 µF | ±5% | 440V | - | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering; EMI, RFI Suppression; High Pulse, DV/DT | - | Long Life |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
