Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PMB2124100KVRCAP FILM 1UF 10% 1.2KVDC SCREW |
10 |
|
Datasheet |
Rectangular Box | 1 µF | ±10% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 2.7 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673" L x 1.319" W (42.50mm x 33.50mm) | 1.398" (35.50mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
BLH126K112B104DC LINK, THB, 85/85, AEC-Q200 |
8,955 |
|
Datasheet |
Radial - 4 Leads | 12 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 7.5 mOhms | -40°C ~ 105°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
PHB1604900KJSDCAP FILM 9UF 10% 600VDC RADIAL |
2,023 |
|
Datasheet |
Radial - 4 Leads | 9 µF | ±10% | 350V | 600V | Polypropylene (PP), Metallized | 1.9 mOhms | -40°C ~ 85°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 1.732" (44.00mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching | - | - |
|
DCP4P052007JD4MSSDCAP FILM 20UF 20% 1100VDC RAD |
4 |
|
Datasheet |
Radial - 4 Leads | 20 µF | ±20% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 4.7 mOhms | -55°C ~ 105°C | Through Hole | 1.634" L x 1.378" W (41.50mm x 35.00mm) | 1.969" (50.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
BFC238330304CAP FILM 0.3UF 5% 1KVDC RADIAL |
5,248 |
|
Datasheet |
Radial | 0.3 µF | ±5% | 350V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.591" W (31.00mm x 15.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
R75MW468050H2JCAP FILM 6.8UF 5% 400VDC RADIAL |
2,171 |
|
Datasheet |
Radial | 6.8 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | 7 mOhms | -55°C ~ 125°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
C4AEOBW5160A3HJCAP FILM 16UF 5% 900VDC RADIAL |
9,111 |
|
Datasheet |
Radial | 16 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 4.9 mOhms | -40°C ~ 85°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 1.732" (44.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
|
PMB2153330KSRCAP FILM 0.33UF 1.5KVDC SCREW |
2 |
|
Datasheet |
Rectangular Box | 0.33 µF | ±10% | 650V | 1500V (1.5kV) | Polypropylene (PP), Metallized | 4.6 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673" L x 0.965" W (42.50mm x 24.50mm) | 1.083" (27.50mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|

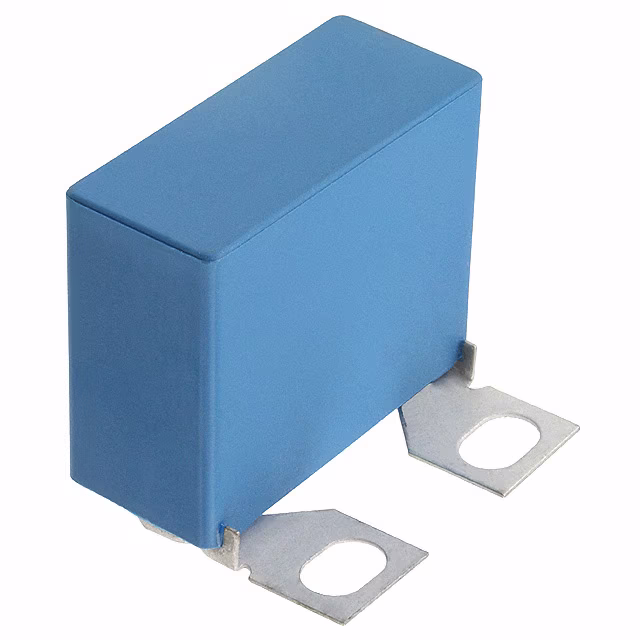

B32686S7224J564CAP FILM 0.22UF 5% 1.25KVDC SCRW |
5,042 |
|
Datasheet |
Rectangular Box | 0.22 µF | ±5% | 450V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 7 mOhms | -55°C ~ 100°C | Chassis Mount | 1.654" L x 0.709" W (42.00mm x 18.00mm) | 1.280" (32.50mm) | Screw Terminals | 1.122" (28.50mm) | Snubber | - | - |
|

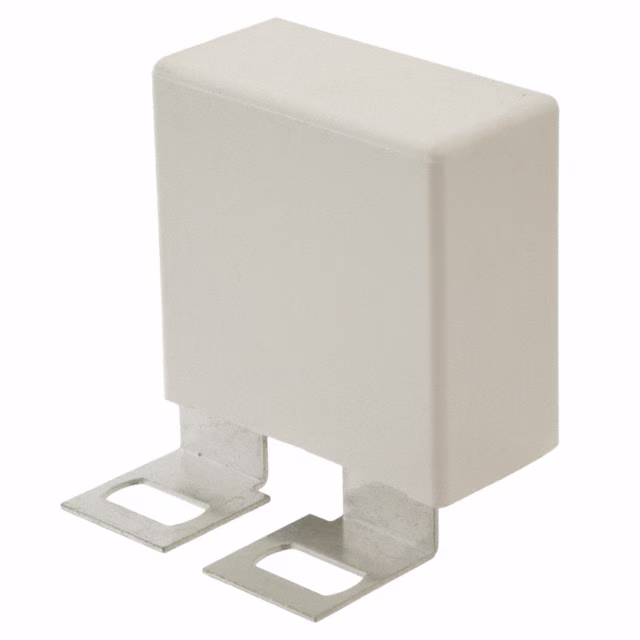

C4BSPBX3470ZBFJCAP FILM 0.47UF 5% 1.2KVDC SCREW |
3,877 |
|
Datasheet |
Rectangular Box | 0.47 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 6.7 mOhms | -40°C ~ 85°C | Chassis Mount | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.575" (40.00mm) | Screw Terminals | 0.866" (22.00mm) | DC Link, DC Filtering; Snubber | - | - |
|
EZP-E1B156MTACAP FILM 15UF 10% 1.1KVDC RADIAL |
2,261 |
|
Datasheet |
Radial - 4 Leads | 15 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 8.2 mOhms | -40°C ~ 85°C | Through Hole | 1.634" L x 1.181" W (41.50mm x 30.00mm) | 2.039" (51.80mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR |
|
|
B32656S7105K562CAP FILM 1UF 10% 1.25KVDC SCREW |
5,672 |
|
Datasheet |
Rectangular Box | 1 µF | ±10% | 500V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 100°C | Chassis Mount | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.457" (37.00mm) | Screw Terminals | 1.476" (37.50mm) | Snubber | AEC-Q200 | Low ESL |
|
MKP1847H55031JP2CAP FILM 5UF 5% 630VDC RADIAL |
11 |
|
Datasheet |
Radial | 5 µF | ±5% | 310V | 630V | Polypropylene (PP), Metallized | 8.5 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.846" W (42.00mm x 21.50mm) | 1.543" (39.20mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | - | 85C/85% Humidity |
|
25MU335MC14532CAP FILM 3.3UF 20% 25VDC 1812 |
3,580 |
|
Datasheet |
1812 (4532 Metric) | 3.3 µF | ±20% | - | 25V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.063" (1.60mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
|
63MU684MC14532CAP FILM 0.68UF 20% 63VDC 1812 |
6,882 |
|
Datasheet |
1812 (4532 Metric) | 0.68 µF | ±20% | - | 63V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
EZP-V1B306MTSCAP FILM 30UF 10% 1100V RADIAL |
24 |
|
Datasheet |
Radial - 4 Leads | 30 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 9.9 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 2.008" (51.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
C4AEJBW5150A3FJCAP FILM 15UF 5% 700VDC RADIAL |
5,671 |
|
Datasheet |
Radial | 15 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 6.3 mOhms | -40°C ~ 85°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.583" (40.20mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
C4BSPBX3680ZAFJCAP FILM 0.68UF 5% 1.2KVDC SCREW |
5,709 |
|
Datasheet |
Rectangular Box | 0.68 µF | ±5% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 4.7 mOhms | -40°C ~ 85°C | Chassis Mount | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.575" (40.00mm) | Screw Terminals | 1.004" (25.50mm) | DC Link, DC Filtering; Snubber | - | - |
|
C4AQCBW5550A3MJCAP FILM 55UF 5% 650VDC RADIAL |
9,535 |
|
Datasheet |
Radial - 4 Leads | 55 µF | ±5% | - | 650V | Polypropylene (PP), Metallized | 4.1 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.783" (45.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
EZP-Q33226MTACAP FILM 22UF 5% 330VAC RADIAL |
4,545 |
|
Datasheet |
Radial - 4 Leads | 22 µF | ±5% | 330V | - | Polypropylene (PP), Metallized | 7 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.988" (50.50mm) | PC Pins | 2.067" (52.50mm) | General Purpose | - | Long Life, Low ESR |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
