Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32928A4106K000CAP FILM 10UF 10% 650VDC RADIAL |
8,124 |
|
Datasheet |
Radial - 4 Leads | 10 µF | ±10% | 350V | 650V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | EMI, RFI Suppression | X2 | 85C/85% Humidity |
|
DCP4L053507ID2KSSDCAP FILM 35UF 10% 800VDC RAD |
8,985 |
|
Datasheet |
Radial | 35 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 3.8 mOhms | -55°C ~ 105°C | Through Hole | 1.634" L x 1.220" W (41.50mm x 31.00mm) | 1.811" (46.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|

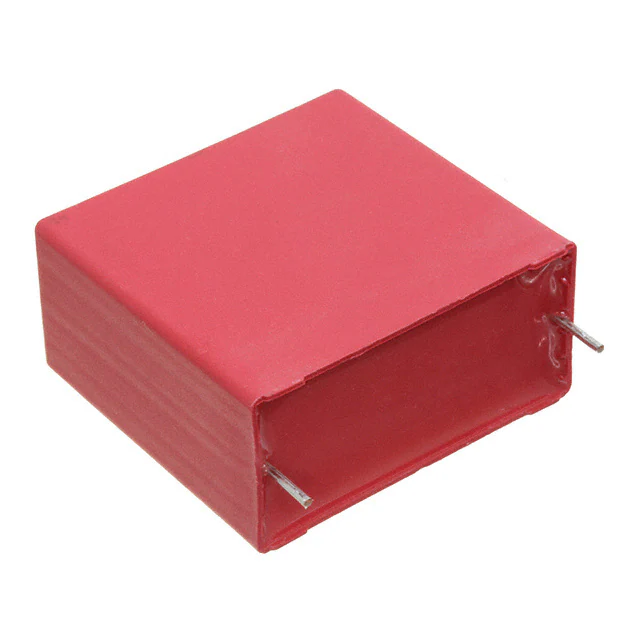

MKS4G051507G00KSSDCAP FILM 15UF 10% 400VDC RADIAL |
2,553 |
|
Datasheet |
Radial | 15 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.555" (39.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
Z93S4015MNCAP FILM 15UF 3% 400VAC RADIAL |
7,811 |
|
Datasheet |
Radial, Can | 15 µF | ±3% | 400V | - | - | - | -40°C ~ 105°C | Chassis Mount | 2.910" L x 1.910" W (73.91mm x 48.51mm) | 2.870" (72.90mm) | Threaded, Male | 0.810" (20.57mm) | General Purpose | - | Long Life |
|
SMC10.2224J100A31TR16CAP FILM 0.22UF 5% 100VDC SMD |
5,398 |
|
Datasheet |
Nonstandard | 0.22 µF | ±5% | 63V | 100V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.402" L x 0.358" W (10.20mm x 9.10mm) | 0.224" (5.70mm) | Solder Pads | - | General Purpose | - | High Temperature |
|
C4AQJBW5450M36JCAP FILM 45UF 5% 700VDC RADIAL |
9,556 |
|
Datasheet |
Radial - 4 Leads | 45 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 2.5 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.378" W (42.00mm x 35.00mm) | 1.819" (46.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
C4AEHBW5200A3FJCAP FILM 20UF 5% 600VDC RADIAL |
5,587 |
|
Datasheet |
Radial - 4 Leads | 20 µF | ±5% | - | 600V | Polypropylene (PP), Metallized | 5.3 mOhms | -40°C ~ 85°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.583" (40.20mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
B32656S0155J561CAP FILM 1.5UF 5% 1KVDC SCREW |
5,268 |
|
Datasheet |
Rectangular Box | 1.5 µF | ±5% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 100°C | Chassis Mount | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | Screw Terminals | 1.004" (25.50mm) | Snubber | AEC-Q200 | Low ESL |
|
C4AFBBW4400F3OKFILM CAP AC, 4 UF, 10%, 600 VAC |
1 |
|
Datasheet |
Radial - 4 Leads | 4 µF | ±10% | 600V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 12.8 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.780" (45.20mm) | PC Pins | 1.476" (37.50mm) | Automotive | AEC-Q200 | - |
|
ALH206K271C064CAP FILM 20UF 275VAC RAD 4 LEAD |
23 |
|
Datasheet |
Radial - 4 Leads | 20 µF | ±10% | 275V | - | Polypropylene (PP) | 6 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.811" (46.00mm) | PC Pins | 2.067" (52.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
F161ZS475K063VCAP FILM 4.7UF 10% 63VDC SMD |
7,580 |
|
Datasheet |
Nonstandard | 4.7 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.650" L x 0.591" W (16.50mm x 15.00mm) | 0.283" (7.20mm) | Solder Pads | - | Automotive | AEC-Q200 | - |
|
|
MKX2AW51007H00KSSDCAP FILM 10UF 10% 305VAC RADIAL |
17 |
|
Datasheet |
Radial | 10 µF | ±10% | 305V | - | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 1.791" (45.50mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
|
C4BSNBX4150ZAJJCAP FILM 1.5UF 5% 1KVDC SCREW |
4,096 |
|
Datasheet |
Rectangular Box | 1.5 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 2.5 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673" L x 1.102" W (42.50mm x 28.00mm) | 1.457" (37.00mm) | Screw Terminals | 1.004" (25.50mm) | DC Link, DC Filtering; Snubber | - | - |
|
|
C4AQJBW5200P3JJCAP FILM 20UF 5% 700VDC RADIAL |
3,738 |
|
Datasheet |
Radial - 4 Leads | 20 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 5.2 mOhms | -55°C ~ 125°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.465" (37.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESL |
|
C4AF1BW5330A3NKCAP FILM 33UF 10% 250VAC RADIAL |
4,406 |
|
Datasheet |
Radial - 4 Leads | 33 µF | ±10% | 250V | - | Polypropylene (PP), Metallized | 1.7 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.980" (50.30mm) | PC Pins | 2.067" (52.50mm) | Automotive | AEC-Q200 | - |
|
|
C4AF9BW5220A3NKCAP FILM 22UF 10% 310VAC RADIAL |
8,815 |
|
Datasheet |
Radial - 4 Leads | 22 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | 2.1 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 1.980" (50.30mm) | PC Pins | 2.067" (52.50mm) | Automotive | AEC-Q200 | - |
|
MKP385E52712JPM2T0CAP FILM 2.7UF 5% 1.25KVDC RAD |
4,856 |
|
Datasheet |
Radial | 2.7 µF | ±5% | 450V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.791" (45.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
|
C4AF7BW5185F3MKFILM CAP AC,18.5 UF,10%,350 VAC |
14 |
|
Datasheet |
Radial - 4 Leads | 18.5 µF | ±10% | 350V | 700V | Polypropylene (PP), Metallized | 6.8 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.783" (45.30mm) | PC Pins | 2.067" (52.50mm) | Automotive | AEC-Q200 | - |
|
|
MKP385E61540JPM2T0CAP FILM 15UF 5% 400VDC RAD |
3,836 |
|
Datasheet |
Radial | 15 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.791" (45.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
FFB36J0825K--CAP FILM 8.2UF 10% 525VDC RADIAL |
22 |
|
Datasheet |
Radial | 8.2 µF | ±10% | 105V | 525V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.224" L x 0.681" W (31.10mm x 17.30mm) | 1.173" (29.80mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | - |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
