Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C44PXGR5470RASKCAP FILM 47UF 10% 2.3KVDC RADIAL |
4,872 |
|
Datasheet |
Radial, Can | 47 µF | ±10% | 1000V (1kV) | 2300V (2.3kV) | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 9.803" (249.00mm) | Threaded, Male | 1.378" (35.00mm) | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | - | Long Life |
|
|
C44PLGR6600RASJCAP FILM 600UF 5% 700VDC RAD |
6,928 |
|
Datasheet |
Radial, Can | 600 µF | ±5% | 330V | 700V | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 9.803" (249.00mm) | Threaded, Male | 1.378" (35.00mm) | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | - | Long Life |
|
C9TS6MD5548AARXCAP FILM 54.8UF 440VAC RADIAL |
2,023 |
|
Datasheet |
Radial, Can | 54.8 µF | -5%, +15% | 440V | - | Polypropylene (PP), Metallized | - | -25°C ~ 55°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 6.378" (162.00mm) | Terminal Block | 0.748" (19.00mm) | 3 Phase, Power Factor Correction (PFC) | - | - |
|
C44AJGR6100ZA0JCAP FILM 100UF 5% 700VDC RADIAL |
3,331 |
|
Datasheet |
Radial, Can | 100 µF | ±5% | 400V | 700V | Polypropylene (PP), Metallized | 3 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 7.362" (187.00mm) | Threaded, Male | 1.378" (35.00mm) | General Purpose | - | - |
|
|
C44PUGR5470RASKCAP FILM 47UF 10% 1.7KVDC RADIAL |
8,585 |
|
Datasheet |
Radial, Can | 47 µF | ±10% | 780V | 1700V (1.7kV) | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis, Stud Mount | 2.953" Dia (75.00mm) | 9.803" (249.00mm) | Threaded, Male | 1.378" (35.00mm) | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | - | Long Life |
|
B32377B4107J080CAP FILM 3X100UF 5% 1.2KVDC RAD |
6,935 |
|
Datasheet |
Radial, Can | 100 µF | ±5% | 480V | 1200V (1.2kV) | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 3.780" Dia (96.00mm) | 10.925" (277.50mm) | Terminal Block | 0.591" (15.00mm) | 3 Phase | - | - |
|
|
C44PMGR6250RASJCAP FILM 250UF 5% 1.1KVDC RAD |
6,921 |
|
Datasheet |
Radial, Can | 250 µF | ±5% | 480V | 1100V (1.1kV) | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 9.803" (249.00mm) | Threaded, Male | 1.378" (35.00mm) | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | - | Long Life |
|
C44UQGT6700M52KCAP FILM 700UF 10% 1.1KVDC RAD |
3,801 |
|
Datasheet |
Radial, Can | 700 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 1.7 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 4.567" Dia (116.00mm) | 6.220" (158.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | - |
|

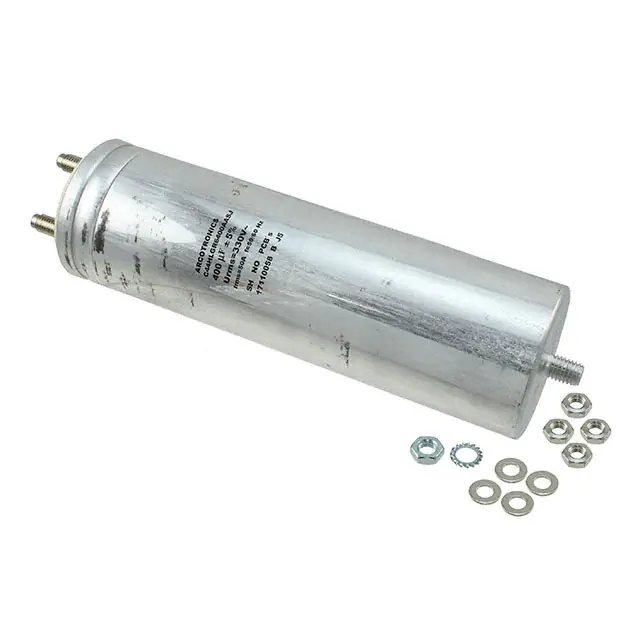

C44HLGR6400AASJCAP FILM 400UF 5% 700VDC RADIAL |
4,244 |
|
Datasheet |
Radial, Can | 400 µF | ±5% | 330V | 700V | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis, Stud Mount | 2.953" Dia (75.00mm) | 9.606" (244.00mm) | Threaded, Male | 1.378" (35.00mm) | Power Factor Correction (PFC); Commutation | - | Long Life |
|
947C211K122CBMSCAP FILM 210UF 10% 1.2KVDC RAD |
7,814 |
|
Datasheet |
Radial, Can | 210 µF | ±10% | 230V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 3.9 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.543" Dia (90.00mm) | 4.803" (122.00mm) | Threaded, Male | 1.772" (45.00mm) | DC Link, DC Filtering | - | Long Life, Low ESR |
|
|
C44UQGT6760M87KCAP FILM 760UF 10% 1.1KVDC RAD |
1 |
|
Datasheet |
Radial, Can | 760 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 2.3 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 10.709" (272.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
|
B32377A5107J030CAP FILM 3X100UF 5% 1.35KVDC RAD |
8,339 |
|
Datasheet |
Radial, Can | 100 µF | ±5% | 530V | 1350V (1.35kV) | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 4.567" Dia (116.00mm) | 9.390" (238.50mm) | Terminal Block | 0.591" (15.00mm) | 3 Phase | - | - |
|
|
B32377A7356J080CAP FILM 3X35UF 5% 1.95KVDC RAD |
8,256 |
|
Datasheet |
Radial, Can | 35 µF | ±5% | 780V | 1950V (1.95kV) | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis, Stud Mount | 4.567" Dia (116.00mm) | 7.972" (202.50mm) | Terminal Block | 0.591" (15.00mm) | 3 Phase | - | - |
|
SCRN236R-FCAP FILM 5UF 10% 1KVPK RADIAL |
6,263 |
|
Datasheet |
Radial, Can | 5 µF | ±10% | 1000Vpk (1KVPK) | - | Paper, Metallized | - | -40°C ~ 80°C | Chassis Mount, Requires Holder/Bracket | 2.690" L x 1.560" W (68.33mm x 39.62mm), Lip | 4.310" (109.47mm) | Threaded, Male | 1.250" (31.75mm) | Commutation; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
B32778J8277K000CAP FILM 270UF 10% 800VDC 12-DIP |
4,545 |
|
Datasheet |
12-DIP | 270 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 1.2 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 5.118" W (57.50mm x 130.00mm) | 2.283" (58.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Long Life |
|
|
C44UOGT6900M51KCAP FILM 900UF 10% 900VDC RADIAL |
9,937 |
|
Datasheet |
Radial, Can | 900 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 1.2 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 4.567" Dia (116.00mm) | 5.433" (138.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | - |
|
T10P5NR-FCAP FILM 0.5UF 10% 1KVDC RADIAL |
2,051 |
|
Datasheet |
Radial, Can | 0.5 µF | ±10% | - | 1000V (1kV) | Paper, Metallized | - | -55°C ~ 105°C | Chassis Mount, Requires Holder/Bracket | 2.160" L x 1.310" W (54.86mm x 33.27mm), Lip | 2.190" (55.63mm) | Threaded, Male | 0.810" (20.57mm) | EMI, RFI Suppression | - | High Temperature |
|
947D421K112AHGSNCAP FILM 420UF 10% 1.1KVDC RAD |
2,446 |
|
Datasheet |
Radial, Can | 420 µF | ±10% | 230V | 1100V (1.1kV) | Polypropylene (PP), Metallized | 2.8 mOhms | -45°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 5.433" (138.00mm) | Threaded, Female | 1.260" (32.00mm) | DC Link, DC Filtering | - | - |
|
|
C44UUGT6400M51KCAP FILM 400UF 10% 1.3KVDC RAD |
1 |
|
Datasheet |
Radial, Can | 400 µF | ±10% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 1.7 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 4.567" Dia (116.00mm) | 5.433" (138.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | - |
|
|
C44UOGT7110M52KCAP FILM 1100UF 10% 900VDC RAD |
4,077 |
|
Datasheet |
Radial, Can | 1100 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 1.4 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 4.567" Dia (116.00mm) | 6.220" (158.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | - |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
