Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PMB2123330KSPCAP FILM 0.33UF 1.2KVDC SCREW |
2,614 |
|
Datasheet |
Rectangular Box | 0.33 µF | ±10% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 5.1 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673" L x 0.965" W (42.50mm x 24.50mm) | 1.083" (27.50mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
50MU225MC44532CAP FILM 2.2UF 20% 50VDC 1812 |
7,562 |
|
Datasheet |
1812 (4532 Metric) | 2.2 µF | ±20% | - | 50V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
|
63MU155MC44532CAP FILM 1.5UF 20% 63VDC 1812 |
3,966 |
|
Datasheet |
1812 (4532 Metric) | 1.5 µF | ±20% | - | 63V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
953BQW4P5KSF-FCAP FILM 4.5UF 10% 250VAC RADIAL |
3,148 |
|
Datasheet |
Radial - 4 Leads | 4.5 µF | ±10% | 250V | - | Polypropylene (PP), Metallized | 12 mOhms | -40°C ~ 85°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.614" (41.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | - | - |
|
C4BSMBX4200ZALJCAP FILM 2UF 5% 850VDC SCREW |
9,839 |
|
Datasheet |
Rectangular Box | 2 µF | ±5% | 550V | 850V | Polypropylene (PP), Metallized | 2.1 mOhms | -40°C ~ 85°C | Chassis Mount | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | Screw Terminals | 1.004" (25.50mm) | DC Link, DC Filtering; Snubber | - | - |
|
MKP1848622454P4CAP FILM 22UF 5% 450VDC RADIAL |
5,754 |
|
Datasheet |
Radial - 4 Leads | 22 µF | ±5% | - | 450V | Polypropylene (PP), Metallized | 9.5 mOhms | -40°C ~ 105°C | Through Hole | 1.693" L x 0.846" W (43.00mm x 21.50mm) | 1.516" (38.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESR |
|
|
PMB1704350KSRCAP FILM 3.5UF 10% 700VDC SCREW |
5,253 |
|
Datasheet |
Rectangular Box | 3.5 µF | ±10% | 420V | 700V | Polypropylene (PP), Metallized | 2 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673" L x 1.299" W (42.50mm x 33.00mm) | 1.772" (45.00mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
105PMB122KSP1CAP FILM 1UF 10% 1.2KVDC CHAS MT |
7,002 |
|
Datasheet |
Rectangular Box | 1 µF | ±10% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 2.7 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673" L x 1.319" W (42.50mm x 33.50mm) | 1.398" (35.50mm) | - | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|

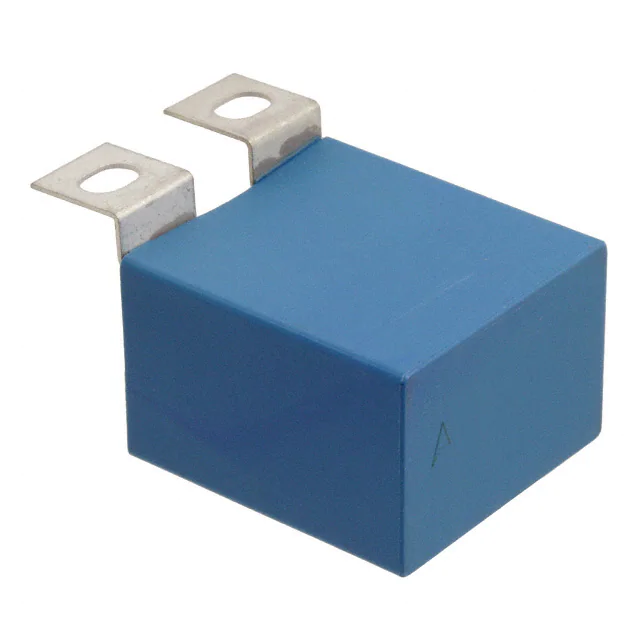

B32656S7145K561CAP FILM 1.4UF 10% 1.25KVDC SCRW |
9,253 |
|
Datasheet |
Rectangular Box | 1.4 µF | ±10% | 500V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 15 mOhms | -55°C ~ 100°C | Chassis Mount | - | - | Screw Terminals | 1.004" (25.50mm) | Snubber | - | Low ESL |
|
EZP-Q38226MTACAP FILM 22UF 5% 380VAC RADIAL |
7,261 |
|
Datasheet |
Radial - 4 Leads | 22 µF | ±5% | 380V | - | Polypropylene (PP), Metallized | 7.5 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.378" W (57.50mm x 35.00mm) | 2.224" (56.50mm) | PC Pins | 2.067" (52.50mm) | General Purpose | - | Long Life, Low ESR |
|
B32656S2474K562CAP FILM 0.47UF 10% 2KVDC SCREW |
6,545 |
|
Datasheet |
Rectangular Box | 0.47 µF | ±10% | 800V | 2000V (2kV) | Polypropylene (PP), Metallized | 8 mOhms | -55°C ~ 100°C | Chassis Mount | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | Screw Terminals | 0.866" (22.00mm) | Snubber | AEC-Q200 | Low ESL |
|
C4AF7BW4680A3JKCAP FILM 6.8UF 10% 700VDC RADIAL |
8,942 |
|
Datasheet |
Radial - 4 Leads | 6.8 µF | ±10% | 350V | 700V | Polypropylene (PP), Metallized | 2.8 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.102" W (42.00mm x 28.00mm) | 1.465" (37.20mm) | PC Pins | 1.476" (37.50mm) | Automotive | AEC-Q200 | - |
|
MHBS455250KJSDCAP FILM 25UF 10% 800VDC RADIAL |
7,078 |
|
Datasheet |
Radial - 4 Leads | 25 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 3.7 mOhms | -40°C ~ 85°C | Through Hole | 1.673" L x 1.181" W (42.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
B32354S3356K010CAP FILM 35UF 10% 500VDC RADIAL |
6,563 |
|
Datasheet |
Radial - 4 Leads | 35 µF | ±10% | 350V | 500V | Polypropylene (PP), Metallized | 10 mOhms | -40°C ~ 85°C | Through Hole | 2.264" L x 1.969" W (57.50mm x 50.00mm) | 2.165" (55.00mm) | PC Pins | 2.067" (52.50mm) | EMI, RFI Suppression | - | - |
|
C4BSNBX4250ZBMJCAP FILM 2.5UF 5% 1KVDC SCREW |
9,583 |
|
Datasheet |
Rectangular Box | 2.5 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 3.3 mOhms | -40°C ~ 85°C | Chassis Mount | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | Screw Terminals | 1.457" (37.00mm) | DC Link, DC Filtering; Snubber | - | - |
|
|
PMB1704350KSPCAP FILM 3.5UF 10% 700VDC SCREW |
2,226 |
|
Datasheet |
Rectangular Box | 3.5 µF | ±10% | 420V | 700V | Polypropylene (PP), Metallized | 2 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673" L x 1.299" W (42.50mm x 33.00mm) | 1.772" (45.00mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
EZP-E1B306MTACAP FILM 30UF 10% 1.1KVDC RADIAL |
4,380 |
|
Datasheet |
Radial - 4 Leads | 30 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 8.5 mOhms | -40°C ~ 85°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 2.039" (51.80mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Low ESR |
|
|
C4AF3EW5150T3AKFILM, POWER, METALLIZED POLYPROP |
5,223 |
|
Datasheet |
Radial - 4 Leads | 15 µF | ±10% | 400V | 800V | Polypropylene (PP), Metallized | 2.6 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.217" (56.30mm) | PC Pins | 2.067" (52.50mm) | Automotive | AEC-Q200 | - |
|
R76IW468050H3JCAP FILM 6.8UF 5% 250VDC RAD |
2,977 |
|
Datasheet |
Radial | 6.8 µF | ±5% | 180V | 250V | Polypropylene (PP), Metallized | 0.6 mOhms | -55°C ~ 125°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
C4AQLBW5800M36KCAP FILM 80UF 10% 500VDC RADIAL |
5,217 |
|
Datasheet |
Radial - 4 Leads | 80 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 1.8 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.378" W (42.00mm x 35.00mm) | 1.819" (46.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
