Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PHE450PR6560JR06L2NO SPEC SHEET |
185 |
|
Datasheet |
Radial | 0.56 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.614" L x 0.512" W (41.00mm x 13.00mm) | 0.945" (24.00mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching | - | - |
|
A70IF2100AA00KCAP FILM 10000PF 10% 250VDC AXL |
5,740 |
|
Datasheet |
Axial | 10000 pF | ±10% | 200V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.197" Dia x 0.433" L (5.00mm x 11.00mm) | - | PC Pins | - | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) | - | - |
|
X2P2205KV1B0320220130ES0X2 275VAC 2.0UF 10% P=27.5MM W3 |
967 |
|
Datasheet |
Radial | 2 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.886" (22.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
SMC7.3473J100K35TR12CAP FILM 0.047UF 5% 100VDC 2824 |
4,710 |
|
Datasheet |
2824 (7260 Metric) | 0.047 µF | ±5% | 63V | 100V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.287" L x 0.236" W (7.30mm x 6.00mm) | 0.138" (3.50mm) | Solder Pads | - | General Purpose | - | High Temperature |
|
|
X2Q2155KV1B0320220130ES0X2 305VAC 1.5UF 10% P=27.5MM W32 |
991 |
|
Datasheet |
Radial | 1.5 µF | ±10% | 305V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.492" W (26.50mm x 12.50mm) | 0.886" (22.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
|
X2Q3155KV1B0320220130ES0X2 310VAC 1.5UF 10% P=27.5MM W32 |
190 |
|
Datasheet |
Radial | 1.5 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.886" (22.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
MKS4U032207E00KSSDMKS 4 0.22 UF 2000 VDC 17X29X41. |
229 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 400V | 2000V (2kV) | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.634" L x 0.669" W (41.50mm x 17.00mm) | 1.142" (29.00mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | - |
|
|
MKS4C051506B00KSSDMKS 4 15.0 UF 63 VDC 11X21X31.5 |
430 |
|
Datasheet |
Radial | 15 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
|
MPX20W3330FJ00MSSDMP 3-X2 0.33 UF 250 VAC 12X24X28 |
152 |
|
Datasheet |
Radial | 0.33 µF | ±20% | 250V | - | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 1.102" L x 0.472" W (28.00mm x 12.00mm) | 0.945" (24.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | Low ESR |
|
C4AQILW4800M33JCAP FILM 8UF 5% 800VDC RADIAL |
254 |
|
Datasheet |
Radial - 4 Leads | 8 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 11.4 mOhms | -55°C ~ 105°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 0.756" (19.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
ECQ-UAAF475LDCAP FILM 4.7UF 20% 275VAC RADIAL |
169 |
|
Datasheet |
Radial | 4.7 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.614" L x 0.709" W (41.00mm x 18.00mm) | 1.319" (33.50mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
|
|
MKP1O136807E00KSSDMKP 10 0.68 UF 1000 VDC 17X29X41 |
1,199 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634" L x 0.669" W (41.50mm x 17.00mm) | 1.142" (29.00mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | - |
|
|
MKS4D051506D00KSSDMKS 4 15.0 uF 100 VDC 13x24x31.5 |
665 |
|
- |
Radial | 15 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.512" W (31.50mm x 13.00mm) | 0.945" (24.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
F161ZS124K630VCAP FILM 0.12UF 10% 630VDC SMD |
2,956 |
|
Datasheet |
Nonstandard SMD | 0.12 µF | ±10% | 250V | 630V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.650" L x 0.591" W (16.50mm x 15.00mm) | 0.283" (7.20mm) | Solder Pads | - | Automotive | AEC-Q200 | - |
|
|
MKP1F043306I00KSSDCAP FILM 3.3UF 10% 250VDC RAD |
6,652 |
|
Datasheet |
Radial | 3.3 µF | ±10% | 180V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.669" W (31.50mm x 17.00mm) | 1.358" (34.50mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
SMC5.7683J50J35TR12CAP FILM 0.068UF 5% 50VDC 2220 |
276 |
|
Datasheet |
2220 (5750 Metric) | 0.068 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.157" (4.00mm) | Solder Pads | - | General Purpose | - | High Temperature |
|
|
X2Q2225KV1B0320250140ES0X2 305VAC 2.2UF 10% P=27.5MM W32 |
966 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 305V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.004" (25.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|

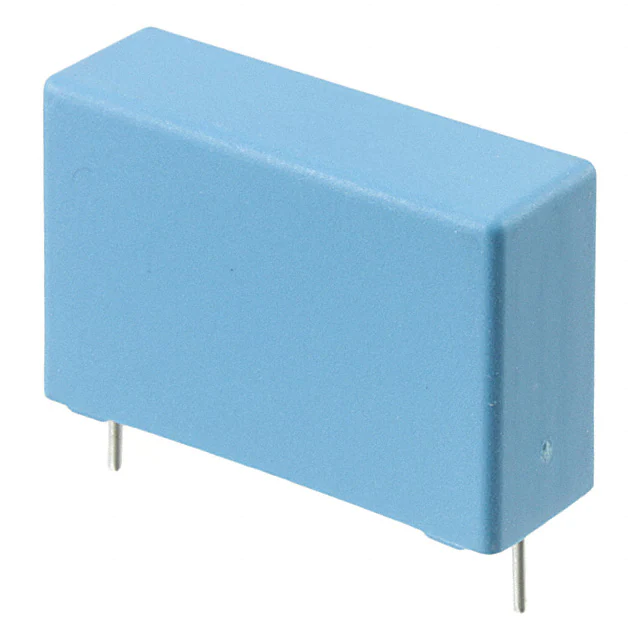

PHE820EF6330MR06L2CAP FILM 0.33UF 20% 300VAC RAD |
214 |
|
Datasheet |
Radial | 0.33 µF | ±20% | 300V | - | Polyester, Metallized | - | -40°C ~ 100°C | Through Hole | 1.240" L x 0.413" W (31.50mm x 10.50mm) | 0.807" (20.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
MKP4O142207H00JSSDMKP 4 2.2 F 1000 VDC 24X45.5X41. |
6,391 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MKP1845315204CAP FILM 0.015UF 5% 2KVDC AXIAL |
1,500 |
|
Datasheet |
Axial | 0.015 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.453" Dia x 1.339" L (11.50mm x 34.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
