Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MKP1839510124HQRCAP FILM 1UF 5% 1.25KVDC AXIAL |
125 |
|
Datasheet |
Axial | 1 µF | ±5% | 425V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.925" Dia x 1.240" L (23.50mm x 31.50mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
EZP-V80905LTACAP FILM 9UF 10% 800V RADIAL |
200 |
|
Datasheet |
Radial | 9 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 12.6 mOhms | -40°C ~ 105°C | Through Hole | 1.220" L x 0.807" W (31.00mm x 20.50mm) | 1.673" (42.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | Long Life, Low ESR |
|
WMF6P33K-FCAP FILM 0.33UF 10% 630VDC AXIAL |
1,915 |
|
Datasheet |
Axial | 0.33 µF | ±10% | - | 630V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.748" Dia x 2.000" L (19.00mm x 50.80mm) | - | PC Pins | - | General Purpose | - | - |
|
|
MKS4D052206F00KSSDMKS 4 22.0 uF 100 VDC 15x26x31.5 |
384 |
|
- |
Radial | 22 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 1.024" (26.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
X2Q2105KT1B0265200110ES0X2 305VAC 1UF 10% P=22.5MM W26.5 |
998 |
|
Datasheet |
Radial | 1 µF | ±10% | 305V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.807" (20.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|

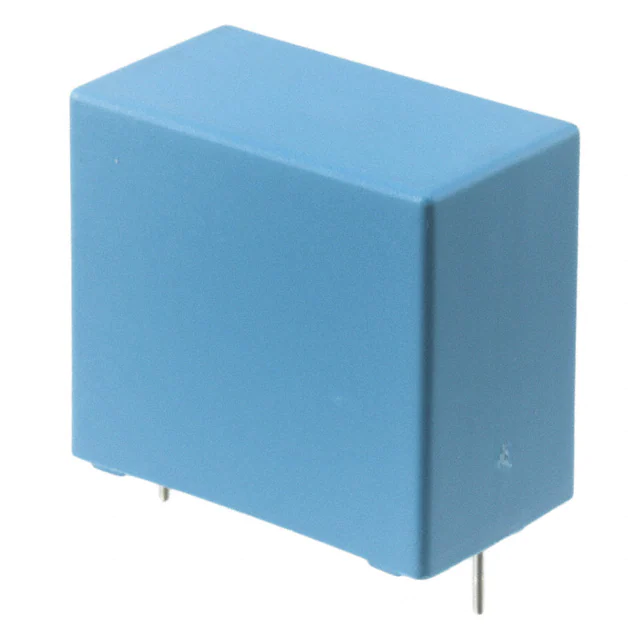

PHE820MF7100MR06L2CAP FILM 1UF 20% 275VAC RADIAL |
6,231 |
|
Datasheet |
Radial | 1 µF | ±20% | 275V | - | Polyester, Metallized | - | -40°C ~ 100°C | Through Hole | 1.240" L x 0.689" W (31.50mm x 17.50mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
C274AC35120SA0JCAP FILM 12UF 5% 470VAC RADIAL |
2,115 |
|
Datasheet |
Radial, Can | 12 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.378" Dia (35.00mm) | 2.972" (75.50mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
PPA2123330KJCAP FILM 0.33UF 10% 1.2KVDC AXL |
242 |
|
Datasheet |
Axial | 0.33 µF | ±10% | 550V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 4.5 mOhms | -40°C ~ 85°C | Through Hole | 0.827" Dia x 1.260" L (21.00mm x 32.00mm) | - | PC Pins | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
|
R46KR468000P0KCAP FILM SAFETY/EMI SUPP RAD |
5,883 |
|
Datasheet |
Radial | 6.8 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.461" (37.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
|
R60IR4470AA40MCAP FILM AUTOMOTIVE |
5,070 |
|
Datasheet |
Radial | 4.7 µF | ±20% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.354" W (32.00mm x 9.00mm) | 0.673" (17.10mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
|
EZP-V80116LTUCAP FILM 11UF 10% 800V RADIAL |
200 |
|
Datasheet |
Radial | 11 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 10.6 mOhms | -40°C ~ 105°C | Through Hole | 1.220" L x 0.807" W (31.00mm x 20.50mm) | 1.673" (42.50mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
F161ZS224K400VCAP FILM 0.22UF 10% 400VDC SMD |
5,703 |
|
Datasheet |
Nonstandard | 0.22 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.650" L x 0.591" W (16.50mm x 15.00mm) | 0.283" (7.20mm) | Solder Pads | - | Automotive | AEC-Q200 | - |
|
|
MKP1845410105CAP FILM 0.1UF 10% 1KVDC AXIAL |
747 |
|
Datasheet |
Axial | 0.1 µF | ±10% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.610" Dia x 1.339" L (15.50mm x 34.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
EZP-V1B405LTBCAP FILM 4UF 10% 1100V RADIAL |
236 |
|
Datasheet |
Radial | 4 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 23.5 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 0.591" W (41.00mm x 15.00mm) | 1.181" (30.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
|
MKP1U034707G00JSSDMKP 10 0.47 UF 2000 VDC 20X39.5X |
310 |
|
Datasheet |
Radial | 0.47 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.555" (39.50mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | - |
|
EZP-Q60105LTACAP FILM 1UF 10% 600VAC RADIAL |
212 |
|
Datasheet |
Radial | 1 µF | ±10% | 600V | - | Polypropylene (PP), Metallized | 26.6 mOhms | -40°C ~ 105°C | Through Hole | 1.634" L x 0.591" W (41.50mm x 15.00mm) | 1.161" (29.50mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | Long Life, Low ESR |
|
|
MKP1845347204CAP FILM 0.047UF 5% 2KVDC AXIAL |
741 |
|
Datasheet |
Axial | 0.047 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.591" Dia x 1.732" L (15.00mm x 44.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
A70PQ2680AA00JCAP FILM 0.068UF 5% 630VDC AXIAL |
302 |
|
Datasheet |
Axial | 0.068 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.335" Dia x 1.102" L (8.50mm x 28.00mm) | - | PC Pins | - | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) | - | - |
|
C4AUQBW5100M3HJFILM, RADIAL, METALLIZED POLYPRO |
112 |
|
Datasheet |
Radial - 4 Leads | 10 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 0.945" W (42.00mm x 24.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
|
C878AF35200AA0JCAP FILM MOTOR START RUN |
3,304 |
|
Datasheet |
Radial, Can | 20 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.772" Dia (45.00mm) | 3.150" (80.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
