Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PHE820EF7100MR06L2CAP FILM 1UF 20% 300VAC RADIAL |
177 |
|
Datasheet |
Radial | 1 µF | ±20% | 300V | - | Polyester, Metallized | - | -40°C ~ 100°C | Through Hole | 1.240" L x 0.689" W (31.50mm x 17.50mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
MKP4F051007F00KSSDMKP 4 10.0 UF 250 VDC 19X32X41.5 |
509 |
|
Datasheet |
Radial | 10 µF | ±10% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634" L x 0.748" W (41.50mm x 19.00mm) | 1.260" (32.00mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching | - | - |
|
|
SNFPT023306BD4MS00SNUBBER FKP 0.033 UF 1600 VDC 11 |
146 |
|
- |
Rectangular Box | 0.033 µF | ±20% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Chassis Mount | - | - | Screw Terminals | - | High Pulse, DV/DT; Snubber | - | - |
|
505K100RA4CAPACITOR MLP 5.0UF 100V RADIAL |
143 |
|
Datasheet |
Radial | 5 µF | ±10% | 80V | 100V | Polyester, Metallized | 6 mOhms | -55°C ~ 125°C | Through Hole | 0.449" L x 0.220" W (11.40mm x 5.60mm) | 0.480" (12.20mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression; High Pulse, DV/DT | - | Low ESR, High Temperature |
|
|
EZP-Q38805MTACAP FILM 8UF 5% 380VAC RADIAL |
149 |
|
Datasheet |
Radial - 4 Leads | 8 µF | ±5% | 380V | - | Polypropylene (PP), Metallized | 11.9 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 1.083" W (41.00mm x 27.50mm) | 1.693" (43.00mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | Long Life, Low ESR |
|
QAP2J105JRPCAP FILM 1UF 5% 630VDC AXIAL |
111 |
|
Datasheet |
Axial | 1 µF | ±5% | - | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 0.850" W, 0.469" T x 1.575" L (21.60mm, 11.90mm x 40.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
230B1C474KCAP FILM 0.47UF 10% 200VDC AXIAL |
923 |
|
- |
Axial | 0.47 µF | ±10% | - | 200V | Polyester, Metallized | - | -55°C ~ 85°C | Through Hole | 0.780" L x 0.330" W (19.81mm x 8.38mm) | 0.290" (7.37mm) | PC Pins | - | General Purpose | - | Long Life |
|
C4ASNBW3470A3EJCAP FILM 0.47UF 5% 1KVDC RADIAL |
5,412 |
|
Datasheet |
Radial - 4 Leads | 0.47 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 4.1 mOhms | -40°C ~ 85°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.299" (33.00mm) | PC Pins | 1.083" (27.50mm) | Snubber | - | - |
|
|
MKP1845333204CAP FILM 0.033UF 5% 2KVDC AXIAL |
708 |
|
Datasheet |
Axial | 0.033 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.630" Dia x 1.339" L (16.00mm x 34.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
|
MKP1T041007H00JSSDMKP 10 1.0 UF 1600 VDC 24X45.5X4 |
591 |
|
- |
Radial | 1 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 1.791" (45.50mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | - |
|
|
SNMPJ031505FB5KS00SNUBBER MKP 0.15 UF 630 VDC 8.5X |
144 |
|
- |
Rectangular Box | 0.15 µF | ±10% | - | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Chassis Mount | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.728" (18.50mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
SMR15225K63B12L4BULKCAP FILM 2.2UF 10% 63VDC RADIAL |
7,149 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 40V | 63V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.709" L x 0.315" W (18.00mm x 8.00mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | High Temperature |
|
EZP-Q60155LTACAP FILM 1.5UF 10% 600VAC RADIAL |
588 |
|
Datasheet |
Radial | 1.5 µF | ±10% | 600V | - | Polypropylene (PP), Metallized | 18.7 mOhms | -40°C ~ 105°C | Through Hole | 1.634" L x 0.669" W (41.50mm x 17.00mm) | 1.732" (44.00mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | Long Life, Low ESR |
|
|
SNFPT021005DB5JS00SNUBBER FKP 0.01 UF 1600 VDC 7X1 |
552 |
|
- |
Rectangular Box | 10000 pF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Chassis Mount | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.650" (16.50mm) | Screw Terminals | - | High Pulse, DV/DT; Snubber | - | - |
|
|
C954PF44340ZA0XCAP FILM 3.4UF 450VAC |
9,508 |
|
- |
- | 3.4 µF | - | 450V | - | - | - | - | - | - | - | - | - | - | - | - |
|
EZP-V80905LTUCAP FILM 9UF 10% 800V RADIAL |
160 |
|
Datasheet |
Radial | 9 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 12.6 mOhms | -40°C ~ 105°C | Through Hole | 1.220" L x 0.807" W (31.00mm x 20.50mm) | 1.673" (42.50mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
|
C4CAPUC3470AA1KCAP FILM METAL AXL POLYPROP |
8,096 |
|
Datasheet |
Axial | 0.47 µF | ±10% | 500V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 5.6 mOhms | -40°C ~ 85°C | Through Hole | 0.906" Dia x 1.732" L (23.00mm x 44.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
953BQW10KSF-FCAP FILM 10UF 10% 250VAC RADIAL |
128 |
|
Datasheet |
Radial - 4 Leads | 10 µF | ±10% | 250V | - | Polypropylene (PP), Metallized | 8 mOhms | -40°C ~ 85°C | Through Hole | 1.634" L x 1.181" W (41.50mm x 30.00mm) | 1.811" (46.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | - | - |
|

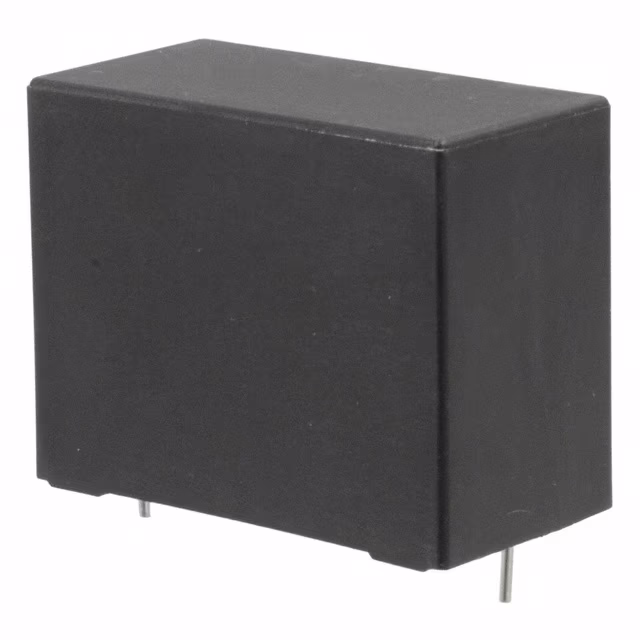

FB37H6C0106KCCAP FILM 10UF 10% 900VDC RADIAL |
9,957 |
|
Datasheet |
Radial | 10 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 12 mOhms | -40°C ~ 100°C | Through Hole | 1.673" L x 0.866" W (42.50mm x 22.00mm) | 1.319" (33.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR |
|
MKP1848S55010JP4BCAP FILM 5UF 5% 1KVDC RADIAL |
1,051 |
|
Datasheet |
Radial - 4 Leads | 5 µF | ±5% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 11.5 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.063" W (42.00mm x 27.00mm) | 0.591" (15.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
