Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
X2P2224KQ1B0180145085ES0X2 275VAC 0.22UF 10% P=15MM W18* |
949 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.315" W (13.00mm x 8.00mm) | 0.610" (15.50mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
|
MKP1F042206F00JSSDMKP 10 2.2 UF 250 VDC 15X26X31.5 |
910 |
|
- |
Radial | 2.2 µF | ±5% | 180V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 1.024" (26.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|

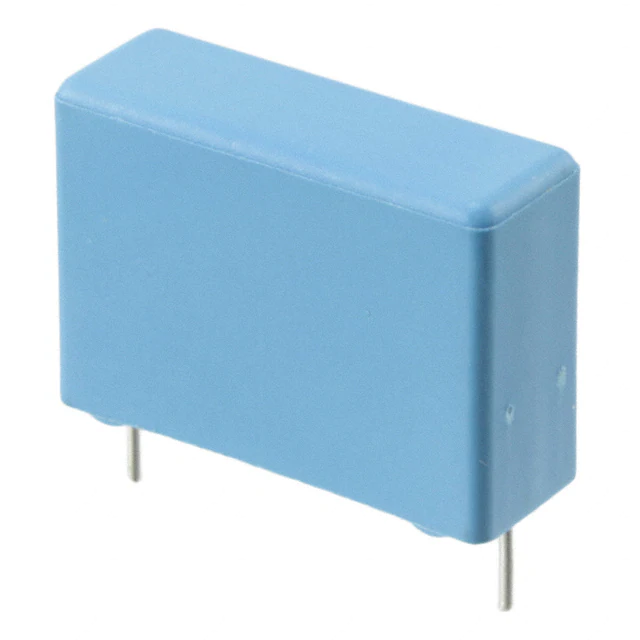

PHE820ED6220MR06L2CAP FILM 0.22UF 20% 300VAC RAD |
236 |
|
Datasheet |
Radial | 0.22 µF | ±20% | 300V | - | Polyester, Metallized | - | -40°C ~ 100°C | Through Hole | 1.024" L x 0.354" W (26.00mm x 9.00mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
225K100RA4CAPACITOR MLP 2.2UF 100V RADIAL |
9,131 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 80V | 100V | Polyester, Metallized | 6 mOhms | -55°C ~ 125°C | Through Hole | 0.449" L x 0.205" W (11.40mm x 5.20mm) | 0.283" (7.20mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression; High Pulse, DV/DT | - | Low ESR, High Temperature |
|
|
FKP1U023307C00JSSDFKP 1 0.033 UF 2000 VDC 13X24X41 |
2,104 |
|
Datasheet |
Radial | 0.033 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634" L x 0.512" W (41.50mm x 13.00mm) | 0.945" (24.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
PME278RC5470MR30CAP FILM 0.047UF 20% 1KVDC RAD |
263 |
|
Datasheet |
Radial | 0.047 µF | ±20% | 440V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 0.945" L x 0.354" W (24.00mm x 9.00mm) | 0.591" (15.00mm) | PC Pins | 0.799" (20.30mm) | EMI, RFI Suppression | X1 | - |
|
474K400RA6-FACAPACITOR MLP .47UF 400V RADIAL |
10,407 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 250V | 400V | Polyester, Metallized | 12 mOhms | -55°C ~ 125°C | Through Hole | 0.650" L x 0.291" W (16.50mm x 7.40mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression; High Pulse, DV/DT | - | Low ESR, High Temperature |
|
|
474K400RA6CAPACITOR MLP .47UF 400V RADIAL |
1,418 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 250V | 400V | Polyester, Metallized | 12 mOhms | -55°C ~ 125°C | Through Hole | 0.650" L x 0.291" W (16.50mm x 7.40mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression; High Pulse, DV/DT | - | Low ESR, High Temperature |
|
|
FKP1T024707C00JSSDFKP 1 0.047 UF 1600 VDC 13X24X41 |
133 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634" L x 0.512" W (41.50mm x 13.00mm) | 0.945" (24.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
MKS4C043303G00KSSDCAP FILM 3.3UF 10% 63VDC RADIAL |
2,201 |
|
Datasheet |
Radial | 3.3 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
MKP1T032207C00JSSDMKP 10 0.22 UF 1600 VDC 13X24X41 |
364 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634" L x 0.512" W (41.50mm x 13.00mm) | 0.945" (24.00mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | - |
|
|
MKP1O134706G00KSSDMKP 10 0.47 UF 1000 VDC 17X29X31 |
492 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.669" W (31.50mm x 17.00mm) | 1.142" (29.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
|
FKP1O131007C00JSSDFKP 1 0.1 UF 1000 VDC 13X24X41.5 |
590 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634" L x 0.512" W (41.50mm x 13.00mm) | 0.945" (24.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
MKP1J036806F00JSSDMKP 10 0.68 UF 630 VDC 15X26X31. |
346 |
|
Datasheet |
Radial | 0.68 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 1.024" (26.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
|
A72MF0150AA00JCAP FILM AXL POLYPROP FOIL |
4,450 |
|
Datasheet |
Axial | 150 pF | ±5% | 160V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.197" Dia x 0.433" L (5.00mm x 11.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
B32684A6334K000CAP FILM 0.33UF 630VDC RADIAL |
960 |
|
Datasheet |
- | - | ±10% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 0.965" (24.50mm) | - | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
|
MKS4C051005F00KSSDMKS 4 10.0 UF 63 VDC 8.5X18.5X26 |
789 |
|
Datasheet |
Radial | 10 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
SMP253MA4150MTR24CAP FILM 1500PF 20% 1.5KVDC SMD |
491 |
|
Datasheet |
Nonstandard SMD | 1500 pF | ±20% | 250V | 1500V (1.5kV) | Paper, Metallized | - | -40°C ~ 100°C | Surface Mount | 0.500" L x 0.453" W (12.70mm x 11.50mm) | 0.264" (6.70mm) | Solder Pads | - | EMI, RFI Suppression | Y2 | - |
|
F161PP223K100VCAP FILM 0.022UF 10% 100VDC 2220 |
6,912 |
|
Datasheet |
2220 (5750 Metric) | 0.022 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.224" L x 0.197" W (5.70mm x 5.00mm) | 0.126" (3.20mm) | Solder Pads | - | Automotive | AEC-Q200 | - |
|
|
FKP4T031006I00JSSDFKP 4 0.1 UF 1600 VDC 17X34.5X31 |
320 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP) | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.669" W (31.50mm x 17.00mm) | 1.358" (34.50mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
