Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
103MSR102KCAP FILM 10000PF 10% 1KVDC RAD |
2,759 |
|
Datasheet |
Radial | 10000 pF | ±10% | 250V | 1000V (1kV) | Polyester, Metallized | 176.839 Ohms | -55°C ~ 125°C | Through Hole | 0.551" L x 0.276" W (14.00mm x 7.00mm) | 0.453" (11.50mm) | PC Pins | 0.394" (10.00mm) | General Purpose | - | - |
|
MKS2F021001A00JSSDCAP FILM 10000PF 5% 250VDC RAD |
2,680 |
|
Datasheet |
Radial | 10000 pF | ±5% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
B32520E6104K000CAP FILM 0.1UF 10% 400VDC RADIAL |
1,612 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.394" L x 0.197" W (10.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.295" (7.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | - |
|
KP1830147014CAP FILM 470PF 5% 100VDC RADIAL |
1,273 |
|
Datasheet |
Radial | 470 pF | ±5% | 63V | 100V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.236" (6.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
FKP0D002200B00KSSDCAP FILM 220PF 10% 100VDC RAD |
21,959 |
|
Datasheet |
Radial | 220 pF | ±10% | 63V | 100V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.181" L x 0.098" W (4.60mm x 2.50mm) | 0.276" (7.00mm) | PC Pins | 0.098" (2.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
B32021A3102M026FILM CAP Y2 MKP 1.0 NF 20% 300VA |
15,345 |
|
Datasheet |
Radial | 1000 pF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.354" (9.00mm) | PC Pins - Long Leads | 0.394" (10.00mm) | EMI, RFI Suppression | Y2 | - |
|
B32671L0103J000CAP FILM 10000PF 5% 1KVDC RADIAL |
12,704 |
|
Datasheet |
Radial | 10000 pF | ±5% | 500V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
B32021A3102M000CAP FILM 1000PF 20% 1.5KVDC RAD |
8,737 |
|
Datasheet |
Radial | 1000 pF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.354" (9.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | Y2 | - |
|
R413I21000000MCAP FILM 10000PF 20% 1KVDC RAD |
6,686 |
|
Datasheet |
Radial | 10000 pF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
BFC237011334CAP FILM 0.33UF 10% 63VDC RADIAL |
6,166 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.315" (8.00mm) | PC Pins | 0.200" (5.08mm) | Automotive | AEC-Q200 | Long Life |
|
R463I310050M1KCAP FILM 0.1UF 10% 630VDC RADIAL |
1,930 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
B32652A1332J000CAP FILM 3300PF 5% 1.6KVDC RAD |
1,704 |
|
Datasheet |
Radial | 3300 pF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Pulse, DV/DT; Snubber | AEC-Q200 | - |
|
473MPR630KCAP FILM 0.047UF 10% 630VDC RAD |
1,167 |
|
Datasheet |
Radial | 0.047 µF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | 3.763 Ohms | -55°C ~ 105°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.532" (13.50mm) | PC Pins | 0.591" (15.00mm) | DC Link, DC Filtering | - | Low ESR |
|
FKP2O106801G00HSSDCAP FILM 680PF 2.5% 1KVDC RAD |
17,447 |
|
Datasheet |
Radial | 680 pF | ±2.5% | 250V | 1000V (1kV) | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.217" W (7.20mm x 5.50mm) | 0.276" (7.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|

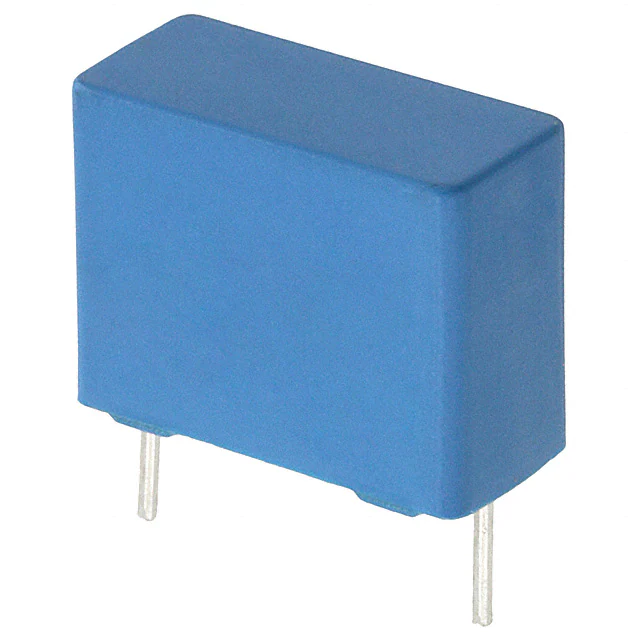

B32922C3334M189CAP FILM 0.33UF 20% 630VDC RAD |
16,654 |
|
Datasheet |
Radial | 0.33 µF | ±20% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.315" W (18.00mm x 8.00mm) | 0.551" (14.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
MKS2C032201B00JSC9CAP FILM 0.22UF 5% 63VDC RADIAL |
8,210 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.118" W (7.20mm x 3.00mm) | 0.295" (7.50mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
|
MKS2C031501A00JC00CAP FILM 0.15UF 5% 63VDC RADIAL |
7,974 |
|
Datasheet |
Radial | 0.15 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
|
MKS2D031001A00JC00CAP FILM 0.1UF 5% 100VDC RADIAL |
7,279 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
|
104MSR630KCAP FILM 0.1UF 10% 630VDC RADIAL |
6,330 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 220V | 630V | Polyester, Metallized | 17.684 Ohms | -55°C ~ 125°C | Through Hole | 0.728" L x 0.394" W (18.50mm x 10.00mm) | 0.610" (15.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
|
B32922C3334K000CAP FILM 0.33UF 10% 630VDC RAD |
5,045 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.315" W (18.00mm x 8.00mm) | 0.551" (14.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
Film Capacitors Electronic Components
Explore Film Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
