Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32676E6335K000CAP FILM 3.3UF 10% 630VDC RADIAL |
117 |
|
Datasheet |
Radial | 3.3 µF | ±10% | - | 630V | Polypropylene (PP), Metallized | 9.3 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.630" W (42.00mm x 16.00mm) | 1.122" (28.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
R60GN4470AA30JCAP FILM 4.7UF 5% 160VDC RADIAL |
556 |
|
Datasheet |
Radial | 4.7 µF | ±5% | 90V | 160V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200 | - |
|
MKX2AW43307E00KSSDCAP FILM 3.3UF 10% 630VDC RAD |
448 |
|
Datasheet |
Radial | 3.3 µF | ±10% | 305V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.634" L x 0.669" W (41.50mm x 17.00mm) | 1.142" (29.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
|
EZP-V80106LTUCAP FILM 10UF 10% 800V RADIAL |
195 |
|
Datasheet |
Radial | 10 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 11.5 mOhms | -40°C ~ 105°C | Through Hole | 1.220" L x 0.807" W (31.00mm x 20.50mm) | 1.673" (42.50mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
R586N333050T0MCAP FILM 600VAC(X1) 0.33 UF 20% |
182 |
|
Datasheet |
Radial | 0.33 µF | ±20% | 600V | 1200V (1.2kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.512" W (26.50mm x 13.00mm) | 0.878" (22.30mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|
F17724102291CAP FILM 0.1UF 20% 630VDC RADIAL |
1,400 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 310V | 630V | Polyester, Metallized | - | -40°C ~ 110°C | Through Hole | 0.689" L x 0.335" W (17.50mm x 8.50mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
C276CC24200AA0JCAP FILM 2UF 5% 470VAC RADIAL |
247 |
|
Datasheet |
Radial, Can | 2 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 0.984" Dia (25.00mm) | 2.362" (60.00mm) | Quick Connect - 0.250" (6.3mm) | 0.394" (10.00mm) | Motor Run | - | - |
|
C4AFABU4100T11KFILM, POWER, METALLIZED POLYPROP |
156 |
|
Datasheet |
Radial | 1 µF | ±10% | 500V | 1000V (1kV) | Polypropylene (PP), Metallized | 8.3 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.748" W (31.50mm x 19.00mm) | 1.150" (29.20mm) | PC Pins | 1.083" (27.50mm) | Automotive | AEC-Q200 | - |
|
ECW-FG80565JCAP FILM 5.6UF 800VDC RADIAL |
154 |
|
Datasheet |
Radial | 5.6 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.630" W (31.50mm x 16.00mm) | 1.181" (30.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | - |
|
|
EZP-V80126LTACAP FILM 12UF 10% 800V RADIAL |
120 |
|
Datasheet |
Radial | 12 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 9.9 mOhms | -40°C ~ 105°C | Through Hole | 1.220" L x 0.807" W (31.00mm x 20.50mm) | 1.673" (42.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | Long Life, Low ESR |
|
|
ECW-FG60705JCAP FILM 7UF 600VDC RADIAL |
105 |
|
Datasheet |
Radial | 7 µF | ±5% | - | 600V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.531" W (31.50mm x 13.50mm) | 1.142" (29.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | High Temperature |
|
C4AKOBU4150A3BJFILM, RADIAL, METALLIZED POLYPRO |
598 |
|
Datasheet |
Radial | 1.5 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 28 mOhms | -55°C ~ 135°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.894" (22.70mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESL |
|

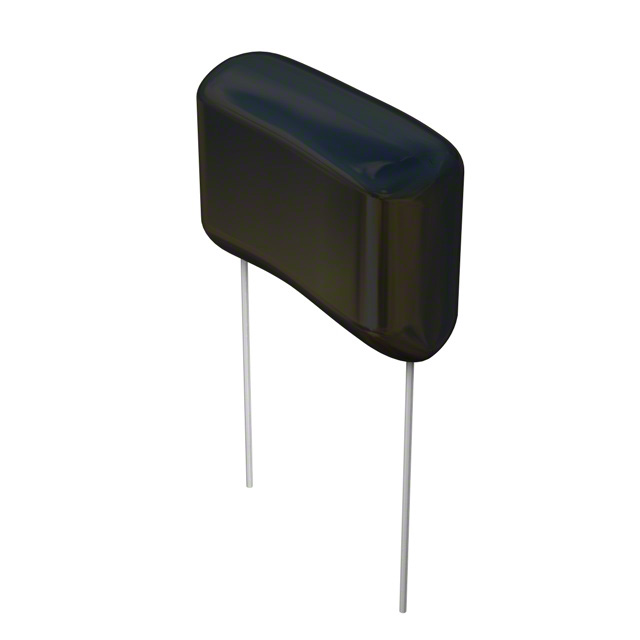

DME2W3P3K-FCAP FILM 3.3UF 10% 250VDC RADIAL |
1,761 |
|
Datasheet |
Radial | 3.3 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 1.024" L x 0.413" W (26.00mm x 10.50mm) | 0.807" (20.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
EZP-V1B705MTBCAP FILM 7UF 10% 1100V RADIAL |
143 |
|
Datasheet |
Radial - 4 Leads | 7 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 15.5 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 0.866" W (41.00mm x 22.00mm) | 1.457" (37.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
PSB2123470KHLCAP FILM 0.47UF 10% 1.2KVDC RAD |
433 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 3.4 mOhms | -40°C ~ 85°C | Through Hole | 1.260" L x 0.591" W (32.00mm x 15.00mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
ECW-U2684KCZCAP FILM 0.68UF 10% 250VDC 6031 |
846 |
|
Datasheet |
6031 (1580 Metric) | 0.68 µF | ±10% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.598" L x 0.315" W (15.20mm x 8.00mm) | 0.181" (4.60mm) | Solder Pads | - | General Purpose | - | - |
|
F871FI105M330ZCAP FILM 1UF 20% 330VAC RADIAL |
250 |
|
Datasheet |
Radial | 1 µF | ±20% | 330V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.512" W (31.50mm x 13.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
F863RL475K310ZCAP FILM 4.7UF 10% 630VDC RADIAL |
384 |
|
Datasheet |
Radial | 4.7 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.748" W (41.50mm x 19.00mm) | 1.264" (32.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
150224J630LECAP FILM 0.22UF 5% 630VDC AXIAL |
2,163 |
|
Datasheet |
Axial | 0.22 µF | ±5% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.453" Dia x 1.102" L (11.50mm x 28.00mm) | - | PC Pins | - | General Purpose | - | - |
|
R41BW368050T0KCAP FILM 0.68UF 10% 1.5KVDC RAD |
371 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 350V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.634" L x 0.630" W (41.50mm x 16.00mm) | 1.126" (28.60mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
