Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PHE450KF6470JR06L2CAP FILM 0.47UF 5% 400VDC RADIAL |
216 |
|
Datasheet |
Radial | 0.47 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.413" W (31.50mm x 10.50mm) | 0.807" (20.50mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching | - | - |
|
C4AQPBU4370M1EJCAP FILM 3.7UF 5% 1.2KVDC RADIAL |
238 |
|
Datasheet |
Radial | 3.7 µF | ±5% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | 10 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.307" (33.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
ECW-FG80475JCAP FILM 4.7UF 800VDC RADIAL |
109 |
|
Datasheet |
Radial | 4.7 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.531" W (31.50mm x 13.50mm) | 1.142" (29.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | - |
|
334MWR102KCAP FILM 0.33UF 10% 1KVDC AXIAL |
2,383 |
|
Datasheet |
Axial | 0.33 µF | ±10% | 250V | 1000V (1kV) | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.669" Dia x 1.339" L (17.00mm x 34.00mm) | - | PC Pins | - | General Purpose | - | Low ESR |
|
F161ZS104K630VCAP FILM 0.1UF 10% 630VDC SMD |
470 |
|
Datasheet |
Nonstandard SMD | 0.1 µF | ±10% | 250V | 630V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.650" L x 0.591" W (16.50mm x 15.00mm) | 0.283" (7.20mm) | Solder Pads | - | Automotive | AEC-Q200 | - |
|
R53BR412050S0MCAP FILM 1.2UF 20% 800VDC RADIAL |
279 |
|
Datasheet |
Radial | 1.2 µF | ±20% | 350V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.878" (22.30mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
ECW-FG2J475KACAP FILM 4.7UF 10% 630VDC RADIAL |
150 |
|
Datasheet |
Radial | 4.7 µF | ±10% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.689" W (31.50mm x 17.50mm) | 1.299" (33.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | High Temperature |
|
C4AUQBU4200M1CJFILM, RADIAL, METALLIZED POLYPRO |
224 |
|
Datasheet |
Radial | 2 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 16.7 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.130" (28.70mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
BFC238350562CAP FILM 5600PF 5% 1.6KVDC RAD |
483 |
|
Datasheet |
Radial | 5600 pF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.236" W (17.50mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|

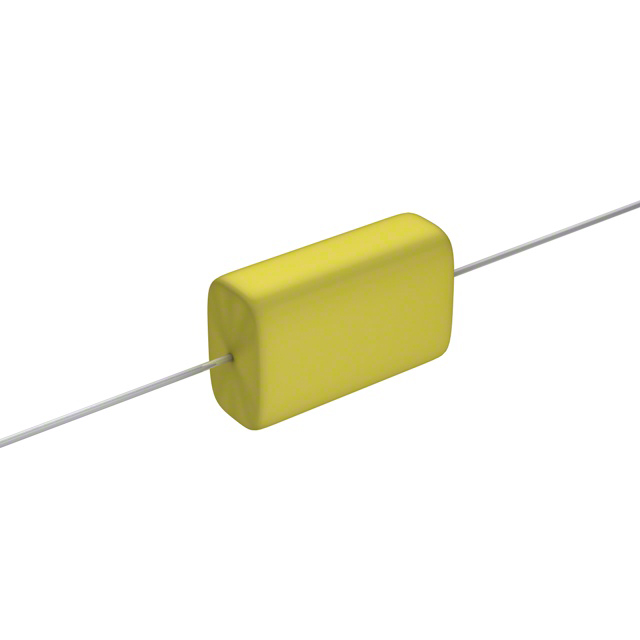

MMP6P33K-FCAP FILM 0.33UF 10% 630VDC AXIAL |
275 |
|
Datasheet |
Axial | 0.33 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.669" W, 0.394" T x 1.063" L (17.00mm, 10.00mm x 27.00mm) | - | PC Pins | - | General Purpose | - | Long Life |
|
EZP-V60106LTTCAP FILM 10UF 10% 600V RADIAL |
233 |
|
Datasheet |
Radial | 10 µF | ±10% | - | 600V | Polypropylene (PP), Metallized | 16.9 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 0.591" W (41.00mm x 15.00mm) | 1.181" (30.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
|
F161WP104K250VCAP FILM 0.1UF 10% 250VDC SMD |
411 |
|
Datasheet |
Nonstandard | 0.1 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.402" L x 0.358" W (10.20mm x 9.10mm) | 0.224" (5.70mm) | Solder Pads | - | Automotive | AEC-Q200 | - |
|
R60EN46804030KCAP FILM 6.8UF 10% 100VDC RADIAL |
271 |
|
Datasheet |
Radial | 6.8 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200 | - |
|
|
ECW-FG80605JCAP FILM 6.0UF 800VDC RADIAL |
226 |
|
Datasheet |
Radial | 6 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.630" W (31.50mm x 16.00mm) | 1.181" (30.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | - |
|
R76TR3220SE30KCAP FILM 0.22UF 10% 1.6KVDC RAD |
722 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.299" (33.00mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
C4AF3BU4250T12KFILM, POWER, METALLIZED POLYPROP |
282 |
|
Datasheet |
Radial | 2.5 µF | ±10% | 400V | 800V | Polypropylene (PP), Metallized | 6.4 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.465" (37.20mm) | PC Pins | 1.083" (27.50mm) | Automotive | AEC-Q200 | - |
|
PHE845VY6220MR06L2CAP FILM 0.22UF 20% 1.5KVDC RAD |
379 |
|
Datasheet |
Radial | 0.22 µF | ±20% | 760V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.610" W (26.00mm x 15.50mm) | 0.965" (24.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
225P68394XD3CAP FILM 0.068UF 10% 400VDC RAD |
1,488 |
|
Datasheet |
Radial | 0.068 µF | ±10% | - | 400V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.799" L x 0.469" W (20.30mm x 11.90mm) | 0.799" (20.30mm) | PC Pins | 0.374" (9.50mm) | Audio; DC Link, DC Filtering | - | - |
|
R413W347050T0KCAP FILM 0.47UF 10% 1.5KVDC RAD |
733 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.634" L x 0.512" W (41.50mm x 13.00mm) | 0.949" (24.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
PME271YE6150KR30CAP FILM 0.15UF 10% 1KVDC RADIAL |
417 |
|
Datasheet |
Radial | 0.15 µF | ±10% | 300V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 115°C | Through Hole | 1.201" L x 0.602" W (30.50mm x 15.30mm) | 0.866" (22.00mm) | PC Pins | 1.000" (25.40mm) | EMI, RFI Suppression | Y2 | - |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
