Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

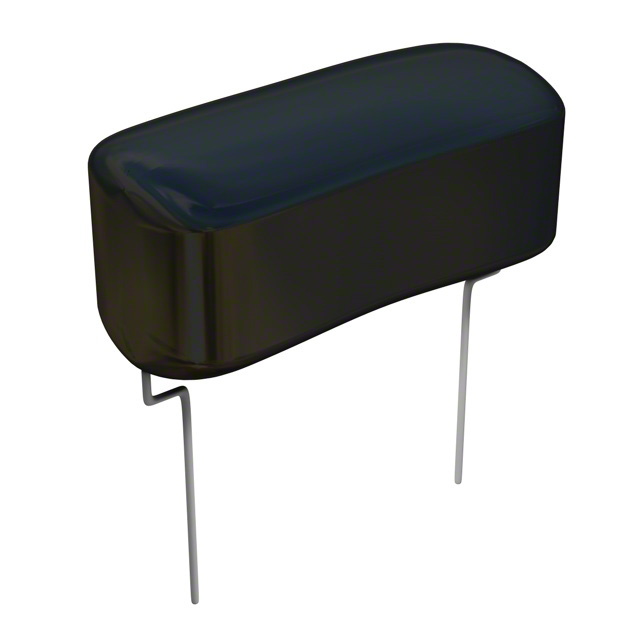

DPFF4P33J-FCAP FILM 0.33UF 5% 400VDC RADIAL |
2,850 |
|
Datasheet |
Radial | 0.33 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.701" L x 0.799" W (43.20mm x 20.30mm) | 0.799" (20.30mm) | PC Pins | 1.094" (27.80mm) | High Pulse, DV/DT | - | - |
|
PSB2302220KHSCAP FILM 0.022UF 10% 3KVDC RAD |
348 |
|
Datasheet |
Radial | 0.022 µF | ±10% | 750V | 3000V (3kV) | Polypropylene (PP), Metallized | 26.5 mOhms | -40°C ~ 85°C | Through Hole | 1.673" L x 1.102" W (42.50mm x 28.00mm) | 1.457" (37.00mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
R75PR42204030JCAP FILM 2.2UF 5% 630VDC RADIAL |
430 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
BFC241641604CAP FILM 0.16UF 2% 63VDC RADIAL |
408 |
|
Datasheet |
Radial | 0.16 µF | ±2% | 25V | 63V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.492" L x 0.236" W (12.50mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
C4AQOBU4700M1EJCAP FILM 7UF 5% 900VDC RADIAL |
282 |
|
Datasheet |
Radial | 7 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 7.6 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.307" (33.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
R53BR415050S0MCAP FILM 1.5UF 20% 800VDC RADIAL |
266 |
|
Datasheet |
Radial | 1.5 µF | ±20% | 350V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.996" (25.30mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
R463W447050H7KCAP FILM 4.7UF 10% 630VDC RADIAL |
283 |
|
Datasheet |
Radial | 4.7 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.634" L x 0.748" W (41.50mm x 19.00mm) | 1.264" (32.10mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | High Temperature |
|
|
C4AQUBU4500A12JCAP FILM 5UF 5% 1.3KVDC RADIAL |
192 |
|
Datasheet |
Radial | 5 µF | ±5% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 8.2 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.465" (37.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
EZP-Q33805LTACAP FILM 8UF 5% 330VAC RADIAL |
120 |
|
Datasheet |
Radial | 8 µF | ±5% | 330V | - | Polypropylene (PP), Metallized | 11.3 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 1.024" W (41.00mm x 26.00mm) | 1.614" (41.00mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | Long Life, Low ESR |
|
SMC7.3683J100K37TR12CAP FILM 0.068UF 5% 100VDC 2924 |
880 |
|
Datasheet |
2924 (7360 Metric) | 0.068 µF | ±5% | 63V | 100V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.287" L x 0.236" W (7.30mm x 6.00mm) | 0.177" (4.50mm) | Solder Pads | - | General Purpose | - | High Temperature |
|
BLH225K112A052DC LINK, THB, 85/85, AEC-Q200 |
110 |
|
Datasheet |
Radial | 2.2 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 16.5 mOhms | -40°C ~ 105°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.134" (28.80mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
R75TR327050H3JCAP FILM 0.27UF 5% 1.6KVDC RAD |
343 |
|
Datasheet |
Radial | 0.27 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 10 mOhms | -55°C ~ 125°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
B32676T1205K000CAP FILM 2UF 10% 750VDC RADIAL |
718 |
|
Datasheet |
Radial | 2 µF | ±10% | - | 750V | Polypropylene (PP), Metallized | 22.7 mOhms | -40°C ~ 105°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 0.591" (15.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
C4AF1BU4680T12KFILM, POWER, METALLIZED POLYPROP |
221 |
|
Datasheet |
Radial | 6.8 µF | ±10% | 250V | 500V | Polypropylene (PP), Metallized | 6.6 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.465" (37.20mm) | PC Pins | 1.083" (27.50mm) | Automotive | AEC-Q200 | - |
|
|
BFC237341225CAP FILM 2.2UF 10% 250VDC RADIAL |
166 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | Long Life |
|
EZP-V1B305LTBCAP FILM 3UF 10% 1100V RADIAL |
303 |
|
Datasheet |
Radial | 3 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 30.8 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 0.591" W (41.00mm x 15.00mm) | 1.181" (30.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
|
C4AF1BU4750T12KFILM, POWER, METALLIZED POLYPROP |
409 |
|
Datasheet |
Radial | 7.5 µF | ±10% | 250V | 500V | Polypropylene (PP), Metallized | 6.4 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.465" (37.20mm) | PC Pins | 1.083" (27.50mm) | Automotive | AEC-Q200 | - |
|
C4AQOLW4650M33JCAP FILM 6.5UF 5% 900VDC RADIAL |
176 |
|
Datasheet |
Radial - 4 Leads | 6.5 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 12.5 mOhms | -55°C ~ 105°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 0.756" (19.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
PME271MD6330KR30CAP FILM 0.33UF 10% 630VDC RAD |
399 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 275V | 630V | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 1.063" L x 0.472" W (27.00mm x 12.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
|
BFC241612204CAP FILM 0.22UF 2% 63VDC RADIAL |
3,208 |
|
Datasheet |
Radial | 0.22 µF | ±2% | 25V | 63V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.492" L x 0.236" W (12.50mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
