Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F863RL475K310ALW0LCAP FILM 4.7UF 10% 630VDC RADIAL |
4,291 |
|
Datasheet |
Radial | 4.7 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.748" W (41.50mm x 19.00mm) | 1.264" (32.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
R71QR4180AA10KCAP FILM 1.8UF 10% 1KVDC RADIAL |
396 |
|
Datasheet |
Radial | 1.8 µF | ±10% | 275V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.106" (28.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) | - | - |
|
C4AF7BU4220T11KFILM, POWER, METALLIZED POLYPROP |
206 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 350V | 700V | Polypropylene (PP), Metallized | 6.6 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.748" W (31.50mm x 19.00mm) | 1.150" (29.20mm) | PC Pins | 1.083" (27.50mm) | Automotive | AEC-Q200 | - |
|
R75QR36804000JCAP FILM 0.68UF 5% 1KVDC RADIAL |
9,402 |
|
Datasheet |
Radial | 0.68 µF | ±5% | 250V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
EZP-Q38255LTBCAP FILM 2.5UF 5% 380VAC RADIAL |
212 |
|
Datasheet |
Radial | 2.5 µF | ±5% | 380V | - | Polypropylene (PP), Metallized | 29.2 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 0.591" W (41.00mm x 15.00mm) | 1.161" (29.50mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | Long Life, Low ESR |
|

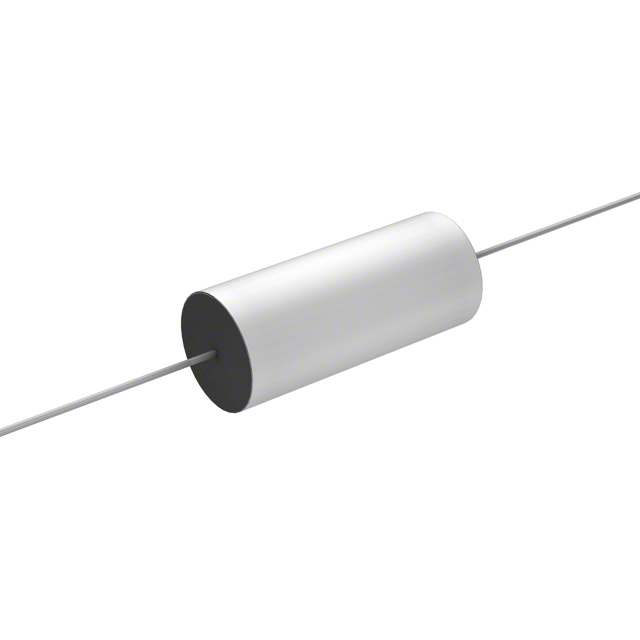

WMF6S47K-FCAP FILM 0.047UF 10% 630VDC AXIA |
2,883 |
|
Datasheet |
Axial | 0.047 µF | ±10% | - | 630V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.429" Dia x 1.000" L (10.90mm x 25.40mm) | - | PC Pins | - | General Purpose | - | - |
|
F161ZS475K100VCAP FILM 4.7UF 10% 100VDC SMD |
466 |
|
Datasheet |
Nonstandard SMD | 4.7 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.650" L x 0.591" W (16.50mm x 15.00mm) | 0.283" (7.20mm) | Solder Pads | - | Automotive | AEC-Q200 | - |
|
BFC238374222CAP FILM 2200PF 5% 2.5KVDC RAD |
183 |
|
Datasheet |
Radial | 2200 pF | ±5% | 900V | 2500V (2.5kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.236" W (26.00mm x 6.00mm) | 0.610" (15.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | - |
|
EZP-V80136LTUCAP FILM 13UF 10% 800V RADIAL |
150 |
|
Datasheet |
Radial | 13 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 9.2 mOhms | -40°C ~ 105°C | Through Hole | 1.220" L x 1.024" W (31.00mm x 26.00mm) | 1.654" (42.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
|
R586R347050T0KCAP FILM 600VAC(X1) 0.47 UF 10% |
151 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 600V | 1200V (1.2kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.114" (28.30mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|
LDEEF4100JA5N00CAP FILM 1UF 5% 100VDC 4030 |
3,735 |
|
Datasheet |
4030 (10276 Metric) | 1 µF | ±5% | 63V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.413" L x 0.311" W (10.50mm x 7.90mm) | 0.126" (3.20mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
|
BFC237530103CAP FILM 10000PF 5% 1.6KVDC RAD |
270 |
|
Datasheet |
Radial | 10000 pF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.315" W (26.00mm x 8.00mm) | 0.827" (21.00mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
FCN2825E154K-YCAP FILM 0.15UF 10% 250VDC 2825 |
998 |
|
Datasheet |
2825 (7163 Metric) | 0.15 µF | ±10% | - | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -40°C ~ 85°C | Surface Mount | 0.280" L x 0.248" W (7.10mm x 6.30mm) | 0.150" (3.80mm) | Solder Pads | - | General Purpose | - | - |
|
PHC1853680KNCAP FILM 0.68UF 10% 850VDC AXIAL |
254 |
|
Datasheet |
Axial | 0.68 µF | ±10% | 500V | 850V | Polypropylene (PP), Metallized | 5.4 mOhms | -40°C ~ 85°C | Through Hole | 0.630" Dia x 1.732" L (16.00mm x 44.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
C4AQJBU5110M1EJCAP FILM 11UF 5% 700VDC RADIAL |
236 |
|
Datasheet |
Radial | 11 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 6.4 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.307" (33.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
_06x00KSSD.jpg)
|
MKP1D043306G00KSC9CAP FILM 3.3UF 10% 100VDC RAD |
324 |
|
Datasheet |
Radial | 3.3 µF | ±10% | 63V | 100V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.669" W (31.50mm x 17.00mm) | 1.142" (29.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
C4AQHLW4750P34JCAP FILM 7.5UF 5% 600VDC RADIAL |
168 |
|
Datasheet |
Radial - 4 Leads | 7.5 µF | ±5% | - | 600V | Polypropylene (PP), Metallized | 15.2 mOhms | -55°C ~ 125°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 0.598" (15.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESL |
|
|
C4AF7BU4330T12KFILM, POWER, METALLIZED POLYPROP |
135 |
|
Datasheet |
Radial | 3.3 µF | ±10% | 350V | 700V | Polypropylene (PP), Metallized | 6 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.465" (37.20mm) | PC Pins | 1.083" (27.50mm) | Automotive | AEC-Q200 | - |
|
C4AQILW4580A34JCAP FILM 5.8UF 5% 800VDC RADIAL |
390 |
|
Datasheet |
Radial - 4 Leads | 5.8 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 15.7 mOhms | -55°C ~ 105°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 0.598" (15.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
R53BR418050S0MCAP FILM 1.8UF 20% 800VDC RADIAL |
171 |
|
Datasheet |
Radial | 1.8 µF | ±20% | 350V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.114" (28.30mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
