Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALH105K351A032CAP FILM 1UF 10% 350VAC RADIAL |
118 |
|
Datasheet |
Radial | 1 µF | ±10% | 350V | - | Polypropylene (PP) | 10.9 mOhms | -40°C ~ 105°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.898" (22.80mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200 | 85C/85% Humidity, THB, Low ESR, Low ESL, Long Life |
|
PHE450PD6180JR06L2CAP FILM 0.18UF 5% 1KVDC RADIAL |
517 |
|
Datasheet |
Radial | 0.18 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.413" W (26.00mm x 10.50mm) | 0.748" (19.00mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
|
C4AF1BU4330T11KFILM, POWER, METALLIZED POLYPROP |
196 |
|
Datasheet |
Radial | 3.3 µF | ±10% | 250V | 500V | Polypropylene (PP), Metallized | 9 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.748" W (31.50mm x 19.00mm) | 1.150" (29.20mm) | PC Pins | 1.083" (27.50mm) | Automotive | AEC-Q200 | - |
|
MABA024220KHSCAP FILM 2.2UF 10% 600VDC RADIAL |
350 |
|
Datasheet |
Radial | 2.2 µF | ±10% | - | 600V | Polypropylene (PP), Metallized | - | -40°C ~ 100°C | Through Hole | 1.260" L x 0.591" W (32.00mm x 15.00mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | Motor Run | - | - |
|
|
C4AF7BU4150T1YKFILM, POWER, METALLIZED POLYPROP |
668 |
|
Datasheet |
Radial | 1.5 µF | ±10% | 350V | 700V | Polypropylene (PP), Metallized | 8.2 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.551" W (31.50mm x 14.00mm) | 1.110" (28.20mm) | PC Pins | 1.083" (27.50mm) | Automotive | AEC-Q200 | - |
|
R75PR415050H3JCAP FILM 1.5UF 5% 630VDC RADIAL |
352 |
|
Datasheet |
Radial | 1.5 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | 10.6 mOhms | -55°C ~ 125°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.106" (28.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
PHE450PF6150JR06L2CAP FILM 0.15UF 5% 1KVDC RADIAL |
144 |
|
Datasheet |
Radial | 0.15 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.413" W (31.50mm x 10.50mm) | 0.807" (20.50mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching | - | - |
|

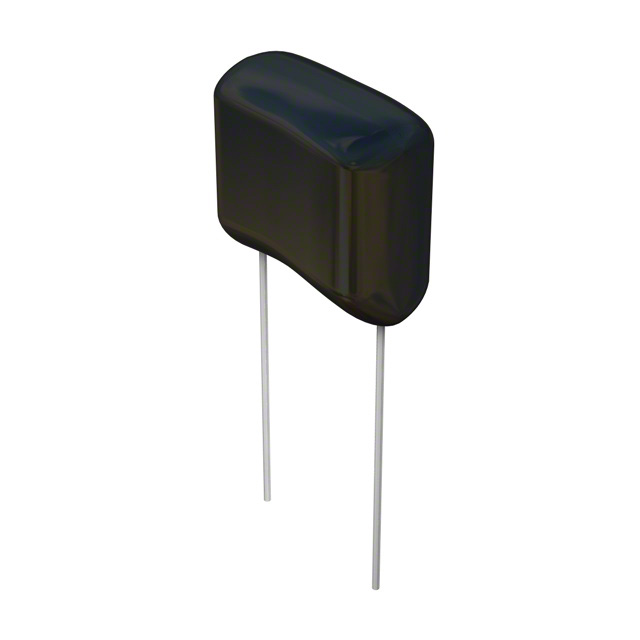

DME1W3P3K-FCAP FILM 3.3UF 10% 100VDC RADIAL |
173 |
|
Datasheet |
Radial | 3.3 µF | ±10% | 65V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.728" L x 0.354" W (18.50mm x 9.00mm) | 0.709" (18.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
ECW-FG70475KCAP FILM 4.7UF 700VDC RADIAL |
300 |
|
Datasheet |
Radial | 4.7 µF | ±10% | - | 700V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.689" W (31.50mm x 17.50mm) | 1.299" (33.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | - |
|
225MMR630KCAP FILM 2.2UF 10% 630VDC RADIAL |
1,589 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 220V | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.787" W (31.00mm x 20.00mm) | 1.161" (29.50mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
PHE450KD6470JR06L2CAP FILM 0.47UF 5% 400VDC RADIAL |
256 |
|
Datasheet |
Radial | 0.47 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.413" W (26.00mm x 10.50mm) | 0.748" (19.00mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
|
BFC233841104CAP FILM 0.1UF 20% 800VDC RADIAL |
490 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 300V | 800V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.236" W (17.50mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
MKP1847C510355K2MKP 1F 10% 350VAC PITCH 27,5 |
127 |
|
Datasheet |
Radial | 1 µF | ±10% | 350V | 700V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.846" (21.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | - | - |
|
B32936A3105K000CAP FILM 1UF 10% 305VAC RADIAL |
1,417 |
|
Datasheet |
Radial | 1 µF | ±10% | 305V | - | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.634" L x 0.472" W (41.50mm x 12.00mm) | 0.866" (22.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | 85C/85% Humidity |
|
C276CC24500AA0JCAP FILM 5UF 5% 470VAC RADIAL |
407 |
|
Datasheet |
Radial, Can | 5 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.181" Dia (30.00mm) | 2.303" (58.50mm) | Quick Connect - 0.250" (6.3mm) | 0.394" (10.00mm) | Motor Run | - | - |
|
BFC237530153CAP FILM 0.015UF 5% 1.6KVDC RAD |
360 |
|
Datasheet |
Radial | 0.015 µF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.374" W (26.00mm x 9.50mm) | 0.886" (22.50mm) | PC Pins | 0.394" (10.00mm) | High Pulse, DV/DT | - | - |
|
R75RW32205030JCAP FILM 0.22UF 5% 1.25KVDC RAD |
237 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 600V | 1250V (1.25kV) | Polypropylene (PP), Metallized | 5.1 mOhms | -55°C ~ 105°C | Through Hole | 1.634" L x 0.433" W (41.50mm x 11.00mm) | 0.870" (22.10mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
|
MABA014120KISCAP FILM 1UF 10% 800VDC RADIAL |
227 |
|
Datasheet |
Radial | 1 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 100°C | Through Hole | 1.555" L x 0.591" W (39.50mm x 15.00mm) | 1.024" (26.00mm) | PC Pins | 1.378" (35.00mm) | Motor Run | - | - |
|
100MU102KA13216CAP FILM 1000PF 10% 100VDC 1206 |
2,785 |
|
Datasheet |
1206 (3216 Metric) | 1000 pF | ±10% | - | 100V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.047" (1.20mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
R53BR382050S0MCAP FILM 0.82UF 20% 800VDC RAD |
327 |
|
Datasheet |
Radial | 0.82 µF | ±20% | 350V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.799" (20.30mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
Film Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Film Capacitors?
This category includes related Film Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Film Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Film Capacitors and other electronic components.
