Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PMB2103470KSRCAP FILM 0.47UF 10% 1KVDC SCREW |
208 |
|
Datasheet |
Rectangular Box | 0.47 µF | ±10% | 575V | 1000V (1kV) | Polypropylene (PP), Metallized | 3.9 mOhms | -40°C ~ 85°C | Chassis Mount | 1.673" L x 0.669" W (42.50mm x 17.00mm) | 1.102" (28.00mm) | Screw Terminals | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
C276CCF4800LG0JCAP FILM 8UF 5% 470VAC RADIAL |
132 |
|
Datasheet |
Radial, Can | 8 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.378" Dia (35.00mm) | 2.382" (60.50mm) | Wire Leads | - | Motor Run | - | - |
|
C4AQQBW5250A3OJCAP FILM 25UF 5% 1.1KVDC RADIAL |
226 |
|
Datasheet |
Radial - 4 Leads | 25 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 2.8 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 1.378" W (42.00mm x 35.00mm) | 1.976" (50.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
 Series.jpg)
|

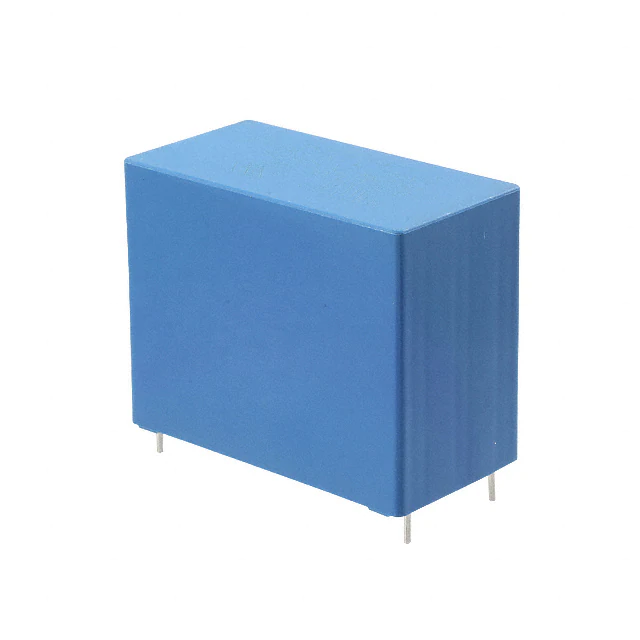

B32928C3206M000CAP FILM 20UF 20% 630VDC RADIAL |
480 |
|
Datasheet |
Radial | 20 µF | ±20% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | EMI, RFI Suppression | X2 | - |
|
C4ATDBU4330A30JCAP FILM 3.3UF 5% 250VDC RADIAL |
370 |
|
Datasheet |
Radial | 3.3 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | 7.8 mOhms | -40°C ~ 85°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.866" (22.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
|
C4AQJBW5400M3LJCAP FILM 40UF 5% 700VDC RADIAL |
141 |
|
Datasheet |
Radial - 4 Leads | 40 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 2.8 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.780" (45.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
940C10P68K-FCAP FILM 0.68UF 10% 1KVDC AXIAL |
694 |
|
Datasheet |
Axial | 0.68 µF | ±10% | 500V | 1000V (1kV) | Polypropylene (PP), Metallized | 5 mOhms | -55°C ~ 105°C | Through Hole | 1.102" Dia x 1.339" L (28.00mm x 34.00mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
C4AKJBU5125A32JFILM, RADIAL, METALLIZED POLYPRO |
167 |
|
Datasheet |
Radial | 12.5 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 6.1 mOhms | -55°C ~ 135°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.484" (37.70mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
MKS4D053307C00JSSDCAP FILM 33UF 5% 100VDC RADIAL |
402 |
|
Datasheet |
Radial | 33 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.634" L x 0.512" W (41.50mm x 13.00mm) | 0.945" (24.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
B32776T5126K000CAP FILM 12UF 10% 575VDC RADIAL |
1,966 |
|
Datasheet |
Radial | 12 µF | ±10% | - | 575V | Polypropylene (PP), Metallized | 14.4 mOhms | -40°C ~ 105°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 0.748" (19.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
EZP-V80156MTTCAP FILM 15UF 10% 800V RADIAL |
184 |
|
Datasheet |
Radial - 4 Leads | 15 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 10.2 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 0.866" W (41.00mm x 22.00mm) | 1.457" (37.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESR |
|
MKP385E5101AJPM2T0CAP FILM 1UF 5% 1.6KVDC RAD |
697 |
|
Datasheet |
Radial | 1 µF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.654" L x 0.945" W (42.00mm x 24.00mm) | 1.752" (44.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT; Snubber | AEC-Q200 | High Temperature |
|
F17725222030CAP FILM 2.2UF 10% 630VDC RADIAL |
163 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 310V | 630V | Polyester, Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.709" W (41.50mm x 18.00mm) | 1.280" (32.50mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
|
MHBS605100KJSDCAP FILM 10UF 10% 1.1KVDC RADIAL |
394 |
|
Datasheet |
Radial - 4 Leads | 10 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 4.9 mOhms | -40°C ~ 85°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.299" (33.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
|
F17725222000CAP FILM 2.2UF 10% 630VDC RADIAL |
445 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 310V | 630V | Polyester, Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.709" W (41.50mm x 18.00mm) | 1.280" (32.50mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
|
DME6W2P2K-FCAP FILM 2.2UF 10% 630VDC RADIAL |
227 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 1.220" L x 0.787" W (31.00mm x 20.00mm) | 1.201" (30.50mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
FFB36L0245K--CAP FILM 2.4UF 10% 1.1KVDC RAD |
292 |
|
Datasheet |
Radial | 2.4 µF | ±10% | 180V | 1100V (1.1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.224" L x 0.681" W (31.10mm x 17.30mm) | 1.173" (29.80mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | - |
|
B32716H1206K000MKP DC FILTERING - 1100VDC, 20UF |
144 |
|
Datasheet |
Radial - 4 Leads | 20 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 3.4 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.299" W (42.00mm x 33.00mm) | 1.890" (48.00mm) | PC Pins | 1.476" (37.50mm) | Automotive | AEC-Q200 | Long Life |
|
|
B32928C3206K000CAP FILM 20UF 10% 630VDC RADIAL |
298 |
|
Datasheet |
Radial | 20 µF | ±10% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 2.264" L x 1.181" W (57.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | EMI, RFI Suppression | X2 | - |
|

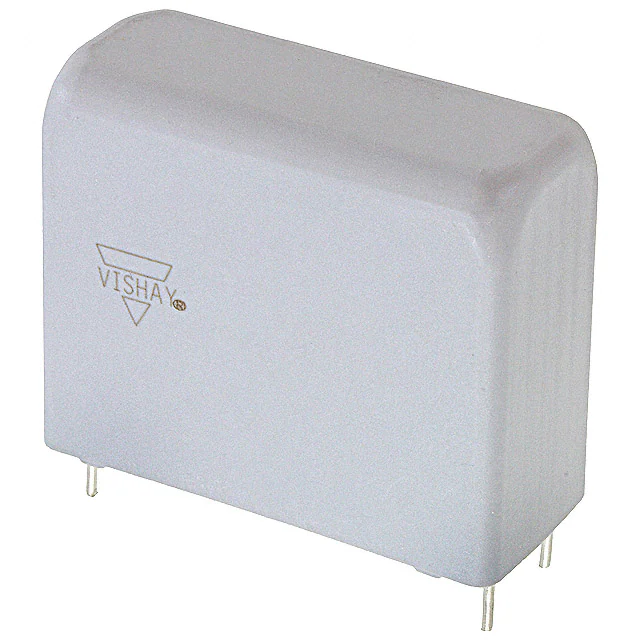

MKP1847550354P4CAP FILM 5UF 5% 700VDC RADIAL |
1,095 |
|
Datasheet |
Radial - 4 Leads | 5 µF | ±5% | 350V | 700V | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Through Hole | 1.693" L x 0.728" W (43.00mm x 18.50mm) | 1.398" (35.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; EMI, RFI Suppression; High Pulse, DV/DT | - | Long Life |
