Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C274AC34800SA0JCAP FILM 8UF 5% 470VAC RADIAL |
198 |
|
Datasheet |
Radial, Can | 8 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.378" Dia (35.00mm) | 2.303" (58.50mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
R76PW42204030JCAP FILM 2.2UF 5% 630VDC RADIAL |
206 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
MKP1848C61012JY2CAP FILM 10UF 5% 1.2KVDC RADIAL |
186 |
|
Datasheet |
Radial | 10 µF | ±5% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | 18 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 0.984" W (57.50mm x 25.00mm) | 1.772" (45.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|
DS441405-BACAP FILM 4UF 10% 440VAC CHAS MT |
146 |
|
Datasheet |
Rectangular Box | 4 µF | ±10% | 440V | - | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis Mount | 1.957" L x 0.945" W (49.70mm x 24.00mm) | 1.378" (35.00mm) | Quick Connect - 0.187" (4.7mm) | - | Motor Run | - | - |
|
DCP4R251007HD2JSSDCAP FILM 10UF 5% 1.3KVDC RADIAL |
385 |
|
Datasheet |
Radial | 10 µF | ±5% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 7.2 mOhms | -55°C ~ 105°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 1.791" (45.50mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
B32320I0306K00030MFD 1100V PP 50X57 PBT 5 PIN |
124 |
|
Datasheet |
Radial, Can - 5 Lead | 30 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 4 mOhms | -40°C ~ 85°C | Through Hole | 1.969" Dia (50.00mm) | 2.244" (57.00mm) | Solder Lug | - | General Purpose | - | Long Life |
|
MKP386M410200JT7CAP FILM 0.1UF 5% 2KVDC SCREW |
232 |
|
Datasheet |
Rectangular Box | 0.1 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 11 mOhms | -55°C ~ 105°C | Chassis Mount | 1.319" L x 0.866" W (33.50mm x 22.00mm) | 1.201" (30.50mm) | Screw Terminals | - | Snubber | - | Low ESR |
|
BFC238350563CAP FILM 0.056UF 5% 1.6KVDC RAD |
443 |
|
Datasheet |
Radial | 0.056 µF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
|
SMR15225J50B10L16.5CBULKCAP FILM 2.2UF 5% 50VDC RADIAL |
445 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.709" L x 0.256" W (18.00mm x 6.50mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | High Temperature |
|
104PPA202KCAP FILM 0.1UF 10% 2KVDC AXIAL |
168 |
|
Datasheet |
Axial | 0.1 µF | ±10% | 650V | 2000V (2kV) | Polypropylene (PP), Metallized | 8.4 mOhms | -55°C ~ 85°C | Through Hole | 0.787" Dia x 1.339" L (20.00mm x 34.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
B32716H1156K000MKP DC FILTERING - 1100VDC, 15UF |
621 |
|
Datasheet |
Radial - 4 Leads | 15 µF | ±10% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 4.5 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | Automotive | AEC-Q200 | Long Life |
|
R75GW515050H0JCAP FILM 15UF 5% 160VDC RADIAL |
294 |
|
Datasheet |
Radial | 15 µF | ±5% | 90V | 160V | Polypropylene (PP), Metallized | 3.2 mOhms | -55°C ~ 125°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R75IR48204040JCAP FILM 8.2UF 5% 250VDC RADIAL |
134 |
|
Datasheet |
Radial | 8.2 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
B32686A7334J000CAP FILM 0.33UF 5% 1.25KVDC RAD |
114 |
|
Datasheet |
Radial | 0.33 µF | ±5% | 450V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.555" (39.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Pulse, DV/DT; Snubber | - | - |
|
MKP1848S62050JY2BCAP FILM 20UF 5% 500VDC RADIAL |
151 |
|
Datasheet |
Radial | 20 µF | ±5% | - | 500V | Polypropylene (PP), Metallized | 17 mOhms | -40°C ~ 105°C | Through Hole | 2.264" L x 1.299" W (57.50mm x 33.00mm) | 0.591" (15.00mm) | PC Pins | 2.067" (52.50mm) | DC Link, DC Filtering | - | Low ESR; Low ESL; Long Life |
|
C4AQNBW5200M3LJCAP FILM 20UF 5% 1KVDC RADIAL |
108 |
|
Datasheet |
Radial - 4 Leads | 20 µF | ±5% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 3.9 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.780" (45.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
R523W515050P0KCAP FILM 15UF 10% 630VDC RADIAL |
178 |
|
Datasheet |
Radial | 15 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.945" W (41.50mm x 24.00mm) | 1.736" (44.10mm) | PC Pins | 1.476" (37.50mm) | Automotive | AEC-Q200, X2 | - |
|

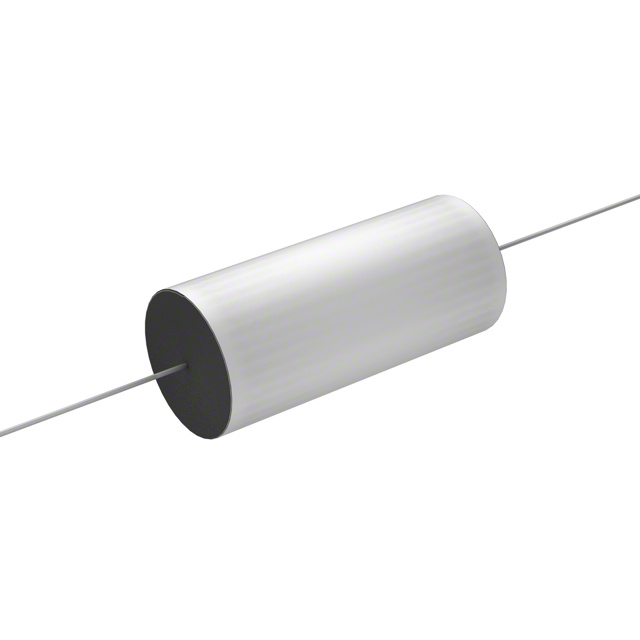

WMF6P22K-FCAP FILM 0.22UF 10% 630VDC AXIAL |
978 |
|
Datasheet |
Axial | 0.22 µF | ±10% | - | 630V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.720" Dia x 1.626" L (18.30mm x 41.30mm) | - | PC Pins | - | General Purpose | - | - |
|
B32926H3156MCAP FILM 15UF 20% 630VDC RADIAL |
245 |
|
Datasheet |
Radial | 15 µF | ±20% | 305V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.654" L x 1.299" W (42.00mm x 33.00mm) | 1.890" (48.00mm) | PC Pins | 1.476" (37.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | 85C/85% Humidity |
|
|
SFA44T5J219B-00DUCAP FILM 5UF 5% 440VAC RADIAL |
115 |
|
Datasheet |
Radial, Can | 5 µF | ±5% | 440V | - | Polypropylene (PP), Metallized | - | -40°C ~ 70°C | Chassis Mount, Requires Holder/Bracket | 2.160" L x 1.310" W (54.86mm x 33.27mm), Lip | 2.310" (58.67mm) | Quick Connect, Disconnect | 0.810" (20.57mm) | Motor Run | - | - |
