Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B32653A1104J000CAP FILM 0.1UF 5% 1.6KVDC RADIAL |
2,311 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 500V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.571" W (26.50mm x 14.50mm) | 1.161" (29.50mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
MKP1848530704K2CAP FILM 3UF 5% 700VDC RADIAL |
884 |
|
Datasheet |
Radial | 3 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 31.5 mOhms | -40°C ~ 105°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESR |
|
C276CC34500AA0JCAP FILM 5UF 5% 470VAC RADIAL |
297 |
|
Datasheet |
Radial, Can | 5 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.181" Dia (30.00mm) | 2.303" (58.50mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
160104J1000N-FCAP FILM 0.1UF 5% 1KVDC RADIAL |
3,386 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 250V | 1000V (1kV) | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.669" (17.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|

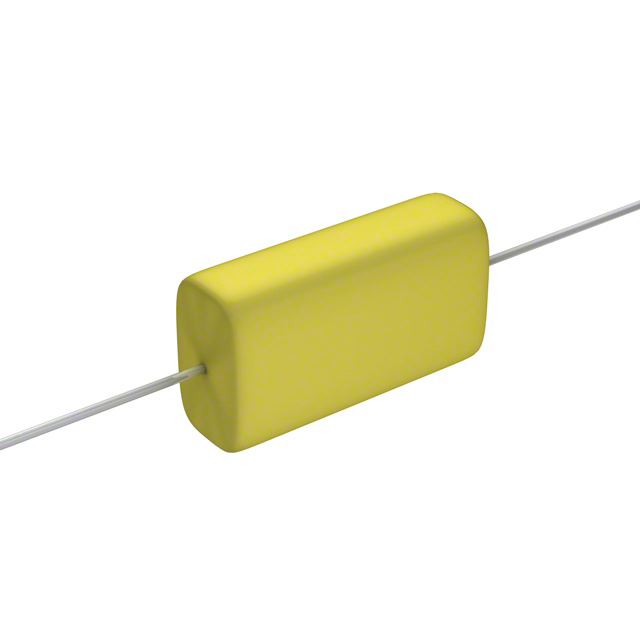

MMP6P22K-FCAP FILM 0.22UF 10% 630VDC AXIAL |
1,086 |
|
Datasheet |
Axial | 0.22 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.591" W, 0.354" T x 1.063" L (15.00mm, 9.00mm x 27.00mm) | - | PC Pins | - | General Purpose | - | Long Life |
|
PHC1404330KJCAP FILM 3.3UF 10% 400VDC AXIAL |
937 |
|
Datasheet |
Axial | 3.3 µF | ±10% | 250V | 400V | Polypropylene (PP), Metallized | 3.7 mOhms | -40°C ~ 85°C | Through Hole | 0.787" Dia x 1.260" L (20.00mm x 32.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
BFC236825225CAP FILM 2.2UF 10% 100VDC RADIAL |
730 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.295" W (26.00mm x 7.50mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | Long Life |
|
BFC237892103CAP FILM 10000PF 5% 2KVDC RADIAL |
2,369 |
|
Datasheet |
Radial | 10000 pF | ±5% | 600V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | High Pulse, DV/DT | - | Long Life |
|
B32924B4225K000CAP FILM 2.2UF 10% 650VDC RADIAL |
654 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 350V | 650V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.827" W (31.50mm x 21.00mm) | 1.220" (31.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | 85C/85% Humidity |
|

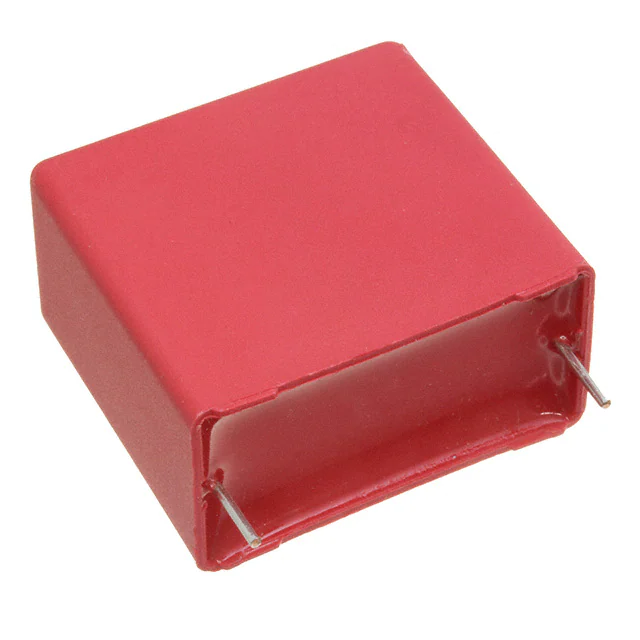

MKS4G044706G00MSSDCAP FILM 4.7UF 20% 400VDC RADIAL |
180 |
|
Datasheet |
Radial | 4.7 µF | ±20% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.240" L x 0.669" W (31.50mm x 17.00mm) | 1.142" (29.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
C276CC35120AA0JCAP FILM 12UF 5% 470VAC RADIAL |
399 |
|
Datasheet |
Radial, Can | 12 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.378" Dia (35.00mm) | 2.992" (76.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
BFC241642004CAP FILM 0.2UF 2% 63VDC RADIAL |
220 |
|
Datasheet |
Radial | 0.2 µF | ±2% | 25V | 63V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.492" L x 0.236" W (12.50mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
C878AF24500AA1JCAP FILM 5UF 5% 470VAC RADIAL |
200 |
|
Datasheet |
Radial, Can | 5 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 0.984" Dia (25.00mm) | 2.303" (58.50mm) | Quick Connect - 0.250" (6.3mm) | 0.394" (10.00mm) | Motor Run | - | - |
|
R76UR31004030JCAP FILM 0.1UF 5% 2KVDC RADIAL |
3,146 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.106" (28.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
C276CCF4400LG0JCAP FILM 4UF 5% 470VAC RADIAL |
168 |
|
Datasheet |
Radial, Can | 4 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 0.984" Dia (25.00mm) | 2.382" (60.50mm) | Wire Leads | - | Motor Run | - | - |
|
R76QR347050H3JCAP FILM 0.47UF 5% 1KVDC RADIAL |
250 |
|
Datasheet |
Radial | 0.47 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 14 mOhms | -55°C ~ 125°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | - | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R46KR447050M1KCAP FILM 4.7UF 10% 560VDC RADIAL |
142 |
|
Datasheet |
Radial | 4.7 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.461" (37.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|

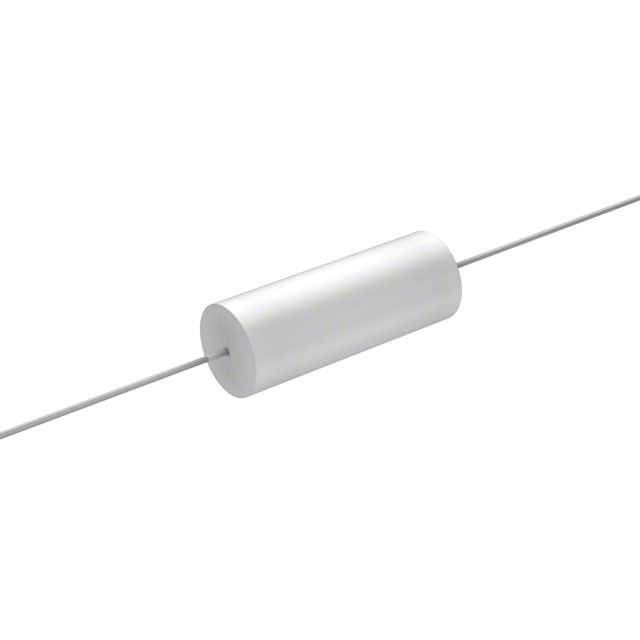

MMWA6P1K-FCAP FILM 0.1UF 10% 630VDC AXIAL |
964 |
|
Datasheet |
Axial | 0.1 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.374" Dia x 1.000" L (9.50mm x 25.40mm) | - | PC Pins | - | General Purpose | - | - |
|
MKP1839447404CAP FILM 0.47UF 5% 400VDC AXIAL |
403 |
|
Datasheet |
Axial | 0.47 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 0.531" Dia x 1.043" L (13.50mm x 26.50mm) | - | PC Pins | - | DC Link, DC Filtering; High Pulse, DV/DT | - | - |
|
BFC233620105CAP FILM 1UF 20% 630VDC RADIAL |
102 |
|
Datasheet |
Radial | 1 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
