Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
716P39356KB3CAP FILM 0.039UF 5% 600VDC RAD |
270 |
|
Datasheet |
Radial | 0.039 µF | ±5% | 200V | 600V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.902" L x 0.480" W (22.90mm x 12.20mm) | 1.012" (25.70mm) | PC Pins | 0.688" (17.48mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
R463W447050M2MCAP FILM 4.7UF 20% 630VDC RAD |
114 |
|
Datasheet |
Radial | 4.7 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.630" W (41.50mm x 16.00mm) | 1.126" (28.60mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
_06x00KSSD.jpg)
|
MKXR3W41506G00MSC9CAP FILM 1.5UF 20% 400VAC RAD |
168 |
|
Datasheet |
Radial | 1.5 µF | ±20% | 400V | - | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.669" W (31.50mm x 17.00mm) | 1.142" (29.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|

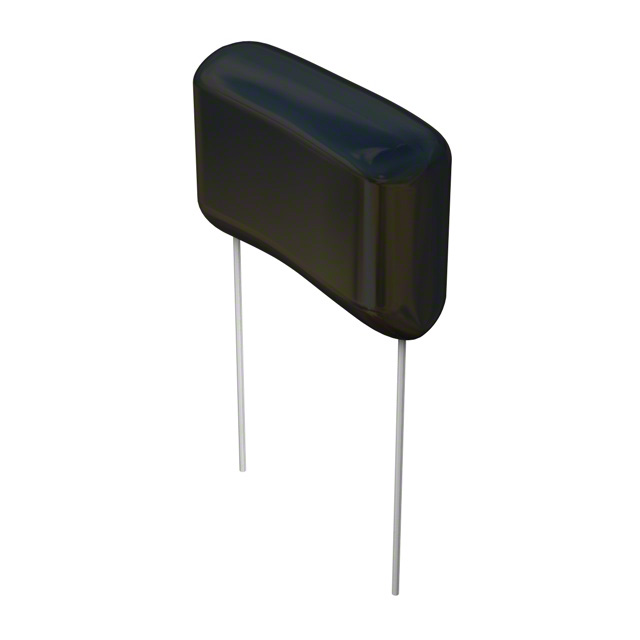

DME4W1K-FCAP FILM 1UF 10% 400VDC RADIAL |
2,890 |
|
Datasheet |
Radial | 1 µF | ±10% | 200V | 400V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.787" (20.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
C4AQIBU4800A11JCAP FILM 8UF 5% 800VDC RADIAL |
807 |
|
Datasheet |
Radial | 8 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 7.3 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.748" W (31.50mm x 19.00mm) | 1.150" (29.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
225P22392XD3CAP FILM 0.022UF 10% 200VDC RAD |
833 |
|
Datasheet |
Radial | 0.022 µF | ±10% | 140V | 200V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.799" L x 0.252" W (20.30mm x 6.40mm) | 0.579" (14.70mm) | PC Pins | 0.375" (9.52mm) | Audio; DC Link, DC Filtering | - | - |
|
R60DN51505030KCAP FILM 15UF 10% 63VDC RADIAL |
2,467 |
|
Datasheet |
Radial | 15 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200 | - |
|
B32026A3334M000CAP FILM 0.33UF 20% 1.5KVDC RAD |
255 |
|
Datasheet |
Radial | 0.33 µF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.472" W (41.50mm x 12.00mm) | 0.866" (22.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | Y2 | - |
|
R53BR410050S0MCAP FILM 1UF 20% 800VDC RADIAL |
239 |
|
Datasheet |
Radial | 1 µF | ±20% | 350V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.878" (22.30mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
B32754C3605K000CAP FILM 6UF 10% 630VDC RADIAL |
579 |
|
Datasheet |
Radial | 6 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | 4.8 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.437" (36.50mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
|
MKP4O136806G00JSSDCAP FILM 0.68UF 5% 1KVDC RAD |
294 |
|
Datasheet |
Radial | 0.68 µF | ±5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.669" W (31.50mm x 17.00mm) | 1.142" (29.00mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching | - | - |
|
|
R46KW447040M1MCAP FILM 4.7UF 20% 560VDC RADIAL |
107 |
|
Datasheet |
Radial | 4.7 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.748" W (41.50mm x 19.00mm) | 1.264" (32.10mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X2 | - |
|
160105J250N-FCAP FILM 1UF 5% 250VDC RADIAL |
2,917 |
|
Datasheet |
Radial | 1 µF | ±5% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.669" (17.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
|
F17104101000CAP FILM 0.1UF 20% 300VAC RADIAL |
1,704 |
|
Datasheet |
Radial | 0.1 µF | ±20% | 300V | - | Polypropylene (PP) | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.354" W (31.00mm x 9.00mm) | 0.748" (19.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | - |
|
715P10454LD3CAP FILM 0.1UF 5% 400VDC RADIAL |
1,584 |
|
Datasheet |
Radial | 0.1 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.480" Dia x 1.252" L (12.20mm x 31.80mm) | 0.791" (20.10mm) | PC Pins | 0.720" (18.30mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|

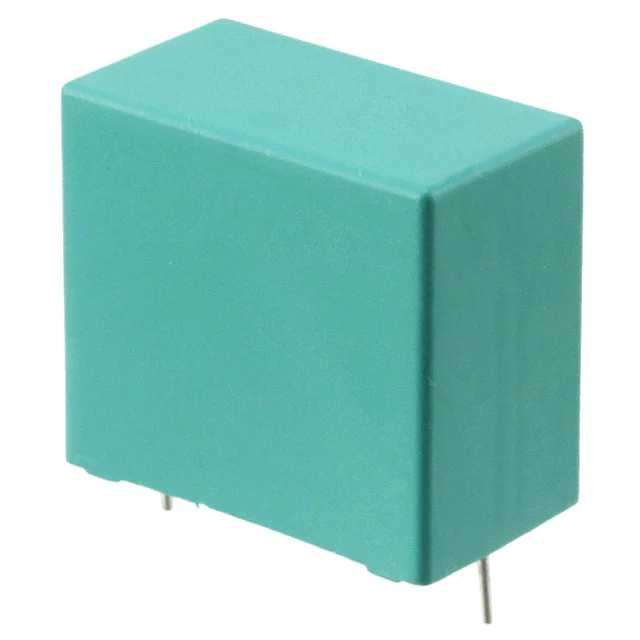

PHE850EF6470MF14R06L2CAP FILM 0.47UF 20% 1.25KVDC RAD |
1,333 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 300V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.689" W (31.50mm x 17.50mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | Y2 | - |
|
KP1830315061CAP FILM 0.015UF 1% 63VDC RADIAL |
404 |
|
Datasheet |
Radial | 0.015 µF | ±1% | 40V | 63V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.217" W (7.20mm x 5.50mm) | 0.276" (7.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
EZP-Q38105LTACAP FILM 1UF 5% 380VAC RADIAL |
224 |
|
Datasheet |
Radial | 1 µF | ±5% | 380V | - | Polypropylene (PP), Metallized | 71.6 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 0.591" W (41.00mm x 15.00mm) | 1.161" (29.50mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | Long Life, Low ESR |
|
PHE450SD5560JR06L2CAP FILM 0.056UF 5% 2KVDC RADIAL |
861 |
|
Datasheet |
Radial | 0.056 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.413" W (26.00mm x 10.50mm) | 0.748" (19.00mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
|
BFC238350473CAP FILM 0.047UF 5% 1.6KVDC RAD |
776 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.827" (21.00mm) | PC Pins | 1.083" (27.50mm) | High Pulse, DV/DT | - | - |
