Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C4AQUBW4800A3FJCAP FILM 8UF 5% 1.3KVDC RADIAL |
227 |
|
Datasheet |
Radial - 4 Leads | 8 µF | ±5% | - | 1300V (1.3kV) | Polypropylene (PP), Metallized | 7.9 mOhms | -40°C ~ 105°C | Through Hole | 1.654" L x 0.787" W (42.00mm x 20.00mm) | 1.583" (40.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
PHE450SD6120JR06L2CAP FILM 0.12UF 5% 2KVDC RADIAL |
138 |
|
Datasheet |
Radial | 0.12 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.610" W (26.00mm x 15.50mm) | 0.965" (24.50mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
|
PHE450KF7220JR06L2CAP FILM 2.2UF 5% 400VDC RADIAL |
1,073 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.827" W (31.50mm x 21.00mm) | 1.181" (30.00mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching | - | - |
|

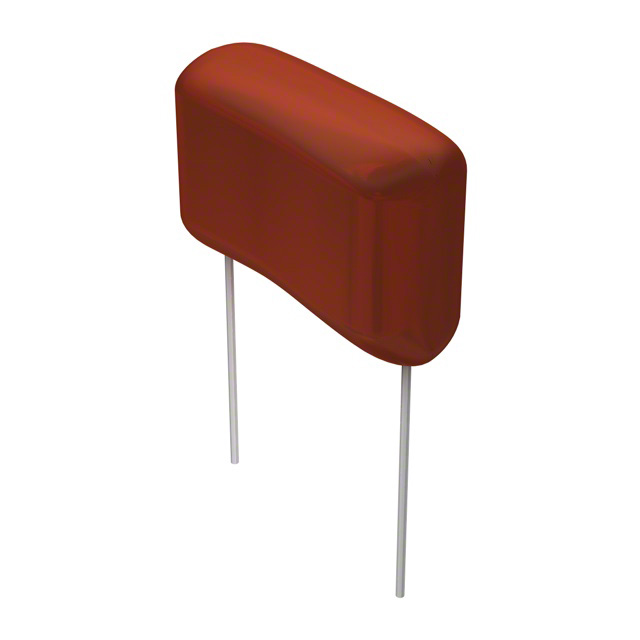

DPPM20S1K-FCAP FILM 10000PF 10% 2KVDC RAD |
2,941 |
|
Datasheet |
Radial | 10000 pF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.551" W (31.00mm x 14.00mm) | 0.925" (23.50mm) | PC Pins | 1.043" (26.50mm) | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
R76QR34704030JCAP FILM 0.47UF 5% 1KVDC RADIAL |
1,061 |
|
Datasheet |
Radial | 0.47 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
225P10496YA3CAP FILM 0.1UF 10% 600VDC RADIAL |
816 |
|
Datasheet |
Radial | 0.1 µF | ±10% | - | 600V | Polyester | - | -55°C ~ 85°C | Through Hole | 1.252" L x 0.559" W (31.80mm x 14.20mm) | 0.909" (23.10mm) | PC Pins | 0.969" (24.60mm) | Audio; DC Link, DC Filtering | - | - |
|
MKP1848550454K2CAP FILM 5UF 5% 450VDC RADIAL |
1,003 |
|
Datasheet |
Radial | 5 µF | ±5% | - | 450V | Polypropylene (PP), Metallized | 16.5 mOhms | -40°C ~ 105°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESR |
|
C4AQLBU5140M18KCAP FILM 14UF 10% 500VDC RADIAL |
340 |
|
Datasheet |
Radial | 14 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | 6.2 mOhms | -55°C ~ 105°C | Through Hole | 1.654" L x 1.693" W (42.00mm x 43.00mm) | 1.189" (30.20mm) | PC Pins | 1.476" (37.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
|
BFC233841334CAP FILM 0.33UF 20% 800VDC RAD |
217 |
|
Datasheet |
Radial | 0.33 µF | ±20% | 300V | 800V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.394" W (17.50mm x 10.00mm) | 0.650" (16.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
R71PR468050H6KFILM, RADIAL, PULSE, SINGLE META |
213 |
|
Datasheet |
Radial | 6.8 µF | ±10% | 220V | 630V | Polypropylene (PP), Metallized | 9 mOhms | -55°C ~ 125°C | Through Hole | 1.260" L x 0.630" W (32.00mm x 16.00mm) | 1.185" (30.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency; High Pulse, DV/DT; Power Factor Correction (PFC) | AEC-Q200 | - |
|
150104J630FECAP FILM 0.1UF 5% 630VDC AXIAL |
921 |
|
Datasheet |
Axial | 0.1 µF | ±5% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.335" Dia x 1.102" L (8.50mm x 28.00mm) | - | PC Pins | - | General Purpose | - | - |
|
C4AF3BU4150A11KCAP FILM 1.5UF 10% 400VAC RADIAL |
238 |
|
Datasheet |
Radial | 1.5 µF | ±10% | 400V | - | Polypropylene (PP), Metallized | 5.8 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.748" W (31.50mm x 19.00mm) | 1.150" (29.20mm) | PC Pins | 1.083" (27.50mm) | Automotive | AEC-Q200 | - |
|
ECW-FG80805JCAP FILM 8.0UF 800VDC RADIAL |
165 |
|
Datasheet |
Radial | 8 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.689" W (31.50mm x 17.50mm) | 1.299" (33.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | - |
|
158X224CAP FILM 0.22UF 20% 275VAC RAD |
185 |
|
Datasheet |
Radial | 0.22 µF | ±20% | 275V | - | Polyester, Metallized | - | -40°C ~ 100°C | Through Hole | 0.984" L x 0.315" W (25.00mm x 8.00mm) | 0.709" (18.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
|
PHE450RF6220JR06L2CAP FILM 0.22UF 5% 1.6KVDC RAD |
481 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.571" W (31.50mm x 14.50mm) | 0.965" (24.50mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching | - | - |
|
EZP-Q38205LTACAP FILM 2UF 5% 380VAC RADIAL |
422 |
|
Datasheet |
Radial | 2 µF | ±5% | 380V | - | Polypropylene (PP), Metallized | 36.6 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 0.591" W (41.00mm x 15.00mm) | 1.161" (29.50mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | Long Life, Low ESR |
|
B32676E8225K000CAP FILM 2.2UF 10% 875VDC RADIAL |
1,512 |
|
Datasheet |
Radial | 2.2 µF | ±10% | - | 875V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.654" L x 0.630" W (42.00mm x 16.00mm) | 1.122" (28.50mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Long Life |
|
|
B32674D3805K000CAP FILM 8UF 10% 300VDC RADIAL |
600 |
|
Datasheet |
Radial | 8 µF | ±10% | - | 300V | Polypropylene (PP), Metallized | 5.6 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.630" W (31.50mm x 16.00mm) | 1.260" (32.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|
|
B32674D6505K000CAP FILM 5UF 10% 630VDC RADIAL |
564 |
|
Datasheet |
Radial | 5 µF | ±10% | - | 630V | Polypropylene (PP), Metallized | 5.8 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.437" (36.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|
F17724332000CAP FILM 0.33UF 10% 630VDC RAD |
2,781 |
|
Datasheet |
Radial | 0.33 µF | ±10% | 310V | 630V | Polyester, Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.394" W (26.00mm x 10.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
