Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C4AQSBU4450A12JCAP FILM 4.5UF 5% 1.5KVDC RADIAL |
192 |
|
Datasheet |
Radial | 4.5 µF | ±5% | - | 1500V (1.5kV) | Polypropylene (PP), Metallized | 7.3 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.465" (37.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
R75PR422050H3JCAP FILM 2.2UF 5% 630VDC RADIAL |
103 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | 7.2 mOhms | -55°C ~ 125°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
B32024A3564M000CAP FILM 0.56UF 20% 1.5KVDC RAD |
1,559 |
|
Datasheet |
Radial | 0.56 µF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.630" W (31.50mm x 16.00mm) | 1.260" (32.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | Y2 | - |
|
R71VR468050H6KFILM, RADIAL, PULSE, SINGLE META |
422 |
|
Datasheet |
Radial | 6.8 µF | ±10% | 200V | 520V | Polypropylene (PP), Metallized | 9 mOhms | -55°C ~ 125°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.106" (28.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency; High Pulse, DV/DT; Power Factor Correction (PFC) | AEC-Q200 | - |
|
C274AC24315SB0JCAP FILM 3.15UF 5% 470VAC RADIAL |
322 |
|
Datasheet |
Radial, Can | 3.15 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | - | - | Quick Connect - 0.250" (6.3mm) | 0.394" (10.00mm) | Motor Run | - | - |
|
|
C4AQJBU5150M12JCAP FILM 15UF 5% 700VDC RADIAL |
193 |
|
Datasheet |
Radial | 15 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 5.3 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.465" (37.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|

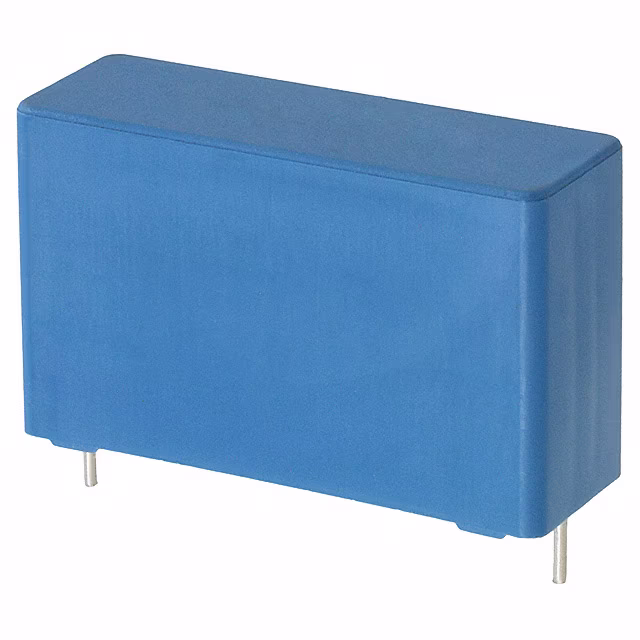

B32026A3474M000CAP FILM 0.47UF 20% 1.5KVDC RAD |
3,464 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.634" L x 0.551" W (41.50mm x 14.00mm) | 0.984" (25.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | Y2 | - |
|
C4GAMUB3220AA0JCAP FILM 0.22UF 5% 850VDC AXIAL |
332 |
|
Datasheet |
Axial | 0.22 µF | ±5% | 450V | 850V | Polypropylene (PP), Metallized | 10.3 mOhms | -40°C ~ 85°C | Through Hole | 0.472" Dia x 1.299" L (12.00mm x 33.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
B32674D6475K000CAP FILM 4.7UF 10% 630VDC RADIAL |
2,252 |
|
Datasheet |
Radial | 4.7 µF | ±10% | - | 630V | Polypropylene (PP), Metallized | 6 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.437" (36.50mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | AEC-Q200 | Long Life |
|
EZP-Q38155LTACAP FILM 1.5UF 5% 380VAC RADIAL |
282 |
|
Datasheet |
Radial | 1.5 µF | ±5% | 380V | - | Polypropylene (PP), Metallized | 48.8 mOhms | -40°C ~ 105°C | Through Hole | 1.614" L x 0.591" W (41.00mm x 15.00mm) | 1.161" (29.50mm) | PC Pins | 1.476" (37.50mm) | General Purpose | - | Long Life, Low ESR |
|
ECW-FG80755JCAP FILM 7.5UF 800VDC RADIAL |
150 |
|
Datasheet |
Radial | 7.5 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.689" W (31.50mm x 17.50mm) | 1.299" (33.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | - |
|
MMK22.5106J63D15L4TRAYCAP FILM 10UF 5% 63VDC RAD |
1,552 |
|
Datasheet |
Radial | 10 µF | ±5% | 40V | 63V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 1.024" L x 0.354" W (26.00mm x 9.00mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
LDEPF3100KA0N00CAP FILM 0.1UF 10% 630VDC 4030 |
478 |
|
Datasheet |
4030 (10276 Metric) | 0.1 µF | ±10% | 200V | 630V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.413" L x 0.311" W (10.50mm x 7.90mm) | 0.217" (5.50mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
C878BF34600SA0JCAP FILM 6UF 5% 470VAC RADIAL |
407 |
|
Datasheet |
Radial, Can | 6 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.181" Dia (30.00mm) | 3.150" (80.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
C4AF3BU4220T12KFILM, POWER, METALLIZED POLYPROP |
119 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 400V | 800V | Polypropylene (PP), Metallized | 6.8 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.465" (37.20mm) | PC Pins | 1.083" (27.50mm) | Automotive | AEC-Q200 | - |
|
C274AC24200SB0JCAP FILM 2UF 5% 470VAC RADIAL |
738 |
|
Datasheet |
Radial, Can | 2 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 0.984" Dia (25.00mm) | 2.303" (58.50mm) | Quick Connect - 0.250" (6.3mm) | 0.394" (10.00mm) | Motor Run | - | - |
|
930C2W1K-FCAP FILM 1UF 10% 250VDC AXIAL |
875 |
|
Datasheet |
Axial | 1 µF | ±10% | 175V | 250V | Polypropylene (PP), Metallized | 28 mOhms | -55°C ~ 105°C | Through Hole | 0.512" Dia x 1.260" L (13.00mm x 32.00mm) | - | PC Pins | - | General Purpose | - | - |
|
PHE845VF6220MR06L2CAP FILM 0.22UF 20% 1.5KVDC RAD |
542 |
|
Datasheet |
Radial | 0.22 µF | ±20% | 760V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.240" L x 0.531" W (31.50mm x 13.50mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
PSB2123220KHSCAP FILM 0.22UF 10% 1.2KVDC RAD |
289 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 630V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 5.4 mOhms | -40°C ~ 85°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.787" (20.00mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
C274AC24500AA0JCAP FILM 5UF 5% 470VAC RADIAL |
526 |
|
Datasheet |
Radial, Can | 5 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 1.181" Dia (30.00mm) | 2.303" (58.50mm) | Quick Connect - 0.250" (6.3mm) | 0.394" (10.00mm) | Motor Run | - | - |
