BOM Upload
Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

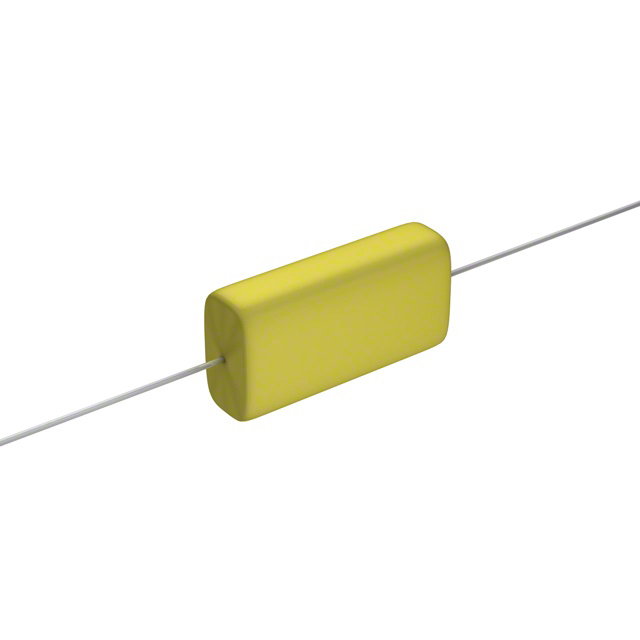

MMP2W2P2K-FCAP FILM 2.2UF 10% 250VDC AXIAL |
980 |
|
Datasheet |
Axial | 2.2 µF | ±10% | 160V | 250V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.709" W, 0.394" T x 1.378" L (18.00mm, 10.00mm x 35.00mm) | - | PC Pins | - | General Purpose | - | Long Life |
|
ECQ-E6225JFCAP FILM 2.2UF 5% 630VDC RADIAL |
404 |
|
Datasheet |
Radial | 2.2 µF | ±5% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.768" W (31.00mm x 19.50mm) | 1.201" (30.50mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
PPA1853470KNCAP FILM 0.47UF 10% 850VDC AXIAL |
196 |
|
Datasheet |
Axial | 0.47 µF | ±10% | 500V | 850V | Polypropylene (PP), Metallized | 5 mOhms | -40°C ~ 85°C | Through Hole | 0.630" Dia x 1.732" L (16.00mm x 44.00mm) | - | PC Pins | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
C4AEGBU5100A1XKCAP FILM 10UF 10% 450VDC RADIAL |
1,399 |
|
Datasheet |
Radial | 10 µF | ±10% | - | 450V | Polypropylene (PP), Metallized | 8.1 mOhms | -40°C ~ 85°C | Through Hole | 1.240" L x 0.512" W (31.50mm x 13.00mm) | 0.992" (25.20mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
BFC238350912CAP FILM 9100PF 5% 1.6KVDC RAD |
764 |
|
Datasheet |
Radial | 9100 pF | ±5% | 550V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.335" W (17.50mm x 8.50mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | High Pulse, DV/DT | - | - |
|
PZB300MC23R30CAP FILM 0.15UF 20% 275VAC RAD |
605 |
|
Datasheet |
Radial - 3 Leads | 0.15 µF | ±20% | 275V | - | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.945" L x 0.492" W (24.00mm x 12.50mm) | 0.630" (16.00mm) | PC Pins | 0.787" (20.00mm) | EMI, RFI Suppression | - | - |
|
C4AQOBU4500P11JCAP FILM 5UF 5% 900VDC RADIAL |
176 |
|
Datasheet |
Radial | 5 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 10 mOhms | -55°C ~ 125°C | Through Hole | 1.240" L x 0.748" W (31.50mm x 19.00mm) | 1.150" (29.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESL |
_06x00KSSD.jpg)
|
MKX14W41006G00KSSDCAP FILM 1UF 10% 440VAC RADIAL |
195 |
|
Datasheet |
Radial | 1 µF | ±10% | 440V | - | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.669" W (31.50mm x 17.00mm) | 1.142" (29.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | X1 | - |
|
C284ACA4250AL0JCAP FILM 2.5UF 5% 470VAC RADIAL |
111 |
|
Datasheet |
Radial, Can | 2.5 µF | ±5% | 470V | - | Polypropylene (PP) | - | -25°C ~ 85°C | Chassis Mount | 0.984" Dia (25.00mm) | 2.244" (57.00mm) | Wire Leads | - | Motor Run | - | - |
|
C878AF24150AA1JCAP FILM 1.5UF 5% 470VAC RADIAL |
110 |
|
Datasheet |
Radial, Can | 1.5 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 0.984" Dia (25.00mm) | 2.303" (58.50mm) | Quick Connect - 0.250" (6.3mm) | 0.394" (10.00mm) | Motor Run | - | - |
|
715P47354LD3CAP FILM 0.047UF 5% 400VDC RAD |
1,827 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 85°C | Through Hole | 0.370" Dia x 1.252" L (9.40mm x 31.80mm) | 0.681" (17.30mm) | PC Pins | 0.720" (18.30mm) | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
R60ER51005040JCAP FILM 10UF 5% 100VDC RADIAL |
952 |
|
Datasheet |
Radial | 10 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.354" W (32.00mm x 9.00mm) | 0.673" (17.10mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
200MU104KC43245CAP FILM 0.1UF 10% 200VDC 1218 |
1,027 |
|
Datasheet |
1218 (3245 Metric) | 0.1 µF | ±10% | - | 200V | Acrylic, Metallized | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.177" W (3.20mm x 4.50mm) | 0.110" (2.80mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
.JPG)
|
224PPB102KCAP FILM 0.22UF 10% 1KVDC RADIAL |
228 |
|
Datasheet |
Radial | 0.22 µF | ±10% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.102" (28.00mm) | PC Pins | 1.083" (27.50mm) | Commutation; High Pulse, DV/DT; Snubber | - | - |
|
MABA014220KJSCAP FILM 2.2UF 10% 400VDC RADIAL |
220 |
|
Datasheet |
Radial | 2.2 µF | ±10% | - | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 100°C | Through Hole | 1.673" L x 0.669" W (42.50mm x 17.00mm) | 1.102" (28.00mm) | PC Pins | 1.476" (37.50mm) | Motor Run | - | - |
|
F339X144748MKP2T0CAP FILM 0.47UF 20% 1KVDC RADIAL |
200 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|
|
BFC233814105CAP FILM 1UF 20% 1KVDC RADIAL |
1,005 |
|
Datasheet |
Radial | 1 µF | ±20% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.220" L x 0.827" W (31.00mm x 21.00mm) | 1.220" (31.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
R586R356050T0MCAP FILM 600VAC(X1) 0.56 UF 20% |
522 |
|
Datasheet |
Radial | 0.56 µF | ±20% | 600V | 1200V (1.2kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.114" (28.30mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|
C4AFBBU4100T12KFILM, RADIAL, POWER BOX, AC FILT |
169 |
|
Datasheet |
Radial | 1 µF | ±10% | 600V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 8 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.465" (37.20mm) | PC Pins | 1.083" (27.50mm) | Automotive | AEC-Q200 | - |
|
B32754C7705K000CAP FILM 7UF 10% 560VDC RADIAL |
3,852 |
|
Datasheet |
Radial | 7 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | 4.6 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.866" W (31.50mm x 22.00mm) | 1.437" (36.50mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
Film Capacitors Electronic Components
Explore Film Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
