Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PME271YC5680MR30CAP FILM 0.068UF 20% 1KVDC RAD |
132 |
|
Datasheet |
Radial | 0.068 µF | ±20% | 300V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 115°C | Through Hole | 0.945" L x 0.445" W (24.00mm x 11.30mm) | 0.650" (16.50mm) | PC Pins | 0.799" (20.30mm) | EMI, RFI Suppression | Y2 | - |
|
BFC247086224CAP FILM 0.22UF 5% 100VDC RADIAL |
3,461 |
|
Datasheet |
Radial | 0.22 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.354" (9.00mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | Long Life |
|
ECQ-E6105JFCAP FILM 1UF 5% 630VDC RADIAL |
1,686 |
|
Datasheet |
Radial | 1 µF | ±5% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.492" W (31.00mm x 12.50mm) | 0.921" (23.40mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
LDEDD3680JA5N00CAP FILM 0.68UF 5% 63VDC 2220 |
1,167 |
|
Datasheet |
2220 (5750 Metric) | 0.68 µF | ±5% | 40V | 63V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.130" (3.30mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
WMC08D68K-FCAP FILM 6800PF 10% 80VDC AXIAL |
944 |
|
Datasheet |
Axial | 6800 pF | ±10% | 50V | 80V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.185" Dia x 0.406" L (4.70mm x 10.30mm) | - | PC Pins | - | High Pulse, DV/DT | - | - |
|
C4AQNBU4330M1YJCAP FILM 3.3UF 5% 1KVDC RADIAL |
288 |
|
Datasheet |
Radial | 3.3 µF | ±5% | - | 1000V (1kV) | Polypropylene (PP), Metallized | 12.9 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.551" W (31.50mm x 14.00mm) | 1.110" (28.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
|
C4AQSBU4200A1YJCAP FILM 2UF 5% 1.5KVDC RADIAL |
207 |
|
Datasheet |
Radial | 2 µF | ±5% | - | 1500V (1.5kV) | Polypropylene (PP), Metallized | 14.1 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.551" W (31.50mm x 14.00mm) | 1.110" (28.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
B32654A2333J000CAP FILM 0.033UF 5% 2KVDC RADIAL |
990 |
|
Datasheet |
Radial | 0.033 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.531" W (31.50mm x 13.50mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
|

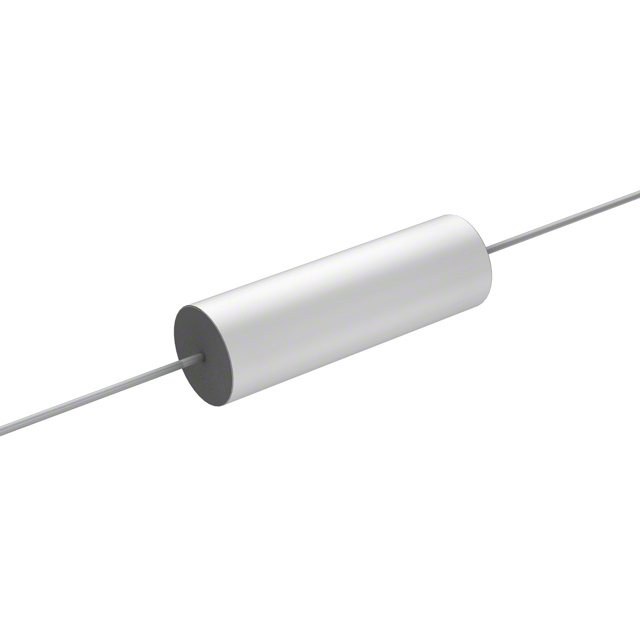

WMF1P1K-FCAP FILM 0.1UF 10% 100VDC AXIAL |
747 |
|
Datasheet |
Axial | 0.1 µF | ±10% | - | 100V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.335" Dia x 0.937" L (8.50mm x 23.80mm) | - | PC Pins | - | General Purpose | - | - |
|
B32560J0475K000CAP FILM 4.7UF 10% 63VDC 2DIP |
643 |
|
Datasheet |
2-DIP | 4.7 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.354" L x 0.386" W (9.00mm x 9.80mm) | 0.433" (11.00mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
|
105MWR400KCAP FILM 1UF 10% 400VDC AXIAL |
382 |
|
Datasheet |
Axial | 1 µF | ±10% | 200V | 400V | Polyester, Metallized | 1.415 Ohms | -40°C ~ 105°C | Through Hole | 0.571" Dia x 1.339" L (14.50mm x 34.00mm) | - | PC Pins | - | General Purpose | - | Low ESR |
|
B32913A3474M189CAP FILM 0.47UF 20% 760VDC RAD |
239 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 330V | 760V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.413" W (26.50mm x 10.50mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
PME264NC5330MR30CAP FILM 0.033UF 20% 660VAC RAD |
150 |
|
Datasheet |
Radial | 0.033 µF | ±20% | 660V | - | Paper, Metallized | - | -40°C ~ 85°C | Through Hole | 0.945" L x 0.445" W (24.00mm x 11.30mm) | 0.650" (16.50mm) | PC Pins | 0.799" (20.30mm) | EMI, RFI Suppression | X2 | - |
|
BFC233920225CAP FILM 2.2UF 20% 630VDC RADIAL |
4,124 |
|
Datasheet |
Radial | 2.2 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
|
225P22492XA3CAP FILM 0.22UF 10% 200VDC RAD |
3,263 |
|
Datasheet |
Radial | 0.22 µF | ±10% | - | 200V | Polyester | - | -55°C ~ 85°C | Through Hole | 0.799" L x 0.480" W (20.30mm x 12.20mm) | 0.772" (19.60mm) | PC Pins | 0.614" (15.60mm) | Audio; DC Link, DC Filtering | - | - |
|
BFC233840224CAP FILM 0.22UF 20% 800VDC RAD |
424 |
|
Datasheet |
Radial | 0.22 µF | ±20% | 300V | 800V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.689" L x 0.335" W (17.50mm x 8.50mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
FKP1Y021006F00MSSDCAP FILM 10000PF 20% 6KVDC RAD |
115 |
|
Datasheet |
Radial | 10000 pF | ±20% | 700V | 6000V (6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 1.024" (26.00mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R75MR422050H4JCAP FILM 2.2UF 5% 400VDC RADIAL |
946 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | 7.2 mOhms | -55°C ~ 125°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.988" (25.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
C4AQIBU4500M1YJCAP FILM 5UF 5% 800VDC RADIAL |
418 |
|
Datasheet |
Radial | 5 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 10.7 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.551" W (31.50mm x 14.00mm) | 1.110" (28.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
|
MKX2AW42206F00KSSDCAP FILM 2.2UF 10% 305VAC RADIAL |
412 |
|
Datasheet |
Radial | 2.2 µF | ±10% | 305V | - | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.591" W (31.50mm x 15.00mm) | 1.024" (26.00mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
