Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DME6S68K-FCAP FILM 0.068UF 10% 630VDC RAD |
4,674 |
|
Datasheet |
Radial | 0.068 µF | ±10% | 250V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.728" L x 0.236" W (18.50mm x 6.00mm) | 0.512" (13.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|

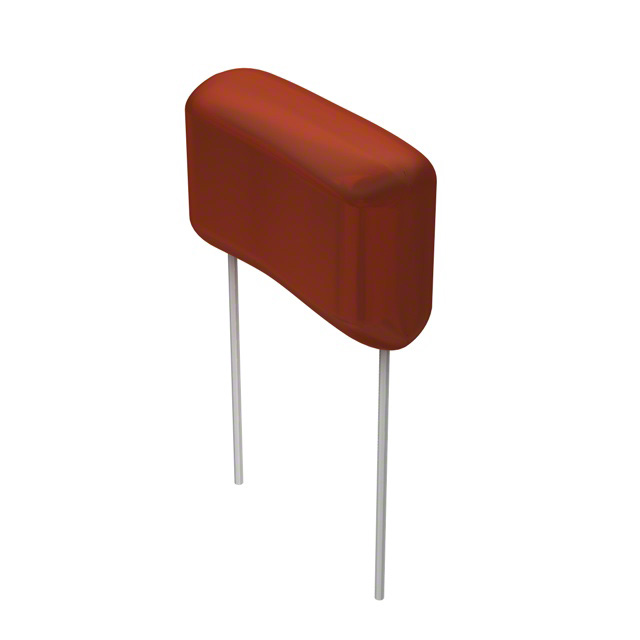

DPPM20D22K-FCAP FILM 2200PF 10% 2KVDC RADIAL |
3,214 |
|
Datasheet |
Radial | 2200 pF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.984" L x 0.354" W (25.00mm x 9.00mm) | 0.689" (17.50mm) | PC Pins | 0.827" (21.00mm) | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
F862DP824K310ZLH0JCAP FILM 0.82UF 10% 630VDC RAD |
1,085 |
|
Datasheet |
Radial | 0.82 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.433" W (26.00mm x 11.00mm) | 0.787" (20.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | AEC-Q200, X2 | - |
|
R75PR3470AA40KCAP FILM 0.47UF 10% 630VDC RAD |
990 |
|
Datasheet |
Radial | 0.47 µF | ±10% | 250V | 630V | Polypropylene (PP), Metallized | 8 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.354" W (32.00mm x 9.00mm) | 0.673" (17.10mm) | PC Pins | 1.083" (27.50mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
LDEED3220KA5N00CAP FILM 0.22UF 10% 100VDC 2220 |
8,908 |
|
Datasheet |
2220 (5750 Metric) | 0.22 µF | ±10% | 63V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.094" (2.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
B32023H3224M000CAP FILM 0.22UF 20% 1.5KVDC RAD |
1,256 |
|
Datasheet |
Radial | 0.22 µF | ±20% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.472" W (26.50mm x 12.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | - |
|
PWS2151330KDCAP FILM 3300PF 10% 1.5KVDC AXL |
641 |
|
Datasheet |
Axial | 3300 pF | ±10% | 450V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.335" Dia x 0.748" L (8.50mm x 19.00mm) | - | PC Pins | - | High Frequency, Switching; High Pulse, DV/DT; Snubber | - | - |
|
ECW-FG2J225JCAP FILM 2.2UF 5% 630VDC RADIAL |
164 |
|
Datasheet |
Radial | 2.2 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.240" L x 0.472" W (31.50mm x 12.00mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | Automotive; High Frequency, Switching | AEC-Q200 | High Temperature |
|

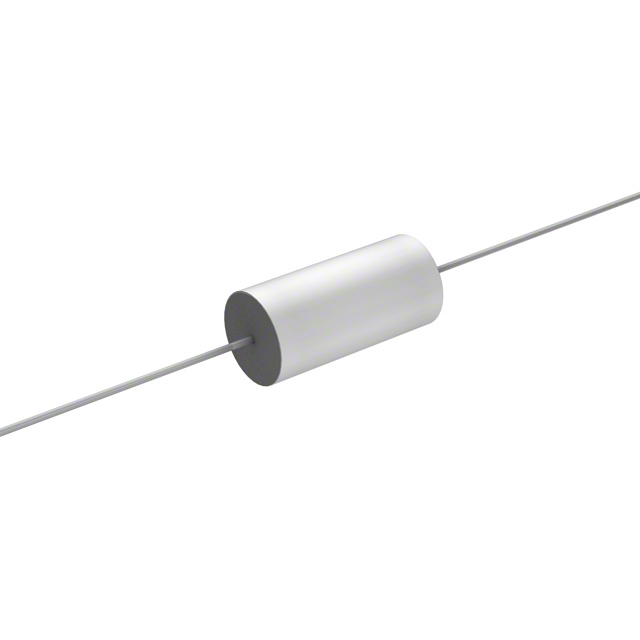

WMF4S1K-FCAP FILM 10000PF 10% 400VDC AXIA |
3,397 |
|
Datasheet |
Axial | 10000 pF | ±10% | - | 400V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.331" Dia x 0.685" L (8.40mm x 17.40mm) | - | PC Pins | - | General Purpose | - | - |
|
R49AN347040B1MCAP FILM 0.47UF 20% 800VDC RAD |
1,026 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 330V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
R75PN34704030JCAP FILM 0.47UF 5% 630VDC RADIAL |
363 |
|
Datasheet |
Radial | 0.47 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R76PI3100SE30KCAP FILM 0.1UF 10% 630VDC RADIAL |
313 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
ECW-F4134JLCAP FILM 0.13UF 5% 400VDC RADIAL |
290 |
|
Datasheet |
Radial | 0.13 µF | ±5% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.610" L x 0.283" W (15.50mm x 7.20mm) | 0.524" (13.30mm) | PC Pins | 0.492" (12.50mm) | High Frequency, Switching | - | - |
|
LDEME3100KA5N00CAP FILM 0.1UF 10% 400VDC 2824 |
9,992 |
|
Datasheet |
2824 (7260 Metric) | 0.1 µF | ±10% | 160V | 400V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.287" L x 0.240" W (7.30mm x 6.10mm) | 0.213" (5.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
WMF1S15K-FCAP FILM 0.015UF 10% 100VDC AXIA |
2,786 |
|
Datasheet |
Axial | 0.015 µF | ±10% | - | 100V | Polyester | - | -55°C ~ 125°C | Through Hole | 0.244" Dia x 0.563" L (6.20mm x 14.30mm) | - | PC Pins | - | General Purpose | - | - |
|
|
LDECE4150KA0N00CAP FILM 1.5UF 10% 50VDC 2824 |
1,649 |
|
Datasheet |
2824 (7260 Metric) | 1.5 µF | ±10% | 40V | 50V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.287" L x 0.240" W (7.30mm x 6.10mm) | 0.169" (4.30mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
MKS4O132205G00MSSDCAP FILM 0.22UF 20% 1KVDC RADIAL |
1,609 |
|
Datasheet |
Radial | 0.22 µF | ±20% | 400V | 1000V (1kV) | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Through Hole | 1.043" L x 0.413" W (26.50mm x 10.50mm) | 0.748" (19.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
R60EN4330AA30JCAP FILM 3.3UF 5% 100VDC RAD |
426 |
|
Datasheet |
Radial | 3.3 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200 | - |
|
B32653A8332J189CAP FILM 3300PF 5% 2KVDC RADIAL |
6,279 |
|
Datasheet |
Radial | 3300 pF | ±5% | 1000V (1kV) | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 100°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.591" (15.00mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Pulse, DV/DT | AEC-Q200 | - |
|
LDBCC3100JC5N0CAP FILM 0.1UF 5% 50VDC 1812 |
2,481 |
|
Datasheet |
1812 (4532 Metric) | 0.1 µF | ±5% | - | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.185" L x 0.130" W (4.70mm x 3.30mm) | 0.079" (2.00mm) | Solder Pads | - | General Purpose | - | - |
