Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R60II34705030JCAP FILM 0.47UF 5% 250VDC RADIAL |
2,502 |
|
Datasheet |
Radial | 0.47 µF | ±5% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.591" (15.00mm) | Automotive | AEC-Q200 | - |
|
F17103471000CAP FILM 0.047UF 20% 300VAC RAD |
2,212 |
|
Datasheet |
Radial | 0.047 µF | ±20% | 300V | - | Polypropylene (PP) | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y2 | - |
|
BFC233660472CAP FILM 4700PF 20% 1KVDC RADIAL |
2,049 |
|
Datasheet |
Radial | 4700 pF | ±20% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.492" L x 0.197" W (12.50mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | Y2 | - |
|

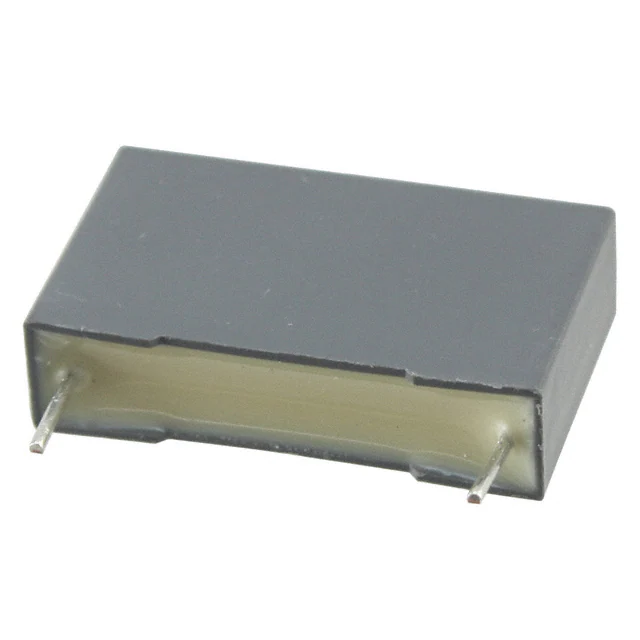

R46KN368000P0KCAP FILM 0.68UF 10% 560VDC RAD |
1,699 |
|
Datasheet |
Radial | 0.68 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
168473J100C-FCAP FILM 0.047UF 5% 100VDC RAD |
1,619 |
|
Datasheet |
Radial | 0.047 µF | ±5% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.098" W (7.20mm x 2.50mm) | 0.256" (6.50mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
R46KN410050N2MCAP FILM 1UF 20% 560VDC RADIAL |
1,481 |
|
Datasheet |
Radial | 1 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|

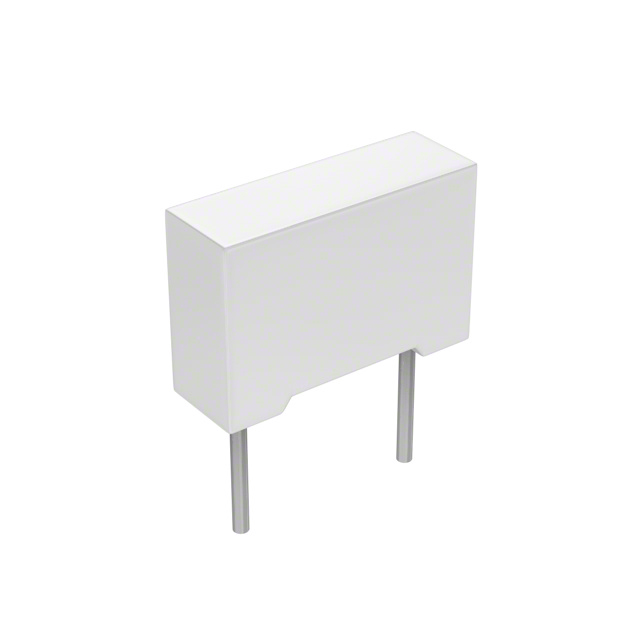

167102J630A-FCAP FILM 1000PF 5% 630VDC RADIAL |
1,322 |
|
Datasheet |
Radial | 1000 pF | ±5% | 220V | 630V | Polyester, Metallized | - | -55°C ~ 125°C | Through Hole | 0.413" L x 0.138" W (10.50mm x 3.50mm) | 0.276" (7.00mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
|

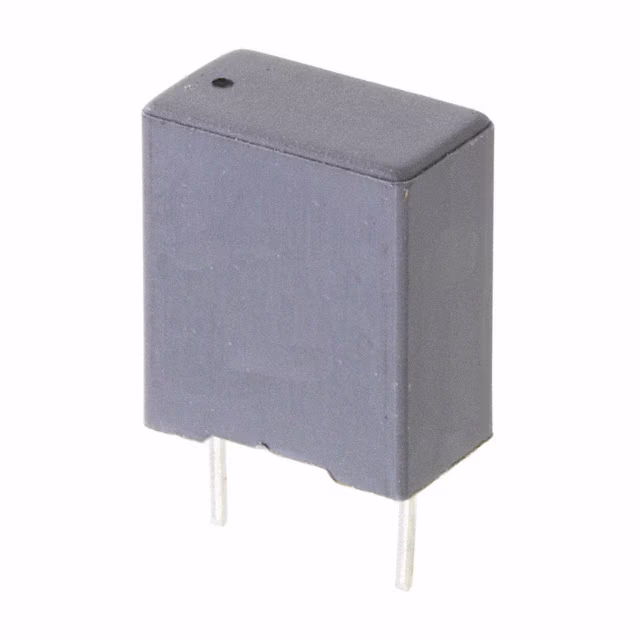

R75QD1820AA30JCAP FILM 8200PF 5% 1KVDC RADIAL |
1,151 |
|
Datasheet |
Radial | 8200 pF | ±5% | 400V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.413" L x 0.236" W (10.50mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.295" (7.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R73PI21004000JCAP FILM 10000PF 5% 630VDC RAD |
914 |
|
Datasheet |
Radial | 10000 pF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R46KI3470JH02MCAP FILM 0.47UF 20% 560VDC RAD |
829 |
|
Datasheet |
Radial | 0.47 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.732" (18.60mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
R76TN239050H4JCAP FILM 0.039UF 5% 1.6KVDC RAD |
500 |
|
Datasheet |
Radial | 0.039 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 49 mOhms | -55°C ~ 125°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R46KI368050P1MCAP FILM 0.68UF 20% 560VDC RAD |
477 |
|
Datasheet |
Radial | 0.68 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.634" (16.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
ECW-F6134HLCAP FILM 0.13UF 3% 630VDC RADIAL |
172 |
|
Datasheet |
Radial | 0.13 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
MKX14W31005B00KSSDCAP FILM 0.1UF 10% 440VAC RADIAL |
149 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 440V | - | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.591" (15.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | X1 | - |
|
R49AN31005001KCAP FILM 0.1UF 10% 800VDC RADIAL |
117 |
|
Datasheet |
Radial | 0.1 µF | ±10% | 310V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.594" (15.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
|
ECW-H12123JVCAP FILM 0.012UF 5% 1.25KVDC RAD |
15,048 |
|
Datasheet |
Radial | 0.012 µF | ±5% | 354V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.669" (17.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
B32922C3683K189CAP FILM 0.068UF 10% 630VDC RAD |
5,377 |
|
Datasheet |
Radial | 0.068 µF | ±10% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
SMDTD03100TA00KQ00CAP FILM 0.1UF 10% 63VAC 2824 |
5,260 |
|
Datasheet |
2824 (7260 Metric) | 0.1 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 125°C | Surface Mount | 0.283" L x 0.240" W (7.20mm x 6.10mm) | 0.130" (3.30mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
|
B32922C3683M189CAP FILM 0.068UF 20% 630VDC RAD |
5,020 |
|
Datasheet |
Radial | 0.068 µF | ±20% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
B32922C3683K289CAP FILM 0.068UF 10% 630VDC RAD |
4,280 |
|
Datasheet |
Radial | 0.068 µF | ±10% | 305V | 630V | Polypropylene (PP) | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
Film Capacitors Electronic Components
Explore Film Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
