EMI/RFI Filters (LC, RC Networks)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Filter Order | Technology | Number of Channels | Center / Cutoff Frequency | Attenuation Value | Resistance - Channel (Ohms) | Current | Values | ESD Protection | Operating Temperature | Applications | Voltage - Rated | Grade | Qualification | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4206-001FILTER LC(PI) 3000PF CHASSIS |
0 |
|
- |
4200 | Axial, Bushing - 2 Notched Leads | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 55dB @ 100MHz | - | 25 A | C = 3000pF | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 500V | - | - | Chassis Mount | 0.375" Dia x 0.687" L (9.52mm x 17.44mm) | - |
|
|
4206-006FILTER LC(PI) 3000PF CHASSIS |
0 |
|
- |
4200 | Axial, Bushing - 2 Notched Leads | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 55dB @ 100MHz | - | 25 A | C = 3000pF | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 500V | - | - | Chassis Mount | 0.375" Dia x 0.687" L (9.52mm x 17.44mm) | - |
|
|
4206-013FILTER |
0 |
|
- |
4200 | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
4206-013LFFILTER |
0 |
|
- |
4200 | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
4206-016FILTER LC(PI) 1000PF CHASSIS |
0 |
|
- |
4200 | Axial, Bushing - 2 Notched Leads | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 35dB @ 100MHz | - | 25 A | C = 1000pF | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 1000V (1kV) | - | - | Chassis Mount | 0.375" Dia x 0.687" L (9.53mm x 17.45mm) | - |
|
|
4206-016LFFILTER LC(PI) 1000PF CHASSIS |
0 |
|
- |
4200 | Axial, Bushing - 2 Notched Leads | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 35dB @ 100MHz | - | 25 A | C = 1000pF | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 1000V (1kV) | - | - | Chassis Mount | 0.375" Dia x 0.687" L (9.53mm x 17.45mm) | - |
|
|
4208-000FILTER LC(PI) 1500PF CHASSIS |
0 |
|
- |
4200 | Axial, Bushing - 2 Notched Leads | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 50dB @ 100MHz ~ 10GHz | - | 25 A | C = 1500pF | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 2000V (2kV) | - | - | Chassis Mount | 0.500" Dia x 0.500" L (12.70mm x 12.70mm) | - |
|
|
4209-003FILTER LC(PI) 1500PF CHASSIS |
0 |
|
- |
4200 | Axial, Bushing, 1 Turret Lead | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 45dB @ 100MHz | - | 10 A | C = 1500pF | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 200V | - | - | Chassis Mount | 0.250" Dia x 0.517" L (6.35mm x 13.13mm) | - |
|
4209-053FILTER LC(PI) 5500PF CHASSIS |
0 |
|
- |
4200 | Axial, Bushing, 1 Turret Lead | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 65dB @ 100MHz | - | 10 A | C = 5500pF | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 100V | - | - | Chassis Mount | 0.250" Dia x 0.517" L (6.35mm x 13.14mm) | - |
|
|
4251-002FILTER LC(PI) 0.012UF CHASSIS |
0 |
|
- |
4200 | Axial, Bushing | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 65dB @ 100MHz | - | 10 A | C = 0.012µF | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 125V | - | - | Chassis Mount | 0.187" Dia x 0.470" L (4.75mm x 11.94mm) | - |
|

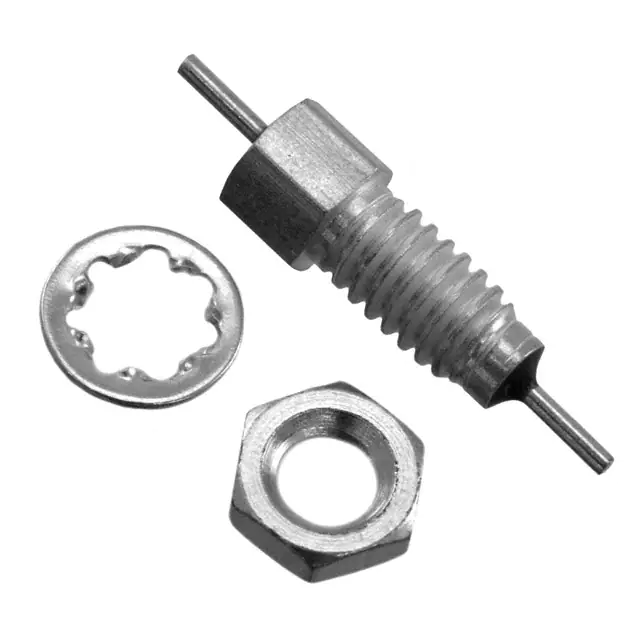

4251-004FILTER LC(PI) 0.028UF CHASSIS |
0 |
|
- |
4200 | Axial, Bushing | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 75dB @ 100MHz ~ 10GHz | - | 10 A | C = 0.028µF | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 100V | - | - | Chassis Mount | 0.187" Dia x 0.470" L (4.75mm x 11.94mm) | - |
|
|
4253-002FILTER LC(PI) 0.05UF CHASSIS |
0 |
|
- |
4200 | Axial, Bushing | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 75dB @ 100MHz ~ 10GHz | - | 10 A | C = 0.05µF | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 70V | - | - | Chassis Mount | 0.250" Dia x 0.807" L (6.35mm x 20.49mm) | - |
|
|
4400-050FILTER LC 100PF CHASSIS |
0 |
|
- |
4400 | Axial, Bushing | Bulk | Active | Low Pass | 2nd | LC | 1 | - | 3dB @ 100MHz | - | 10 A | C = 100pF | No | -55°C ~ 125°C | General Purpose | 200V | - | - | Chassis Mount | 0.156" Dia x 0.340" L (3.96mm x 8.64mm) | - |
|
|
4400-050LFFILTER LC 100PF CHASSIS |
0 |
|
- |
4400 | Axial, Bushing | Bulk | Active | Low Pass | 2nd | LC | 1 | - | 3dB @ 100MHz | - | 10 A | C = 100pF | No | -55°C ~ 125°C | General Purpose | 200V | - | - | Chassis Mount | 0.156" Dia x 0.340" L (3.96mm x 8.64mm) | - |
|
|
4400-057FILTER LC 0.05UF CHASSIS |
0 |
|
- |
4400 | Axial, Bushing | Bulk | Active | Low Pass | 2nd | LC | 1 | - | 52dB @ 100MHz | - | 10 A | C = 0.05µF | No | -55°C ~ 125°C | General Purpose | 50V | - | - | Chassis Mount | - | - |
|
|
4400-060FILTER LC 0.027UF |
0 |
|
- |
4400 | Axial, Bushing | Bulk | Active | Low Pass | 2nd | LC | 1 | - | 45dB @ 100MHz | - | 10 A | C = 0.027µF | No | -55°C ~ 125°C | General Purpose | 50V | - | - | - | 0.157" Dia x 0.340" L (3.98mm x 8.64mm) | - |
|
|
4402-063FILTER LC 4700PF CHASSIS |
0 |
|
- |
4402 | Axial, Bushing | Bulk | Active | Low Pass | 2nd | LC | 1 | - | 30dB @ 100MHz | - | 10 A | C = 4700pF | No | -55°C ~ 125°C | General Purpose | 100V | - | - | Chassis Mount | 0.173" Dia x 0.406" L (4.40mm x 10.32mm) | - |
|
|
4402-063LFFILTER LC 4700PF CHASSIS |
0 |
|
- |
4402 | Axial, Bushing | Tray | Active | Low Pass | 2nd | LC | 1 | - | 30dB @ 100MHz | - | 10 A | C = 4700pF | No | -55°C ~ 125°C | General Purpose | 100V | - | - | Chassis Mount | 0.173" Dia x 0.406" L (4.40mm x 10.32mm) | - |
|
|
4206-501TUBULAR FILTER |
0 |
|
- |
4206 | Axial, Bushing - 2 Notched Leads | Bulk | Active | - | 3rd | LC (Pi) | 1 | - | 55dB @ 100MHz, 70dB @ 1GHz, 70dB @ 10GHz | - | 25 A | C = 2000pF | No | - | - | 500V | - | - | Chassis Mount | 0.375" Dia x 0.687" L (9.53mm x 17.45mm) | - |
|
|
4402-008LFDISCOIDAL FILTER |
0 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
