EMI/RFI Filters (LC, RC Networks)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Filter Order | Technology | Number of Channels | Center / Cutoff Frequency | Attenuation Value | Resistance - Channel (Ohms) | Current | Values | ESD Protection | Operating Temperature | Applications | Voltage - Rated | Grade | Qualification | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

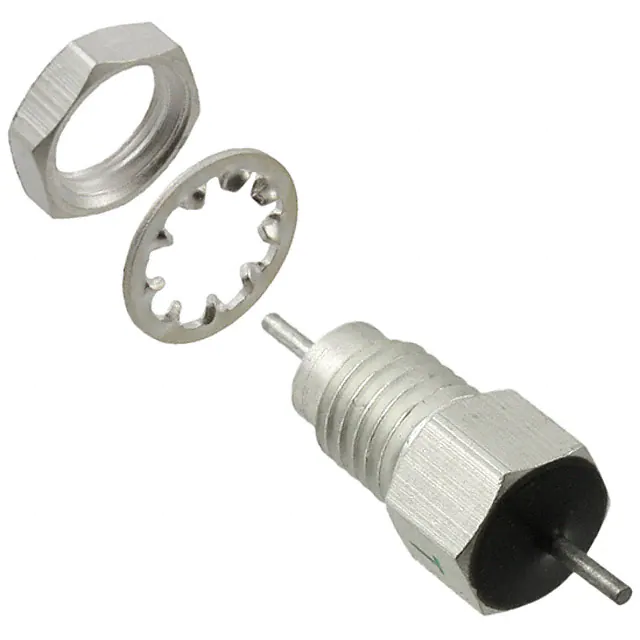

4202-050LFFILTER LC(PI) 5000PF CHASSIS |
0 |
|
- |
4200 | Axial, Bushing | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 65dB @ 100MHz | - | 10 A | C = 5000pF | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 100V | - | - | Chassis Mount | 0.250" Dia x 0.468" L (6.35mm x 11.89mm) | - |
|
4204-050LFFILTER LC(PI) 5000PF CHASSIS |
0 |
|
- |
4200 | Axial, Bushing | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 65dB @ 100MHz | - | 10 A | C = 5000pF | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 100V | - | - | Chassis Mount | 0.289" Dia x 0.468" L (7.34mm x 11.89mm) | - |
|
4100-063LFFILTER LC(PI) 4500PF TH |
0 |
|
- |
4100 | Radial, Eyelet - PC Pin | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 50dB @ 100MHz | - | 25 A | C = 4500pF | No | -55°C ~ 125°C | - | 500V | - | - | Through Hole | 0.130" Dia x 0.600" L (3.30mm x 15.24mm) | - |
|
|
4100-003FILTER LC(PI) 3000PF CUSTOM |
0 |
|
- |
4100 | Axial, Eyelet | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 50dB @ 100MHz | - | 15 A | C = 3000pF | No | -55°C ~ 125°C | - | 50V | - | - | Custom | 0.140" Dia x 0.275" L (3.55mm x 6.98mm) | - |
|
|
4100-053FILTER LC(PI) 5000PF TH |
0 |
|
- |
4100 | Radial, Eyelet - PC Pin | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 60dB @ 100MHz | - | 10 A | C = 5000pF | No | -55°C ~ 125°C | - | 200V | - | - | Through Hole | 0.200" Dia x 0.600" L (5.08mm x 15.24mm) | - |
|
|
4100-063FILTER LC(PI) 1500PF TH |
0 |
|
- |
4100 | Radial, Eyelet - PC Pin | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 35dB @ 100MHz | - | 10 A | C = 1500pF | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 380V | - | - | Through Hole | 0.130" Dia x 0.600" L (3.30mm x 15.24mm) | - |
|
|
4101-000FILTER LC(PI) 1750PF CUSTOM |
0 |
|
- |
4100 | Axial, Eyelet - No Lead | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 35dB @ 100MHz | - | 10 A | C = 1750pF | No | -55°C ~ 125°C | - | 125V | - | - | Custom | 0.195" Dia x 0.267" L (4.95mm x 6.78mm) | - |
|
|
4101-001FILTER LC(PI) 1500PF CUSTOM |
0 |
|
- |
4100 | Axial, Eyelet - 1 Turret Lead | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 45dB @ 100MHz | - | 10 A | C = 1500pF | No | -55°C ~ 125°C | - | 200V | - | - | Custom | 0.197" Dia x 0.406" L (5.00mm x 10.31mm) | - |
|
|
4101-002FILTER LC(PI) 1750PF CUSTOM |
0 |
|
- |
4100 | Axial, Eyelet - 1 Turret Lead | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 50dB @ 100MHz | - | 10 A | C = 1750pF | No | -55°C ~ 125°C | - | 125V | - | - | Custom | 0.195" Dia x 0.260" L (4.95mm x 6.60mm) | - |
|
|
4101-003FILTER LC(PI) 1750PF CUSTOM |
0 |
|
- |
4100 | Axial, Eyelet | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 50dB @ 100MHz | - | 10 A | C = 1750pF | No | -55°C ~ 125°C | - | 125V | - | - | Custom | 0.195" Dia x 0.260" L (4.95mm x 6.60mm) | - |
|
|
4101-008FILTER LC(PI) 5500PF CHASSIS |
0 |
|
- |
4100 | Axial, Bushing, 1 Turret Lead | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 55dB @ 100MHz | - | 10 A | C = 5500pF | No | - | General Purpose | 100V | - | - | Chassis Mount | 0.145" Dia x 0.380" L (3.68mm x 9.65mm) | - |
|
|
4101-008LFFILTER LC(PI) 5500PF CHASSIS |
0 |
|
- |
4100 | Axial, Bushing, 1 Turret Lead | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 55dB @ 100MHz | - | 10 A | C = 5500pF | No | - | General Purpose | 100V | - | - | Chassis Mount | 0.145" Dia x 0.380" L (3.68mm x 9.65mm) | - |
|
|
4102-000FILTER LC(PI) 3000PF CUSTOM |
0 |
|
- |
4100 | Axial, Eyelet - 1 Turret Lead | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 55dB @ 100MHz | - | 10 A | C = 3000pF | No | -55°C ~ 125°C | - | 200V | - | - | Custom | 0.180" Dia x 0.410" L (4.57mm x 10.41mm) | - |
|
|
4106-000FILTER LC(PI) 3000PF CUSTOM |
0 |
|
- |
4100 | Axial, Eyelet - Hook Lead | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 50dB @ 100MHz | - | 25 A | C = 3000pF | No | -55°C ~ 125°C | - | 500V | - | - | Custom | 0.312" Dia x 0.625" L (7.92mm x 15.88mm) | - |
|
|
4106-001FILTER LC(PI) 4500PF CUSTOM |
0 |
|
- |
4100 | Axial, Eyelet - Hook Lead | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 50dB @ 100MHz | - | 25 A | C = 4500pF | No | -55°C ~ 125°C | - | 500V | - | - | Custom | 0.312" Dia x 0.625" L (7.92mm x 15.88mm) | - |
|
|
4106-002FILTER LC(PI) 3000PF CHASSIS |
0 |
|
- |
4100 | Axial, Eyelet - Hook Lead | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 50dB @ 100MHz | - | 25 A | C = 3000pF | No | - | General Purpose | 500V | - | - | Chassis Mount | 0.205" Dia x 0.624" L (5.21mm x 15.86mm) | - |
|
|
4106-002LFFILTER LC(PI) 3000PF CHASSIS |
0 |
|
- |
4100 | Axial, Eyelet - Hook Lead | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 50dB @ 100MHz | - | 25 A | C = 3000pF | No | - | General Purpose | 500V | - | - | Chassis Mount | 0.205" Dia x 0.624" L (5.21mm x 15.86mm) | - |
|
|
4200-000FILTER LC(PI) 1500PF CHASSIS |
0 |
|
- |
4200 | Axial, Bushing, 1 Turret Lead | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 40dB @ 100MHz | - | 10 A | C = 1500pF | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 200V | - | - | Chassis Mount | 0.156" Dia x 0.350" L (3.96mm x 8.89mm) | - |
|
|
4200-005FILTER LC(PI) 3000PF CHASSIS |
0 |
|
- |
4200 | Axial, Bushing, 1 Turret Lead | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 50dB @ 100MHz | - | 10 A | C = 3000pF | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 200V | - | - | Chassis Mount | 0.156" Dia x 0.350" L (3.96mm x 8.89mm) | - |
|
|
4201-000FILTER LC(PI) 1500PF CHASSIS |
0 |
|
- |
4200 | Axial, Bushing | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 45dB @ 100MHz | - | 10 A | C = 1500pF | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 100V | - | - | Chassis Mount | 0.187" Dia x 0.359" L (4.75mm x 9.12mm) | - |
EMI/RFI Filters (LC, RC Networks) Electronic Components
Explore EMI/RFI Filters (LC, RC Networks) electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
