EMI/RFI Filters (LC, RC Networks)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Filter Order | Technology | Number of Channels | Center / Cutoff Frequency | Attenuation Value | Resistance - Channel (Ohms) | Current | Values | ESD Protection | Operating Temperature | Applications | Voltage - Rated | Grade | Qualification | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M15733/61-0001FILTER LC(PI) 1500PF CHASSIS |
0 |
|
- |
- | Axial, Bushing | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 70dB @ 1GHz ~ 10GHz | - | 10 A | C = 1500pF | No | -55°C ~ 125°C | - | 200V | - | - | Chassis Mount | 0.250" Dia x 0.528" L (6.35mm x 13.41mm) | - |
|
M15733/61-0002FILTER LC(PI) 1500PF CHASSIS |
0 |
|
- |
- | Axial, Bushing, 1 Turret Lead | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 70dB @ 1GHz ~ 10GHz | - | 10 A | C = 1500pF | No | -55°C ~ 125°C | - | 200V | - | - | Chassis Mount | 0.250" Dia x 0.470" L (6.35mm x 11.95mm) | - |
|
M15733/61-0003FILTER LC(PI) 2000PF CHASSIS |
0 |
|
- |
- | Axial, Bushing - 2 Notched Leads | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 55dB @ 100MHz | - | 25 A | C = 2000pF | No | -55°C ~ 125°C | - | 500V | - | - | Chassis Mount | 0.375" Dia x 0.687" L (9.53mm x 17.45mm) | - |
|
M15733/61-0004FILTER LC(PI) 2000PF CHASSIS |
0 |
|
- |
- | Axial, Bushing - 2 Notched Leads | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 55dB @ 100MHz | - | 25 A | C = 2000pF | No | -55°C ~ 125°C | - | 500V | - | - | Chassis Mount | 0.375" Dia x 0.687" L (9.53mm x 17.45mm) | - |
|
M15733/61-0005FILTER LC(PI) 1500PF CHASSIS |
0 |
|
- |
- | Axial, Bushing, 1 Turret Lead | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 70dB @ 1GHz ~ 10GHz | - | 10 A | C = 1500pF | No | -55°C ~ 125°C | - | 200V | - | - | Chassis Mount | 0.250" Dia x 0.468" L (6.35mm x 11.89mm) | - |
|
M15733/61-0006FILTER LC(PI) 1500PF CHASSIS |
0 |
|
- |
- | Axial, Bushing, 1 Turret Lead | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 70dB @ 1GHz ~ 10GHz | - | 10 A | C = 1500pF | No | -55°C ~ 125°C | - | 200V | - | - | Chassis Mount | 0.235" Dia x 0.468" L (5.97mm x 11.89mm) | - |
|
M15733/61-0007FILTER LC(PI) 5000PF CHASSIS |
0 |
|
- |
- | Axial, Bushing, 1 Turret Lead | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 65dB @ 100MHz | - | 10 A | C = 5000pF | No | -55°C ~ 125°C | - | 100V | - | - | Chassis Mount | 0.250" Dia x 0.468" L (6.35mm x 11.89mm) | - |
|
M15733/61-0010FILTER LC(PI) 5000PF CHASSIS |
0 |
|
- |
- | Axial, Bushing, 1 Turret Lead | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 65dB @ 100MHz | - | 10 A | C = 5000pF | No | -55°C ~ 125°C | - | 100V | - | - | Chassis Mount | 0.250" Dia x 0.468" L (6.35mm x 11.89mm) | - |
|
M15733/61-0011FILTER LC(PI) 5000PF CHASSIS |
0 |
|
- |
- | Axial, Bushing, 1 Turret Lead | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 65dB @ 100MHz | - | 10 A | C = 5000pF | No | -55°C ~ 125°C | - | 100V | - | - | Chassis Mount | 0.235" Dia x 0.437" L (5.97mm x 11.11mm) | - |
|

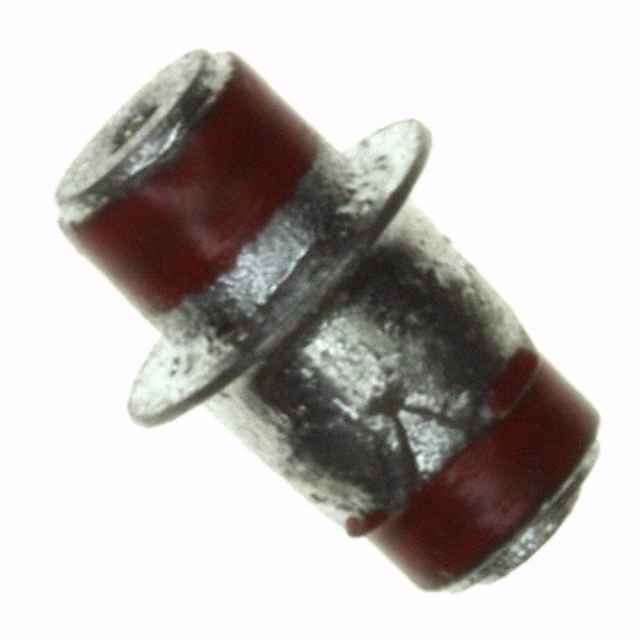

M15733/66-0001FILTER LC(PI) 1750PF CUSTOM |
0 |
|
- |
- | Axial, Eyelet - No Lead | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 35dB @ 100MHz | - | 10 A | C = 1750pF | No | -55°C ~ 125°C | - | 125V | - | - | Custom | 0.190" Dia x 0.250" L (4.83mm x 6.35mm) | - |
|

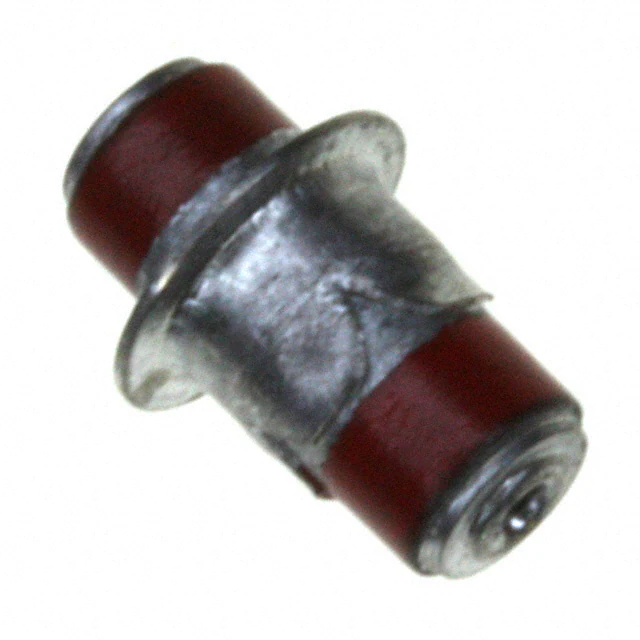

4101-000LFFILTER LC(PI) 1750PF CUSTOM |
0 |
|
- |
4100 | Axial, Eyelet - No Lead | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 35dB @ 100MHz | - | 10 A | C = 1750pF | No | -55°C ~ 125°C | - | 125V | - | - | Custom | 0.195" Dia x 0.267" L (4.95mm x 6.78mm) | - |
|
4101-002LFFILTER LC(PI) 1750PF CUSTOM |
0 |
|
- |
4100 | Axial, Eyelet - 1 Turret Lead | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 50dB @ 100MHz | - | 10 A | C = 1750pF | No | -55°C ~ 125°C | - | 125V | - | - | Custom | 0.195" Dia x 0.260" L (4.95mm x 6.60mm) | - |
|
4101-003LFFILTER LC(PI) 1750PF CUSTOM |
0 |
|
- |
4100 | Axial, Eyelet | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 50dB @ 100MHz | - | 10 A | C = 1750pF | No | -55°C ~ 125°C | - | 125V | - | - | Custom | 0.195" Dia x 0.260" L (4.95mm x 6.60mm) | - |
|
4102-000LFFILTER LC(PI) 3000PF CUSTOM |
0 |
|
- |
4100 | Axial, Eyelet - 1 Turret Lead | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 55dB @ 100MHz | - | 10 A | C = 3000pF | No | -55°C ~ 125°C | - | 200V | - | - | Custom | 0.180" Dia x 0.410" L (4.57mm x 10.41mm) | - |
|
4106-000LFFILTER LC(PI) 3000PF CUSTOM |
0 |
|
- |
4100 | Axial, Eyelet - Hook Lead | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 50dB @ 100MHz | - | 25 A | C = 3000pF | No | -55°C ~ 125°C | - | 500V | - | - | Custom | 0.312" Dia x 0.625" L (7.92mm x 15.88mm) | - |
|

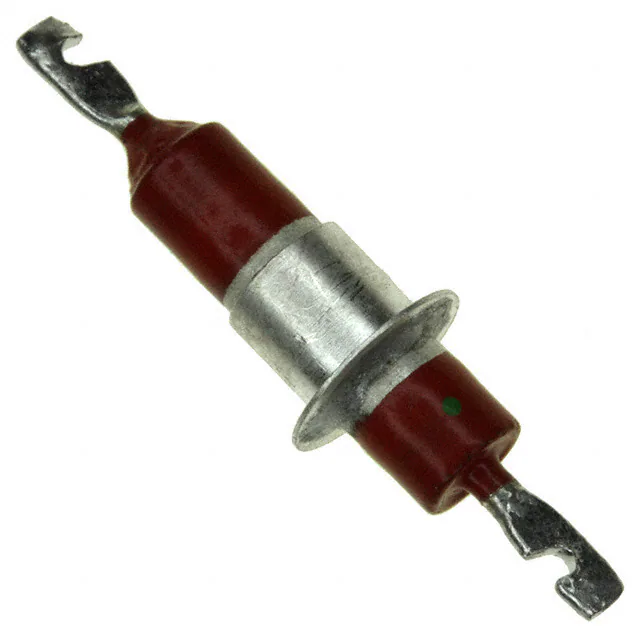

4106-001LFFILTER LC(PI) 4500PF CUSTOM |
0 |
|
- |
4100 | Axial, Eyelet - Hook Lead | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 50dB @ 100MHz | - | 25 A | C = 4500pF | No | -55°C ~ 125°C | - | 500V | - | - | Custom | 0.312" Dia x 0.625" L (7.92mm x 15.88mm) | - |
|
4202-000LFFILTER LC(PI) 1500PF CHASSIS |
0 |
|
- |
4200 | Axial, Bushing | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 45dB @ 100MHz | - | 10 A | C = 1500pF | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 200V | - | - | Chassis Mount | 0.250" Dia x 0.588" L (6.35mm x 14.93mm) | - |
|
4204-001LFFILTER LC(PI) 1500PF CHASSIS |
0 |
|
- |
4200 | Axial, Bushing, 1 Turret Lead | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 45dB @ 100MHz | - | 10 A | C = 1500pF | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 200V | - | - | Chassis Mount | 0.250" Dia x 0.468" L (6.35mm x 11.89mm) | - |
|
4204-051LFFILTER LC(PI) 5000PF CHASSIS |
0 |
|
- |
4200 | Axial, Bushing, 1 Turret Lead | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 65dB @ 100MHz | - | 10 A | C = 5000pF | No | -55°C ~ 125°C | Data Lines for Mobile Devices | 100V | - | - | Chassis Mount | 0.250" Dia x 0.468" L (6.35mm x 11.89mm) | - |
|
4251-001LFFILTER EMI 15000 PF PI TYPE |
0 |
|
- |
- | Axial, Bushing | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | - | - | 10 A | C = 0.015µF | No | -55°C ~ 125°C | Telecommunications | - | - | - | Chassis Mount | 0.187" Dia x 0.359" L (4.75mm x 9.12mm) | - |
