EMI/RFI Filters (LC, RC Networks)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Filter Order | Technology | Number of Channels | Center / Cutoff Frequency | Attenuation Value | Resistance - Channel (Ohms) | Current | Values | ESD Protection | Operating Temperature | Applications | Voltage - Rated | Grade | Qualification | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
504M06QE47FILM/M |
0 |
|
- |
Q | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 47 | - | R = 47Ohm, C = 0.5µF | No | -55°C ~ 85°C | General Purpose | 600V | - | - | Through Hole | 1.449" L x 0.591" W (36.80mm x 15.00mm) | 1.169" (29.70mm) |
|
4100-000LFFILTER LC(PI) 1500PF CUSTOM |
0 |
|
- |
4100 | Axial, Eyelet | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 45dB @ 100MHz | - | 10 A | C = 1500pF | No | -55°C ~ 125°C | - | 125V | - | - | Custom | 0.138" Dia x 0.370" L (3.51mm x 9.40mm) | - |
|
104M06QC47FILTER RC 47 OHM/0.1UF TH |
0 |
|
- |
Quencharc® | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 47 | - | R = 47Ohms, C = 0.1µF | No | -55°C ~ 85°C | General Purpose | 200V | - | - | Through Hole | 1.079" L x 0.390" W (27.40mm x 9.90mm) | 0.657" (16.70mm) |
|
|
504M06QE150FILTER RC 150 OHM/0.5UF TH |
0 |
|
- |
Quencharc® | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 150 | - | R = 150Ohms, C = 0.5µF | No | -55°C ~ 85°C | General Purpose | 600V | - | - | Through Hole | 1.449" L x 0.591" W (36.80mm x 15.00mm) | 0.921" (23.40mm) |
|
|
104M06QC22FILTER RC 22 OHM/0.1UF TH |
0 |
|
- |
Quencharc® | Radial | Bulk | Active | Low Pass | 1st | - | 1 | - | - | 22 | - | R = 22Ohms, C = 0.1µF | No | -55°C ~ 85°C | General Purpose | 600V | - | - | Through Hole | 1.079" L x 0.390" W (27.40mm x 9.90mm) | 0.657" (16.70mm) |
|
104M66QV39FILTER RC 39 OHM 0.1UF TH |
0 |
|
- |
Quencharc® | Radial | Bulk | Obsolete | Low Pass | 1st | RC | 1 | - | - | 39 | - | R = 39Ohms, C = 0.1µF | No | -55°C ~ 85°C | General Purpose | 1600V (1.6kV) | - | - | Through Hole | 2.177" L x 0.539" W (55.30mm x 13.70mm) | 1.000" (25.40mm) |
|
M15733/62-0001FILTER LC(PI) 1500PF CUSTOM |
0 |
|
- |
- | Axial, Eyelet - 1 Turret Lead | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 70dB @ 1GHz ~ 10GHz | - | 10 A | C = 1500pF | No | -55°C ~ 125°C | - | 200V | - | - | Custom | 0.190" Dia x 0.406" L (4.83mm x 10.31mm) | - |
|
504M02QA220FILTER RC 220 OHM/0.50UF TH |
0 |
|
- |
Quencharc® | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 220 | - | R = 220Ohms, C = 0.5µF | No | -55°C ~ 85°C | General Purpose | 200V | - | - | Through Hole | 1.079" L x 0.370" W (27.40mm x 9.40mm) | 0.642" (16.30mm) |
|
104MACQRL150FILTER RC 150 OHM/0.1UF TH |
0 |
|
- |
Quencharc® | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 150 | - | R = 150Ohms, C = 0.1µF | No | -55°C ~ 85°C | General Purpose | 125VAC | - | - | Through Hole | 1.079" L x 0.440" W (27.40mm x 11.18mm) | 0.657" (16.70mm) |
|
FN7610-16-M4FILTER LC(PI) BOLT MOUNT |
0 |
|
- |
FN 761X | Axial - Threaded Terminals | Tray | Obsolete | Low Pass | 3rd | LC (Pi) | 1 | - | - | - | 16 A | - | No | -40°C ~ 100°C | Data Lines for Mobile Devices | 1000V (1kV) | - | - | Bolt Mount | 0.787" Dia x 2.874" L (20.00mm x 73.00mm) | - |
|
M15733/28-0001FILTER LC(PI) 2500PF CHASSIS |
0 |
|
- |
- | Axial, Bushing, 1 Turret Lead | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 45dB @ 100MHz | - | 10 A | C = 2500pF | No | -55°C ~ 125°C | - | 100V | - | - | Chassis Mount | 0.187" Dia x 0.359" L (4.75mm x 9.12mm) | - |
|
M15733/28-0002FILTER LC(PI) 1500PF CHASSIS |
0 |
|
- |
- | Axial, Bushing - 2 Hooked Leads | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 60dB @ 1GHz ~ 10GHz | - | 10 A | C = 1500pF | No | -55°C ~ 125°C | - | 100V | - | - | Chassis Mount | 0.187" Dia x 0.359" L (4.75mm x 9.12mm) | - |
|
M15733/33-0001FILTER LC(PI) 1750PF CUSTOM |
0 |
|
- |
- | Axial, Eyelet - 1 Turret Lead | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 50dB @ 100MHz | - | 10 A | C = 1750pF | No | -55°C ~ 125°C | - | 125V | - | - | Custom | 0.190" Dia x 0.400" L (4.83mm x 10.16mm) | - |
|
M15733/33-0002FILTER LC(PI) 1750PF CUSTOM |
0 |
|
- |
- | Axial, Eyelet | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 50dB @ 100MHz | - | 10 A | C = 1750pF | No | -55°C ~ 125°C | - | 125V | - | - | Custom | 0.190" Dia x 0.400" L (4.83mm x 10.16mm) | - |
|

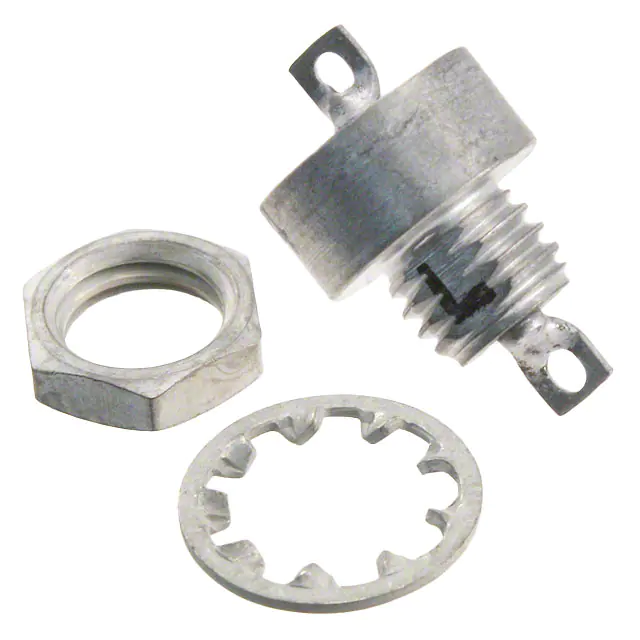

M15733/38-0004FILTER LC 1.4UF CHASSIS |
0 |
|
- |
- | Axial, Bushing - 2 Solder Eyelets | Tray | Active | Low Pass | 2nd | LC | 1 | - | 70dB @ 1GHz | 0.01 | 10 A | C = 1.4µF | No | -55°C ~ 125°C | - | 50V | - | - | Chassis Mount | 0.385" Dia x 0.357" L (9.78mm x 9.07mm) | - |
|
M15733/38-0005FILTER LC 1.4UF CHASSIS |
0 |
|
- |
- | Axial, Bushing - 2 Solder Eyelets | Tray | Active | Low Pass | 2nd | LC | 1 | - | 70dB @ 1GHz | 0.01 | 10 A | C = 1.4µF | No | -55°C ~ 125°C | - | 50V | - | - | Chassis Mount | 0.385" Dia x 0.357" L (9.78mm x 9.07mm) | - |
|
M15733/43-0002FILTER LC(PI) 1500PF CHASSIS |
0 |
|
- |
- | Axial, Bushing | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 50dB @ 200MHz ~ 10GHz | - | 10 A | C = 1500pF | No | -55°C ~ 125°C | - | 100V | - | - | Chassis Mount | 0.187" Dia x 0.359" L (4.75mm x 9.12mm) | - |
|
M15733/44-0002FILTER LC(PI) 1500PF CHASSIS |
0 |
|
- |
- | Axial, Bushing | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 20dB @ 100MHz | - | 15 A | C = 1500pF | No | -55°C ~ 125°C | - | 125V | - | - | Chassis Mount | 0.188" Dia x 0.200" L (4.78mm x 5.08mm) | - |
|
M15733/44-0003FILTER LC(PI) 65PF CHASSIS |
0 |
|
- |
- | Axial, Bushing | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 16dB @ 1GHz | - | 15 A | C = 65pF | No | -55°C ~ 125°C | - | 125V | - | - | Chassis Mount | 0.188" Dia x 0.200" L (4.78mm x 5.08mm) | - |
|
M15733/51-0001FILTER LC(PI) 5500PF CUSTOM |
0 |
|
- |
- | Axial, Eyelet - 1 Turret Lead | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 55dB @ 100MHz | - | 10 A | C = 5500pF | No | -55°C ~ 125°C | - | 200V | - | - | Custom | 0.195" Dia x 0.406" L (4.95mm x 10.31mm) | - |
