EMI/RFI Filters (LC, RC Networks)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Filter Order | Technology | Number of Channels | Center / Cutoff Frequency | Attenuation Value | Resistance - Channel (Ohms) | Current | Values | ESD Protection | Operating Temperature | Applications | Voltage - Rated | Grade | Qualification | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

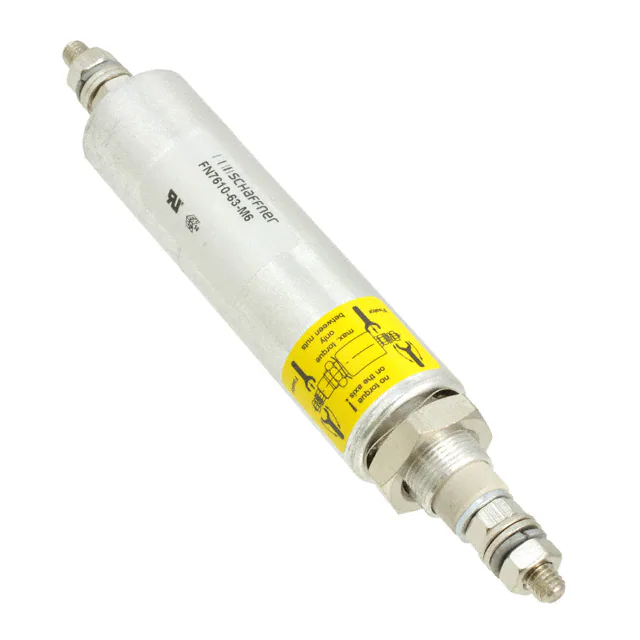

FN7610-63-M6FILTER LC(PI) HOLDER |
0 |
|
- |
FN 761X | Axial - Threaded Terminals | Tray | Obsolete | Low Pass | 3rd | LC (Pi) | 1 | - | - | - | 63 A | - | No | -40°C ~ 100°C | Data Lines for Mobile Devices | 1000V (1kV) | - | - | Bolt Mount | 0.984" Dia x 4.252" L (25.00mm x 108.00mm) | - |
|
QAS104K162D0390.1UF, 1600, 40.6X16.3X26.4, 39 |
0 |
|
- |
QAS | Radial | Bag | Active | RC Snubber Network | 1st | RC | - | - | - | - | - | R = 39Ohms, C = 0.1µF | - | -55°C ~ 85°C | EMI, RFI Suppression; High Pulse, DV/DT; Snubber | 1600V (1.6kV) | - | - | Through Hole | 2.180" L x 0.540" W (55.40mm x 13.70mm) | 1.000" (25.40mm) |
|
|
4253-501TUBULAR FILTER |
0 |
|
- |
4253 | Axial, Bushing - 1 Turret Lead, 1 Hooked Lead | Bulk | Active | - | 3rd | LC (Pi) | 1 | - | 15dB @ 5MHz, 60dB @ 20MHz, 60dB @ 50MHz, 65dB @ 1GHz, 65dB @ 10GHz | - | 10 A | C = 0.023µF | No | - | - | 100V | - | - | Chassis Mount | 0.235" Dia x 0.498" L (5.97mm x 12.65mm) | - |
|
FN7660-75-M6FILTER LC(PI) |
0 |
|
- |
FN 766X | - | Tray | Obsolete | Low Pass | 3rd | LC (Pi) | 1 | - | - | - | 75 A | - | No | -40°C ~ 100°C | Data Lines for Mobile Devices | 130V | - | - | - | - | - |
|
|
HPR1004704Z50HIGH-CURRENT FEEDTHROUGH FILTER, |
0 |
|
- |
HPR100 | Axial - Threaded Terminals | Active | - | - | - | - | - | - | - | 100 A | C = 0.47µF | - | -55°C ~ 125°C | - | 500V | - | - | Bolt Mount | 1.000" Dia x 2.560" L (25.40mm x 65.02mm) | - | |
|
|
HPR2504704Z50HIGH-CURRENT FEEDTHROUGH FILTER, |
0 |
|
- |
HPR250 | Axial - Threaded Terminals | Active | - | - | - | - | - | - | - | 250 A | C = 0.47µF | - | -55°C ~ 125°C | - | 500V | - | - | Bolt Mount | 1.250" Dia x 4.000" L (31.75mm x 101.60mm) | - | |
|
|
HPR1404704Z50HIGH-CURRENT FEEDTHROUGH FILTER, |
0 |
|
- |
HPR140 | Axial - Threaded Terminals | Active | - | - | - | - | - | - | - | 140 A | C = 0.47µF | - | -55°C ~ 125°C | - | 500V | - | - | Bolt Mount | 0.996" Dia x 2.626" L (25.30mm x 66.70mm) | - | |
|
|
HPR1406803Z1KHIGH-CURRENT FEEDTHROUGH FILTER, |
0 |
|
- |
HPR140 | Axial - Threaded Terminals | Active | - | - | - | - | - | - | - | 140 A | C = 0.068µF | - | -55°C ~ 125°C | - | 1000V (1kV) | - | - | Bolt Mount | 0.996" Dia x 2.626" L (25.30mm x 66.70mm) | - | |
|
FN7611-63-M6SFILTER LC(PI) 186NH/0.015UH BOLT |
0 |
|
- |
FN 761X | Axial - Threaded Terminals | Tray | Obsolete | Low Pass | 3rd | LC (Pi) | 1 | - | - | 0.00047 | 63 A | L = 186nH, C = 0.015µF | No | -40°C ~ 100°C | Data Lines for Mobile Devices | 1000V (1kV) | - | - | Bolt Mount | - | - |
|
|
FLLDU040A445I0FILTER FEED THROUGH |
0 |
|
- |
FLLDU | Axial - Threaded Terminals | Bulk | Last Time Buy | Low Pass | 3rd | LC | 1 | - | 18dB @ 10kHz, 32dB @ 100kHz, 68dB @ 1MHz, 100dB @ 10MHz, 100dB @ 100MHz, 100dB @ 1GHz | - | 40 A | C = 2.2µF | No | -40°C ~ 85°C | General Purpose | 440V | - | - | Bolt Mount | 2.165" Dia x 4.606" L (55.00mm x 117.00mm) | - |
|

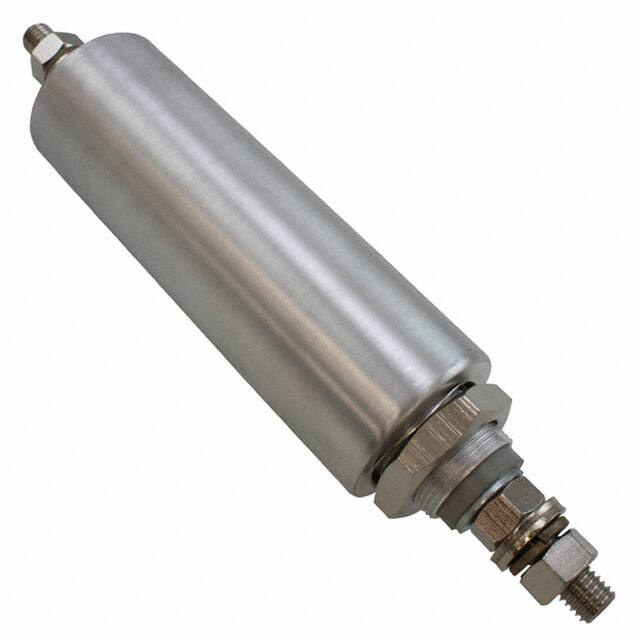

FN7612-250-M12FILTER LC(PI) BOLT MOUNT |
0 |
|
- |
FN 761X | Axial - Threaded Terminals | Tray | Obsolete | Low Pass | 3rd | LC (Pi) | 1 | - | - | - | 250 A | - | No | -40°C ~ 100°C | Data Lines for Mobile Devices | 1000V (1kV) | - | - | Bolt Mount | 2.126" Dia x 7.047" L (54.00mm x 179.00mm) | - |
|
|
FLLDU100A445I0FILTER FEED THROUGH |
0 |
|
- |
FLLDU | Axial - Threaded Terminals | Tray | Last Time Buy | Low Pass | 3rd | LC | 1 | - | 18dB @ 10kHz, 32dB @ 100kHz, 68dB @ 1MHz, 100dB @ 10MHz, 100dB @ 100MHz, 100dB @ 1GHz | - | 100 A | C = 2.2µF | No | -40°C ~ 85°C | General Purpose | 440V | - | - | Bolt Mount | 2.165" Dia x 4.606" L (55.00mm x 117.00mm) | - |
|

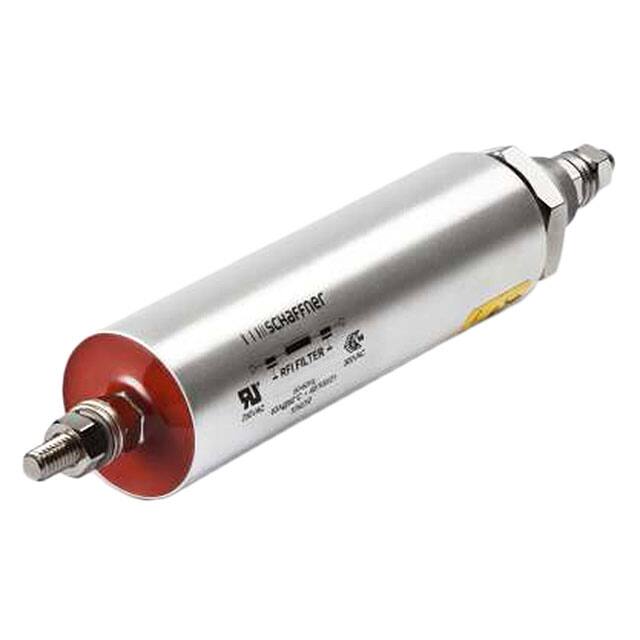

FN7660-63-M6FILTER LC(PI) 70NH/0.1UF BOLT |
0 |
|
- |
FN 766X | Axial - Threaded Terminals | Tray | Active | Low Pass | 3rd | LC (Pi) | 1 | - | - | 0.00042 | 63 A | L = 70nH, C = 0.1µF | No | -40°C ~ 100°C | Data Lines for Mobile Devices | 130V | - | - | Bolt Mount | 0.984" Dia x 4.252" L (25.00mm x 108.00mm) | - |
|
|
FLLDU200A445I0FILTER FEED THROUGH |
0 |
|
- |
FLLDU | Axial - Threaded Terminals | Bulk | Last Time Buy | Low Pass | 3rd | LC | 1 | - | 18dB @ 10kHz, 32dB @ 100kHz, 68dB @ 1MHz, 100dB @ 10MHz, 100dB @ 100MHz, 100dB @ 1GHz | - | 200 A | C = 2.2µF | No | -40°C ~ 85°C | General Purpose | 440V | - | - | Bolt Mount | 2.165" Dia x 4.606" L (55.00mm x 117.00mm) | - |
|
GK3LA-P11FILTER LC(PI) 0.3UF TH |
0 |
|
- |
GK | Axial - Threaded Terminals | Bulk | Discontinued at Digi-Key | Low Pass | 3rd | LC (Pi) | 1 | - | 80dB @ 100MHz | 0.15 | 5 A | C = 0.3µF | - | -55°C ~ 125°C | General Purpose | 200V | - | - | Through Hole | 0.375" Dia x 0.540" L (9.53mm x 13.72mm) | - |
|
|
FLLDU300A445I0FILTER FEED THROUGH |
0 |
|
- |
FLLDU | Axial - Threaded Terminals | Tray | Last Time Buy | Low Pass | 3rd | LC | 1 | - | 18dB @ 10kHz, 32dB @ 100kHz, 68dB @ 1MHz, 100dB @ 10MHz, 100dB @ 100MHz, 100dB @ 1GHz | - | 300 A | C = 2.2µF | No | -40°C ~ 85°C | General Purpose | 440V | - | - | Bolt Mount | 2.165" Dia x 4.606" L (55.00mm x 117.00mm) | - |
|
F2780Y001L-0211 Channel 1.5A CAT6a Data line a |
1 |
|
- |
F2779Y002L | - | Bulk | Active | - | - | - | 1 | - | 100dB @ 30MHz ~ 10GHz | - | 1.5 A | - | - | -25°C ~ 85°C | - | 100V | - | - | - | - | - |
|
|
F2782Y001L-0611 Channel 1.5A CAT6a Data line a |
1 |
|
- |
F2782Y | Module | Bulk | Active | Low Pass | 5th | LC (T-Type) | 1 | - | 100dB @ 30MHz ~ 10GHz | - | 1.5 A | - | No | -25°C ~ 85°C | Data Lines for Mobile Devices | 60V | - | - | Chassis Mount | 11.181" L x 3.937" W (284.00mm x 100.00mm) | 2.047" (52.00mm) |
|
F2779Y002L-0133 channel low voltage data line |
1 |
|
- |
* | - | Bulk | Active | - | - | - | 3 | - | 100dB @ 1MHz ~ 10GHz | - | 2.5 A | - | - | -25°C ~ 85°C | Datalines, Fire Alarm, LED Lighting | 250VAC | - | - | - | - | - |
|
|
EXC-EMT103DTFILTER LC(T) 0.01UF TH |
0 |
|
- |
EXCEMT | Radial - 3 Leads | Tape & Box (TB) | Obsolete | Low Pass | 3rd | LC (T-Type) | 1 | - | 25dB @ 25MHz ~ 120MHz | - | 5 A | C = 10000pF | No | -25°C ~ 85°C | Data Lines for Mobile Devices | 16V | - | - | Through Hole | 0.256" L x 0.098" W (6.50mm x 2.50mm) | 0.276" (7.00mm) |
