Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

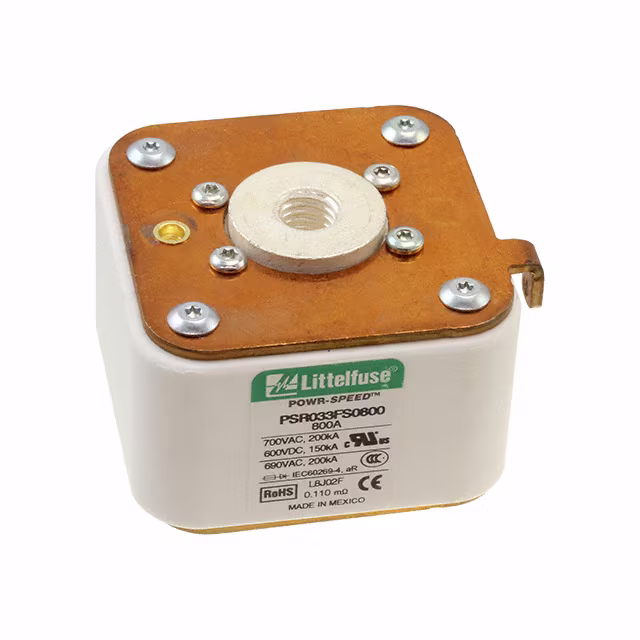

PSR033FS0800ZFUSE SQUARE 800A 700VAC/600VDC |
3 |
|
Datasheet |
POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 800A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 2.008" L x 2.894" W x 3.130" H (51.00mm x 73.50mm x 79.50mm) | - | - |
|
PSR071DL0630ZFUSES POWR-SPEED |
6 |
|
Datasheet |
POWR-SPEED® PSR | Rectangular, Blade | Bulk | Active | Bolt Mount | Square | 630A | 1.1 kVAC | 900 VDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.882" L x 2.028" W x 2.264" H (73.20mm x 51.50mm x 57.50mm) | - | - |
|
SPFJ350.XFUSE CARTRIDGE 350A 600VAC/1KVDC |
3 |
|
Datasheet |
POWR-GARD® SPFJ | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 350A | 600 VAC | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | J | CE, cULus, UL, VDE | - | 200kA AC, 10kA DC | 2.000" Dia x 7.126" L (50.80mm x 181.00mm) | - | - |
|

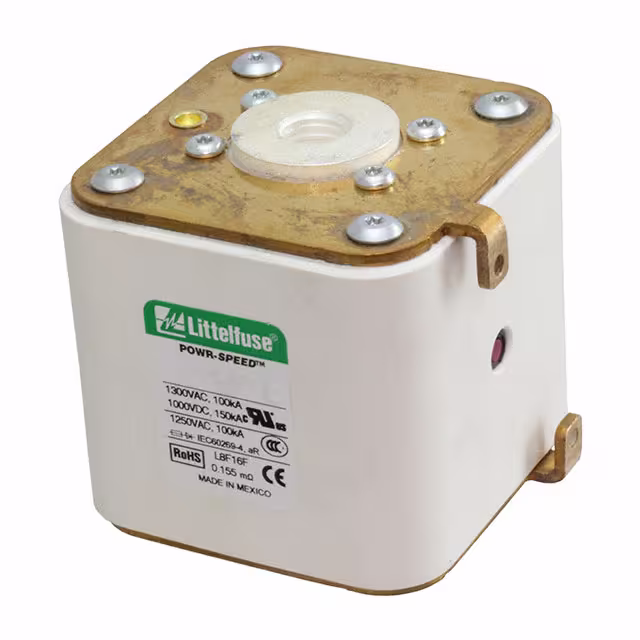

PSR073FS0500ZFUSE SQUARE 500A 1.3KVAC/1KVDC |
4 |
|
Datasheet |
POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 500A | 1.3 kVAC | 1 kVDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.953" L x 2.894" W x 3.130" H (75.00mm x 73.50mm x 79.50mm) | - | - |
|

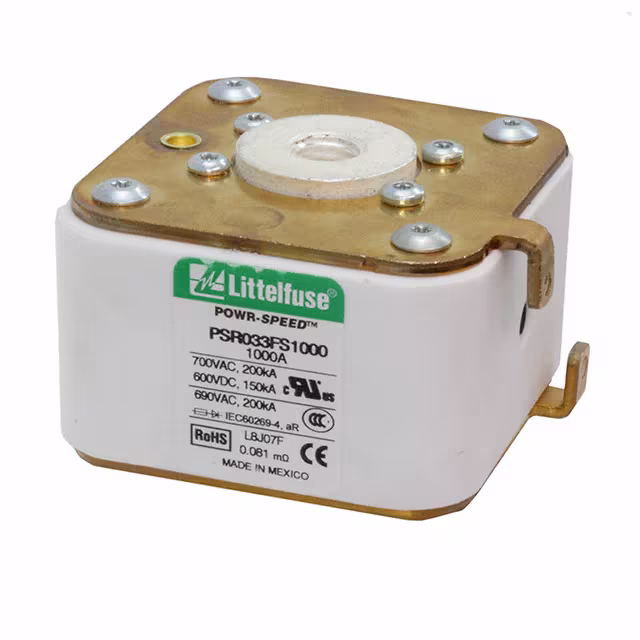

PSR033FS1000ZFUSE SQUARE 1KA 700VAC/600VDC |
6 |
|
Datasheet |
POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 1kA | 700 VAC | 600 VDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 2.008" L x 2.894" W x 3.130" H (51.00mm x 73.50mm x 79.50mm) | - | - |
|
PSR033FL1250ZFUSE SQUARE 1.25KA 700VAC/600VDC |
3 |
|
Datasheet |
POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 1.25kA | 700 VAC | 600 VDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 2.008" L x 2.894" W x 3.130" H (51.00mm x 73.50mm x 79.50mm) | - | - |
|
630LMMTFUSE CRTRDGE 630A 240VAC/150VDC |
5 |
|
Datasheet |
LMMT | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 630A | 240 VAC | 150 VDC | - | Electrical, Industrial | - | - | CE, UR | - | 200kA | 1.220" L x 1.496" W x 3.268" H (31.00mm x 38.00mm x 83.00mm) | - | - |
|
|
PSR073FS1100ZFUSES POWR-SPEED |
7 |
|
Datasheet |
POWR-SPEED® PSR | Rectangular, Blade | Bulk | Active | Requires Holder | Square | 1.1kA | 1.05 kVAC | 800 VDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.953" L x 2.894" W x 3.130" H (75.00mm x 73.50mm x 79.50mm) | - | - |
|
|
PSR073UL1100XFUSES POWR-SPEED |
3 |
|
Datasheet |
POWR-SPEED® PSR | Rectangular, Blade | Bulk | Active | Bolt Mount | Square | 1.1kA | 1.05 kVAC | 800 VDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.921" L x 2.894" W x 3.130" H (74.20mm x 73.50mm x 79.50mm) | - | - |
|
|
PSR072FS0900ZFUSES POWR-SPEED |
4 |
|
Datasheet |
POWR-SPEED® PSR | Rectangular, Blade | Bulk | Active | Requires Holder | Square | 900A | 1.1 kVAC | 900 VDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 100kA AC, 150kA DC | 2.953" L x 2.362" W x 2.598" H (75.00mm x 60.00mm x 66.00mm) | - | - |
|
JLLN700.XFUSE CRTRDGE 700A 300VAC/125VDC |
5 |
|
Datasheet |
POWR-GARD® JLLN | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 700A | 300 VAC | 125 VDC | Fast Blow | Electrical, Industrial | - | T | CE, UL | - | 200kA AC, 20kA DC | 2.063" Dia x 0.874" L (52.40mm x 22.20mm) | - | - |
|
LPJ-250SPFUSE CRTRDGE 250A 600VAC/300VDC |
2 |
|
Datasheet |
LOW-PEAK™ LPJ | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 250A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | - | J | CE, CSA, UL | - | 300kA AC, 100kA DC | 2.000" Dia x 3.380" L (50.80mm x 85.85mm) | - | - |
|
|
PSR033UL2250XFUSES POWR-SPEED |
4 |
|
Datasheet |
POWR-SPEED® PSR | Rectangular, Blade | Bulk | Active | Bolt Mount | Square | 2.25kA | 550 VAC | 450 VDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.976" L x 2.894" W x 3.130" H (50.20mm x 73.50mm x 79.50mm) | - | - |
|
KLLU800.XFUSE CRTRDGE 800A 600VAC/300VDC |
2 |
|
Datasheet |
POWR-GARD® KLLU | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 800A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | - | L | CE, CSA, UL | - | 200kA AC, 20kA DC | 2.500" Dia x 3.752" L (63.50mm x 95.30mm) | - | - |
|
PSX3XLUB0700XFUSE SEMI 1500VDC 3XL SIZE 700A |
2 |
|
Datasheet |
POWR-SPEED® PSX | Rectangular, Blade | Box | Active | Bolt Mount | Square | 700A | - | 1.5 kVDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 200kA | 5.067" L x 2.894" W x 3.130" H (128.70mm x 73.50mm x 79.50mm) | - | - |
|
PSX3XLFL0800XFUSE SEMI 1500VDC 3XL SIZE 800A |
2 |
|
Datasheet |
POWR-SPEED® PSX | Rectangular | Box | Active | Bolt Mount | Square | 800A | - | 1.5 kVDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 200kA | 5.043" L x 2.894" W x 3.130" H (128.10mm x 73.50mm x 79.50mm) | - | - |
|
38511500000FUSE BRD MNT 1.5A 125VAC RADIAL |
518 |
|
Datasheet |
TE5® 385 | Radial, Box | Cut Tape (CT) | Active | Through Hole | Board Mount | 1.5A | 125 VAC | - | Slow Blow | Telecom | - | - | cURus | -40°C ~ 85°C | 50A | 0.335" L x 0.157" W x 0.315" H (8.50mm x 4.00mm x 8.00mm) | - | - |
|
048107.5HFUSE INDICATING 7.5A 125VAC/VDC |
70 |
|
Datasheet |
481 | Alarm Indicator | Bulk | Active | Requires Holder | Indicating Fuse | 7.5A | 125 VAC | 125 VDC | Fast Blow | Telecom | Indicating | - | CSA, UR | -55°C ~ 125°C | 300A | 0.665" L x 0.228" W x 0.772" H (16.90mm x 5.80mm x 19.60mm) | - | - |
|
0481010.HFUSE INDICATING 10A 125VAC/VDC |
55 |
|
Datasheet |
481 | Alarm Indicator | Bulk | Active | Requires Holder | Indicating Fuse | 10A | 125 VAC | 125 VDC | Fast Blow | Telecom | Indicating | - | CSA, UR | -55°C ~ 125°C | 300A | 0.665" L x 0.228" W x 0.772" H (16.90mm x 5.80mm x 19.60mm) | - | - |
|
0481015.HFUSE INDICATING 15A 125VAC/VDC |
57 |
|
Datasheet |
481 | Alarm Indicator | Bulk | Active | Requires Holder | Indicating Fuse | 15A | 125 VAC | 125 VDC | Fast Blow | Telecom | Indicating | - | CSA, UR | -55°C ~ 125°C | 300A | 0.665" L x 0.228" W x 0.772" H (16.90mm x 5.80mm x 19.60mm) | - | - |
