Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BAO50FUSE 50AMP 500V AC BS88 GG |
19 |
|
Datasheet |
- | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 50A | 500 VAC | 500 VDC | - | Electrical, Industrial | - | - | - | - | 80kA | 0.827" Dia x 2.126" L (21.00mm x 54.00mm) | - | - |
|
0JTD020.TXIDFUSE CARTRIDGE 20A 600VAC/300VDC |
2 |
|
Datasheet |
POWR-GARD®, POWR-PRO® JTD_ID | Cylindrical, Alarm Indicating | Bulk | Active | Requires Holder | Cartridge | 20A | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | Indicating | J | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.811" Dia x 2.252" L (20.60mm x 57.20mm) | - | - |
|
FRS-R-10FUSE CARTRIDGE 10A 600VAC/300VDC |
6,708 |
|
Datasheet |
Fusetron™ FRS-R | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 10A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | - | RK5 | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.810" Dia x 3.00" L (20.57mm x 76.20mm) | - | - |
|
KLM-6FUSE CARTRIDGE 6A 600VAC/VDC 5AG |
2 |
|
Datasheet |
KLM | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 6A | 600 VAC | 600 VDC | Fast Blow | Electrical, Industrial | - | - | CE, CSA, UL | - | 100kA AC, 50kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
|
LP-CC-6/10FUSE CRTRDGE 600MA 600VAC/300VDC |
9 |
|
Datasheet |
Low-Peak™ LP-CC | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 600mA | 600 VAC | 300 VDC | Slow Blow | Motor Protection | - | CC | CE, CSA, UR | - | 200kA AC, 20kA DC | 0.394" Dia x 1.496" L (10.00mm x 38.00mm) | - | - |
|
FNQ-12FUSE CARTRIDGE 12A 500VAC 5AG |
6 |
|
Datasheet |
FNQ | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 12A | 500 VAC | - | Slow Blow | Electrical, Industrial | - | - | CE, CSA, UL | - | 10kA | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
KTK-12FUSE CARTRIDGE 12A 600VAC 5AG |
7 |
|
Datasheet |
KTK | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 12A | 600 VAC | - | Fast Blow | Electrical, Industrial | - | - | CSA, UL | - | 100kA | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
|
FNQ-4FUSE CARTRIDGE 4A 500VAC 5AG |
8 |
|
Datasheet |
FNQ | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 4A | 500 VAC | - | Slow Blow | Electrical, Industrial | - | - | CE, CSA, UL | - | 10kA | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
0CNN125.VFUSE STRP 125A 125VAC/48VDC BOLT |
2 |
|
Datasheet |
POWR-GARD® CNN | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Fuse Strip | 125A | 125 VAC | 48 VDC | Fast Blow | Lift Trucks | Indicating | - | UR | - | 2.5kA | - | - | - |
|

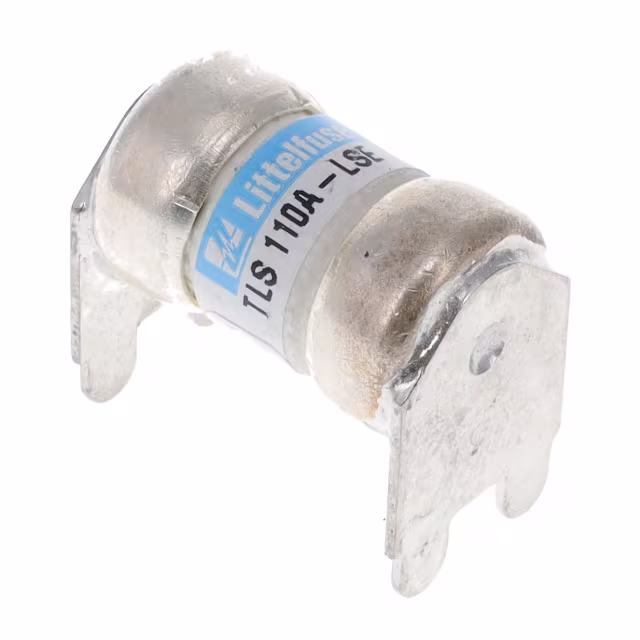

0TLS110.TXLSEFUS 170VDC F/A TELE-GARD 110A PC |
9 |
|
Datasheet |
POWR-GARD® TLS | Radial Bend Cylinder | Box | Active | Through Hole | Cartridge | 110A | - | 170 VDC | Fast Blow | Telecom | - | - | CE, cURus, TUV | - | 100kA | 0.563" Dia x 0.874" L (14.30mm x 22.20mm) | - | - |
|
|
FRS-R-40FUSE CARTRIDGE 40A 600VAC/250VDC |
9 |
|
Datasheet |
Fusetron™ FRS-R | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 40A | 600 VAC | 250 VDC | Slow Blow | Electrical, Industrial | - | RK5 | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.060" Dia x 5.50" L (26.92mm x 139.70mm) | - | - |
|
FNQ-R-3-1/2FUSE CARTRIDGE 3.5A 600VAC 5AG |
10 |
|
Datasheet |
Limitron™ FNQ-R | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 3.5A | 600 VAC | - | Slow Blow | Electrical, Industrial | - | CC | CE, CSA, UL | - | 200kA | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
|
FNQ-R-9FUSE CARTRIDGE 9A 600VAC 5AG |
7 |
|
Datasheet |
Limitron™ FNQ-R | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 9A | 600 VAC | - | Slow Blow | Electrical, Industrial | - | CC | CE, CSA, UL | - | 200kA | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
FWP-25A14FAFUSE CARTRIDGE 25A 700VAC/800VDC |
10 |
|
Datasheet |
FWP | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 25A | 700 VAC | 800 VDC | - | Electrical, Industrial | - | - | CE, CSA, UR | - | 200kA AC, 50kA DC | 0.563" Dia x 2.000" L (14.30mm x 50.80mm) | - | - |
|
63LETFUSE CARTRIDGE 63A 240VAC/150VDC |
4 |
|
Datasheet |
LET | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 63A | 240 VAC | 150 VDC | - | Electrical, Industrial | - | - | CE, UR | - | 200kA | 0.697" Dia x 1.032" L (17.70mm x 26.20mm) | - | - |
|
|
50LETFUSE CARTRIDGE 50A 240VAC/150VDC |
8 |
|
Datasheet |
LET | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 50A | 240 VAC | 150 VDC | - | Electrical, Industrial | - | - | CE, UR | - | 200kA | 0.697" Dia x 1.032" L (17.70mm x 26.20mm) | - | - |
|
170M1319FUSE SQUARE 160A 700VAC RECT |
10 |
|
Datasheet |
- | Rectangular, Blade | Bulk | Active | Bolt Mount | Square | 160A | 700 VAC | - | - | Electrical, Industrial | - | - | CE, CSA, UR | - | 200kA | 2.126" L x 0.827" W x 1.575" H (54.00mm x 21.00mm x 40.00mm) | - | - |
|
45ETFUSE CARTRIDGE 45A 690VAC/500VDC |
22 |
|
Datasheet |
ET | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 45A | 690 VAC | 500 VDC | - | Electrical, Industrial | - | - | CE, UR | - | 200kA | 0.673" Dia x 1.890" L (17.10mm x 48.00mm) | - | - |
|
|
100LETFUSE CRTRDGE 100A 240VAC/150VDC |
3 |
|
Datasheet |
LET | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 100A | 240 VAC | 150 VDC | - | Electrical, Industrial | - | - | CE, UR | - | 200kA | 0.697" Dia x 1.032" L (17.70mm x 26.20mm) | - | - |
|
FRS-R-70FUSE CARTRIDGE 70A 600VAC/300VDC |
5 |
|
Datasheet |
Fusetron™ FRS-R | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 70A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | - | RK5 | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.110" Dia x 7.880" L (28.19mm x 200.15mm) | - | - |
