Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0JLS050.TFUSE CARTRIDGE 50A 600VAC |
2 |
|
Datasheet |
POWR-GARD® JLS | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 50A | 600 VAC | - | Fast Blow | Electrical, Industrial | - | J | CE, CSA, QPL, UL | - | 200kA | 1.063" Dia x 2.374" L (27.00mm x 60.30mm) | - | - |
|
JLLS080.VXPFUSE CARTRIDGE 80A 600VAC/300VDC |
12 |
|
Datasheet |
POWR-GARD® JLLS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 80A | 600 VAC | 300 VDC | Fast Blow | Electrical, Industrial | - | T | CE, CSA, UL, UR | - | 200kA AC, 20kA DC | 0.827" Dia x 2.953" L (21.00mm x 75.00mm) | - | - |
|
L50S100.TFUSE CRTRDGE 100A 500VAC/450VDC |
5 |
|
Datasheet |
POWR-GARD® L50S | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 100A | 500 VAC | 450 VDC | Fast Blow | Semiconductors | - | - | CE, CSA, UR | - | 200kA AC, 20kA DC | 1.000" Dia x 2.126" L (25.40mm x 54.00mm) | - | - |
|
FNQ-R-4/10FUSE CARTRIDGE 400MA 600VAC 5AG |
18 |
|
Datasheet |
Limitron™ FNQ-R | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 400mA | 600 VAC | - | Slow Blow | Electrical, Industrial | - | CC | CE, CSA, UL | - | 200kA | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
TCF20FUSE RECT 20A 600VAC/300VDC BLAD |
15 |
|
Datasheet |
CUBEFuse™ TCF | Blade Type, Module | Bulk | Active | Requires Holder | Rectangular | 20A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | Indicating | - | CE, CSA, UL | -40°C ~ 80°C | 300kA AC, 100kA DC | 1.880" L x 0.750" W x 1.270" H (47.75mm x 19.05mm x 32.26mm) | - | - |
|
|
JLLS150.XFUSE CRTRDGE 150A 600VAC/300VDC |
20 |
|
Datasheet |
POWR-GARD® JLLS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 150A | 600 VAC | 300 VDC | Fast Blow | Electrical, Industrial | - | T | CE, CSA, UL | - | 200kA | 1.063" Dia x 1.657" L (27.00mm x 42.10mm) | - | - |
|

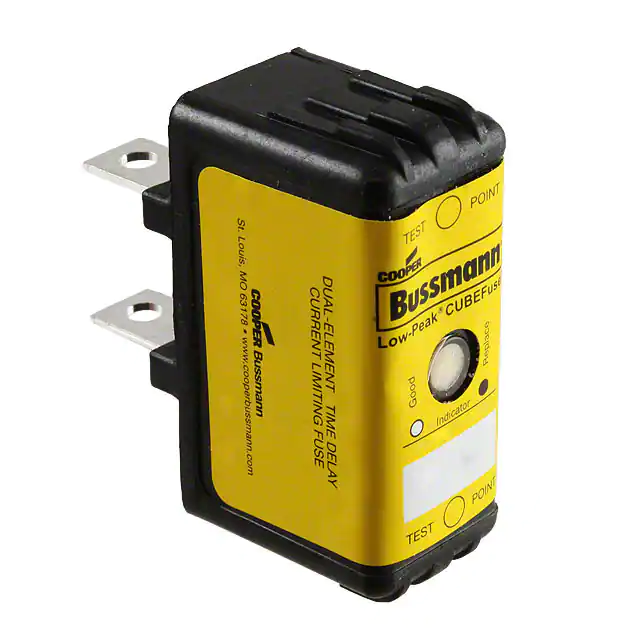

TCF15FUSE RECT 15A 600VAC/300VDC BLAD |
22 |
|
Datasheet |
CUBEFuse™ TCF | Blade Type, Module | Bulk | Active | Requires Holder | Rectangular | 15A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | Indicating | - | CE, CSA, UL | -40°C ~ 80°C | 300kA AC, 100kA DC | 1.880" L x 0.750" W x 1.270" H (47.75mm x 19.05mm x 32.26mm) | - | - |
|
L17T150.TFUSE CRTRDGE 150A 170VDC CYLINDR |
4 |
|
Datasheet |
POWR-GARD® L17T | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 150A | - | 170 VDC | Fast Blow | Telecom | - | - | CE, CSA, UR | - | 100kA | 1.000" Dia x 1.157" L (25.40mm x 29.40mm) | - | - |
|
80LETFUSE CARTRIDGE 80A 240VAC/150VDC |
15 |
|
Datasheet |
LET | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 80A | 240 VAC | 150 VDC | - | Electrical, Industrial | - | - | CE, UR | - | 200kA | 0.697" Dia x 1.032" L (17.70mm x 26.20mm) | - | - |
|
0CNN500.VFUSE STRP 500A 125VAC/48VDC BOLT |
18 |
|
Datasheet |
POWR-GARD® CNN | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Fuse Strip | 500A | 125 VAC | 48 VDC | Fast Blow | Lift Trucks | Indicating | - | UR | - | 2.5kA | - | - | - |
|
|
0CNN600.VFUSE STRP 600A 125VAC/48VDC BOLT |
2 |
|
Datasheet |
POWR-GARD® CNN | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Fuse Strip | 600A | 125 VAC | 48 VDC | Fast Blow | Lift Trucks | Indicating | - | UR | - | 2.5kA | - | - | - |
|
|
0TLS125.TXLSEFUS 170 VCD F/A TELE-GARD 125A P |
5 |
|
Datasheet |
POWR-GARD® TLS | Radial Bend Cylinder | Box | Active | Through Hole | Cartridge | 125A | - | 170 VDC | Fast Blow | Telecom | - | - | CE, cURus, TUV | - | 100kA | 0.563" Dia x 0.874" L (14.30mm x 22.20mm) | - | - |
|
ANL-350FUSE STRIP 350A 80VDC RECT |
5 |
|
Datasheet |
ANL | Rectangular, Blade | Bulk | Active | Bolt Mount | Fuse Strip | 350A | - | 80 VDC | Fast Blow | Lift Trucks | Indicating | - | UR | - | 2.7kA | 0.874" Dia x 3.189" L (22.20mm x 81.00mm) | - | - |
|
|
0CNN700.VFUSE STRP 700A 125VAC/48VDC BOLT |
6 |
|
Datasheet |
POWR-GARD® CNN | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Fuse Strip | 700A | 125 VAC | 48 VDC | Fast Blow | Lift Trucks | Indicating | - | UR | - | 2.5kA | - | - | - |
|
FLSR070.VXIDFUSE CARTRIDGE 70A 600VAC/300VDC |
4 |
|
Datasheet |
POWR-GARD® FLSR_ID | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 70A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | Indicating | RK5 | CE, CSA, QPL, UL | - | 200kA AC, 20kA DC | 1.311" Dia x 7.874" L (33.30mm x 200.00mm) | - | - |
|
|
ANL-250FUSE STRIP 250A 80VDC RECT |
5 |
|
Datasheet |
ANL | Rectangular, Blade | Bulk | Active | Bolt Mount | Fuse Strip | 250A | - | 80 VDC | Fast Blow | Lift Trucks | Indicating | - | UR | - | 2.7kA | 0.874" Dia x 3.189" L (22.20mm x 81.00mm) | - | - |
|
35ETFUSE CARTRIDGE 35A 690VAC/500VDC |
10 |
|
Datasheet |
ET | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 35A | 690 VAC | 500 VDC | - | Electrical, Industrial | - | - | CE, UR | - | 200kA | 0.673" Dia x 1.890" L (17.10mm x 48.00mm) | - | - |
|
|
ANL-500FUSE STRIP 500A 80VDC RECT |
3 |
|
Datasheet |
ANL | Rectangular, Blade | Bulk | Active | Bolt Mount | Fuse Strip | 500A | - | 80 VDC | Fast Blow | Lift Trucks | Indicating | - | UR | - | 2.7kA | 0.874" Dia x 3.189" L (22.20mm x 81.00mm) | - | - |
|
|
ANL-300FUSE STRIP 300A 80VDC RECT |
4 |
|
Datasheet |
ANL | Rectangular, Blade | Bulk | Active | Bolt Mount | Fuse Strip | 300A | - | 80 VDC | Fast Blow | Lift Trucks | Indicating | - | UR | - | 2.7kA | 0.874" Dia x 3.189" L (22.20mm x 81.00mm) | - | - |
|
|
ANL-40FUSE STRIP 40A 80VDC RECT |
3 |
|
Datasheet |
ANL | Rectangular, Blade | Bulk | Active | Bolt Mount | Fuse Strip | 40A | - | 80 VDC | Fast Blow | Lift Trucks | Indicating | - | UR | - | 2.7kA | 0.874" Dia x 3.189" L (22.20mm x 81.00mm) | - | - |
