Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L50QS350.VFUSE CRTRDGE 350A 500VAC/VDC |
2 |
|
Datasheet |
POWR-SPEED™ L50QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 350A | 500 VAC | 500 VDC | Fast Blow | Semiconductors | - | - | CE, cURus, UR | -55°C ~ 125°C | 200kA AC, 50kA DC | 1.500" Dia x 4.343" L (38.10mm x 110.31mm) | - | - |
|
170M1565DFUSE SQUARE 63A 690VAC RECT |
2 |
|
Datasheet |
- | Rectangular, Blade | Bulk | Active | Requires Holder | Square | 63A | 690 VAC | - | - | Electrical, Industrial | Indicating | - | CE, CSA, UR | - | 200kA | 2.087" L x 0.807" W x 2.047" H (53.00mm x 20.50mm x 52.00mm) | - | - |
|
170M1372FUSE SQUARE 315A 700VAC RECT |
11 |
|
Datasheet |
- | Rectangular, Blade | Bulk | Active | Bolt Mount | Square | 315A | 700 VAC | - | - | Electrical, Industrial | Indicating | - | CE, UR | - | 200kA | 2.126" L x 0.827" W x 1.575" H (54.00mm x 21.00mm x 40.00mm) | - | - |
|
FLSR150.XXIDFUSE CRTRDGE 150A 600VAC/300VDC |
3 |
|
Datasheet |
POWR-GARD® FLSR_ID | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 150A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | Indicating | RK5 | CE, CSA, QPL, UL | - | 200kA AC, 20kA DC | 1.843" Dia x 9.626" L (46.80mm x 244.50mm) | - | - |
|
FLSR200.XXIDFUSE CRTRDGE 200A 600VAC/300VDC |
2 |
|
Datasheet |
POWR-GARD® FLSR_ID | Cylindrical, Blade Terminals | Box | Active | Requires Holder | Cartridge | 200A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | Indicating | RK5 | CE, CSA, QPL, UL | - | 200kA AC, 20kA DC | 1.843" Dia x 9.626" L (46.80mm x 244.50mm) | - | - |
|
FWH-150BFUSE CARTRIDGE 150A 500VAC/VDC |
2 |
|
Datasheet |
FWH | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Requires Holder | Cartridge | 150A | 500 VAC | 500 VDC | - | Electrical, Industrial | - | - | CE, UR | - | 200kA AC, 50kA DC | 1.156" Dia x 1.836" L (29.36mm x 46.63mm) | - | - |
|
LPJ-70SPFUSE CARTRIDGE 70A 600VAC/300VDC |
15 |
|
Datasheet |
LOW-PEAK™ LPJ | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 70A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | - | J | CE, CSA, UL | - | 300kA AC, 100kA DC | 1.130" Dia x 2.630" L (28.70mm x 66.80mm) | - | - |
|
|
LPJ-100SPFUSE CRTRDGE 100A 600VAC/300VDC |
2 |
|
Datasheet |
LOW-PEAK™ LPJ | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 100A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | - | J | CE, CSA, UL | - | 300kA AC, 100kA DC | 1.130" Dia x 2.630" L (28.70mm x 66.80mm) | - | - |
|
|
LPJ-90SPFUSE CARTRIDGE 90A 600VAC/300VDC |
3 |
|
Datasheet |
LOW-PEAK™ LPJ | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 90A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | - | J | CE, CSA, UL | - | 300kA AC, 100kA DC | 1.130" Dia x 2.630" L (28.70mm x 66.80mm) | - | - |
|

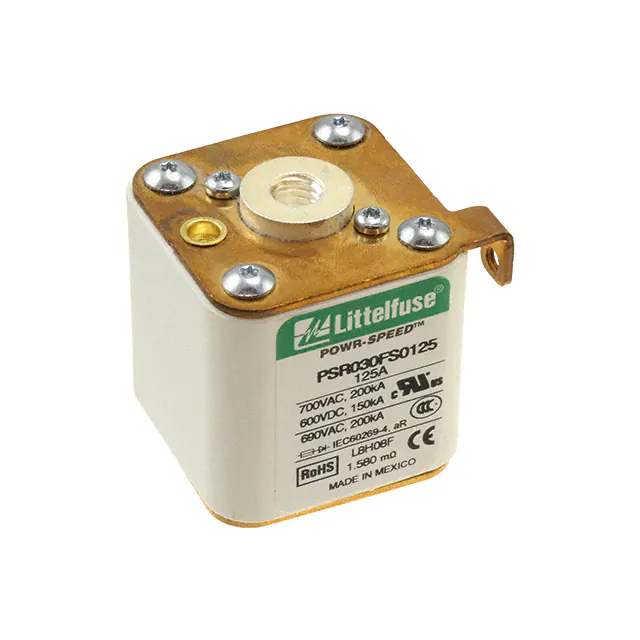

PSR030FS0125ZFUSE SQUARE 125A 700VAC/600VDC |
3 |
|
Datasheet |
POWR-SPEED® PSR | - | Bulk | Active | Bolt Mount | Square | 125A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | - | - | CCC, CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.969" L x 1.693" W x 1.929" H (50.00mm x 43.00mm x 49.00mm) | - | - |
|
FWH-350AFUSE CARTRIDGE 350A 500VAC/VDC |
8 |
|
Datasheet |
FWH | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 350A | 500 VAC | 500 VDC | - | Electrical, Industrial | - | - | CE, CSA, UR | - | 200kA AC, 50kA DC | 1.500" Dia x 4.340" L (38.10mm x 110.24mm) | - | - |
|
170M2667FUSE SQUARE 200A 700VAC RECT |
12 |
|
Datasheet |
- | Rectangular, Blade | Bulk | Active | Bolt Mount | Square | 200A | 700 VAC | - | - | Electrical, Industrial | Indicating | - | CE, CSA, UR | - | 200kA | 2.126" L x 1.181" W x 2.008" H (54.00mm x 30.00mm x 51.00mm) | - | - |
|
PSR030UL0630ZFUSES POWR-SPEED |
6 |
|
Datasheet |
POWR-SPEED® PSR | Rectangular, Blade | Bulk | Active | Bolt Mount | Square | 630A | 700 VAC | 550 VDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.878" L x 1.693" W x 1.929" H (47.70mm x 43.00mm x 49.00mm) | - | - |
|

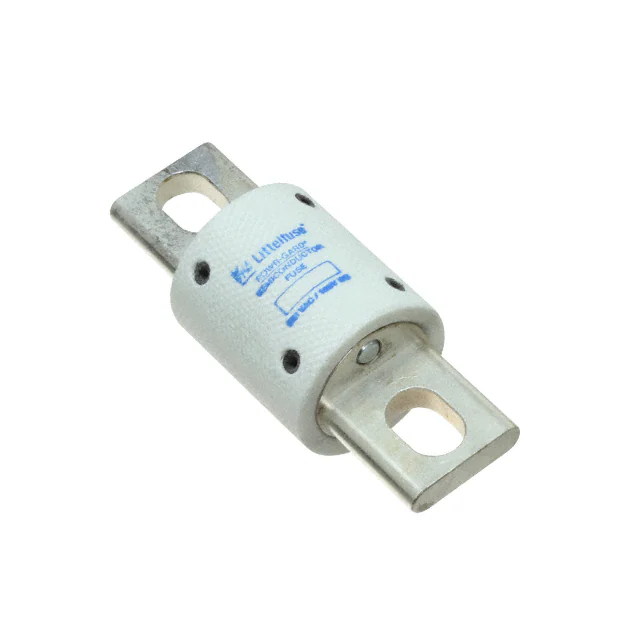

L15S1000VFUSE CARTRIDGE 1KA 150VAC/100VDC |
2 |
|
Datasheet |
POWR-GARD® L15S | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 1kA | 150 VAC | 100 VDC | Fast Blow | Semiconductors | - | - | CE, CSA, UR | - | 100kA AC, 20kA DC | 1.500" Dia x 1.252" L (38.10mm x 31.80mm) | - | - |
|
|
SPFJ100.XFUSE CRTRDGE 100A 1KVDC CYLINDR |
4 |
|
Datasheet |
POWR-GARD® SPFJ | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 100A | - | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | J | CE, UL | - | 20kA | 1.500" Dia x 3.012" L (38.10mm x 76.50mm) | - | - |
|
|
L50QS450.XFUSE CRTRDGE 450A 500VAC/VDC |
9 |
|
Datasheet |
POWR-SPEED™ L50QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 450A | 500 VAC | 500 VDC | Fast Blow | Semiconductors | - | - | CE, cURus, UR | -55°C ~ 125°C | 200kA AC, 50kA DC | 2.000" Dia x 4.468" L (50.80mm x 113.49mm) | - | - |
|
|
FWH-400AFUSE CARTRIDGE 400A 500VAC/VDC |
2 |
|
Datasheet |
FWH | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 400A | 500 VAC | 500 VDC | - | Electrical, Industrial | - | - | CE, CSA, UR | - | 200kA AC, 50kA DC | 1.500" Dia x 4.340" L (38.10mm x 110.24mm) | - | - |
|
FRS-R-150FUSE CRTRDGE 150A 600VAC/300VDC |
3 |
|
Datasheet |
Fusetron™ FRS-R | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 150A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | - | RK5 | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.610" Dia x 9.630" L (40.89mm x 244.60mm) | - | - |
|
L70QS300.XFUSE CARTRIDGE 300A 700VAC/VDC |
5 |
|
Datasheet |
POWR-SPEED™ L70QS | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 300A | 700 VAC | 700 VDC | Fast Blow | Semiconductors | - | - | CE, cURus | -55°C ~ 125°C | 200kA AC, 50kA DC | 2.000" Dia x 2.844" L (50.80mm x 72.24mm) | - | - |
|
PSR031UL0200ZFUSE SQUARE 200A 700VAC/600VDC |
4 |
|
Datasheet |
POWR-SPEED® PSR | - | Box | Active | Bolt Mount | Square | 200A | 700 VAC | 600 VDC | Fast Blow | Semiconductors | Indicating | - | CE, cURus, UL | -55°C ~ 125°C | 200kA AC, 150kA DC | 1.898" L x 2.028" W x 2.264" H (48.20mm x 51.50mm x 57.50mm) | - | - |
