Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C308F160MA-TRFUSE CERM 160MA 250VAC/VDC |
81 |
|
Datasheet |
C308F | Cartridge, Non-Standard | Tape & Reel (TR) | Active | Surface Mount | Cartridge, Ceramic | 160mA | 250 VAC | 250 VDC | Fast Blow | Hazardous Locations | Intrinsically Safe | - | cURus | -55°C ~ 125°C | 4kA | 0.120" Dia x 0.343" L (3.05mm x 8.70mm) | - | - |
|
157.5917.5631FUSE STRIP 63A 48VDC BOLT MOUNT |
35 |
|
Datasheet |
- | Metal Strip | Bulk | Active | Bolt Mount | Fuse Strip | 63A | - | 48 VDC | Fast Blow | Lift Trucks | Indicating | - | cURus | -40°C ~ 125°C | 378A | 3.228" L x 0.866" W x 0.030" H (82.00mm x 22.00mm x 0.75mm) | - | - |
|
BK/GLR-10FUSE CARTRIDGE 10A 300VAC |
82 |
|
Datasheet |
GLR | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 10A | 300 VAC | - | Fast Blow | Electrical, Industrial | - | - | CE, CSA, UL | - | 10kA | - | - | - |
|
0481015.HXESDFUSE INDICATING 15A 125VAC/VDC |
36 |
|
Datasheet |
481 | Alarm Indicator | Bulk | Active | Requires Holder | Indicating Fuse | 15A | 125 VAC | 125 VDC | Fast Blow | Telecom | Indicating | - | CSA, UR | -55°C ~ 125°C | 300A | 0.665" L x 0.228" W x 0.772" H (16.90mm x 5.80mm x 19.60mm) | - | - |
|
ITV9550L3030MRFUSE BATTERY PROTECTOR 30V 30A |
43 |
|
Datasheet |
POLYSWITCH®, ITV9550 | Nonstandard SMD | Tape & Reel (TR) | Active | Surface Mount | Board Mount | 30A | - | 62 VDC | Fast Blow | Battery Protection | 20.2 ~ 31.5V Triggerable | - | cURus, TUV | -10°C ~ 65°C | 80A | 0.366" L x 0.197" W x 0.079" H (9.30mm x 5.00mm x 2.00mm) | - | - |
|
|
157.5917.6161FUSE STRIP 160A 48VDC BOLT MOUNT |
42 |
|
Datasheet |
- | Metal Strip | Bulk | Active | Bolt Mount | Fuse Strip | 160A | - | 48 VDC | Fast Blow | Lift Trucks | Indicating | - | cURus | -40°C ~ 125°C | 960A | 3.228" L x 0.866" W x 0.030" H (82.00mm x 22.00mm x 0.75mm) | - | - |
|
157.5701.6141FUSE STRIP 135A 48VDC BOLT MOUNT |
88 |
|
Datasheet |
- | Metal Strip | Bulk | Active | Bolt Mount | Fuse Strip | 135A | - | 48 VDC | - | Lift Trucks | Indicating | - | cURus | -40°C ~ 125°C | 810A | 3.228" L x 0.866" W x 0.413" H (82.00mm x 22.00mm x 10.50mm) | - | - |
|

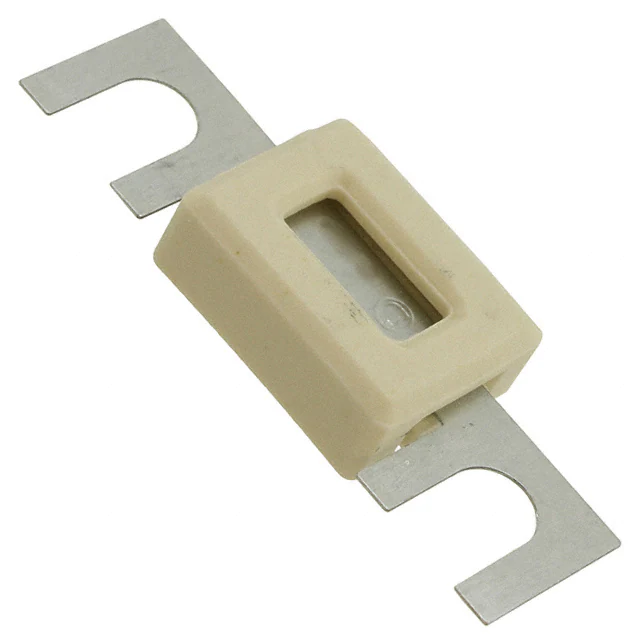

156.5611.5301FUSE STRIP 30A 36VDC BOLT MOUNT |
100 |
|
Datasheet |
- | Metal Strip | Bulk | Active | Bolt Mount | Fuse Strip | 30A | - | 36 VDC | - | Lift Trucks | Indicating | - | - | -40°C ~ 125°C | - | 1.614" L x 0.551" W x 0.256" H (41.00mm x 14.00mm x 6.50mm) | - | - |
|
0ALEB9100-PDFUSE 10A 500V STUD MNT |
44 |
|
Datasheet |
0ALE | Cylindrical, Blade Terminal (Bolt) | Tray | Active | Bolt Mount | Cartridge | 10A | - | 500 VDC | - | Electrical, Industrial | - | - | - | -40°C ~ 125°C | 20kA | 0.409" Dia x 1.496" L (10.40mm x 38.00mm) | - | - |
|
|
0ALEB9200-PDFUSE 20A 500V STUD MNT |
31 |
|
Datasheet |
0ALE | Cylindrical, Blade Terminal (Bolt) | Tray | Active | Bolt Mount | Cartridge | 20A | - | 500 VDC | - | Electrical, Industrial | - | - | - | -40°C ~ 125°C | 20kA | 0.409" Dia x 1.496" L (10.40mm x 38.00mm) | - | - |
|
|
0ALEB9300-PDFUSE 30A 500V STUD MNT |
16 |
|
Datasheet |
0ALE | Cylindrical, Blade Terminal (Bolt) | Tray | Active | Bolt Mount | Cartridge | 30A | - | 500 VDC | - | Electrical, Industrial | - | - | - | -40°C ~ 125°C | 20kA | 0.409" Dia x 1.496" L (10.40mm x 38.00mm) | - | - |
|
|
0ALEB9400-PDFUSE 40A 500V STUD MNT |
33 |
|
Datasheet |
0ALE | Cylindrical, Blade Terminal (Bolt) | Tray | Active | Bolt Mount | Cartridge | 40A | - | 500 VDC | - | Electrical, Industrial | - | - | - | -40°C ~ 125°C | 20kA | 0.409" Dia x 1.496" L (10.40mm x 38.00mm) | - | - |
|
0AKMB9500-BDFUSE 50A 500V STUD MNT |
10 |
|
Datasheet |
0AKM | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 50A | - | 500 VDC | - | Electrical, Industrial | - | - | - | -40°C ~ 125°C | 20kA | 0.591" Dia x 1.559" L (15.00mm x 39.60mm) | - | - |
|
|
0AKMB9800-BDFUSE 80A 500V STUD MNT |
20 |
|
Datasheet |
0AKM | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 80A | - | 500 VDC | - | Electrical, Industrial | - | - | - | -40°C ~ 125°C | 20kA | 0.591" Dia x 1.559" L (15.00mm x 39.60mm) | - | - |
|
0305.100HFUSE BRD MNT 100MA 277VAC/VDC |
73 |
|
Datasheet |
PICO® 305 | Radial, Can, Horizontal | Bulk | Active | Through Hole | Board Mount | 100mA | 277 VAC | 277 VDC | - | Hazardous Locations | Intrinsically Safe | - | ATEX, cURus, IECEx | -40°C ~ 50°C | 1.5kA | 0.354" Dia x 0.614" L (9.00mm x 15.60mm) | - | - |
|
0090.0008FUSE CARTRIDGE 8A 1KVDC 5AG |
64 |
|
Datasheet |
ASO 10.3x38 | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 8A | - | 1 kVDC | - | Solar (Photovoltaic) | - | - | UL, VDE | -50°C ~ 125°C | 20kA | 0.406" Dia x 1.496" L (10.30mm x 38.00mm) | - | - |
|
|
0090.0025FUSE CARTRIDGE 25A 1KVDC 5AG |
45 |
|
Datasheet |
ASO 10.3x38 | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 25A | - | 1 kVDC | - | Solar (Photovoltaic) | - | - | UL, VDE | -50°C ~ 125°C | 20kA | 0.406" Dia x 1.496" L (10.30mm x 38.00mm) | - | - |
|
0304.160HRFUSE BRD MNT 160MA 277VAC/DC SMD |
124 |
|
Datasheet |
PICO® 304 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Surface Mount | Board Mount | 160mA | 277 VAC | 277 VDC | - | Hazardous Locations | Intrinsically Safe | - | cURus, EX | -40°C ~ 60°C | 1.5kA | 0.538" L x 0.237" W x 0.244" H (13.67mm x 6.03mm x 6.19mm) | - | - |
|
1301.0074FUSE INDICATING FUSE 20A 500VAC |
6 |
|
Datasheet |
- | - | - | Active | Requires Holder | Indicating Fuse | 20A | 500 VAC | - | - | Electrical, Industrial | Indicating | - | CE, VDE | - | 120kA | 2.13" L x 0.79" W x 1.42" H (54.0mm x 20.0mm x 36.0mm) | - | - |
|
0SLC005.TFUSE CARTRIDGE 5A 600VAC/170VDC |
10 |
|
Datasheet |
POWR-GARD® SLC | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 5A | 600 VAC | 170 VDC | Medium Blow | Electrical, Industrial | - | G | CE, CSA, QPL, UL | - | 100kA AC, 10kA DC | 0.406" Dia x 1.311" L (10.30mm x 33.30mm) | - | - |
