Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0CNN010.VFUSE STRIP 10A 125VAC/48VDC BOLT |
18 |
|
Datasheet |
POWR-GARD® CNN | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Fuse Strip | 10A | 125 VAC | 48 VDC | Fast Blow | Lift Trucks | Indicating | - | UR | - | 2.5kA | - | - | - |
|
FNQ-R-2-1/2FUSE CARTRIDGE 2.5A 600VAC 5AG |
10 |
|
Datasheet |
Limitron™ FNQ-R | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 2.5A | 600 VAC | - | Slow Blow | Electrical, Industrial | - | CC | CE, CSA, UL | - | 200kA | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
|
FNQ-R-8FUSE CARTRIDGE 8A 600VAC 5AG |
4 |
|
Datasheet |
Limitron™ FNQ-R | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 8A | 600 VAC | - | Slow Blow | Electrical, Industrial | - | CC | CE, CSA, UL | - | 200kA | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
FRS-R-35FUSE CARTRIDGE 35A 600VAC/250VDC |
10 |
|
Datasheet |
Fusetron™ FRS-R | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 35A | 600 VAC | 250 VDC | Slow Blow | Electrical, Industrial | - | RK5 | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.060" Dia x 5.50" L (26.92mm x 139.70mm) | - | - |
|
|
FNQ-R-7-1/2FUSE CARTRIDGE 7.5A 600VAC 5AG |
14 |
|
Datasheet |
Limitron™ FNQ-R | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 7.5A | 600 VAC | - | Slow Blow | Electrical, Industrial | - | CC | CE, CSA, UL | - | 200kA | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
JLLN200.XFUSE CRTRDGE 200A 300VAC/125VDC |
19 |
|
Datasheet |
POWR-GARD® JLLN | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 200A | 300 VAC | 125 VDC | Fast Blow | Electrical, Industrial | - | T | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.063" Dia x 0.843" L (27.00mm x 21.40mm) | - | - |
|
L50S040.TFUSE CARTRIDGE 40A 500VAC/450VDC |
6 |
|
Datasheet |
POWR-GARD® L50S | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 40A | 500 VAC | 450 VDC | Fast Blow | Semiconductors | - | - | CE, CSA, UR | - | 200kA AC, 20kA DC | 0.811" Dia x 1.626" L (20.60mm x 41.30mm) | - | - |
|
0JTD050.TFUSE CARTRIDGE 50A 600VAC/300VDC |
2 |
|
Datasheet |
POWR-GARD®, POWR-PRO® JTD | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 50A | 600 VAC | 300 VDC | Slow Blow | Transformer Protection | - | J | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.063" Dia x 2.374" L (27.00mm x 60.30mm) | - | - |
|
DFJ-30FUSE CARTRIDGE 30A 600VAC/450VDC |
18 |
|
Datasheet |
DFJ | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 30A | 600 VAC | 450 VDC | - | Electrical, Industrial | - | J | CE, CSA, UL | - | 200kA AC, 100kA DC | 0.810" Dia x 2.250" L (20.57mm x 57.15mm) | - | - |
|
|
FNQ-R-6/10FUSE CARTRIDGE 600MA 600VAC 5AG |
6 |
|
Datasheet |
Limitron™ FNQ-R | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 600mA | 600 VAC | - | Slow Blow | Electrical, Industrial | - | CC | CE, CSA, UL | - | 200kA | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
|
DFJ-15FUSE CARTRIDGE 15A 600VAC/450VDC |
5 |
|
Datasheet |
DFJ | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 15A | 600 VAC | 450 VDC | - | Electrical, Industrial | - | J | CE, CSA, UL | - | 200kA AC, 100kA DC | 0.810" Dia x 2.250" L (20.57mm x 57.15mm) | - | - |
|
LPJ-20SPFUSE CARTRIDGE 20A 600VAC/300VDC |
11 |
|
Datasheet |
LOW-PEAK™ LPJ | Cylindrical, Alarm Indicating | Bulk | Active | Requires Holder | Cartridge | 20A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | - | J | CE, CSA, UL | - | 300kA AC, 100kA DC | 0.810" Dia x 2.250" L (20.57mm x 57.15mm) | - | - |
|
|
JLLN125.XFUSE CRTRDGE 125A 300VAC/125VDC |
2 |
|
Datasheet |
POWR-GARD® JLLN | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 125A | 300 VAC | 125 VDC | Fast Blow | Electrical, Industrial | - | T | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.063" Dia x 0.843" L (27.00mm x 21.40mm) | - | - |
|
|
LPJ-25SPFUSE CARTRIDGE 25A 600VAC/300VDC |
9 |
|
Datasheet |
LOW-PEAK™ LPJ | Cylindrical, Alarm Indicating | Bulk | Active | Requires Holder | Cartridge | 25A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | - | J | CE, CSA, UL | - | 300kA AC, 100kA DC | 0.810" Dia x 2.250" L (20.57mm x 57.15mm) | - | - |
|
0ALABK250-BAFUSE 250A 1000V STUD MNT |
20 |
|
Datasheet |
0ALA | Rectangular, Blade | Box | Active | Bolt Mount | Rectangular | 250A | - | 1 kVDC | Fast Blow | Electrical, Industrial | - | - | - | -40°C ~ 100°C | 50kA | - | - | - |
|
|
JLLN175.XFUSE CRTRDGE 175A 300VAC/125VDC |
4 |
|
Datasheet |
POWR-GARD® JLLN | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 175A | 300 VAC | 125 VDC | Fast Blow | Electrical, Industrial | - | T | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.063" Dia x 0.843" L (27.00mm x 21.40mm) | - | - |
|

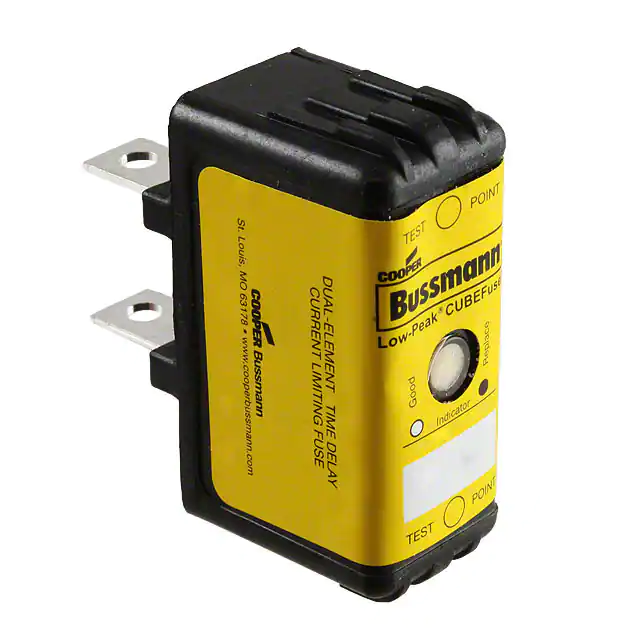

TCF10FUSE RECT 10A 600VAC/300VDC BLAD |
19 |
|
Datasheet |
CUBEFuse™ TCF | Blade Type, Module | Bulk | Active | Requires Holder | Rectangular | 10A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | Indicating | - | CE, CSA, UL | -40°C ~ 80°C | 300kA AC, 100kA DC | 1.880" L x 0.750" W x 1.270" H (47.75mm x 19.05mm x 32.26mm) | - | - |
|
|
LPJ-15SPFUSE CARTRIDGE 15A 600VAC/300VDC |
5 |
|
Datasheet |
LOW-PEAK™ LPJ | Cylindrical, Alarm Indicating | Bulk | Active | Requires Holder | Cartridge | 15A | 600 VAC | 300 VDC | Slow Blow | Electrical, Industrial | - | J | CE, CSA, UL | - | 300kA AC, 100kA DC | 0.810" Dia x 2.250" L (20.57mm x 57.15mm) | - | - |
|
FRN-R-100FUSE CARTRIDGE 100A 250VAC |
3 |
|
Datasheet |
Fusetron™ FRN-R | Cartridge, Non-Standard | Bulk | Active | Requires Holder | Cartridge | 100A | 250 VAC | - | Slow Blow | Electrical, Industrial | - | RK5 | CE, CSA, UL | - | 200kA AC, 20kA DC | 1.060" Dia x 5.880" L (26.92mm x 149.35mm) | - | - |
|
L50QS080.TFUSE CARTRIDGE 80A 500VAC/VDC |
2 |
|
Datasheet |
POWR-SPEED™ L50QS | Cylindrical, Blade Terminal (Bolt) | Box | Active | Bolt Mount | Cartridge | 80A | 500 VAC | 500 VDC | Fast Blow | Semiconductors | - | - | CE, cURus, UR | -55°C ~ 125°C | 200kA AC, 50kA DC | 1.000" Dia x 3.625" L (25.40mm x 92.08mm) | - | - |
