Electrical, Specialty Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package / Case | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Applications | Features | Class | Approval Agency | Operating Temperature | Breaking Capacity @ Rated Voltage | Size / Dimension | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F03A250V5AFUSE GOVT 250V |
131 |
|
Datasheet |
- | 3AB, 3AG, 1/4" x 1-1/4" | Bulk | Discontinued at Digi-Key | Requires Holder | - | - | - | - | - | - | - | - | - | - | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | - | - |
|
0090.0020FUSE CARTRIDGE 20A 1KVDC 5AG |
762 |
|
Datasheet |
ASO 10.3x38 | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 20A | - | 1 kVDC | - | Solar (Photovoltaic) | - | - | UL, VDE | -50°C ~ 125°C | 20kA | 0.406" Dia x 1.496" L (10.30mm x 38.00mm) | - | - |
|
|
0090.0003FUSE CARTRIDGE 3A 1KVDC 5AG |
652 |
|
Datasheet |
ASO 10.3x38 | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 3A | - | 1 kVDC | - | Solar (Photovoltaic) | - | - | UL, VDE | -50°C ~ 125°C | 20kA | 0.406" Dia x 1.496" L (10.30mm x 38.00mm) | - | - |
|
|
0090.0005FUSE CARTRIDGE 5A 1KVDC 5AG |
126 |
|
Datasheet |
ASO 10.3x38 | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 5A | - | 1 kVDC | - | Solar (Photovoltaic) | - | - | UL, VDE | -50°C ~ 125°C | 20kA | 0.406" Dia x 1.496" L (10.30mm x 38.00mm) | - | - |
|
LVSP0020TX2FUSE CARTRIDGE 20A 600VAC 5AG |
154 |
|
Datasheet |
POWR-GARD® LVSP | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | Cartridge | 20A | 600 VAC | - | Slow Blow | TVSS Protection | - | - | UR | - | 200kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|

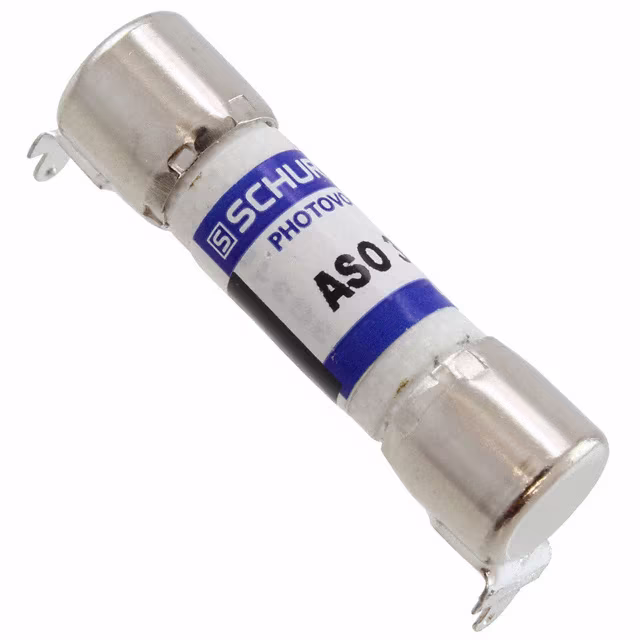

0090.1030FUSE CARTRIDGE 30A 1KVDC 5AG |
664 |
|
Datasheet |
ASO 10.3x38 | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Through Hole | Cartridge | 30A | - | 1 kVDC | - | Solar (Photovoltaic) | - | - | UL | -50°C ~ 125°C | 20kA | 0.406" Dia x 1.496" L (10.30mm x 38.00mm) | - | - |
|

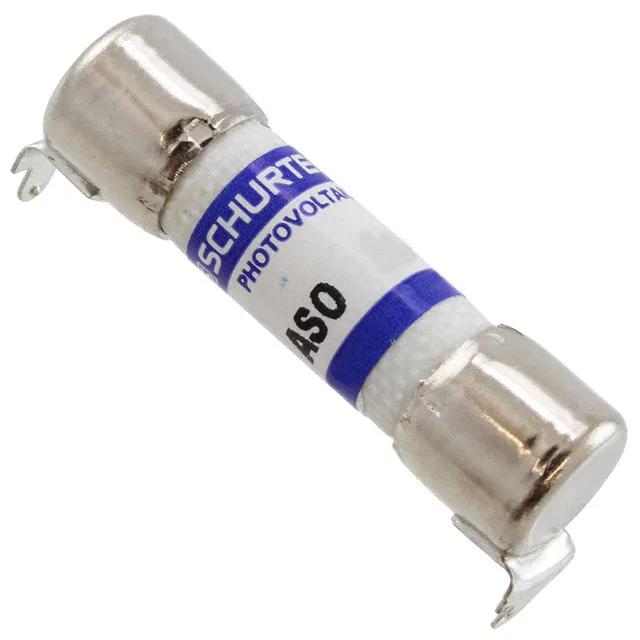

0090.1003FUSE CARTRIDGE 3A 1KVDC 5AG |
409 |
|
Datasheet |
ASO 10.3x38 | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 3A | - | 1 kVDC | - | Solar (Photovoltaic) | - | - | UL, VDE | -50°C ~ 125°C | 20kA | 0.406" Dia x 1.496" L (10.30mm x 38.00mm) | - | - |
|
0HEV030.ZXPCBLFUSE CARTRIDGE 30A 450VDC 5AG |
345 |
|
Datasheet |
LC HEV | 5AG, 10mm x 38mm w/PC Pins (Midget) | Bulk | Active | Through Hole | Cartridge | 30A | - | 450 VDC | - | Lift Trucks | - | - | - | -40°C ~ 125°C | 10kA | 0.406" Dia x 1.532" L (10.30mm x 38.90mm) | - | - |
|
0304.080HRFUSE BRD MNT 80MA 277VAC/DC 2SMD |
136 |
|
Datasheet |
PICO® 304 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Surface Mount | Board Mount | 80mA | 277 VAC | 277 VDC | - | Hazardous Locations | Intrinsically Safe | - | cURus, EX | -40°C ~ 60°C | 1.5kA | 0.538" L x 0.237" W x 0.244" H (13.67mm x 6.03mm x 6.19mm) | - | - |
|
0HEV030.ZXISOFUSE CARTRIDGE 30A 450VDC BOLT |
1,435 |
|
Datasheet |
LC HEV | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 30A | - | 450 VDC | - | Lift Trucks | - | - | - | -40°C ~ 125°C | 10kA | 0.406" Dia x 1.492" L (10.30mm x 37.90mm) | - | - |
|
0HEV020.ZXBDFUSE CARTRIDGE 20A 450VDC BOLT |
318 |
|
Datasheet |
LC HEV | Cylindrical, Blade Terminal (Bolt) | Bulk | Active | Bolt Mount | Cartridge | 20A | - | 450 VDC | - | Lift Trucks | - | - | - | -40°C ~ 125°C | 10kA | 0.469" Dia x 2.559" L (11.90mm x 65.00mm) | - | - |
|
0SPF020.HFUSE CARTRIDGE 20A 1KVDC 5AG |
160 |
|
Datasheet |
POWR-GARD® SPF | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 20A | - | 1 kVDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, CSA, UL, VDE | - | 20kA | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
CCMR6.25TXPFUSE CRTRDGE 6.25A 600VAC/250VDC |
211 |
|
Datasheet |
POWR-GARD®, POWR-PRO® CCMR | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 6.25A | 600 VAC | 250 VDC | Slow Blow | Motor Protection | - | CC | CE, CSA, UL | - | 300kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
FWA-30A10FFUSE CRTRDGE 30A 150VAC/VDC 5AG |
294 |
|
Datasheet |
FWA | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 30A | 150 VAC | 150 VDC | - | Electrical, Industrial | - | - | CE, UR | - | 100kA | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
0KLK008.TFUSE CARTRIDGE 8A 600VAC/500VDC |
187 |
|
Datasheet |
POWR-GARD® KLK | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 8A | 600 VAC | 500 VDC | Fast Blow | Electrical, Industrial | - | - | CE, CSA, QPL, UL | - | 100kA AC, 50kA DC | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
|
0KLK025.TFUSE CARTRIDGE 25A 600VAC/500VDC |
171 |
|
Datasheet |
POWR-GARD® KLK | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 25A | 600 VAC | 500 VDC | Fast Blow | Electrical, Industrial | - | - | CE, CSA, QPL, UL | - | 100kA AC, 50kA DC | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
KLKD025.TFUSE CARTRIDGE 25A 600VAC/VDC |
101 |
|
Datasheet |
POWR-GARD® KLKD | Cartridge, Non-Standard | Box | Active | Requires Holder | Cartridge | 25A | 600 VAC | 600 VDC | Fast Blow | Solar (Photovoltaic) | - | - | CE, CSA, UL, VDE | - | 100kA AC, 50kA DC | 0.406" Dia x 1.500" L (10.31mm x 38.10mm) | - | - |
|
KLKR.500TFUSE CRTRDGE 500MA 600VAC/300VDC |
210 |
|
Datasheet |
POWR-GARD® KLKR | 5AG, 10mm x 38mm (Midget) | Box | Active | Requires Holder | Cartridge | 500mA | 600 VAC | 300 VDC | Fast Blow | Electrical, Industrial | - | CC | CE, CSA, UL | - | 200kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
KLM-3FUSE CARTRIDGE 3A 600VAC/VDC 5AG |
163 |
|
Datasheet |
KLM | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 3A | 600 VAC | 600 VDC | Fast Blow | Electrical, Industrial | - | - | CE, CSA, UL | - | 100kA AC, 50kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
|
|
CCMR07.5TXPFUSE CRTRDGE 7.5A 600VAC/250VDC |
69 |
|
Datasheet |
POWR-GARD®, POWR-PRO® CCMR | 5AG, 10mm x 38mm (Midget) | Bulk | Active | Requires Holder | Cartridge | 7.5A | 600 VAC | 250 VDC | Slow Blow | Motor Protection | - | CC | CE, CSA, UL | - | 300kA AC, 20kA DC | 0.406" Dia x 1.500" L (10.30mm x 38.10mm) | - | - |
