Electric Double Layer Capacitors (EDLC), Supercapacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Termination | Mounting Type | Package / Case | Lead Spacing | Size / Dimension | Height - Seated (Max) | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EDLSD334H5R5CCAP 330MF 5.5V T/H |
0 |
|
Datasheet |
SD | Bulk | Obsolete | 330 mF | - | 5.5 V | 75Ohm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Axial, Can - Horizontal | 0.394" (10.00mm) | 0.453" Dia (11.50mm) | 0.256" (6.50mm) | -25°C ~ 70°C |
|
EDLSD334V5R5CCAP 330MF 5.5V T/H |
0 |
|
Datasheet |
SD | Bulk | Obsolete | 330 mF | - | 5.5 V | 75Ohm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Axial, Can - Vertical | 0.197" (5.00mm) | 0.413" Dia (10.50mm) | 0.453" (11.50mm) | -25°C ~ 70°C |
|
EDLSG105H5R5CCAP 1F 5.5V THROUGH HOLE |
0 |
|
Datasheet |
SG | Bulk | Obsolete | 1 F | - | 5.5 V | 30Ohm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Axial, Can - Horizontal | 0.787" (20.00mm) | 0.787" Dia (20.00mm) | 0.256" (6.50mm) | -25°C ~ 70°C |
|
EDLSG105V5R5CCAP 1F 5.5V THROUGH HOLE |
0 |
|
Datasheet |
SG | Bulk | Obsolete | 1 F | - | 5.5 V | 30Ohm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Axial, Can - Vertical | 0.197" (5.00mm) | 0.748" Dia (19.00mm) | 0.217" (5.50mm) | -25°C ~ 70°C |
|
|
EDLSG155H5R5CCAP 1.5F 5.5V THROUGH HOLE |
0 |
|
Datasheet |
SG | Bulk | Obsolete | 1.5 F | - | 5.5 V | 30Ohm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Axial, Can - Horizontal | 0.787" (20.00mm) | 0.787" Dia (20.00mm) | 0.256" (6.50mm) | -25°C ~ 70°C |
|
|
EDLSG474H5R5CCAP 470MF 5.5V T/H |
0 |
|
Datasheet |
SG | Bulk | Obsolete | 470 mF | - | 5.5 V | 30Ohm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Axial, Can - Horizontal | 0.787" (20.00mm) | 0.787" Dia (20.00mm) | 0.256" (6.50mm) | -25°C ~ 70°C |
|

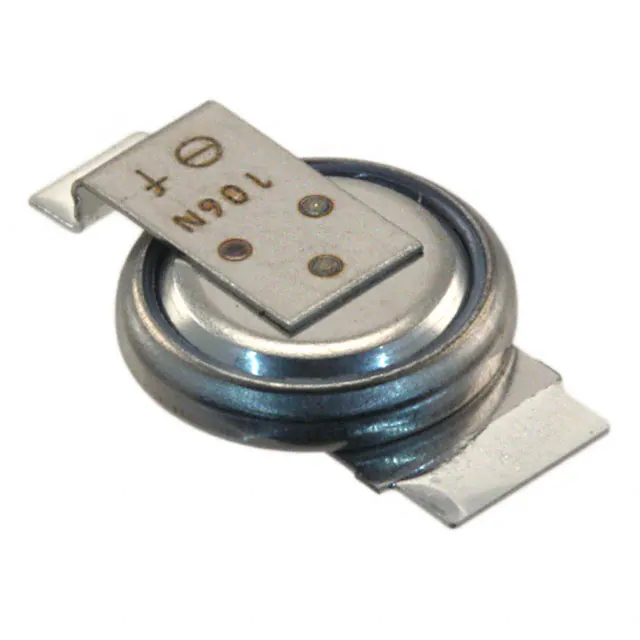

EEC-EN0F204AKCAP 200MF -20% +80% 3.3V SMD |
0 |
|
Datasheet |
EN | Tape & Reel (TR) | Obsolete | 200 mF | -20%, +80% | 3.3 V | 200mOhm @ 1kHz | 500 Hrs @ 60°C | SMD (SMT) Tabs | Surface Mount | Coin, Wide Terminals - Opposite Sides | - | 0.268" Dia (6.80mm) | 0.071" (1.80mm) | -10°C ~ 60°C |
|
EEC-EN0F204J2CAP 200MF -20% +80% 3.3V SMD |
0 |
|
Datasheet |
EN | Tape & Reel (TR) | Obsolete | 200 mF | -20%, +80% | 3.3 V | 200mOhm @ 1kHz | 500 Hrs @ 60°C | SMD (SMT) Tabs | Surface Mount | Coin, Wide Terminals - Opposite Sides | - | 0.268" Dia (6.80mm) | 0.073" (1.85mm) | -10°C ~ 60°C |
|

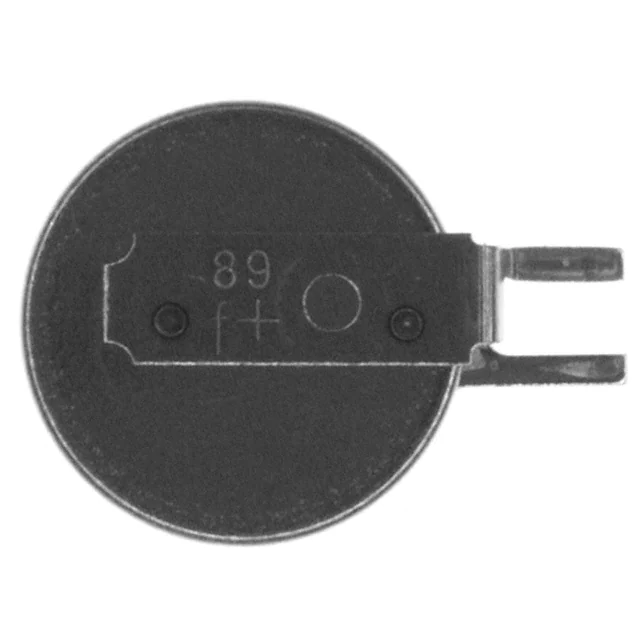

EEC-EN0F204RKCAP 200MF -20% +80% 3.3V SMD |
0 |
|
Datasheet |
EN | Tape & Reel (TR) | Obsolete | 200 mF | -20%, +80% | 3.3 V | 200mOhm @ 1kHz | 500 Hrs @ 60°C | SMD (SMT) Tabs | Surface Mount | Coin, Wide Terminals - Opposite Sides | - | 0.268" Dia (6.80mm) | 0.071" (1.80mm) | -10°C ~ 60°C |
|
PAS311SR-VA6RCAP 35MF 2.6V SURFACE MNT |
0 |
|
Datasheet |
SR | Tape & Reel (TR) | Discontinued at Digi-Key | 35 mF | - | 2.6 V | 70Ohm | - | SMD (SMT) Tabs | Surface Mount | Coin, Wide Terminals - Same Sides | - | 0.150" Dia (3.80mm) | 0.057" (1.45mm) | -20°C ~ 70°C |
|
PAS311HR-VA6RCAP 30MF 3.3V SURFACE MNT |
0 |
|
Datasheet |
HR | Tape & Reel (TR) | Discontinued at Digi-Key | 30 mF | - | 3.3 V | 120Ohm | - | SMD (SMT) Tabs | Surface Mount | Coin, Wide Terminals - Opposite Sides | - | 0.150" Dia (3.80mm) | 0.057" (1.45mm) | -20°C ~ 60°C |
|
PAS414HR-VG1CAP 60MF 3.3V SURFACE MNT |
0 |
|
Datasheet |
HR | Tape & Reel (TR) | Obsolete | 60 mF | - | 3.3 V | 80Ohm | - | SMD (SMT) Tabs | Surface Mount | Coin, Wide and Corner Terminals | - | 0.189" Dia (4.80mm) | 0.055" (1.40mm) | -20°C ~ 60°C |
|
|
PAS414HR-VA5RCAP 60MF 3.3V SURFACE MNT |
0 |
|
Datasheet |
HR | Tape & Reel (TR) | Obsolete | 60 mF | - | 3.3 V | 80Ohm | - | SMD (SMT) Tabs | Surface Mount | Coin, Wide Terminals - Same Sides | - | 0.189" Dia (4.80mm) | 0.061" (1.55mm) | -20°C ~ 60°C |
|
|
PAS414HR-VE5RCAP 60MF 3.3V SURFACE MNT |
0 |
|
Datasheet |
HR | Tape & Reel (TR) | Obsolete | 60 mF | - | 3.3 V | 80Ohm | - | SMD (SMT) Tabs | Surface Mount | Coin, Wide Terminals - Same Sides | - | 0.189" Dia (4.80mm) | 0.073" (1.85mm) | -20°C ~ 60°C |
|
BZ05CA103ZSBCAP 10MF -20% +80% 12V SMD |
0 |
|
- |
BestCap® BZ | Bulk | Obsolete | 10 mF | -20%, +80% | 12 V | 500mOhm | 1000 Hrs @ 70°C | SMD (SMT) Tabs | Surface Mount | BZ05, 3 Lead | - | 0.787" L x 0.591" W (20.00mm x 15.00mm) | 0.256" (6.50mm) | -20°C ~ 70°C |
|

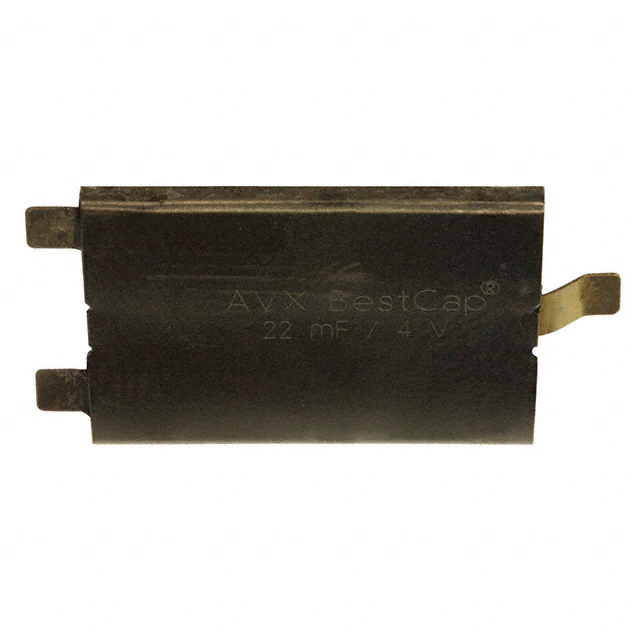

BZ254B223ZSBCECAP 22MF -20% +80% 4V SMD |
0 |
|
- |
BestCap® BZ | Bulk | Obsolete | 22 mF | -20%, +80% | 4 V | 140mOhm | 1000 Hrs @ 70°C | SMD (SMT) Tabs | Surface Mount | BZ25, 3 Lead | - | 0.787" L x 0.591" W (20.00mm x 15.00mm) | 0.075" (1.90mm) | -20°C ~ 70°C |
|
DDLA2R5LGN701KAA5SCAP 700F 10% 2.5V CHASSIS MOUNT |
0 |
|
Datasheet |
DLCAP™, DLA | Bulk | Obsolete | 700 F | ±10% | 2.5 V | 5.5mOhm | 2000 Hrs @ 60°C | Screw Terminals | Chassis Mount | Radial, Can - Screw Terminals | 0.500" (12.70mm) | 1.378" Dia (35.00mm) | 4.291" (109.00mm) | -25°C ~ 60°C |
|
DDLC2R5LGN351KA65SCAP 350F 10% 2.5V CHASSIS MOUNT |
0 |
|
Datasheet |
DLCAP™, DLC | Bulk | Obsolete | 350 F | ±10% | 2.5 V | 8mOhm | 2000 Hrs @ 60°C | Screw Terminals | Chassis Mount | Radial, Can - Screw Terminals | 0.500" (12.70mm) | 1.378" Dia (35.00mm) | 2.717" (69.00mm) | -25°C ~ 60°C |
|
DDLC2R5LGN142KBF0SCAP 1400F 10% 2.5V CHASSIS MOUNT |
0 |
|
Datasheet |
DLCAP™, DLC | Bulk | Obsolete | 1400 F | ±10% | 2.5 V | 2.5mOhm | 2000 Hrs @ 60°C | Screw Terminals | Chassis Mount | Radial, Can - Screw Terminals | 0.669" (17.00mm) | 1.575" Dia (40.00mm) | 6.063" (154.00mm) | -25°C ~ 60°C |
|
DDSC2R5LGN242K54BSCAP 2400F 10% 2.5V CHASSIS MOUNT |
0 |
|
Datasheet |
DLCAP™, DSC | Bulk | Obsolete | 2400 F | ±10% | 2.5 V | 0.7mOhm | 2000 Hrs @ 60°C | Screw Terminals | Chassis Mount | Radial, Can - Screw Terminals | 1.069" (27.15mm) | 2.126" L x 2.126" W (54.00mm x 54.00mm) | 5.079" (129.00mm) | -25°C ~ 60°C |
