Electric Double Layer Capacitors (EDLC), Supercapacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Termination | Mounting Type | Package / Case | Lead Spacing | Size / Dimension | Height - Seated (Max) | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BZ01CA223ZSBCAP 22MF -20% +80% 12V SMD |
0 |
|
- |
BestCap® BZ | Tray | Obsolete | 22 mF | -20%, +80% | 12 V | 350mOhm | 1000 Hrs @ 70°C | SMD (SMT) Tabs | Surface Mount | BZ01, 3 Lead | - | 1.102" L x 0.669" W (28.00mm x 17.00mm) | 0.299" (7.60mm) | -20°C ~ 70°C |
|
BZ025A404ZLBCAP 400MF -20% +80% 5.5V SMD |
0 |
|
- |
BestCap® BZ | Tray | Obsolete | 400 mF | -20%, +80% | 5.5 V | 35mOhm | 1000 Hrs @ 70°C | SMD (SMT) Tabs | Surface Mount | BZ02, 4 Lead | - | 1.890" L x 1.181" W (48.00mm x 30.00mm) | 0.272" (6.90mm) | -20°C ~ 70°C |
|
|
BZ125A105ZLBCAP 1F -20% +80% 5.5V SMD |
0 |
|
- |
BestCap® BZ | Tray | Obsolete | 1 F | -20%, +80% | 5.5 V | 35mOhm | 1000 Hrs @ 70°C | SMD (SMT) Tabs | Surface Mount | BZ12, 4 Lead | - | 1.890" L x 1.181" W (48.00mm x 30.00mm) | 0.240" (6.10mm) | -20°C ~ 70°C |
|
EEC-EP0E333ACAP 33MF -20% +80% 2.6V SMD |
0 |
|
Datasheet |
EP | Tape & Reel (TR) | Obsolete | 33 mF | -20%, +80% | 2.6 V | 350Ohm @ 1kHz | 500 Hrs @ 60°C | SMD (SMT) Tabs | Surface Mount | Coin, Wide and Thin Terminals - Opposite Sides | - | 0.150" Dia (3.80mm) | 0.059" (1.50mm) | -10°C ~ 60°C |
|
A0820-2R5474-RCAP 470MF -20% +80% 2.5V T/H |
0 |
|
Datasheet |
A | Bulk | Obsolete | 470 mF | -20%, +80% | 2.5 V | 150mOhm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.138" (3.50mm) | 0.335" Dia (8.50mm) | 0.827" (21.00mm) | -25°C ~ 70°C |
|
A1020-2R5105-RCAP 1F -20% +80% 2.5V T/H |
0 |
|
Datasheet |
A | Bulk | Obsolete | 1 F | -20%, +80% | 2.5 V | 90mOhm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.413" Dia (10.50mm) | 0.878" (22.30mm) | -25°C ~ 70°C |
|
A1030-2R5155-RCAP 1.5F -20% +80% 2.5V T/H |
0 |
|
Datasheet |
A | Bulk | Obsolete | 1.5 F | -20%, +80% | 2.5 V | 60mOhm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.413" Dia (10.50mm) | 1.240" (31.50mm) | -25°C ~ 70°C |
|
A1635-2R5475-RCAP 4.7F -20% +80% 2.5V T/H |
0 |
|
Datasheet |
A | Bulk | Obsolete | 4.7 F | -20%, +80% | 2.5 V | 25mOhm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.650" Dia (16.50mm) | 1.496" (38.00mm) | -25°C ~ 70°C |
|
PA-5R0V224-RCAP 220MF -20% +80% 5V T/H |
0 |
|
Datasheet |
PA | Bulk | Obsolete | 220 mF | -20%, +80% | 5 V | 300mOhm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.465" (11.80mm) | 0.681" L x 0.354" W (17.30mm x 9.00mm) | 0.866" (22.00mm) | -25°C ~ 70°C |
|
PA-5R0H224-RCAP 220MF -20% +80% 5V T/H |
0 |
|
Datasheet |
PA | Bulk | Obsolete | 220 mF | -20%, +80% | 5 V | 300mOhm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.465" (11.80mm) | 0.866" L x 0.681" W (22.00mm x 17.30mm) | 0.354" (9.00mm) | -25°C ~ 70°C |
|
PA-5R0H474-RCAP 470MF -20% +80% 5V T/H |
0 |
|
Datasheet |
PA | Bulk | Obsolete | 470 mF | -20%, +80% | 5 V | 200mOhm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.209" (5.30mm) | 0.906" L x 0.839" W (23.00mm x 21.30mm) | 0.433" (11.00mm) | -25°C ~ 70°C |
|
BZ055B153ZSBCAP 15MF -20% +80% 5.5V SMD |
0 |
|
- |
BestCap® BZ | Tray | Obsolete | 15 mF | -20%, +80% | 5.5 V | 250mOhm | 1000 Hrs @ 70°C | SMD (SMT) Tabs | Surface Mount | BZ05, 3 Lead | - | 0.787" L x 0.591" W (20.00mm x 15.00mm) | 0.106" (2.70mm) | -20°C ~ 70°C |
|
|
BZ055A333ZSBCAP 33MF -20% +80% 5.5V SMD |
0 |
|
- |
BestCap® BZ | Tray | Obsolete | 33 mF | -20%, +80% | 5.5 V | 250mOhm | 1000 Hrs @ 70°C | SMD (SMT) Tabs | Surface Mount | BZ05, 3 Lead | - | 0.787" L x 0.591" W (20.00mm x 15.00mm) | 0.138" (3.50mm) | -20°C ~ 70°C |
|
|
BZ015A503ZLBCAP 50MF -20% +80% 5.5V T/H |
0 |
|
- |
BestCap® BZ | Bulk | Obsolete | 50 mF | -20%, +80% | 5.5 V | 160mOhm | 1000 Hrs @ 70°C | PC Pins | Through Hole | BZ01, 3 Lead | - | 1.102" L x 0.669" W (28.00mm x 17.00mm) | 0.138" (3.50mm) | -20°C ~ 70°C |
|
XH414H-II06ECAP 70MF 3.3V SURFACE MNT |
0 |
|
Datasheet |
XH | Tape & Reel (TR) | Obsolete | 70 mF | - | 3.3 V | - | - | SMD (SMT) Tabs | Surface Mount | Coin, Wide Terminals - Opposite Sides | - | 0.189" Dia (4.80mm) | 0.067" (1.71mm) | -25°C ~ 70°C |
|
|
XH414H-IV01ECAP 70MF 3.3V SURFACE MNT |
0 |
|
Datasheet |
XH | Tape & Reel (TR) | Obsolete | 70 mF | - | 3.3 V | - | - | SMD (SMT) Tabs | Surface Mount | Coin, Wide and Corner Terminals | - | 0.189" Dia (4.80mm) | 0.066" (1.67mm) | -25°C ~ 70°C |
|
BZ01CA223ZABCAP SUPER 22000UF 12V BZ01 TH |
0 |
|
- |
- | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - |
|

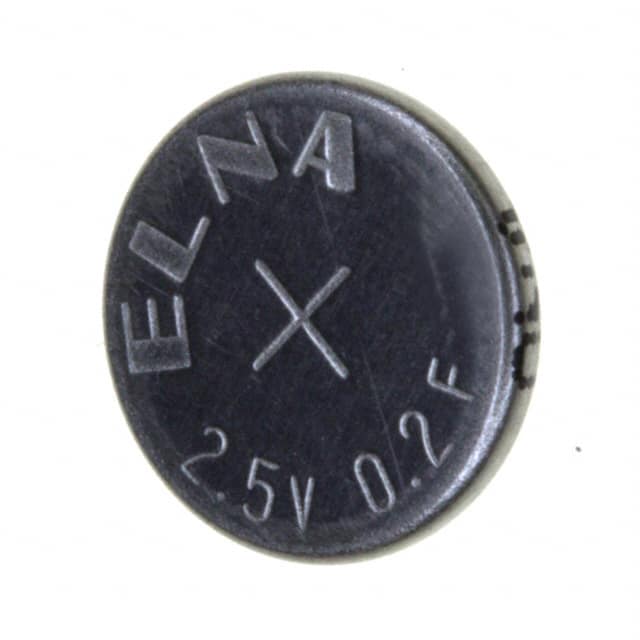

DC-2R5D204T614CAP 200MF -20% +80% 2.5V HOLDER |
0 |
|
Datasheet |
DC | Bulk | Obsolete | 200 mF | -20%, +80% | 2.5 V | 100Ohm @ 1kHz | 1000 Hrs @ 70°C | - | Requires Holder | Coin | - | 0.268" Dia (6.80mm) | 0.083" (2.10mm) | -25°C ~ 70°C |
|
DC-2R5E204T614-ECAP 200MF -20% +80% 2.5V SMD |
0 |
|
Datasheet |
DC | Bulk | Obsolete | 200 mF | -20%, +80% | 2.5 V | 100Ohm @ 1kHz | 1000 Hrs @ 70°C | SMD (SMT) Tabs | Surface Mount | Coin, Thin Terminals - Same Sides | - | 0.268" Dia (6.80mm) | 0.102" (2.60mm) | -25°C ~ 70°C |
|
|
DCK-3R3D204T614CAP 200MF -20% +80% 3.3V SMD |
0 |
|
Datasheet |
DCK | Bulk | Obsolete | 200 mF | -20%, +80% | 3.3 V | 200Ohm @ 1kHz | 1000 Hrs @ 60°C | SMD (SMT) Tabs | Surface Mount | Coin, Thin Terminals - Same Sides | - | 0.268" Dia (6.80mm) | 0.083" (2.10mm) | -10°C ~ 60°C |
Electric Double Layer Capacitors (EDLC), Supercapacitors Electronic Components
Explore Electric Double Layer Capacitors (EDLC), Supercapacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
