Electric Double Layer Capacitors (EDLC), Supercapacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Termination | Mounting Type | Package / Case | Lead Spacing | Size / Dimension | Height - Seated (Max) | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DCK-3R3E224U-ECAP 220MF -20% +80% 3.3V SMD |
0 |
|
Datasheet |
DCK | Bulk | Obsolete | 220 mF | -20%, +80% | 3.3 V | 200Ohm @ 1kHz | 1000 Hrs @ 60°C | SMD (SMT) Tabs | Surface Mount | Coin, Wide Terminals - Same Sides | - | 0.268" Dia (6.80mm) | 0.083" (2.10mm) | -10°C ~ 60°C |
|
DK-6R3D473TCAP 47MF -20% +80% 6.3V T/H |
0 |
|
Datasheet |
DK | Bulk | Obsolete | 47 mF | -20%, +80% | 6.3 V | 300Ohm | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.531" Dia (13.50mm) | 0.374" (9.50mm) | -25°C ~ 70°C |
|
|
DK-6R3D104TCAP 100MF -20% +80% 6.3V T/H |
0 |
|
Datasheet |
DK | Bulk | Obsolete | 100 mF | -20%, +80% | 6.3 V | 200Ohm | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.531" Dia (13.50mm) | 0.374" (9.50mm) | -25°C ~ 70°C |
|
DK-6R3D474TCAP 470MF -20% +80% 6.3V T/H |
0 |
|
Datasheet |
DK | Bulk | Obsolete | 470 mF | -20%, +80% | 6.3 V | 50Ohm | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.846" Dia (21.50mm) | 0.374" (9.50mm) | -25°C ~ 70°C |
|
|
DK-6R3D684TCAP 680MF -20% +80% 6.3V T/H |
0 |
|
Datasheet |
DK | Bulk | Obsolete | 680 mF | -20%, +80% | 6.3 V | 50Ohm | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.846" Dia (21.50mm) | 0.374" (9.50mm) | -25°C ~ 70°C |
|
|
DK-6R3D105TCAP 1F -20% +80% 6.3V T/H |
0 |
|
Datasheet |
DK | Bulk | Obsolete | 1 F | -20%, +80% | 6.3 V | 30Ohm | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.846" Dia (21.50mm) | 0.374" (9.50mm) | -25°C ~ 70°C |
|
DX-5R5L473TCAP 47MF -20% +80% 5.5V T/H |
0 |
|
Datasheet |
DX | Bulk | Obsolete | 47 mF | -20%, +80% | 5.5 V | 120Ohm | 1000 Hrs @ 70°C | PC Pins | Through Hole | Axial, Can - Vertical | 0.197" (5.00mm) | 0.453" Dia (11.50mm) | 0.197" (5.00mm) | -25°C ~ 70°C |
|
|
DX-5R5L104TCAP 100MF -20% +80% 5.5V T/H |
0 |
|
Datasheet |
DX | Bulk | Obsolete | 100 mF | -20%, +80% | 5.5 V | 75Ohm | 1000 Hrs @ 70°C | PC Pins | Through Hole | Axial, Can - Vertical | 0.197" (5.00mm) | 0.453" Dia (11.50mm) | 0.488" (12.40mm) | -25°C ~ 70°C |
|
|
DX-5R5L224TCAP 220MF -20% +80% 5.5V T/H |
0 |
|
Datasheet |
DX | Bulk | Obsolete | 220 mF | -20%, +80% | 5.5 V | 75Ohm | 1000 Hrs @ 70°C | PC Pins | Through Hole | Axial, Can - Vertical | 0.197" (5.00mm) | 0.453" Dia (11.50mm) | 0.488" (12.40mm) | -25°C ~ 70°C |
|
|
DX-5R5L334TCAP 330MF -20% +80% 5.5V T/H |
0 |
|
Datasheet |
DX | Bulk | Obsolete | 330 mF | -20%, +80% | 5.5 V | 75Ohm | 1000 Hrs @ 70°C | PC Pins | Through Hole | Axial, Can - Vertical | 0.197" (5.00mm) | 0.453" Dia (11.50mm) | 0.488" (12.40mm) | -25°C ~ 70°C |
|
DZ-2R5D106TCAP 10F -20% +80% 2.5V T/H |
0 |
|
Datasheet |
DZ | Bulk | Obsolete | 10 F | -20%, +80% | 2.5 V | 200mOhm | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.457" (37.00mm) | -25°C ~ 70°C |
|
DZN-2R5D105TCAP 1F -20% +80% 2.5V T/H |
0 |
|
Datasheet |
DZN | Bulk | Active | 1 F | -20%, +80% | 2.5 V | 100mOhm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.945" (24.00mm) | -25°C ~ 70°C |
|
DZN-2R5D335TCAP 3.3F -20% +80% 2.5V T/H |
0 |
|
Datasheet |
DZN | Bulk | Active | 3.3 F | -20%, +80% | 2.5 V | 40mOhm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.984" (25.00mm) | -25°C ~ 70°C |
|
DZN-2R5D475TCAP 4.7F -20% +80% 2.5V T/H |
0 |
|
Datasheet |
DZN | Bulk | Active | 4.7 F | -20%, +80% | 2.5 V | 30mOhm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.319" (33.50mm) | -25°C ~ 70°C |
|
DZN-2R5D106TCAP 10F -20% +80% 2.5V T/H |
0 |
|
Datasheet |
DZN | Bulk | Active | 10 F | -20%, +80% | 2.5 V | 20mOhm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.457" (37.00mm) | -25°C ~ 70°C |
|

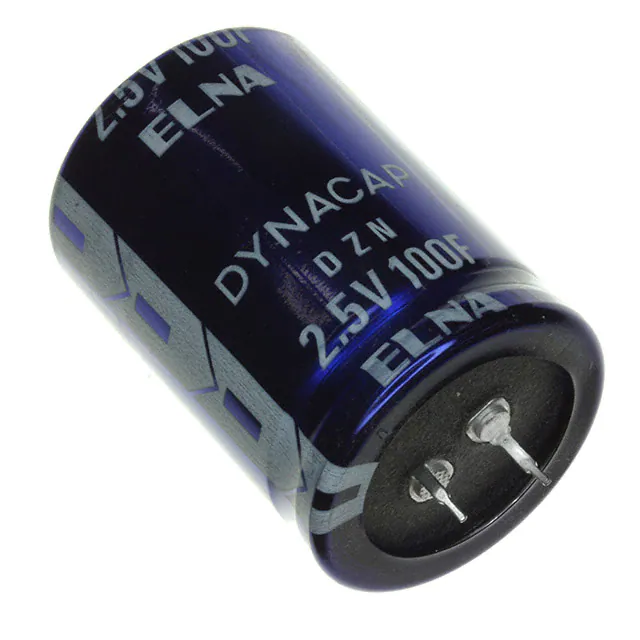

DZN-2R5D107TCAP 100F -20% +80% 2.5V T/H |
0 |
|
Datasheet |
DZN | Bulk | Active | 100 F | -20%, +80% | 2.5 V | 8mOhm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can - Snap-In | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | -25°C ~ 70°C |
|
BZ054B223ZSBCAP 22MF -20% +80% 4.5V SMD |
0 |
|
- |
BestCap® BZ | Tray | Obsolete | 22 mF | -20%, +80% | 4.5 V | 170mOhm | 1000 Hrs @ 70°C | SMD (SMT) Tabs | Surface Mount | BZ05, 3 Lead | - | 0.787" L x 0.591" W (20.00mm x 15.00mm) | 0.083" (2.10mm) | -20°C ~ 70°C |
|
|
BZ154B473ZNBCAP 47MF -20% +80% 4.5V SMD |
0 |
|
- |
BestCap® BZ | Tray | Obsolete | 47 mF | -20%, +80% | 4.5 V | 170mOhm | 1000 Hrs @ 70°C | SMD (SMT) Tabs | Surface Mount | BZ15, 2 Lead | - | 0.787" L x 0.591" W (20.00mm x 15.00mm) | 0.083" (2.10mm) | -20°C ~ 70°C |
|
BZ013B503ZSBCAP 50MF -20% +80% 3.6V SMD |
0 |
|
- |
BestCap® BZ | Tray | Obsolete | 50 mF | -20%, +80% | 3.6 V | 100mOhm | 1000 Hrs @ 70°C | SMD (SMT) Tabs | Surface Mount | BZ01, 3 Lead | - | 1.102" L x 0.669" W (28.00mm x 17.00mm) | 0.126" (3.20mm) | -20°C ~ 70°C |
|
|
BZ015A104ZSBCAP 100MF -20% +80% 5.5V SMD |
0 |
|
- |
BestCap® BZ | Tray | Obsolete | 100 mF | -20%, +80% | 5.5 V | 80mOhm | 1000 Hrs @ 70°C | SMD (SMT) Tabs | Surface Mount | BZ01, 3 Lead | - | 1.102" L x 0.669" W (28.00mm x 17.00mm) | 0.283" (7.20mm) | -20°C ~ 70°C |
