Electric Double Layer Capacitors (EDLC), Supercapacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Termination | Mounting Type | Package / Case | Lead Spacing | Size / Dimension | Height - Seated (Max) | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

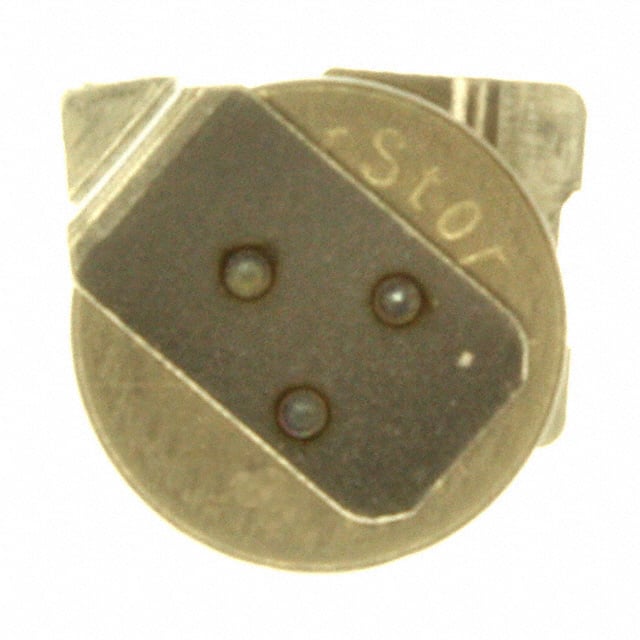

KSL-3R3703S-RCAP 70MF -20% +80% 3.3V SMD |
0 |
|
Datasheet |
KSL | Tape & Reel (TR) | Obsolete | 70 mF | -20%, +80% | 3.3 V | 100Ohm @ 1kHz | 500 Hrs @ 60°C | SMD (SMT) Tabs | Surface Mount | Coin, Wide and Corner Terminals | - | 0.189" Dia (4.80mm) | 0.067" (1.70mm) | -25°C ~ 60°C |
|

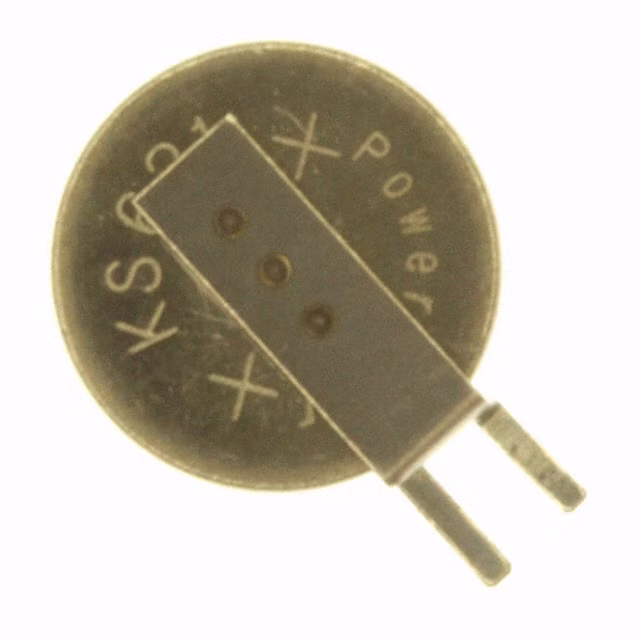

KS-2R8334-RCAP 330MF -20% +80% 2.8V SMD |
0 |
|
Datasheet |
KS | Bulk | Obsolete | 330 mF | -20%, +80% | 2.8 V | 100Ohm @ 1kHz | 1000 Hrs @ 70°C | SMD (SMT) Tabs | Surface Mount | Coin, Thin Terminals - Same Sides | - | 0.268" Dia (6.80mm) | 0.110" (2.80mm) | -25°C ~ 70°C |
|

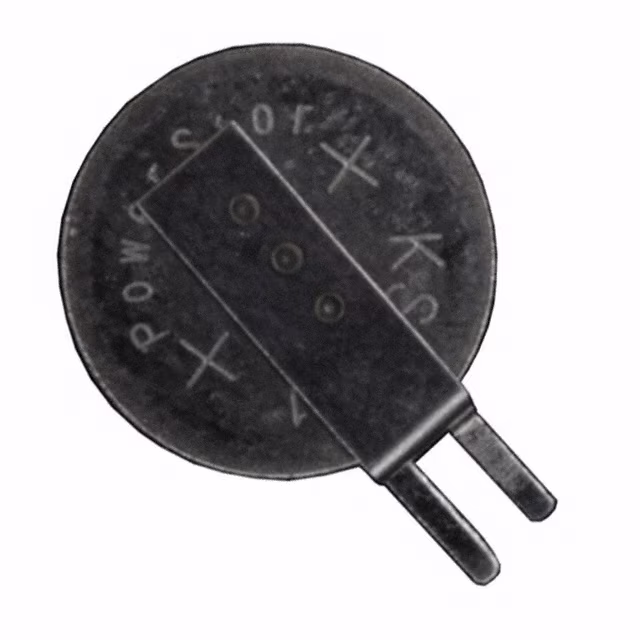

KS-3R3224-RCAP 220MF -20% +80% 3.3V SMD |
0 |
|
Datasheet |
KS | Bulk | Obsolete | 220 mF | -20%, +80% | 3.3 V | 200Ohm @ 1kHz | 1000 Hrs @ 70°C | SMD (SMT) Tabs | Surface Mount | Coin, Thin Terminals - Same Sides | - | 0.268" Dia (6.80mm) | 0.110" (2.80mm) | -10°C ~ 60°C |
|
EEC-EP0F333ACAP 33MF -20% +80% 3.3V SMD |
0 |
|
Datasheet |
EP | Tape & Reel (TR) | Obsolete | 33 mF | -20%, +80% | 3.3 V | 350Ohm @ 1kHz | 250 Hrs @ 60°C | SMD (SMT) Tabs | Surface Mount | Coin, Wide and Thin Terminals - Opposite Sides | - | 0.150" Dia (3.80mm) | 0.059" (1.50mm) | -10°C ~ 60°C |
|
EEC-RF0H684CAP 680MF -20% +80% 5.5V T/H |
0 |
|
Datasheet |
RF | Bulk | Obsolete | 680 mF | -20%, +80% | 5.5 V | 40Ohm | 2000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.846" Dia (21.50mm) | 0.374" (9.50mm) | -25°C ~ 85°C |
|
|
EEC-RF0V684CAP 680MF -20% +80% 3.6V T/H |
0 |
|
Datasheet |
RF | Bulk | Obsolete | 680 mF | -20%, +80% | 3.6 V | 40Ohm | 2000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.846" Dia (21.50mm) | 0.374" (9.50mm) | -25°C ~ 85°C |
|
EEC-RG0V105HCAP 1F -20% +80% 3.6V T/H |
0 |
|
Datasheet |
RG | Bulk | Obsolete | 1 F | -20%, +80% | 3.6 V | 20Ohm @ 1kHz | 2000 Hrs @ 85°C | PC Pins | Through Hole | Axial, Can - Horizontal | 0.787" (20.00mm) | 0.748" Dia (19.00mm) | 0.256" (6.50mm) | -25°C ~ 85°C |
|
XH311HG-IV07ECAP 20MF 3.3V SURFACE MNT |
0 |
|
Datasheet |
XH-HG | Tape & Reel (TR) | Obsolete | 20 mF | - | 3.3 V | - | - | SMD (SMT) Tabs | Surface Mount | Coin, Wide and Corner Terminals | - | 0.150" Dia (3.80mm) | 0.043" (1.10mm) | -20°C ~ 60°C |
|
EDLF104A5R5CCAP 100MF 5.5V T/H |
0 |
|
Datasheet |
F | Bulk | Obsolete | 100 mF | - | 5.5 V | 100Ohm @ 1kHz | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.531" Dia (13.50mm) | 0.374" (9.50mm) | -25°C ~ 85°C |
|
|
EDLF105B5R5CCAP 1F 5.5V THROUGH HOLE |
0 |
|
Datasheet |
F | Bulk | Obsolete | 1 F | - | 5.5 V | 50Ohm @ 1kHz | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.846" Dia (21.50mm) | 0.374" (9.50mm) | -25°C ~ 85°C |
|
|
EDLF474B5R5CCAP 470MF 5.5V T/H |
0 |
|
Datasheet |
F | Bulk | Obsolete | 470 mF | - | 5.5 V | 75Ohm @ 1kHz | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.846" Dia (21.50mm) | 0.374" (9.50mm) | -25°C ~ 85°C |
|
|
EDLF684B5R5CCAP 680MF 5.5V T/H |
0 |
|
Datasheet |
F | Bulk | Obsolete | 680 mF | - | 5.5 V | 50Ohm @ 1kHz | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.846" Dia (21.50mm) | 0.374" (9.50mm) | -25°C ~ 85°C |
|
EDLHW106D2R3RCAP 10F 2.3V THROUGH HOLE |
0 |
|
Datasheet |
HW | Bulk | Obsolete | 10 F | - | 2.3 V | 200mOhm @ 1kHz | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.457" (37.00mm) | -25°C ~ 70°C |
|
|
EDLHW226D2R3RCAP 22F 2.3V THROUGH HOLE |
0 |
|
Datasheet |
HW | Bulk | Obsolete | 22 F | - | 2.3 V | 100mOhm @ 1kHz | 1000 Hrs @ 85°C | PC Pins | Through Hole | Radial, Can | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.457" (37.00mm) | -25°C ~ 70°C |
|
EDLNF105B5R5CCAP 1F 5.5V THROUGH HOLE |
0 |
|
Datasheet |
NF | Bulk | Obsolete | 1 F | - | 5.5 V | 30Ohm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.846" Dia (21.50mm) | 0.315" (8.00mm) | -25°C ~ 70°C |
|
|
EDLNF155B5R5CCAP 1.5F 5.5V THROUGH HOLE |
0 |
|
Datasheet |
NF | Bulk | Obsolete | 1.5 F | - | 5.5 V | 30Ohm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.846" Dia (21.50mm) | 0.315" (8.00mm) | -25°C ~ 70°C |
|
EDLNF224A5R5CCAP 220MF 5.5V T/H |
0 |
|
Datasheet |
NF | Bulk | Obsolete | 220 mF | - | 5.5 V | 75Ohm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.531" Dia (13.50mm) | 0.295" (7.50mm) | -25°C ~ 70°C |
|
|
EDLNF474B5R5CCAP 470MF 5.5V T/H |
0 |
|
Datasheet |
NF | Bulk | Obsolete | 470 mF | - | 5.5 V | 30Ohm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.846" Dia (21.50mm) | 0.315" (8.00mm) | -25°C ~ 70°C |
|
EDLSD224H5R5CCAP 220MF 5.5V T/H |
0 |
|
Datasheet |
SD | Bulk | Obsolete | 220 mF | - | 5.5 V | 75Ohm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Axial, Can - Horizontal | 0.394" (10.00mm) | 0.453" Dia (11.50mm) | 0.236" (6.00mm) | -25°C ~ 70°C |
|
EDLSD224V5R5CCAP 220MF 5.5V T/H |
0 |
|
Datasheet |
SD | Bulk | Obsolete | 220 mF | - | 5.5 V | 75Ohm @ 1kHz | 1000 Hrs @ 70°C | PC Pins | Through Hole | Axial, Can - Vertical | 0.197" (5.00mm) | 0.413" Dia (10.50mm) | 0.453" (11.50mm) | -25°C ~ 70°C |
