Electric Double Layer Capacitors (EDLC), Supercapacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Termination | Mounting Type | Package / Case | Lead Spacing | Size / Dimension | Height - Seated (Max) | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

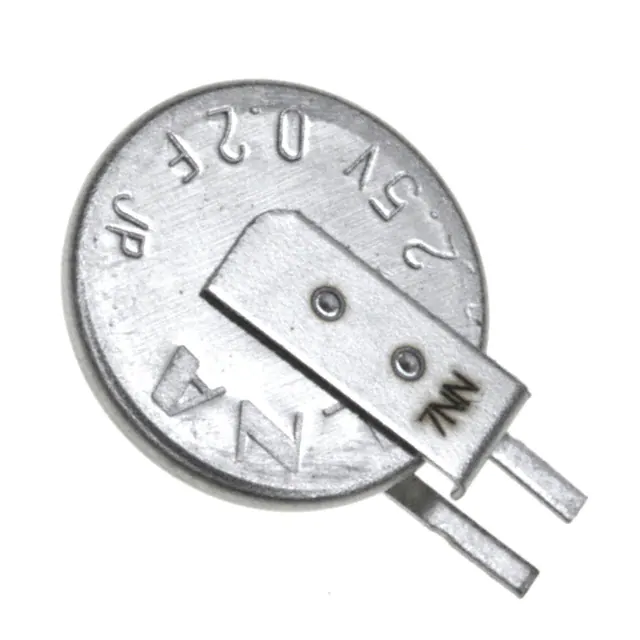

DCK-3R3E204T614-ECAP 200MF -20% +80% 3.3V SMD |
0 |
|
Datasheet |
DCK | Bulk | Obsolete | 200 mF | -20%, +80% | 3.3 V | 200Ohm @ 1kHz | 1000 Hrs @ 60°C | SMD (SMT) Tabs | Surface Mount | Coin, Thin Terminals - Same Sides | - | 0.268" Dia (6.80mm) | 0.055" (1.40mm) | -10°C ~ 60°C |
|
DXJ-5R5H473UCAP 47MF -20% +80% 5.5V T/H |
0 |
|
- |
DXJ | Bulk | Active | 47 mF | -20%, +80% | 5.5 V | 200Ohm | 1000 Hrs @ 85°C | PC Pins | Through Hole | Axial, Can - Horizontal | 0.394" (10.00mm) | 0.453" Dia (11.50mm) | 0.217" (5.50mm) | -10°C ~ 85°C |
|
|
DXJ-5R5H224UCAP 220MF -20% +80% 5.5V T/H |
0 |
|
- |
DXJ | Bulk | Active | 220 mF | -20%, +80% | 5.5 V | 150Ohm | 1000 Hrs @ 85°C | PC Pins | Through Hole | Axial, Can - Horizontal | 0.394" (10.00mm) | 0.453" Dia (11.50mm) | 0.217" (5.50mm) | -10°C ~ 85°C |
|
DXJ-5R5L473TCAP 47MF -20% +80% 5.5V T/H |
0 |
|
- |
DXJ | Bulk | Obsolete | 47 mF | -20%, +80% | 5.5 V | 200Ohm | 1000 Hrs @ 85°C | PC Pins | Through Hole | Axial, Can - Vertical | 0.197" (5.00mm) | 0.453" Dia (11.50mm) | 0.488" (12.40mm) | -10°C ~ 85°C |
|
|
DXJ-5R5L104TCAP 100MF -20% +80% 5.5V T/H |
0 |
|
- |
DXJ | Bulk | Obsolete | 100 mF | -20%, +80% | 5.5 V | 150Ohm | 1000 Hrs @ 85°C | PC Pins | Through Hole | Axial, Can - Vertical | 0.197" (5.00mm) | 0.453" Dia (11.50mm) | 0.488" (12.40mm) | -10°C ~ 85°C |
|
|
DXJ-5R5L334TCAP 330MF -20% +80% 5.5V T/H |
0 |
|
- |
DXJ | Bulk | Obsolete | 330 mF | -20%, +80% | 5.5 V | 150Ohm | 1000 Hrs @ 85°C | PC Pins | Through Hole | Axial, Can - Vertical | 0.197" (5.00mm) | 0.453" Dia (11.50mm) | 0.488" (12.40mm) | -10°C ~ 85°C |
|
|
DXJ-5R5V473UCAP 47MF -20% +80% 5.5V T/H |
0 |
|
- |
DXJ | Bulk | Active | 47 mF | -20%, +80% | 5.5 V | 200Ohm | 1000 Hrs @ 85°C | PC Pins | Through Hole | Axial, Can - Vertical | 0.197" (5.00mm) | 0.453" Dia (11.50mm) | 0.532" (13.50mm) | -10°C ~ 85°C |
|
EEC-HZ0E335CAP 3.3F -20% +40% 2.5V T/H |
0 |
|
- |
HZ | Bulk | Obsolete | 3.3 F | -20%, +40% | 2.5 V | 300mOhm | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.866" (22.00mm) | -25°C ~ 70°C |
|
EEC-HZ0E475CAP 4.7F -20% +40% 2.5V T/H |
0 |
|
- |
HZ | Bulk | Obsolete | 4.7 F | -20%, +40% | 2.5 V | 300mOhm | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | -25°C ~ 70°C |
|
EEC-HZ0E106CAP 10F -20% +40% 2.5V T/H |
0 |
|
- |
HZ | Bulk | Obsolete | 10 F | -20%, +40% | 2.5 V | 200mOhm | 1000 Hrs @ 70°C | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.260" (32.00mm) | -25°C ~ 70°C |
|
PAS0815LR2R3105CAP 1F 20% 2.3V T/H |
0 |
|
Datasheet |
LR | Bulk | Obsolete | 1 F | ±20% | 2.3 V | 70mOhm | - | PC Pins | Through Hole | Radial, Can | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.669" (17.00mm) | -25°C ~ 60°C |
|
PAS1020LA2R3475CAP 4.7F 20% 2.3V T/H |
0 |
|
Datasheet |
LA | Bulk | Obsolete | 4.7 F | ±20% | 2.3 V | 300mOhm | - | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | -25°C ~ 60°C |
|
PAS1220LA2R3106CAP 10F 20% 2.3V T/H |
0 |
|
Datasheet |
LA | Bulk | Obsolete | 10 F | ±20% | 2.3 V | 200mOhm | - | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | -25°C ~ 60°C |
|
PAS1840LA2R3566CAP 56F 20% 2.3V T/H |
0 |
|
Datasheet |
LA | Bulk | Obsolete | 56 F | ±20% | 2.3 V | 70mOhm | - | PC Pins | Through Hole | Radial, Can | 0.315" (8.00mm) | 0.709" Dia (18.00mm) | 1.654" (42.00mm) | -25°C ~ 60°C |
|
|
PAS1020LA3R0405CAP 4F 20% 3V THROUGH HOLE |
0 |
|
Datasheet |
LA | Bulk | Obsolete | 4 F | ±20% | 3 V | 300mOhm | - | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | -25°C ~ 60°C |
|
|
PAS1220LA3R0905CAP 9F 20% 3V THROUGH HOLE |
0 |
|
Datasheet |
LA | Bulk | Obsolete | 9 F | ±20% | 3 V | 200mOhm | - | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | -25°C ~ 60°C |
|
|
PAS1235LA3R0206CAP 20F 20% 3V T/H |
0 |
|
Datasheet |
LA | Bulk | Obsolete | 20 F | ±20% | 3 V | 100mOhm | - | PC Pins | Through Hole | Radial, Can | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.457" (37.00mm) | -25°C ~ 60°C |
|
|
PAS1840LA3R0506CAP 50F 20% 3V T/H |
0 |
|
Datasheet |
LA | Bulk | Obsolete | 50 F | ±20% | 3 V | 70mOhm | - | PC Pins | Through Hole | Radial, Can | 0.315" (8.00mm) | 0.709" Dia (18.00mm) | 1.654" (42.00mm) | -25°C ~ 60°C |
|

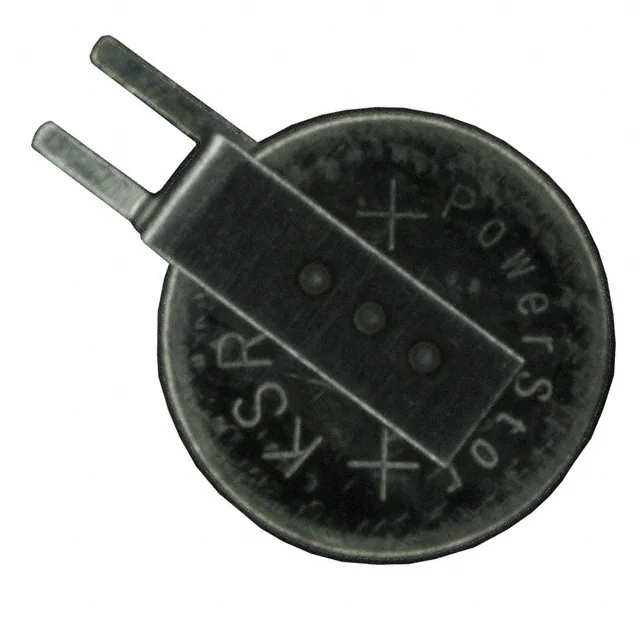

KSR-3R3204-RCAP 200MF -20% +80% 3.3V SMD |
0 |
|
Datasheet |
KSR | Bulk | Obsolete | 200 mF | -20%, +80% | 3.3 V | 200Ohm @ 1kHz | 1000 Hrs @ 60°C | SMD (SMT) Tabs | Surface Mount | Coin, Thin Terminals - Same Sides | - | 0.268" Dia (6.80mm) | 0.071" (1.80mm) | -10°C ~ 60°C |
|

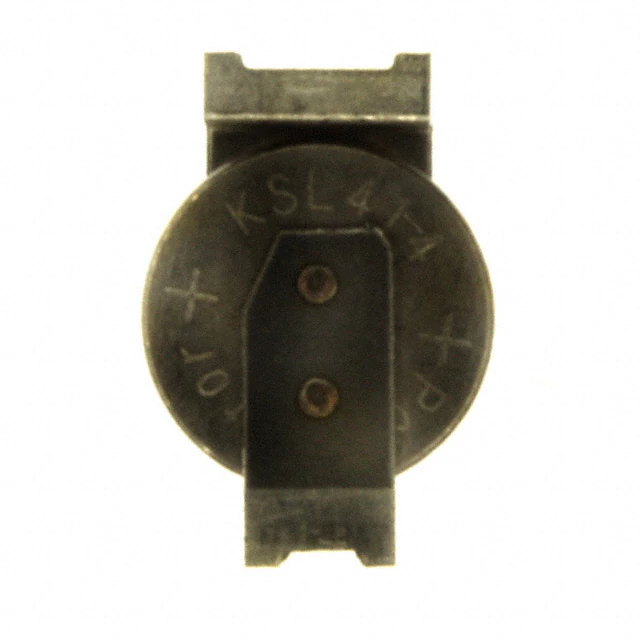

KSL-3R3703E-RCAP 70MF -20% +80% 3.3V SMD |
0 |
|
Datasheet |
KSL | Tape & Reel (TR) | Obsolete | 70 mF | -20%, +80% | 3.3 V | 100Ohm @ 1kHz | 500 Hrs @ 60°C | SMD (SMT) Tabs | Surface Mount | Coin, Wide Terminals - Opposite Sides | - | 0.189" Dia (4.80mm) | 0.063" (1.60mm) | -25°C ~ 60°C |
