Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC-05-E45JHCMC 4.5MH 5A 2LN TH |
133 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 4.5 mH @ 100 kHz | 5A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
750311650CMC 45MH 180MA 2LN TH |
134 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 45 mH @ 10 kHz | 180mA | 10.05Ohm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

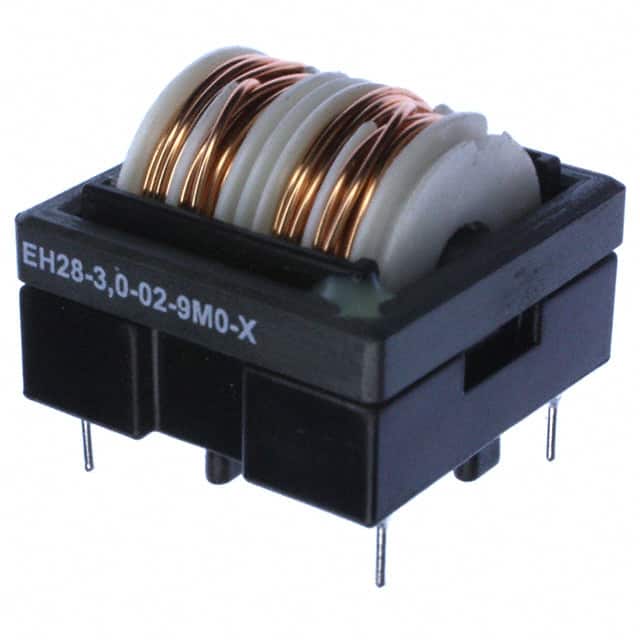

EH28-3.0-02-9M0-XCMC 9MH 3A 2LN TH |
120 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 9 mH @ 400 Hz | 3A | 115mOhm | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|

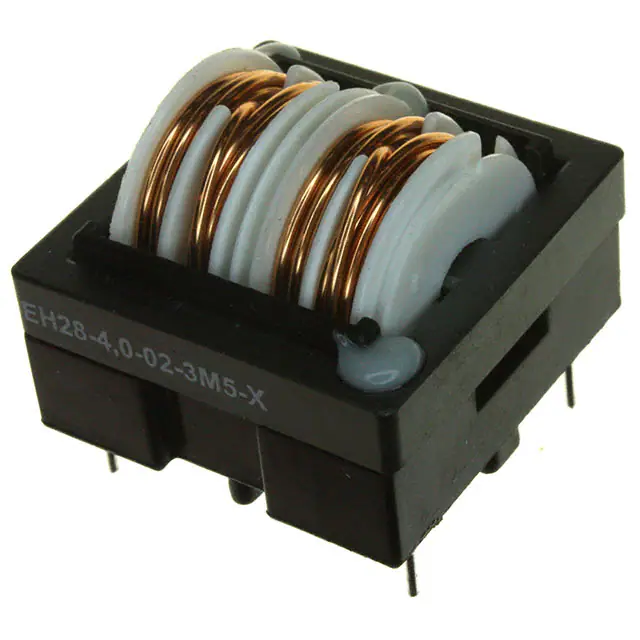

EH28-4.0-02-3M5-XCMC 3.5MH 4A 2LN TH |
382 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.5 mH @ 400 Hz | 4A | 52mOhm | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
DKFS-6248-02D5CMC 2A 2LN SMD |
1,923 |
|
Datasheet |
4-SMD | - | 2 | - | - | 2A | 50mOhm | - | 250V | -25°C ~ 100°C | - | UR | - | - | - |
|
|
DKFS-6248-0102CMC 900MA 2LN SMD |
171 |
|
Datasheet |
4-SMD | - | 2 | - | - | 900mA | 240mOhm | - | 250V | -25°C ~ 100°C | - | UR | - | - | - |
|
750315741CMC 10MH 370MA 2LN SMD |
931 |
|
Datasheet |
Horizontal, 4 Gull Wing | Power Line | 2 | - | 10 mH @ 10 kHz | 370mA | 2.5Ohm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
B82794C0686N465CMC 68MH 200MA 2LN SMD |
1,326 |
|
Datasheet |
Horizontal, 8 Gull Wing | Signal Line | 2 | - | 68 mH @ 10 kHz | 200mA | 3.4Ohm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
RN232-1-02-18MCMC 18MH 1A 2LN TH |
269 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 18 mH @ 10 kHz | 1A | 390mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
SC-02-E620HCMC 6.2MH 2A 2LN TH |
298 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 6.2 mH @ 1 kHz | 2A | 180mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-06-35JCMC 3.5MH 6A 2LN TH |
165 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.5 mH @ 10 kHz | 6A | 50mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

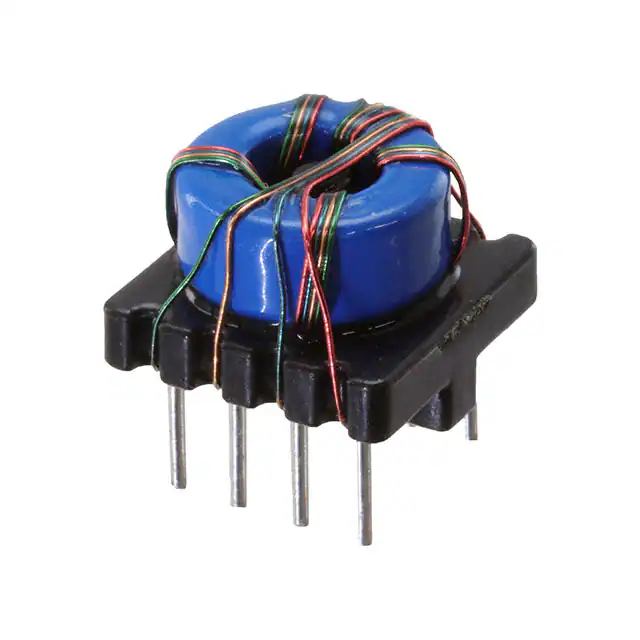

ST-204A1CMC 500MA 4LN 250 OHM TH |
199 |
|
Datasheet |
Horizontal, 8 PC Pin | - | 4 | 250 Ohms @ 10 MHz | - | 500mA | 100mOhm | 50V | - | -20°C ~ 75°C | - | - | - | - | - |
|
ST-101ACMC 200MA 2LN 3K OHM TH |
150 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | 3 kOhms @ 500 kHz | - | 200mA | 250mOhm | 50V | - | -20°C ~ 65°C | - | - | - | - | - |
|
RN242-0.5-02-82MCMC 82MH 500MA 2LN TH |
289 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 82 mH @ 10 kHz | 500mA | 2.7Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
|
RN232-2.5-02-5M6CMC 5.6MH 2.5A 2LN TH |
216 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5.6 mH @ 10 kHz | 2.5A | 86mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
SC-07-E300ACMC 3MH 7A 2LN TH |
153 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 3 mH @ 100 kHz | 7A | 45mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
7105-RCCMC 4.25MH 1A 2LN TH |
256 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | - | 2 | - | 4.25 mH @ 1 kHz | 1A | 125mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|

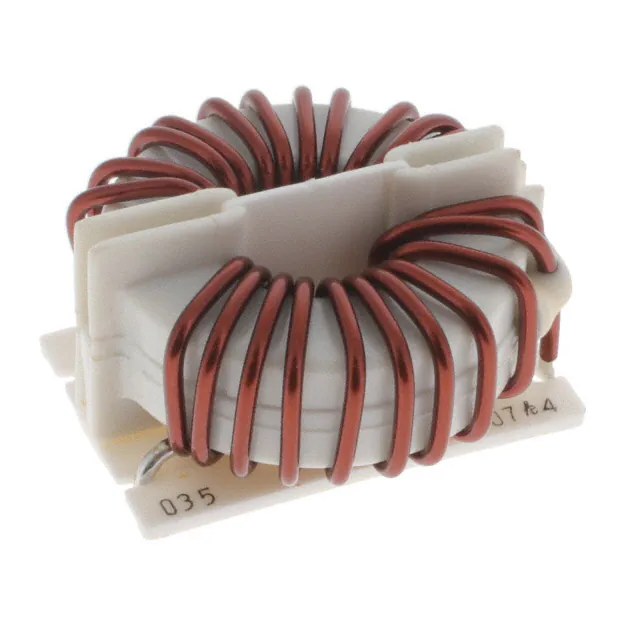

SC-09-D035JHCMC 35UH 9A 2LN TH |
127 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 35 µH @ 100 kHz | 9A | 7.8mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
|
RN232-4-02-3M3CMC 3.3MH 4A 2LN TH |
217 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 4A | 54mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
|
RN242-1.4-02-27MCMC 27MH 1.4A 2LN TH |
285 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 1.4A | 500mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
